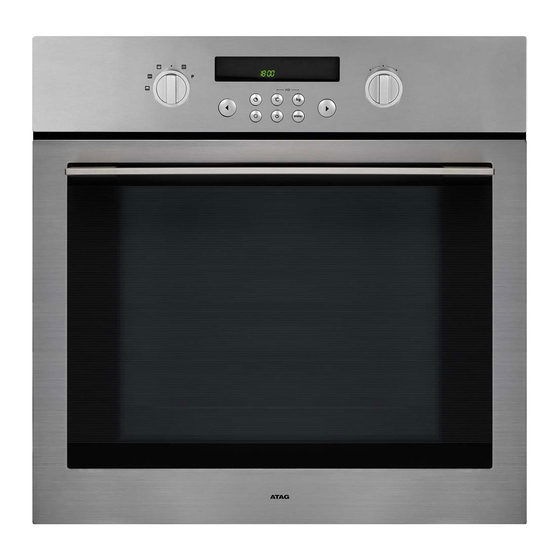

Instructions for use

Oven
Houd, wanneer u contact opneemt met de serviceafdeling, het complete typenummer bij de hand.
En cas de contact avec le service après-vente, ayez auprès de vous le numéro de type complet.
Halten Sie die vollständige Typennummer bereit,
wenn Sie mit der Kundendienstabteilung Kontakt aufnehmen.
When contacting the service department, have the complete type number to hand.
Sørg for at have hele typenummeret klar, når serviceafdelingen kontaktes.
Ha hele typenummeret for hånden når du kontakter serviceavdelingen.
Ha det kompletta typnumret till hands när du tar kontakt med serviceavdelningen.
Adressen en telefoonnummers van de serviceorganisatie vindt u op de garantiekaart.
Les adresses et les numéros de téléphone du service après-vente se trouvent sur la carte de garantie.
Adressen und Telefonnummern der Kundendienstorganisation fi nden Sie auf der Garantiekarte.
You will fi nd the addresses and phone numbers of the service organisation on the guarantee card.
Adressen og telefonnummeret til servicevirksomheden fi ndes på garantikortet.
Du fi nner adresser og telefonnumre til serviceorganisasjonen på garantikortet.
Adresser och telefonnummer till serviceorganisationen hittar du på garantikortet.
DX6411L
DX6492L
DX6411Q
DX6492Q

Advertisement

Table of Contents
loading

Related Manuals for Atag DX6411L

Summary of Contents for Atag DX6411L

  • Page 1: Instructions For Use

    You will fi nd the addresses and phone numbers of the service organisation on the guarantee card. Adressen og telefonnummeret til servicevirksomheden fi ndes på garantikortet. Du fi nner adresser og telefonnumre til serviceorganisasjonen på garantikortet. Adresser och telefonnummer till serviceorganisationen hittar du på garantikortet. DX6411L DX6492L DX6411Q DX6492Q...
  • Page 2 Handleiding NL 3 - NL 70 Notice dútilisation FR 3 - FR 70 Anleitung DE 3 - DE 70 Manual EN 3 - EN 73 Brugsvejledning DA 3 - DA 70 Bruksanvisning NO 3 - NO 73 Bruksanvisning SV 3 - SV 73 Gebruikte pictogrammen - Pictogrammes utilisés - Benutzte Piktogramme Pictograms used - Anvendte piktogrammer - Symboler brukt Symboler som används...

  • Page 3: Table Of Contents

    CONTENTS Control panel Oven features Accessories Using the accessories Features Safety instructions Installation and connection Explanation of knobs and buttons Before you begin Setting the Language and the Clock Using the oven Selecting a cavity and an oven function Setting the oven temperature Switching the oven off Setting the End time Setting the End time In Double Oven...
  • Page 4 14. Choose your own programmed dish 15. Delete your own programmed dish Cleaning and Care Pyrolitic Self Cleaning (only for DX6411Q/DX6492Q) Aqua cleaning Oven door glass (only for DX6411L/DX6492L) Cleaning the Top Heater (DX6411L/DX6492L) Changing the lamp Troubleshooting Error and safety codes...
  • Page 5 CONTROL PANEL DX6411L/DX6492L DX6411Q/DX6492Q CAVITY SELECT KNOB WINDOW DISPLAY MULTI-FUNCTION KNOB BACK BUTTON COOK TIME BUTTON END TIME BUTTON TEMPERATURE BUTTON LAMP BUTTON WEIGHT BUTTON 10. MENU BUTTON 11. NEXT BUTTON Special features The oven comes equipped with the following special features.
  • Page 6 OVEN FEATURES Control panel Side runner Catalytic enameled cover casing Oven lights Glass door Top heating elements Level 5 Level 4 Level 3 10. Level 2 11. Level 1 12. Door handle Note • Shelf levels are numbered from the bottom up. •...
  • Page 7 ACCESSORIES The following accessories are provided with your oven: Baking tray The baking tray could be used for the preparation of cakes, cookies and other pastries. Front Deep baking tray The deep baking tray should be used for roasting or collecting meat juices or fat drippings.

  • Page 8: Using The Accessories

    USING THE ACCESSORIES Warning All accessory parts and unsuitable accessories for self cleaning should be removed for pyrolytic cleaning. Note • When using the deep baking tray or the baking tray to collect drippings from cooking foods, ensure that the tray is properly placed in the Side Runners.
  • Page 9 USING THE ACCESSORIES • Rest the spit onto the cradle with the pointed end towards the back and gently push until the tip of the spit entres the turning mechanism at the back of the oven. The blunt end of the spit must rest on the ‘v’...
  • Page 10 It will turn off when the internal cabinet temperature has dropped to 60 °C or after 22 minutes. Thank you for purchasing an ATAG built-in oven. First read the user instructions carefully and completely before starting to use the appliance, and keep them carefully for future reference.

  • Page 11: Safety Instructions

    • Repairs should be performed by a licensed technician only. Improper repair may result in considerable danger to you and others. If your oven needs repair, contact the Atag Customer Service or your dealer. • If the supply cord is defective, it must be...
  • Page 12 SAFETY INSTRUCTIONS be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction...
  • Page 13 SAFETY INSTRUCTIONS • For your safety, do not use high-pressure water cleaners or steam jet cleaners. • Children should be kept at a safe distance when the oven is in use. • Frozen foods such as pizzas should be cooked on the wire rack.

  • Page 14: Installation And Connection

    INSTALLATION AND CONNECTION Safety instructions for the installation This oven may be installed only by an approved electrician. The installer is responsible for connecting the appliance to the mains and in so doing for observing the relevant safety regulations. • Ensure protection from live parts when installing the oven. •...
  • Page 15 INSTALLATION AND CONNECTION 1. Fix the oven on both sides using screws. 2. After installation, remove the vinyl protective film from the door to the appliance and the protective film from the interior surfaces of the oven. Connecting to the mains power supply •...
  • Page 16 EXPLANATION OF KNOBS AND BUTTONS The Menu Button After you have pressed the Menu Button, you can choose several settings by turning the Multi-function Knob. Choose a setting, press the Next Button to confirm and again you can choose several settings by turning the Multi-function Knob.
  • Page 17 EXPLANATION OF KNOBS AND BUTTONS If the ‘End Time’ or ‘Temperature’ button is THE OVEN IS ON! Confirm, the cooking time Set the cooking time pressed, those functions Cook time is blinking stops blinking will start blinking and can be adjusted (if available) THE OVEN IS OFF! Confirm, the kitchen timer starts Set the desired time...
  • Page 18 EXPLANATION OF KNOBS AND BUTTONS If the ‘Cook Time’, ‘Temperature’ or ‘End Confirm, the weight stops Time’ button is pressed, Weight is blinking Change the weight blinking those functions will start blinking and can be adjusted (if available) If you have choosen a setting with the Cavity Select Knob, you can also choose several settings by turning the Multi-function Knob.
  • Page 19 EXPLANATION OF KNOBS AND BUTTONS Press to adjust Hot air or add the: Turn to • Cooking Time Top Heat + Hot air Press to confirm change Upper • Temperature cavity Large Grill • End Time Auto Cook See page 51 Hot air Top Heat + Hot air Press to adjust...

  • Page 20: Setting The Language And The Clock

    BEFORE YOU BEGIN Setting the Language and the Clock When the power is first supplied to the oven, you must set the language and the time. 1  Turn the Multi-function Knob to set the language. 2  Press the Next Button to confirm the set- ting.

  • Page 21: Before You Begin

    BEFORE YOU BEGIN If you want to change the time later on, you can do this by pressing the Menu Button and choose ‘Time’ by turning the Multi-function Knob. Then follow the steps 2, 3, 4 and 5 as described on this page.

  • Page 22: Using The Oven

    USING THE OVEN Oven functions Conventional Food is heated by top and bottom heating elements. This setting is suitable for baking and roasting. Top Heat + Hot air We recommend this mode when roasting meat. The top heating element is in operation and the fans operate to circulate the hot air coming from top and back wall heating element.

  • Page 23: Selecting A Cavity And An Oven Function

    USING THE OVEN Selecting a cavity and an oven function For Upper Cavity, Lower Cavity and Double Oven, insert the divider at the ‘OFF’ position of Cavity Select Knob. For Single Oven, remove the divider at the ‘OFF’ position. 1  Turn the Cavity Select Knob to select the desired partition.
  • Page 24 USING THE OVEN Upper Cavity Only the upper heating element operates. The divider should be inserted. Hot air Top Heat + Hot air Large Grill You can choose to operate the lower cavity also after some time (see Double Oven). Lower Cavity Only the lower heating element operates.
  • Page 25 USING THE OVEN Bottom Heat + Hot air You can choose to operate the upper cavity also after some time (see Double Oven). Double Oven The upper and lower cavities operate at the same time. It is possible to set which cavity activates first. When one of the dishes has finished cooking in Double Oven and you would like to change the cooking time or temperature of the other partition, turn the Cavity Select Knob to select the cavity (upper or lower) that you would like to continue...
  • Page 26 USING THE OVEN Double Oven, lower cavity Hot air Bottom Heat + Hot air • If you have chosen an Auto Cook program for Double Oven first, only an Auto Cook program for Double Oven can be selected for the other cavity.
  • Page 27 USING THE OVEN Conventional Large Grill Small Grill Bottom Heat + Hot air Bottom heat Defrost EN 27...

  • Page 28: Setting The Oven Temperature

    USING THE OVEN Setting the oven temperature In Single Oven, Upper Cavity and Lower Cavity 1  Press the Temperature Button. 2  Turn the Multi-function Knob to adjust the temperature in increments of 5 °C. Single Oven 40 °C – 250 °C (Large Grill &...

  • Page 29: Switching The Oven Off

    USING THE OVEN Switching the oven off To switch the oven off, turn the Cavity Select Knob to the ‘Off’ position. Setting the End time You can set the end time during cooking. In Single Oven, Upper Cavity and Lower Cavity 1 ...

  • Page 30: Setting The End Time In Double Oven

    USING THE OVEN Setting the End time In Double Oven End times for the upper and lower cavity can be selected using the End Time Button and the Multi-function Knob. 1  Press the End Time Button twice (lower cavity). Example: current time is 12:00. 2 ...

  • Page 31: Setting The Cook Time

    USING THE OVEN Setting the Cook time You can use the ‘set cook time function’ in operating status. In Single Oven, Upper Cavity and Lower Cavity 1  Press the Cook Time Button. 2  Turn the Multi-function Knob to set the desired cook time.

  • Page 32: Setting The Cook Time In Double Oven

    USING THE OVEN Setting the Cook time In Double Oven Cook times for the upper and lower cavity can be selected by using the Cook Time Button and the Multi-function Knob. 1  Press the Cook Time Button twice (lower cavity). 2 ...

  • Page 33: Setting The Delayed Start Time

    USING THE OVEN Setting the Delayed Start Time Case 1 - Cook time is entered first If the end time is entered after the cook time has already been set (see page 32), the cook time and the end time are calculated and if necessary the oven sets a delayed start point.
  • Page 34 USING THE OVEN Case 2 - End time is entered first If the cook time is entered after the end time has already been set, the cook time and the end time are calculated and if necessary the oven sets a delayed start point. 1 ...

  • Page 35: Kitchen Timer

    USING THE OVEN Kitchen timer 1  THE OVEN IS OFF! Press the Cook Time Button. The alarm symbol flashes. 2  Turn the Multi-function Knob to set the desired time. Example: 5 minutes 3  Press the Cook Time Button to start the kitchen timer.

  • Page 36: Switching The Sound On/Off

    USING THE OVEN Child safety function 1  Press the Temperature Button and the Weight Button at the same time. Hold for 3 seconds. 2  A symbol appears in the display field. Press the Temperature Button and the Weight Button at the same time again to unlock.
  • Page 37 USING THE OVEN 3  Turn the Multi-function Knob to change the setting (on or off). 4  Press the Next Button to save the setting. EN 37...

  • Page 38: Conventional

    OVEN FUNCTIONS 1. Conventional The Conventional function is ideal for baking and roasting foods arranged on one rack. Both the top and bottom heating elements operate to maintain the oven temperature. We recommend to preheat the oven in Conventional mode. Shelf Temperature Food Item...

  • Page 39: Top Heat + Hot Air

    OVEN FUNCTIONS 2. Top Heat + Hot air The top heating element is in operation and the fan operates to constantly circulate the Hot air.We recommend to preheat the oven with Top Heat + Hot air mode. Temperature Time Food Item Shelf Level Accessory (°C)

  • Page 40: Oven Functions

    OVEN FUNCTIONS Hot air This function bakes foods placed on up to three shelves and is also appropriate for roasting. Cooking is achieved by the heating element on the rear wall and the fan distributes the heat. We recommend to preheat the oven in Hot air mode.

  • Page 41: Large Grill

    OVEN FUNCTIONS 4. Large Grill The large grill function grills large quantities of flat foods, such as steaks, schnitzels and fish. It is also suitable for toasting. Both the top heating element and the grill are on in this mode. We recommend to preheat the oven using Large Grill mode.

  • Page 42: Small Grill

    OVEN FUNCTIONS 5. Small Grill This setting is for grilling smaller amounts of flat foods, such as steaks, schnitzels, fish and toast, placed in the middle of the tray. Only the top element is in operation. Put food in the centre of accessory. Food Item Shelf Level Accessory...

  • Page 43: Bottom Heat + Hot Air

    OVEN FUNCTIONS 6. Bottom Heat + Hot air The Bottom Heat + Hot air mode is for recipes calling for a moist topping and a crisp base, as with foods like pizzas, quiches lorraine, German-style open fruitcakes and cheesecakes. We recommend to preheat the oven in Bottom Heat + Hot air mode.

  • Page 44: Double Oven

    OVEN FUNCTIONS 7. Double Oven Using Double Oven you can cook two different food items in your oven. When cooking in upper and lower cavity you can use different temperatures, cooking modes and cooking times. For example, you can grill steaks and bake gratin simultaneously. Using the divider, you can cook gratin in the lower and steaks in the upper part of the oven.
  • Page 45 OVEN FUNCTIONS 8. Auto Cook Programs Your microwave oven has several Auto Cook Programs for Single Oven, Upper Cavity, Lower Cavity and Double Oven. On the next pages you will find more information about the Auto Cook Programs. You can also program your own dishes. See page 54 + 55 for more information.

  • Page 46: Auto Cook Programs

    OVEN FUNCTIONS 5  Choose a weight range by turning the Multi-function Knob. (You can adjust the weight by pressing the Weight Button and then turn the Multi-function Knob. Confirm by pressing the Weight Button again). 6  To start the Auto Cook Program, press the Next Button.

  • Page 47: Auto Cook Programs For Single Oven

    OVEN FUNCTIONS 9. Auto Cook Programs for Single Oven The following table presents 27 Auto Programs for Cooking, Roasting and Baking. Those can be used in the single cavity of your oven. Always remove the divider. It contains its quantities, weight ranges and appropriate recommendations.
  • Page 48 OVEN FUNCTIONS Category: Meat Food Item Serving Weight/kg Accessory Shelf Level Thin 0.3 - 0.6 Roast wire rack Beef Steaks Thick 0.6 - 0.8 Deep baking tray Put 2-6 beef steaks side by side evenly on roast wire rack. The first setting is for thin steaks, the second setting is for thick steaks.
  • Page 49 OVEN FUNCTIONS Category: Fish Food Item Serving Weight/kg Accessory Shelf Level 2 fish 0.5 - 0.7 Steamed Fish Wire rack 4 fish 0.8 - 1.0 Put prepared fresh fish (e.g. trout, haddock, codfish) in a suitable sized ovenproof glassware with lid. Add liquid until bottom of dish is covered e.g. 3-4 tbsp. lemon juice, white wine or water and cover with lid.
  • Page 50 OVEN FUNCTIONS Category: Bakery Food Item Serving Weight/kg Accessory Shelf Level Loaf Cake Rectangular 0.7 - 0.8 Wire rack Put dough into a rectangular, buttered, black metal baking dish, with a length of 30 cm. Apple Pie 24cm round tin 1.2 - 1.4 Wire rack Prepare apple pie (Dutch style) in a round black metal dish with a diameter 24 cm.

  • Page 51: Auto Cook Programs For Upper Cavity

    OVEN FUNCTIONS 10. Auto Cook Programs for Upper Cavity The following table presents 5 Auto Programs. Those can be used in the upper cavity of your oven. It contains its quantities, weight ranges and appropriate recommendations. Cooking Modes and times have been pre-programmed for your convenience.

  • Page 52: Auto Cook Programs For Lower Cavity

    OVEN FUNCTIONS 11. Auto Cook Programs for Lower Cavity The following table presents 5 Auto Programs. Those can be used in the lower cavity of your oven. It contains its quantities, weight ranges and appropriate recommendations. Cooking Modes and times have been pre-programmed for your convenience.

  • Page 53: Auto Cook Programs For Double Oven

    OVEN FUNCTIONS 12. Auto Cook Programs for Double Oven The following table presents 5 Auto Programs. Those can be used in the upper and lower cavity of your oven at the same time. It contains its quantities, weight ranges and appropriate recommendations. Cooking Modes and times have been pre-programmed for your convenience.

  • Page 54: Add Your Own Programmed Dishes

    OVEN FUNCTIONS 13. Add your own programmed dishes You can program 10 of your own dishes and save it as an Auto Cook Program for Single Oven, Upper Cavity and Lower Cavity. How to add your own dish 1  Press the Menu Button and choose ‘Dish- es’...
  • Page 55 OVEN FUNCTIONS 5  Choose ‘Single Oven’, Upper Cavity’ or ‘Lower Cavity’ by turning the Multi- function Knob. Press the Next Button to confirm the setting. 6  Select an oven function by turning the Multi-function Knob. Only the functions of the chosen cavity are available! 7 ...

  • Page 56: Choose Your Own Programmed Dish

    OVEN FUNCTIONS 14. Choose your own programmed dish 1  Turn the Cavity Select Knob to select the desired partition. 2  Choose ‘Auto Cook’ by turning the Multi- function Knob. Press the Next Button to confirm the setting. 3  Choose ‘Added Dishes’ by turning the Multi-function Knob.

  • Page 57: Delete Your Own Programmed Dish

    OVEN FUNCTIONS 15. Delete your own programmed dish 1  Press the Menu Button and choose ‘Dishes’ by turning the Multi-function Knob. 2  Press the Next Button to confirm the setting. 3  Choose ‘Delete’ by turning the Multi- function Knob. Press the Next Button to confirm the setting.

  • Page 58: Cleaning And Care

    CLEANING AND CARE Pyrolitic Self Cleaning (only for DX6411Q/DX6492Q) This mode is for cleaning the oven automatically. It burns the leftover grease in the oven so that it can be wiped out when the oven cools down. During the Pyrolitic Self Cleaning the oven door is locked automatically. When the oven temperature heats up to 300 °C, the door will be locked automatically for Door locking ( )

  • Page 59: Aqua Cleaning

    CLEANING AND CARE Level Duration approx 120 minutes approx 150 minutes High approx 180 minutes 3  After the oven has cooled down, wipe the oven door and along the edges of the oven with a damp cloth. Aqua cleaning   Remove all accessories from the oven, including the Side Runners (see page 67).
  • Page 60 CLEANING AND CARE Aqua cleaning notes • Take care when opening the door before the end of the aqua cleaning procedure; the water on the bottom is hot. • Open the oven door and remove the remaining water with a sponge.
  • Page 61 CLEANING AND CARE Warning • Make sure the oven and accessory is cool before cleaning. • Do not use high - pressure water cleaners or steam jet cleaners to clean the oven. Rapid drying 1. Leave the oven door ajar at an angle of approximately 30°. 2.
  • Page 62 CLEANING AND CARE Cleaning the oven door For normal use, the oven door must not be removed but if removal is necessary, for example, for cleaning purposes, follow these instructions. Caution: The oven door is heavy. Door removal 1. Open the door and flip open the clips at both hinges completely. 2.
  • Page 63 CLEANING AND CARE Attaching the door 1. With the clips still flipped open, align the door hinges into the hinge holes. 2. Rotate the door toward the horizontal line and flip the clips closed. The hinge is normally inserted. Hinge Hinge hole EN 63...

  • Page 64: Oven Door Glass (Only For Dx6411L/Dx6492L)

    CLEANING AND CARE Oven door glass (only for DX6411L/DX6492L) The oven door is equipped with three sheets of glass placed against each other. These sheets can be removed for cleaning. Door glass removal The oven door is equipped with three sheets of glass placed against each other.
  • Page 65 CLEANING AND CARE Oven door glass (only for DX6411Q/DX6492Q) The oven door is equipped with four sheets of glass placed against each other. The inner & middle sheets can be removed for cleaning. Warning • Whenever the door is separated from the oven, the clips should be flipped open.
  • Page 66 CLEANING AND CARE 4. Detach the inner glass #2 and holder glass rubbers from the door. Glass #2 5. Detach the glass #3 from the door Glass #3 Door bracket Holder glass rubber (Right and Left) Glass #1 Glass #2 Glass #3 Glass #4 •...
  • Page 67 CLEANING AND CARE Cleaning the Side runners To clean the interior of the oven, the Side Runners can be removed. Detaching the Side Runners Press the central part of the side runner top portion. Rotate the side runner by approximately 45°. Pull the side runner out of the two holes in the bottom and remove the side runner.

  • Page 68: Cleaning The Top Heater (Dx6411L/Dx6492L)

    CLEANING AND CARE Cleaning the Top Heater (DX6411L/DX6492L) 1  Remove the upper nut circular by turning it anti-clockwise while holding the top of the heater. The front of the Top Heater inclines down- wards. 2  When the cleaning has been done, lift the top of the heater back to its original level and turn the nut circular clockwise.

  • Page 69: Changing The Lamp

    • Protect the oven light bulb and the glass cap by laying a cloth on the bottom of the oven compartment. Bulbs can be purchased from the ATAG Customer Service. Replacing the rear oven lamp and cleaning the glass cap 1.

  • Page 70: Troubleshooting

    TROUBLESHOOTING If you have problems with your oven, try the solutions suggested below. They may save you the time and inconvenience of an unnecessary service call. What should I do if the oven doesn’t heat up? Check to see if one of the following actions resolves the issue: •...

  • Page 71: Error And Safety Codes

    An error of the oven may cause low per- formance and problems in safety. Stop using the oven immediately. If any of the above errors occur, please contact ATAG Customer Service. The following error codes appear if the accessory is not appropriate for the function that has been chosen.

  • Page 72: Technical Specifications

    TECHNICAL SPECIFICATIONS Model DX6411L/ DX6411Q/ DX6492L DX6492Q Power Source 230 V ~ 50 Hz 230 V ~ 50 Hz Output Rating max. 3650 W max. 3650 W Dimensions (W x H x D) 598 x 595 x 566 mm 598 x 595 x 566 mm...

  • Page 73: Disposal Of Appliance And Packaging

    DISPOSAL OF APPLIANCE AND PACKAGING Disposal of packaging and appliance Durable materials were used in the manufacture of this appliance. Make sure to dispose of the unit responsibly at the end of its life cycle. Ask your local authorities for more information about how to do so. The appliance packaging is recyclable.

This manual is also suitable for:

Dx6492qDx6492lDx6411q
