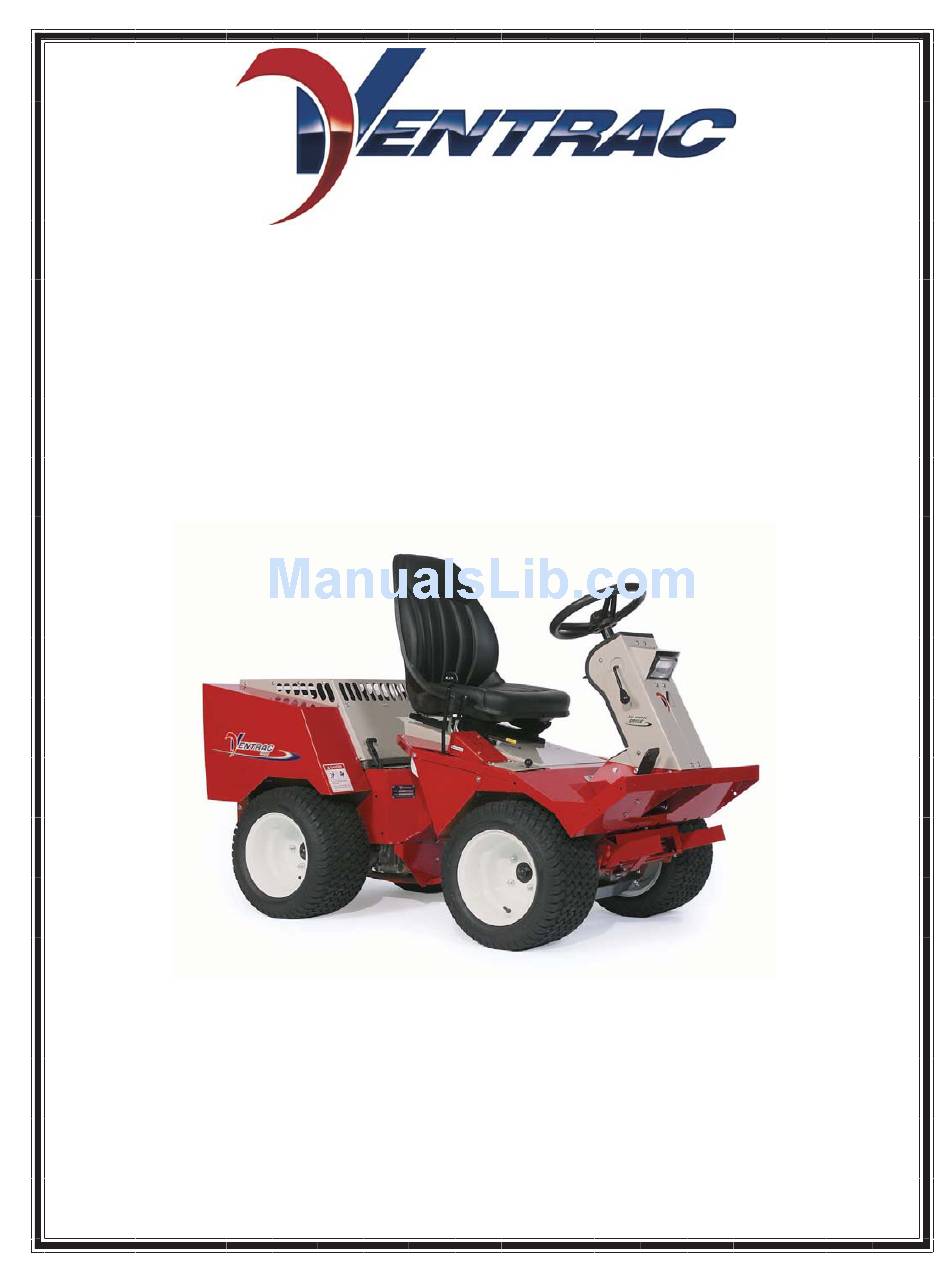

- Page 1 OWNER/OPERATOR’S MANUAL VENTRAC 3000 REVISED 09-30-05 09.10038 Venture Products Inc. Orrville, OH...
-
Page 2: To The Owner
TO THE OWNER Congratulations on the purchase of a new VENTRAC 3000! The purpose of this manual is to assist you in its safe and effective operation and maintenance. With proper usage and care, the machine will provide many years of service. Please read and understand this manual entirely before using the machine. -
Page 3: Table Of Contents
MAINTENANCE & SERVICE Section D Engine ..........................D-1 General Instructions ....................... D-1 Fuel In-line Filter ......................D-2 Transaxles, Hydraulic Oil ....................D-2 Hydraulic Oil, Battery..................... D-3 Brake Adjustment ......................D-4 Neutral Adjustment ......................D-4 Towing, Free-wheeling ....................D-5 VENTRAC 3000... - Page 4 PTO Belt Replacement ....................D-9 SERVICE SCHEDULE Section E Service Schedule ......................E-1 Daily ..........................E-1 Visual ..........................E-1 Oil & Filter Change ......................E-1 Transaxle Oil & Filters ....................E-1 Storage ..........................E-1 ELECTRICAL DIAGRAM Section F WARRANTY VENTRAC 3000...
-
Page 5: Introduction
* The open left fender area enhances getting on and off the VENTRAC 3000. Extend the right foot into place like getting into a car or truck, then simply sit on the seat and lift the left foot to the platform. To dismount, reverse the process. - Page 6 OPTIONS: Control: Left Foot pedal kit Hydraulic: Auxiliary control package Tires: Turf Trac RIS 18 x 9.50 x 8 NHS Roll cage with 39.36106 seat belt: * Speeds vary according to tire size, type and inflation Revised 10-29-02 VENTRAC 3000...
-
Page 7: Safety
It marks safety precautions!! Before Operating: Read and understand this manual before operating the Ventrac 3000 machine. Study the operating section and take time to get familiar with all controls and their functions. Always use proper safety precautions. Observe all safety decals. -
Page 8: On Slopes
NEVER TURN ENGINE OFF ON A HILL OR SLOPE WITHOUT FIRST MAKING SURE THE PARKING BRAKE WILL HOLD THE TRACTOR IN PLACE. Before leaving the seat, always set the control selector in “park brake” position. Always Use Common Sense! VENTRAC 3000... - Page 9 DO NOT make sharp turns at high speeds! Turning reduces vehicle stability. DO NOT tow! Sudden starts or stops can up-end the tractor. Always use caution when starting and stopping. Always Use Common Sense! VENTRAC 3000...
-
Page 10: Seat Belt & Roll Cage
Seat belt must always be used if machine is equipped with a roll bar. Machine towing: Towing is not recommended but in some cases the machine may need to be pushed a short distance. Park brake is functional in freewheeling mode. See page D-5 for “freewheeling mode”. VENTRAC 3000... -
Page 11: Operation
VENTRAC 3000! The first sight of the VENTRAC 3000 reveals its low profile, four (4) identical drive tires and the articulated frame. Less obvious is the easy-to-use fast hitch and PTO drive that accommodates use of other attachments. -
Page 12: Front Controls
“Easy Shift” reduces operator arm fatigue when machine is operated for an extended length of Figure 6 time. VENTRAC 3000... -
Page 13: Side Controls
SECTION C OPERATION SIDE CONTROLS Right side directional and front hitch lift control (Figure 7) is standard on all VENTRAC 3000s. The primary lever with the large round knob is the directional control (sometimes called the Forward/ Reverse lever, or F/R). - Page 14 Before using jumper cables or connecting a battery charger, always check polarity. The RED cover means POSITIVE. The BLACK cover means NEGATIVE. The negative wire should always be connected to the frame! Figure 11 VENTRAC 3000...
- Page 15 SECTION C OPERATION SEAT Each VENTRAC 3000 has an adjustable seat — fore and aft. Each operator should adjust the seat for the greatest control and comfort. (Figure 12). Note: Seat plate mounting hole options are available for additional variables in seat positioning. The seat can be tilted forward during nonuse for inspection and servicing access.
-
Page 16: Front Hitch & Pto Drive
The two rail, EASY-TACH, front hitch (Figure 15) creates a stable and secure mounting of attachments to the VENTRAC 3000! Just align the two rails to the two corresponding receiver arms on the attachment. Lower the tractor hitch for the initial contact with the attachment arm tabs. -
Page 17: Attaching Attachments
1. Attachment change is made easier and safer by always using level clean surfaces. 2. Heavy duty, close tolerance latch hooks (Figure 21) make complete engagement of attachment hitch necessary on both sides before “Easy Tach” lock can close. Figure 21 VENTRAC 3000... -
Page 18: Detachment
Increase the Figure 24 engine RPM’s and/or increase the warm-up time and try again. The VENTRAC 3000 is equipped with a heavy-duty electric clutch causing potential engine stalls by the abrupt and forceful transfer of power. -
Page 19: Lights
7. Once the engine is started, let it warm up. Always check to see if the steering system is responsive before attempting to drive. In cold weather conditions, extend the warm-up period. 8. For the PTO to operate, the operator has to be sitting on the seat. VENTRAC 3000... -
Page 20: Operating On Slopes
OPERATION OPERATING ON SLOPES Operation on slopes decreases machine stability and increases the possibility for unexpected difficulties. Only experienced VENTRAC 3000 operators should operate the machine on slopes and extra caution should be applied that include: (See drawings at right.) 1.—... -
Page 21: Engine
SECTION D SERVICE & MAINTENANCE SERVICE & MAINTENANCE ENGINE See engine manufacturer’s OWNERS MANUAL in your VENTRAC 3000 manual pocket for details on engine care. GENERAL INSTRUCTIONS Daily: Check oil level daily Check/clean air intake screen 8 Hours: initial oil change... -
Page 22: Fuel In-Line Filter
SERVICE & MAINTENANCE FUEL LINE FILTER IN-LINE FILTER All VENTRAC 3000’s have an in-line fuel filter (Figure 1) located next to the fuel tank. Always use clean, fresh fuel. Keep the fill area clean and the fuel cap in place except for filling. If or when... - Page 23 (Figure 4). To install the new battery, reverse the above instructions. Be sure the new battery has the same dimensions, top terminals, and is installed with the terminals on the side toward the engine. Figure 4 VENTRAC 3000...
-
Page 24: Brake Adjustment
Figure 8-rear Note: Engine needs to be running to make the neutral adjustment. Jacking one tire up on each transaxle will prevent accidental movement and possible injury. If uncertain or in doubt about this procedure, contact your servicing dealer. VENTRAC 3000... -
Page 25: Towing/Free-Wheeling
Failure to release one or both handles creates a potential free-wheeling hazard. Park brake is still operative in free-wheeling mode but must be released in order to tow. Figure 10—Left side Figure 9—Right side Rear frame Front frame VENTRAC 3000... -
Page 26: Drive Belts
SECTION D SERVICE & MAINTENANCE DRIVE BELTS The VENTRAC 3000 has three drive belts: one PRIMARY drive belt, one REAR transaxle belt and one FRONT transaxle belt. The PRIMARY DRIVE BELT (Figure LTB-A) connects Figure LTB-A the engine pulley to the center drive shaft pulley in the pivot area of the articulated frame. -
Page 27: Belt Replacement
This makes clearance for belts to be removed or installed over the center shaft assembly. Do not remove bearing from shaft. Remove the adjustable flat belt idler on the front transaxle belt located just below the crossover frame section (Figure 16). Figure 16 VENTRAC 3000... -
Page 28: Pto Drive Belt
(Figure 19). A torsion, double prong spring activates the PTO idler. It Figure 18 is accessed on the outside of the front frame down behind the right front tire (Figure 20). Figure 20 Figure 19 VENTRAC 3000... -
Page 29: Pto Belt Replacement
Reverse procedure to install the new belt. Be sure to reinstall clutch torque arm (Figure 22 & 23). Note: Remove seat assembly and any front mounted attachment for greater access. See seat section (page C-5). Figure 22 Figure 23 VENTRAC 3000... -
Page 30: Service Schedule
If there is an oil leak or new attachments have been used that require “priming”, the front transaxle oil level should be checked at that time. Storage Drain fuel tank, check for proper tire inflation and remove battery. VENTRAC 3000... -
Page 31: Electrical Diagram Section F
SECTION F ELECTRICAL DIAGRAM ELECTRICAL DIAGRAM 19 HP KAWASAKI ENGINE HBA1346-HBA1425 21 HP KAWASAKI ENGINE Beginning with Serial Number: JBA1426 Revised 10-29-02 VENTRAC 3000... - Page 32 Ventrac equipment. Proof of purchase may be required by the dealer to substantiate any warranty claim. Only warranty work performed and submitted by an Authorized Ventrac Dealer may be eligible for warranty credit.
- Page 33 (i) damage or defects due to or arising out of repair of Ventrac turf equipment by person or persons other than an authorized Ventrac service dealer or the installation of parts other than genuine Ventrac parts or Ventrac recommended parts.
