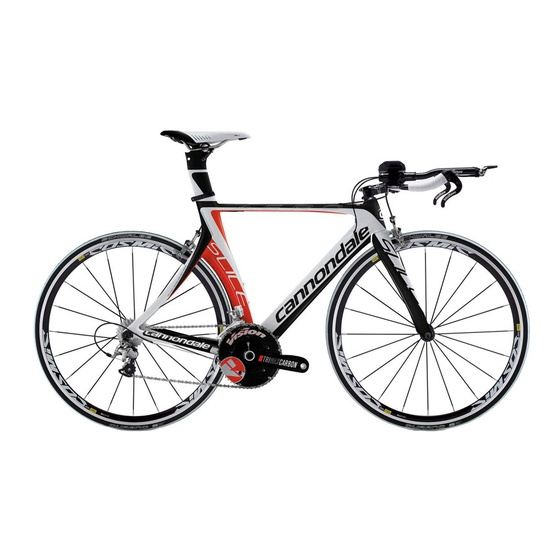

Cannondale slice carbon Owner's Manual Supplement
  1. Manuals
  2. Brands
  3. Cannondale Manuals
  4. Bicycle
  5. Slice Carbon
  6. Owner's manual supplement

Cannondale slice carbon Owner's Manual Supplement

Hide thumbs Also See for slice carbon:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
safety information ............................... 1
about this supplement .......................... 2
intended Use ............................................... 3
Building Up a frameset ........................... 4
extreme temperatures ............................. 4
Bike stands ................................................... 4
repainting and refinishing ................... 5
serial nUmBer ............................................. 6
CaBle roUting ............................................. 6
seat Post ......................................................... 8
saddle Position/angle ............................. 8
80mm minimUm insert ........................ 9
Cutting the seat Post................................ 9
seat Post Parts ..........................................10
Changing saddle Position ....................11
Please note that the specifications and information in this manual are subject to change for
product improvement. for the latest product information, go to
com/tech/.
READ THIS MANUAL CAREFULLY!
It contains important safety information.
Keep it for future reference.
slice carbon
Owner's Manual Supplement
120849.PDF
CONTENTS
si Bottom BraCKet sHell ...................12
Compatibility ............................................12
Bearings ........................................................ 9
si tools .........................................................11
68mm standard adapter ......................12
si ComPression assemBly ..................14
CHainstay ProteCtion ..........................16
rear DerailleUr Hanger ....................16
rear BraKe moUnt aDaPter ..............17
geometry/sPeCifiCation ....................18
rePlaCement Parts .................................19
http://www.cannondale.

Advertisement

Table of Contents
loading

Related Manuals for Cannondale slice carbon

Summary of Contents for Cannondale slice carbon

  • Page 1: Table Of Contents

    READ THIS MANUAL CAREFULLY! It contains important safety information. Keep it for future reference. slice carbon Owner’s Manual Supplement 120849.PDF CONTENTS safety information ....... 1 si Bottom BraCKet sHell ....12 about this supplement ......2 Compatibility ..........12 important Composites message ..3 Bearings ............

  • Page 2: Safety Information

    WARNING Cannondale Dealer immediately, or call us at one of the telephone numbers listed on the IMPORTANT COMPOSITES MESSAGE back cover of this manual.

  • Page 3: Intended Use

    HAZARDOUS. USING YOUR BIKE THE WRONG WAY IS DANGEROUS. industry usage Conditions 1 - 5 are generalized and evolving. Consult your Cannondale Dealer about how you intend to use your bike. Please read your Cannondale Bicycle For riding on Owner’s Manual for more information pavement about intended Use and Conditions 1-5.

  • Page 4: Building Up A Frameset

    Before building up a frameset, consult with generate a crushing force strong enough to your Cannondale Dealer and the component seriously damage and ruin your bike frame. manufacturers, and discuss your riding style,...

  • Page 5: Repainting And Refinishing

    (see refinishing chemicals. Part ii, section D. inspect for safety in your Cannondale Bicycle owner’s manual.) WARNING Do not ride your bike if you see any sign of damage, such as broken, splintered, or repainting, painting over, retouching, or delaminated carbon fiber.

  • Page 6: Serial Number

    (1) printed and permanently affixed barcode label. Use this serial number for warranty registration and theft recovery. see your Cannondale Bicycle Owner’s Manual for more information on warranty registration. cable routing the rear and front derailleur cables exiting the...
  • Page 7 10849.PDF Rear Brake Housing Rear Brake Frame Opening Cable Ferrule Front Derailluer Frame Opening Cable Ferrule Top Tube Opening Brake Housing Rear Brake Cable Ferrule KP063/ Guide...

  • Page 8: Seat Post

    seat post Tighten both 6 Nm clamp bolts evenly MINIMUM INSERT 80mm 6 Nm Clean and apply Carbon seat post gel (kf115/) to the post before inserting into frame Saddle Position and Angle the seat post can be configured to place the saddle in a triatHlon or time trial position. Please see “Changing saddle Position”...

  • Page 9: 80Mm Minimum Insert

    10849.PDF 80mm Minimum Insert the minimum insert depth that the seat post must be inserted into the frame is 80mm. seat posts are permanently marked with ‘minimUm insert” line 80mm up from the bottom of an un-cut seat post. Cutting the Seat Post in some frames (especially smaller sizes), a seat post will only be able to be inserted into a seat tube to a maximum depth of 100 mm.
  • Page 10 6 Nm 6 Nm REFLECTOR 6 Nm KP062/...
  • Page 11 SMALL FOAM WASHER Affix the washer to arm at contact with post. LARGE FOAM WASHERS Position between seat post and brackets. Please consult the Cannondale SLICE CARBON Owner’s Manual Supplement 120849.PDF for seat post installation and service information. See www.cannondale.com/tech.

  • Page 12: Changing Saddle Position

    10849.PDF TIME TRIAL TRIATHALON Changing Saddle Position 1. remove the saddle clamp bolts (2) and remove clamp barrel (3), upper clamp (9), lower clamp (8), and barrel (4). 3. remove the circlips (6). Single rear facing 4. reposition clamp over (5) and use cage other pin (7) and reinstall pin and all four circlips (6).

  • Page 13: Compatibility

    SI BB30-to-68mm Standard Adapter the adapter (Cannondale kit Kf365/) converts the BB30 bottom bracket cranksets for use with 68mm bottom brackets. the adapter is not a repair part and will only work in undamaged frames in good condition. improper installation or removal can result in damage and void applicable frame warranty.
  • Page 14 10849.PDF QC616/ KB6180/ KP018/ (ceramic) KT011/ KT010/ KT013/ TOOL Loctite 609 (green) groove TOOL BB SHELL ADAPTER DRIVE SIDE KF365/...

  • Page 15: Si Compression Assembly

    WARNINGS USE ONLY ORIGINAL EQUIPMENT CANNONDALE SI COMPRESSION ASSEMBLY. Do not replace it with a star nut or use any other compression or expanding wedge assembly. DO NOT INSTALL HEADSET SPACERS ON TOP OF THE STEM. installing spacers above the stem will raise the toP CaP inside the steerer removing necessary support for the steerer tube wall.
  • Page 16 HEADSET TOP CAP HEADTUBE For more information on Cannondale Carbon Road Forks, please see your Carbon Road Fork Owner’s Manual Supplement 120860.pdf included with your bike or download it from our website http://www.cannondale.com/tech_center/...

  • Page 17: Chainstay Protection

    Contact your Cannondale Dealer for a replacement if it is becomes missing or damaged. the clear chainstay protector (above right) provides limited protection against frame or finish damage caused by the chain.

  • Page 18: Rear Brake Mount Adapter

    10849.PDF rear brake mount adapter To install a rear brake: 1. remove the adapter bolt (1) with a 4mm allen wrench. 2. lift the brake mount adapter (2) from the frame. 3. install a serrated washer (3) onto the brake bolt and mount the brake onto the adapter.

  • Page 19: Geometry/Specification

    54.8 57.2 reaCH (cm)*** 37.1 39.8 40.7 41.7 42.5 Headset Compression Cannondale si Compression assembly - KP017/ seatpost minimum insert Depth. 80mm seat Binder KP062/ maXimUm torQUe 6nm rear Brake mount adapter Bolt Dropout spacing rear 130mm, front 100mm * The Slice seat post has two positions for mounting the saddle. A full range of angles from 73° to 78° is achievable depending on rider’s preference and/or the event.

  • Page 20: Replacement Parts

    HolloWgram CranKarm eXtraCtion tool Kf365/ siBB/68 aDP.install QC787/ eXtraCt CaP tool for si CarBon CranKsets KP009/ aDaPter,siBB to 68mm taP for an up to date list of kits available for your bike, please visit our tech Center at : http://www.cannondale. com/bikes/tech/...
  • Page 21 orDer si HolloWgram si HolloWgram CranKsets Ka014/170slV CranKset,sl,roaD 39/53,170 Ka014/172slV CranKset,sl,roaD 39/53,172 Ka014/175slV CranKset,sl,roaD 39/53,175 Ka015/170slV CranKset,sl,roaD 34/50,170 Ka015/172slV CranKset,sl,roaD 34/50,172 Ka015/175slV CranKset,sl,roaD 34/50,175 KP019/170l CranKarm-sl slV,170 lft KP019/172l CranKarm-sl slV,172 lft KP019/175l CranKarm-sl slV,175 lft KP019/170r CranKarm-sl slV,170 rHt KP019/172r CranKarm-sl slV,172 rHt KP019/175r...
