Wifi Setup

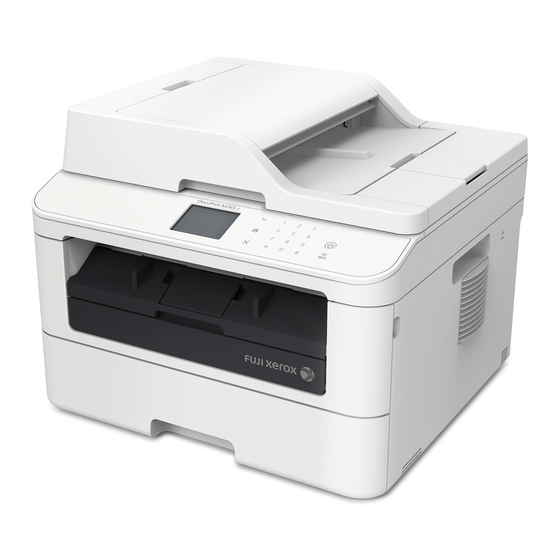

DocuPrint M265 z
Setting up the
DocuPrint M265 z
printer on a wireless
network
Before you begin
Ensure you have the name of your
wireless network (SSID), wireless
network password, security and
encryption types.
To find the name and type of
security encryption of your wireless
network on your computer (example
Windows 7):
a) Go to the Start Menu. Select
Control Panel and click on
Network and Sharing Centre.
b) Click on Manage Wireless
Networks. Double click on your
preferred wireless network. Note
the SSID. Click on the security tab.
Note the security and encryption
types.
Connecting to
the Wireless
Network
1
WPS-PBC
(WPS Button)
NOTE: A WPS-PBC enabled wireless access point is required.
Please refer to the manual provided with the router.
Before starting WPS-PBC, confirm the position of the WPS
button on the wireless access point or router. Please refer to
the manual provided with the router.
At the Operator Panel:
1
Select [Settings] on the printer touch panel.
2
Select [Network] on the touch panel.
http://onlinesupport.fujixerox.com/
3
Select [WLAN] on the touch panel.
4
Select [WPS/AOSS] on the touch panel.
5
Select [Yes] to enable wireless on the printer.
6
Start the WPS operation on the wireless access point.
7
Select [OK] on the printer touch panel.
8
'Setting WLAN' then 'Connecting WPS' will be
temporarily displayed.
When connection is successful, 'Connected' is displayed,
select [OK] on the touch panel. The [WiFi] icon will be
lit solid blue and a WLAN report will be printed.
2
WPS-PIN
At the Operator Panel:
1
Select [Settings] on the printer touch panel.
2
Select [Network] on the touch panel.
3
Select [WLAN] on the touch panel
4
Select [WPS w/ PIN Code] on the touch panel
5
Select [Yes] to enable wireless on the printer.
6
The PIN is displayed. Take note of the PIN.
NOTE: There is a 2 minute time-out period to complete this
setup procedure.
7
Complete the WPS-PIN connection procedure on the
wireless access point
When connectionis successful, 'Connected' is displayed, select
[OK] on the touch panel. The [WiFi] icon will be lit solid blue
and a WLAN report will be printed.
DPM265z_QSG_P1
