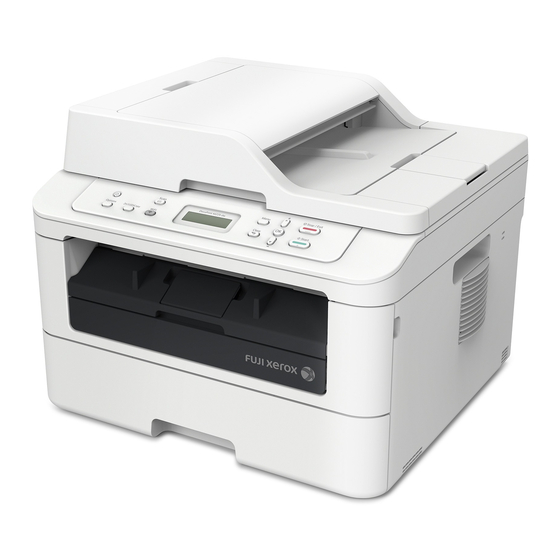

Fuji Xerox DocuPrint M225 Quick Setup Manual

DocuPrint M225 dw / DocuPrint M225 z
LEV122001-00
Quick Setup Guide
604E 77670 MB3555E2-1 (Edition 1)
October 2014
Copyright © 2014 by Fuji Xerox Co., Ltd.
Fuji Xerox Co., Ltd. Printed in Vietnam

Unpack the machine and check the components

A
Drum Unit
(Pre-installed)
B
Inbox Toner
USB Interface Cable
Cartridge
1

Remove the packing materials and install the toner cartridge

2

Load paper in the paper tray

3

Connect the power cord and turn on the machine

Back
Select your language (If needed)
5
(Only for certain models)
1.
(DocuPrint M225 dw)
a. Press Menu.
b. Press ▲ or ▼ to display General Setup, and then press OK.
c. Press ▲ or ▼ to display Local Language, and then press OK.
(DocuPrint M225 z) Press Menu, 0, 0.
2.
Press ▲ or ▼ to select your language, and then press OK.
3.
Press Stop/Exit.
6

Connect the machine to your computer/mobile device

• Windows PC with a CD-ROM drive, go to step
®
• Windows PC without a CD-ROM drive, go to step
®
• Macintosh, go to step
• Mobile device users with a WPS/AOSS™-supported access point/router, go to step
AC Power Cord
Quick Setup Guide
(only for certain
models)
Telephone Line Cord Safety Guide
Remove the orange part.
Adjust the paper guides.
Front
6A
6B
6B
Read the Safety Guide first, then read this Quick Setup Guide for the correct installation
procedure.
NOTE:
• The components included in the box and the AC power plug may differ depending on your
country.
CD‑ROM
• The illustrations in this Quick Setup Guide are based on the DocuPrint M225 z.
• The USB cable is a standard accessory.
Network cable
Use a straight-through Category 5 (or greater) twisted-pair cable for 10BASE-T or
100BASE-TX Fast Ethernet Network.
Basic User's Guide
B
A
Remove the orange part.
Select your country/language
4
(Initial setup only)
After turning on the machine, you may be required to set your
country or language (depending on your machine).
If required, follow the on-screen instructions.
6C
A
B
B
A
