Instruction Manual
Retrofit Hands-Free Kit for Ericsson Mobile Phones T39
MINI (R50 and R53)
The installation time is approx. 2 hours, but this may vary depending on the condition of the car and the
equipment in it.
Retrofit / Installation kit No. 84 64 0 139 560
Retrofit / Installation kit No. 84 64 0 139 560
Installation Instructions No. 01 29 0 142 869
Parts and Accessories
Installation Instructions
Issue date: 11.2001
R50 0260 Z
Advertisement
Table of Contents
Related Manuals for BMW R50
Summary of Contents for BMW R50
-
Page 1: Installation Instructions

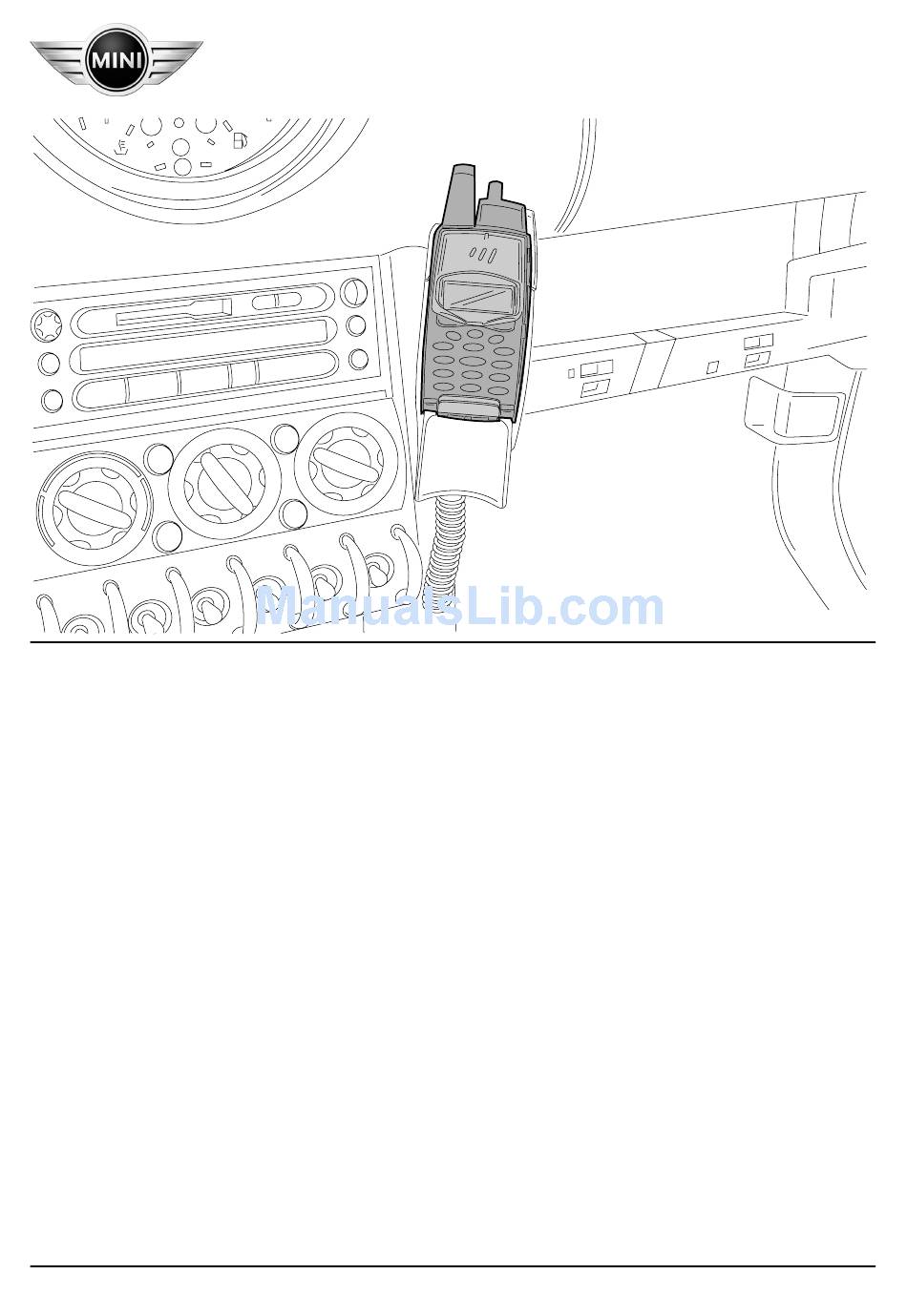

Installation Instructions R50 0260 Z Retrofit Hands-Free Kit for Ericsson Mobile Phones T39 MINI (R50 and R53) The installation time is approx. 2 hours, but this may vary depending on the condition of the car and the equipment in it. -
Page 2: Table Of Contents
Contents Section Page Important information ..............Preparations . -
Page 3: Important Information
Important information The retrofit kit is only for use within the dealership organisation. Do not kink or damage the cables during the installation work since otherwise they may cause faults that can later only be identified by extensive additional work. The costs incurred as a result of this will not be reimbursed. -
Page 4: Preparations
Preparations TIS instruction No. Conduct a brief test Disconnect the negative pole of the battery 12 00 ... The following components must be removed first of all: Oddments box in instrument trim on the passenger side 51 16 390 Trim between front centre console and instrument panel 51 16 198 Radio 65 11 030... -
Page 5: Parts List
Parts list R50 0272 Z Legend Mobile phone holder Loudspeaker Hands-free control unit Gooseneck Holder for hands-free control unit Power supply wiring harness Mute circuit wiring harness Hands-free microphone Self-adhesive Velcro strip 10 Plug contact (4x) 11 Plug casing (4x) -
Page 6: Installation And Cabling Diagram
Installation and cabling diagram R50 0216 Z Legend Radio plug X18126 Wiring harness Hands-free control unit Gooseneck with mobile phone holder Hands-free microphone Loudspeaker Retrofit / Installation kit No. 84 64 0 139 560 EN/6 Installation Instructions No. 01 29 0 142 869... -
Page 7: Hands-Free Kit Connection Overview
Hands-free kit connection overview R50 0256 Z Cable colour / Item Description Signal Connection location in the car Abbreviation / Slot Cross-section Power supply wiring harness Cable branch Earth With enclosed socket and plug contact on X18126 radio plug 0.75 mm... -
Page 8: To Install And Connect The Wiring Harness
- A2 , RT cable, to RT/GN cable on PIN 15 - B1 , SW cable, to WS/BR cable on PIN 10 See figure R50 0248 Z for the procedure. R50 0265 Z Cars without a new generation radio only Connect branches A1 –... -
Page 9: To Install The Loudspeaker
Unscrew both knurled-head bolts (1) and remove the holder (2) from the loudspeaker (3). Drill a 5 mm hole in the centre of the holder (2). R50 0202 Z Screw the holder (1) to the trim (3) using the existing Torx screw (2). -
Page 10: To Install The Hands-Free Microphone
(1) to the headlining in front of the clock (2). Route the microphone cable (3) beneath the headlining towards the A pillar on the passenger side. R50 0212 Z Route the microphone cable (1) to the oddments box on the passenger side. R50 0231 Z Retrofit / Installation kit No. -
Page 11: To Install The Mobile Phone Holder
To install the mobile phone holder Remove the bottom section (1) from the mobile phone holder (2). ERICSSON R50 0269 Z Undo the Philips screw (1) and remove the mobile phone holder (2) from the retaining foot. R50 0268 Z Undo the Philips screws (1) and remove the rear cover (2). - Page 12 To install the mobile phone holder Route the cables (1) of the mobile phone holder through the gooseneck (2) and put the rear cover (3) back on. R50 0252 Z Screw the retaining foot (1) onto the gooseneck (3) using a Philips screw (2).
- Page 13 Install the gooseneck (1) and attach the connection cable (2) as shown using cable ties (3). Route it to the oddments box on the passenger side. R50 0261 Z Retrofit / Installation kit No. 84 64 0 139 560 EN/13 Installation Instructions No.
-
Page 14: To Install The Hands-Free Control Unit
To install the hands-free control unit Screw the hands-free control unit (1) onto the holder (3) using a Philips screw (2). R50 0262 Z Connect the loudspeaker cable plug (1), the microphone cable plug (2), the mobile phone holder plug (3) and branches A6 and B2 to the hands-free control unit (4). -
Page 15: Concluding Work
10. Concluding work - Connect battery - Conduct a brief test - Conduct a function test - Assemble the car following the instructions to dismantle it in reverse order. Retrofit / Installation kit No. 84 64 0 139 560 EN/15 Installation Instructions No. -
Page 16: Hands-Free Kit Circuit Diagram
11. Hands-free kit circuit diagram Cars with a new generation radio only X18126 0.35 0.75 0.75 R50 0270 Z Retrofit / Installation kit No. 84 64 0 139 560 EN/16 Installation Instructions No. 01 29 0 142 869 Issue date: 11.2001... - Page 17 11. Hands-free kit circuit diagram Cars without a new generation radio only X18126 0.35 0.75 0.75 R50 0271 Z Retrofit / Installation kit No. 84 64 0 139 560 EN/17 Installation Instructions No. 01 29 0 142 869 Issue date: 11.2001...
- Page 18 11. Hands-free kit circuit diagram Legend Hands-free control unit Hands-free microphone Loudspeaker Mobile phone holder SW 2-pin pawl plug SW 2-pin pawl plug SW 10-pin plug WS 5-pin plug SW 2-pin plug Twin-lead terminal Twin-lead terminal Twin-lead terminal X18126 Radio plug To standard wiring harness All designations with an asterisk (*) only apply to these installation instructions and these circuit diagrams.
