Summary of Contents for BMW Wallbox Plus

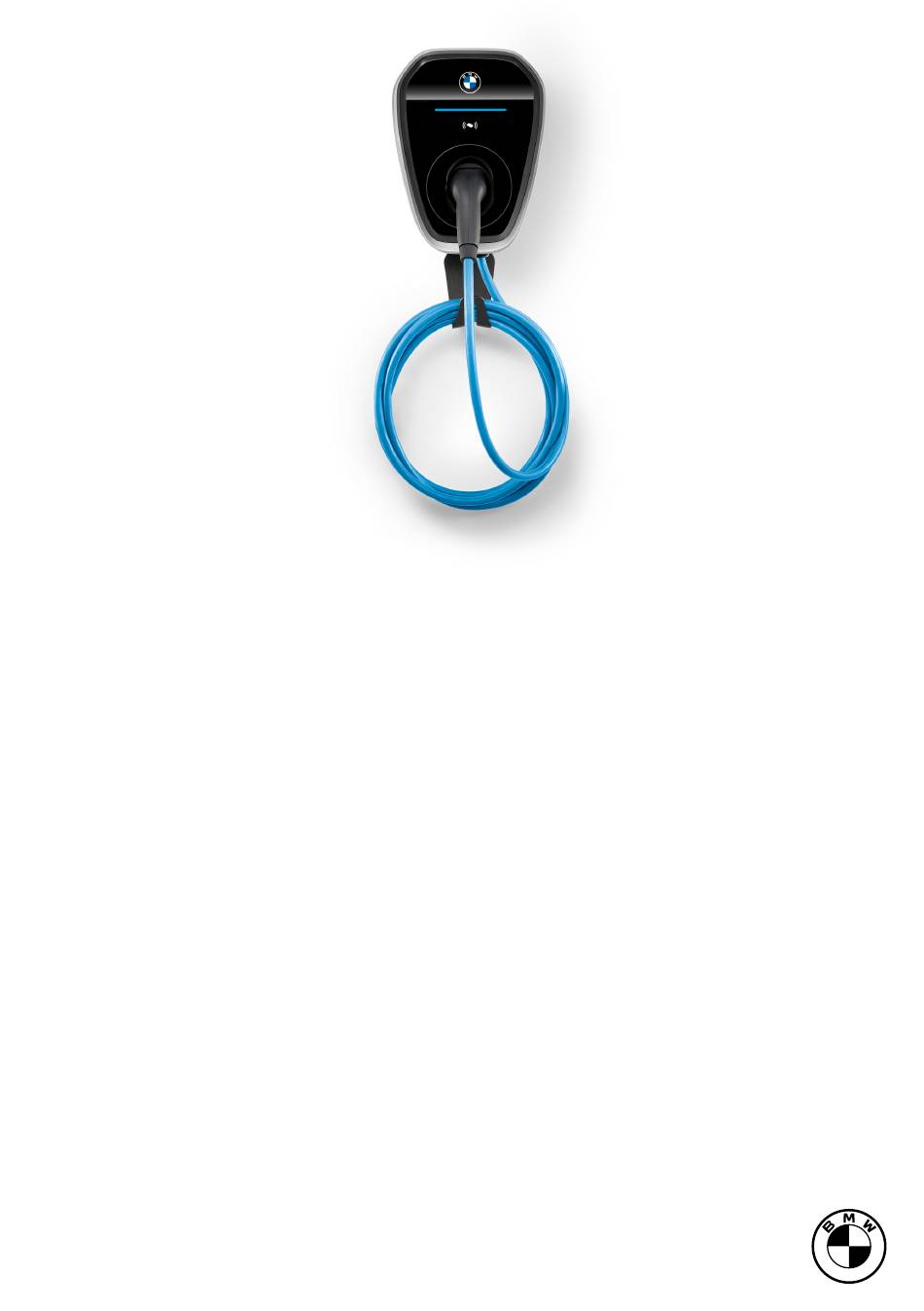

  • Page 1 BMW Wallbox Plus INSTRUCTIONS FOR USE. ORIGINAL BMW ACCESSORIES.
  • Page 3: Table Of Contents

    9 Status LED information 10 Maintenance 11 Technical data 12 Disposal 13 Country-specific requirements © 2024 BMW AG, Munich/Germany Reprints, even in excerpt form, only permitted with the written consent of BMW AG, Munich. Subject to printing errors, mistakes and changes.
  • Page 4: Information

    BMW Wallbox Plus. Do not make any unauthorized changes or modifications to the BMW Wallbox Plus. Repair work to the BMW Wallbox Plus is not permitted and may only be completed by the manufacturer or a trained expert (BMW Wallbox Plus replacement).
  • Page 5 Ensure that the BMW Wallbox Plus is not damaged by incorrect handling (housing cover, internal parts, etc.). If it is raining or snowing and the BMW Wallbox Plus is installed outdoors, do not open the terminal panel cover. Do not break the plastic housing by use of excessive force.
  • Page 6: Intended Use

    The BMW Wallbox Plus is a charging station for indoor and outdoor use for charging electric or plug- in hybrid vehicles. Do not connect any other devices to it, e.g. electric tools. The BMW Wallbox Plus is designed for installation on a wall or column. You must comply with the relevant national regulations for installing and connecting the BMW Wallbox Plus.
  • Page 7: About This Manual

    1.3 About this manual This manual is designed exclusively for trained personnel. These are people who, as a result of their training, skills and experience and their knowledge of the relevant standards, can assess the work assigned to them and identify possible dangers. The illustrations and explanations contained in this manual refer to a typical version of the device.
  • Page 8 1.4 Package Mounting template Torx T20 anti-theft screw Mounting bracket Middle cover screw (4X) Cable holder M6 Hex Socket Cable holder screw (3X) Cosmetic cover Setup Card, Charging Card (2X) No.8 wood screws (4x) Safety Guide Torx T30 mounting bolts (3x) M32 Cable gland 1/4"...
  • Page 9: Warranty

    Defects or damage caused by installation work which was not carried out as specified in the BMW Wallbox Plus installation instructions. Defects or damage caused by the product not being used as specified in the BMW Wallbox Plus operating manual.
  • Page 10: Overview

    2 Overview 2.1 Display and controls 1. Cosmetic cover 2. Vehicle connector inlet 3. Vehicle connector 4. LED indicator 5. RFID Reader 6. Middle cover 7. Mounting bracket 8. Cable holder...
  • Page 11 Wallbox Installation App for iOS Wallbox Installation App for Android 2. Mounting and installing the BMW Wallbox Plus. See Sections 4 to 7 in these operating instructions or the installation instructions in the Wallbox Installation App 3. Optional: Connecting a smart energy module (Section 5.1) 4.
  • Page 12: Specifications

    - At which the installation surface does not have sufficient strength to withstand the mechanical stresses. If possible, install the BMW Wallbox Plus so that it is protected from direct rainfall so as to avoid the effects of weather, icing, damaged by hailstones or the like.
  • Page 13: Specifications For The Electrical Connection

    When selecting the circuit breaker, the standard value of the rated conditional residual short-circuit current shall be 1500A for the BMW Wallbox Plus. Also take into consideration the increased ambient temperatures in the control cabinet. In certain circumstances this may require a reduction in the charging current settings to increase the system availability.
  • Page 14 When selecting the supply cable, take into account the possible reduction factors and the increased ambient temperatures in the internal connection area of the BMW Wallbox Plus, see the temperature rating of the supply terminals. In certain circumstances, this may require an increase in the cable cross- section and an adjustment in the temperature resistance of the supply cable.
  • Page 15: Installation

    Ideally, the BMW Wallbox Plus should be stored for a few hours in advance at the installation site. If this is not possible, the BMW Wallbox Plus should not be stored in low temperatures (< 5 °C) overnight outdoors or in a vehicle.
  • Page 16: Recommended Installation Positions

    4.2 Recommended installation positions When selecting the installation position, taken note of the position of the charge connector on your vehicle and the direction in which you normally park it. 4.3 Required distance Observe the applicable accessibility requirements for the installation position. The device must be mounted at a sufficient height above ground so that the storage height is between 1,000 mm (39 inches) and 1,200 mm (47 inches).
  • Page 17 4.4 Mounting the BMW Wallbox Plus 1. The product is a stationary, wall-mounted device. It includes mounting template A to mark the bolt/screw positions for the mounting bracket and the cable holder (optional). 2. Fasten mounting bracket B to the wall. The cable holder is optional and depicted in the figure for demonstration purposes.
  • Page 18: Removing The Covers

    4.5 Removing the covers 5. Remove the cosmetic cover D. 6. Use a T20 screw driver to remove the screws securing the middle cover. Torque: 1.4 Nm (12 lb·in) 7. Remove the middle cover. The middle cover has to be removed carefully and held parallel during the process.
  • Page 19 4.6 Secure the anti-theft screw 8. The hole for the anti-theft screw H is covered by a void label. 9. Tighten anti-theft screw H through the void label. Tightening torque 1.2 Nm (10 lb in)
  • Page 20: Electrical Installation

    It is also possible to connect the BMW Wallbox Plus to a single phase. To do so, connect terminals L1, N and PE. Conductor cross section solid max = 16mm² (6 AWG) Conductor cross section flexible with ferrule with plastic sleeve max = 10mm²...
  • Page 21 Definition: Pin 8 (CNB12): 485 D+/Tx+/Rx+ Pin 9 (CNB12): 485 D-/Tx-/Rx- The following smart energy modules can be used for BMW Connected Home Charging Services – load-optimised charging and solar-optimised charging: Inepro Pro 380-MOD for three phase connections Inepro Pro2-MOD for single phase connections...
  • Page 22 5.2 Optional - peak load distribution An additional external component is required for peak load distribution and depends on the distribution network operator. Connect the interface for peak load distribution with the shielded and twisted connecting cables (>0.5 mm², max. 30 m) Definition: PS_1: Pin 1 PS_2: Pin 2...
  • Page 23: Configuration Via The Wallbox Installation App

    6 Configuration via the Wallbox Installation App 6.1 Wallbox Installation App You must use the Installation Wizard in the Wallbox Installation App to configure the BMW Wallbox Plus. If the Installation Wizard has not been completed successfully, charging is not possible.
  • Page 24 The app is available in all relevant app stores. Wallbox Installation App for iOS Wallbox Installation App for Android...
  • Page 25: Commissioning

    Install and lock the cosmetic cover D. An audible click sounds denotes a closed faceplate. The BMW Wallbox Plus must be connected to the My BMW App. In the My BMW app, go to the “Charging” menu and select “BMW Wallbox”.
  • Page 26: Operation

    8 Operation The BMW Wallbox Plus is supplied with access control via app deactivated as standard. If you would like to use access control, please adjust the configuration accordingly in the Wallbox Installation App. For further information, see Section 6.
  • Page 27 8.2 Stop charging with disabled access control 1. Stop charging session at the vehicle. 2. Disconnect the vehicle connector from the vehicle inlet. 3. Place the vehicle connector back into the vehicle connector inlet of the BMW Wallbox Plus.
  • Page 28 8.3 Starting the charging process with access control via RFID card activated 1. Connect the vehicle connector to vehicle inlet. 2. Hold the RFID card in front of the RFID reader to authorize and intiate the start of the charging session.
  • Page 29 8.4 Terminating the charging process with access control via RFID card activated 1. Stop the charging process at the vehicle, via the My BMW App or the RFID card. 2. Disconnect the vehicle connector from the vehicle inlet. 3. Place the vehicle connector back into the vehicle connector inlet of the BMW Wallbox Plus.
  • Page 30 In addition, you can also register vehicles for access control via automatic vehicle detection (MAC authentication) at the BMW Wallbox Plus. If you use this automatic authentication method for the vehicle, access control via RFID card is no longer necessary.
  • Page 31 8.5.1 Registration of new Charging Cards Notice: Additional charging cards must meet the “MIFARE” standard. 1. The BMW Wallbox Plus needs to be powered on, DO NOT connect the charging cable with the vehicle. The LED bar should display a steady blue light.
  • Page 32 The BMW Wallbox Plus is supplied with a preregistered setup card which can be used to register new charging cards. A new setup card can be registered via the Wallbox Installation App (see Section 6).
  • Page 33 8.5.2 Registering new vehicles for access control via automatic vehicle detection (MAC authentication) 1. The BMW Wallbox Plus must be switched on. Do NOT connect the charging cable to the vehicle. The LED bar should display a steady blue light.
  • Page 34 3. Connect the vehicle connector to the vehicle inlet to register the vehicle at the BMW Wallbox Plus. Registration is confirmed by two short acoustic signals. Repeat this process with any other vehicles that you want to add. 4. Hold the setup card in front of the RFID reader to end the registration mode.
  • Page 35 Requirements: The BMW Connected Home Charging Services can only be used with BMW xEV, a BMW ID account and the My BMW App. In addition, the installation of a smart energy module is required. This is already included in the BMW Connected Home charging package or can be retrofitted individually when purchasing a BMW Wallbox Plus.
  • Page 36 8.6.1 Load-optimized charging Optimizing the charging power of the BMW Wallbox Plus while taking the household load into account ensures that the total available load at the grid connection point is not exceeded. Dynamic control of load distribution is particularly important in regions with low local grid point capacities.
  • Page 37 On an exemplary day there are periods with more and less available solar power, resulting in a combined charging power for the BMW Wallbox Plus (displayed by the blue line). When sufficient solar power is available, like in the displayed periods 2 and 4, charging is done exclusively with electricity from the photovoltaic system.
  • Page 38: Status Led Information

    9 Status LED information LED Indicator Status Blue, flashing from left to BMW Wallbox Plus initialization in progress. right BMW Wallbox Plus is suspended temporarily. Blue Vehicle is not connected, standby. Blue, breathing Vehicle is charging. Error Blue (S1/S2/S3), Red (S4) Communication module is damaged or defective on standby.
  • Page 39: Maintenance

    1. Check the possible causes of the error in the Wallbox Installation red. App. 2. Switch off the supply voltage to the BMW Wallbox Plus using the appropriate mains isolation device. 3. Disconnect the vehicle connector and switch on the supply voltage again.
  • Page 40: Technical Data

    11 Technical data Electrical data Vehicle connector Type 2 plug Input/output rating 380–415 V~, 32 A, 50/60 Hz, three phases 110–240 V~, 32 A, 50/60 Hz, single phase Input wiring PE, L1, L2, L3, N Grounding system TN/ IT/ TT Rated current (adjustable rated current via 0A, 6A, 10A, 12A, 16A, 20A, 24A, 32A Wallbox Installation App)
  • Page 41: Ambient Conditions

    Interfaces Indicator LED bar indicator Communication Bluetooth, RFID, Ethernet, ISO15118, OCPP , 4G, WiFi Ambient conditions Operating temperature -40 °C ~+50 °C Temperature properties This is not a safety device, it is just an operating function. The specified operating temperature range must not be exceeded. The device supplies the charging current continuously at the specified operating temperature ranges.
  • Page 42: Disposal

    12 Disposal After correctly decommissioning the device, please have it disposed of by the service department in compliance with current waste disposal regulations. The electrical and electronic devices including accessories must be disposed of separately from general household waste. There are instructions on the product, in the instructions for use or on the packaging.
  • Page 43: Country-Specific Requirements

    13 Country-specific requirements For Brazil Incorpora produto homologado pela ANATEL sob número 01979-21-05015, 19085-21-02725.
  • Page 44 For Brazil Informações sobre cibersegurança Coleta de dados e atualização do Seciruty: Os dados pessoais serão coletados, utilizados e armazenados, sejam sensíveis ou não. Este produto garante que as atualizações de segurança serão fornecidas por 2 anos após o lançamento do produto ou por dois anos quando o dispositivo for distribuído para o mercado consumidor.
  • Page 45 For Ukraine 1. Технічні характеристики радіообладнання: 1.1 GSM-900: Діапазони частот, МГц: передавача: 880,1 - 915,0; приймача: 925,1 - 960,0; Потужність передавача, Вт: 2,07; Класи випромінювання: 200KF7W, 200KG7W; Тип антени: ненаправлена, інтегрована. 1.2 GSM-1800: Діапазони частот, МГц: передавача: 1710,0 - 1785,0; приймача: 1805,0 - 1880,0;...
  • Page 46 For Ukraine 1.5 LTE-800 (E-UTRA Band 20): Діапазони частот, МГц: передавача: 832,0 - 842,0; приймача: 791,0 - 801,0; Потужність передавача, Вт: 0,25; Класи випромінювання: 5M00G7W, 5M00D7W, 10M0G7W, 10M0D7W; Тип антени: ненаправлена, інтегрована. 1.6 LTE-900 (E-UTRA Band 8): Діапазони частот, МГц: передавача: 888,8 –...
  • Page 47 For Ukraine 1.9 Wi-Fi (IEEE 802.11 a/b/g/n/ac/ax): Діапазони частот, МГц: - IEEE 802.11 b/g/n/ax : 2400,0 - 2483,5; - IEEE 802.11 a/n/ас/ax : 5150,0 - 5350,0; 5470,0 - 5725,0; 5725,0 - 5850,0; Максимальна вихідна потужність передавача, мВт (дБм): - IEEE 802.11 b/g/n/ax: 55,21 (17,42); - IEEE 802.11 a/n/ас/ax: 31,62 (15,30);...
  • Page 49 01 29 5B43535 12/2024 (V/Z)
