Troubleshooting
Bookmarks
Table of Contents
Troubleshooting Guide
Troubleshooting
Indoor Unit Error Display
IPM Malfunction or IGBT Over-Strong Current Protection Diagnosis and Solution(P0)
For Example
High Temperature Protection of Compressor Top Diagnosis and Solution(P2)
Inverter Compressor Drive Error Diagnosis and Solution(P4)
Advertisement
Quick Links
Download this manual

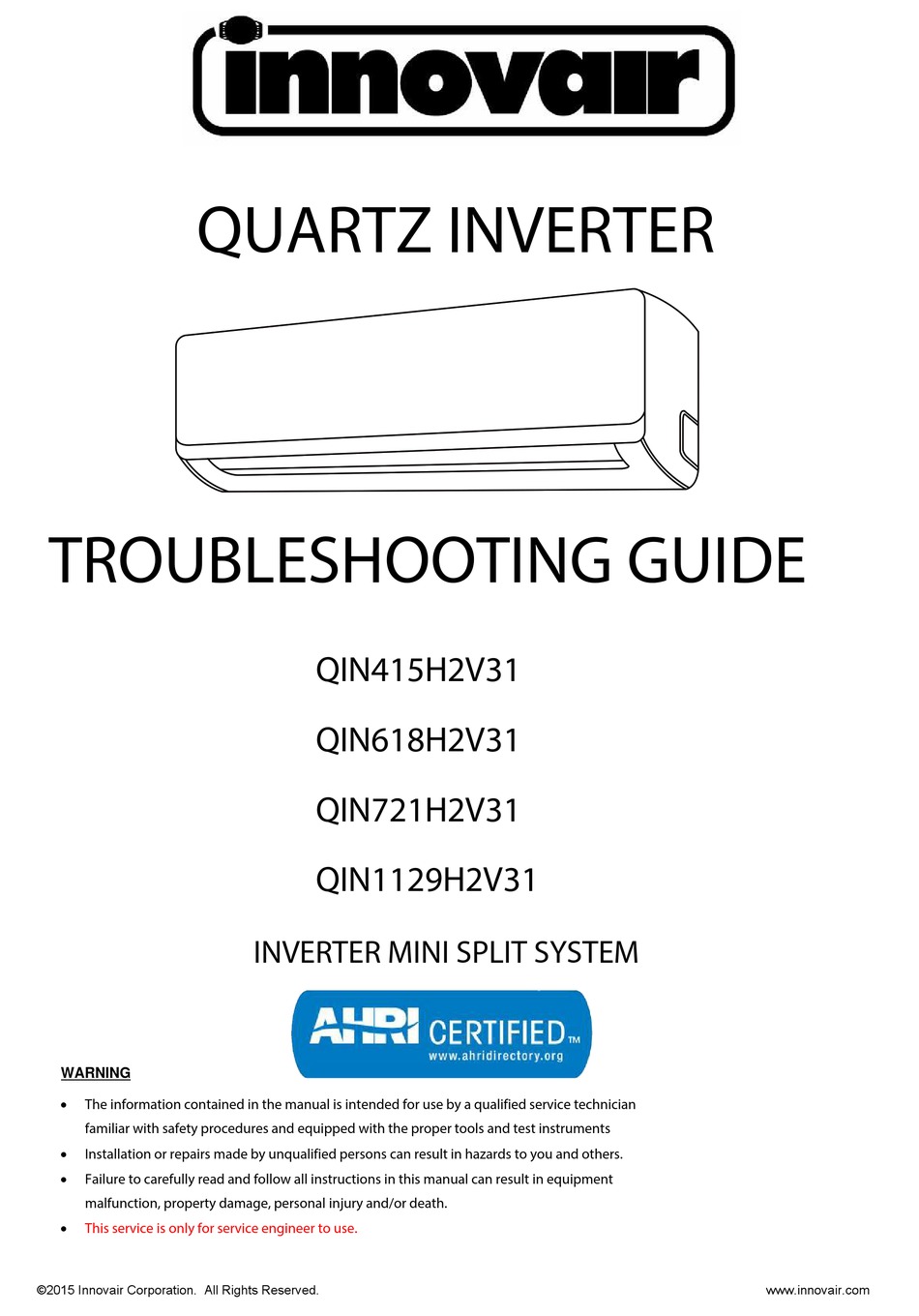

QUARTZ INVERTER
TROUBLESHOOTING GUIDE
WARNING
The information contained in the manual is intended for use by a qualified service technician
familiar with safety procedures and equipped with the proper tools and test instruments
Installation or repairs made by unqualified persons can result in hazards to you and others.
Failure to carefully read and follow all instructions in this manual can result in equipment
malfunction, property damage, personal injury and/or death.
This service is only for service engineer to use.
©2015 Innovair Corporation. All Rights Reserved.
QIN415H2V31
QIN618H2V31
QIN721H2V31
QIN1129H2V31
INVERTER MINI SPLIT SYSTEM
www.innovair.com
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Troubleshooting
troubleshooting guide
1
Troubleshooting
