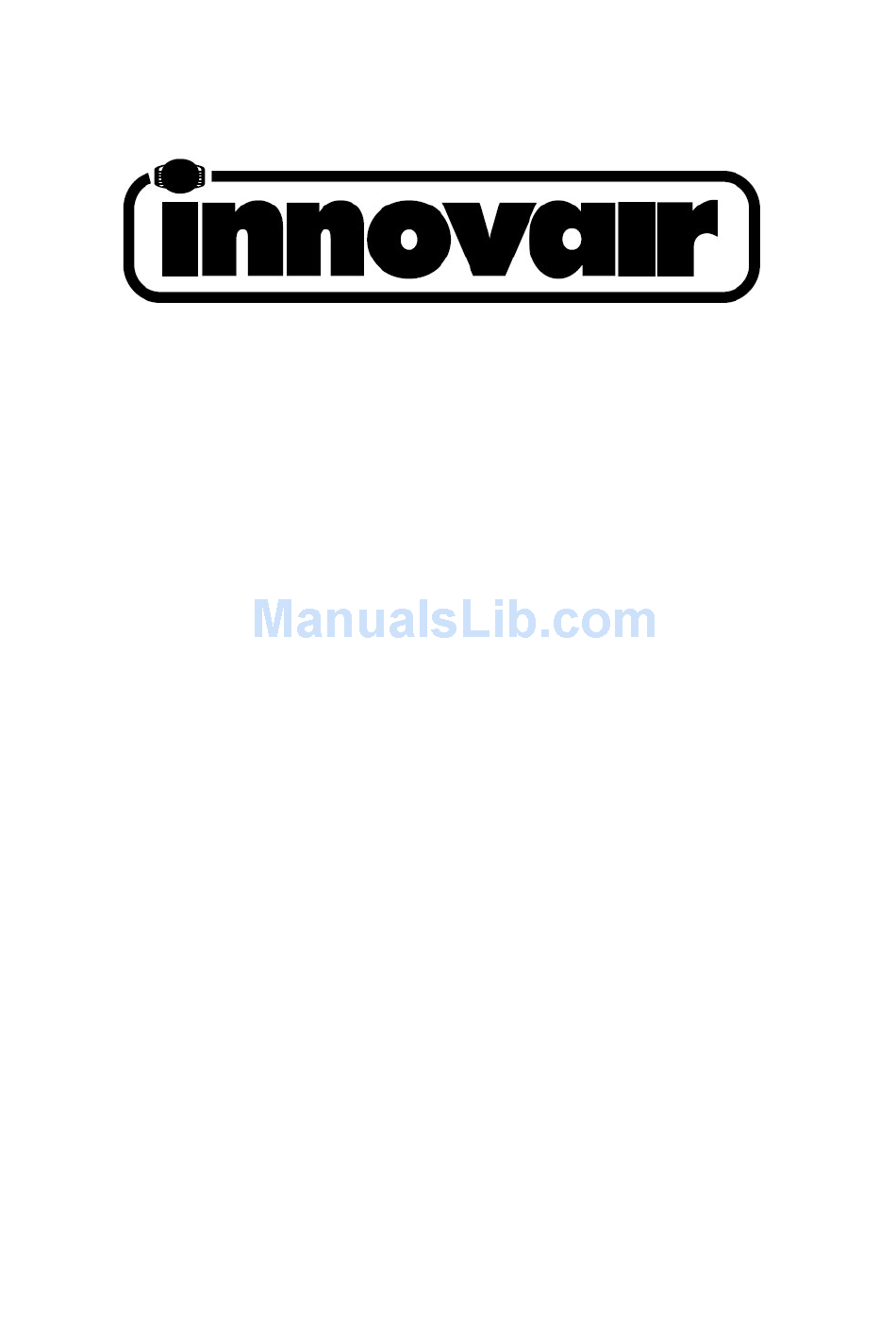

SERVICE MANUAL EV10C2DB6,H10C2MR63 EV13C2DB6,H13C2MR63 EV18C2DB6,H18C2MR63 EV24C2DB6,H24C2MR63 AIR CONDITIONER... -
Page 2: Table Of Contents
CONTENTS 1. Precaution ..............................1 1.1 Safety Precaution.......................... 1 1.2 Warning ............................1 2. Function................................ 6 3. Dimension ..............................8 3.1 Indoor Units........................... 8 3.2 Outdoor Units ..........................10 4. Refrigerant Cycle Diagram ........................11 5. Wiring Diagram ............................13 5.1 Indoor Units..........................13 5.2 Outdoor Units .......................... -
Page 3: Precaution
1. Precaution 1.1 Safety Precaution To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring instruction will cause harm or damage. Before service unit, be sure to read this service manual at first. 1.2 Warning Installation Do not use a defective or underrated circuit breaker. - Page 4 condenser and evaporator. For installation, always contact the dealer or an Authorized service center. There is risk of fire, electric shock, explosion, or injury. Do not install the product on a defective installation stand. It may cause injury, accident, or damage to the product. Be sure the installation area does not deteriorate with age.
- Page 5 There is risk of explosion or fire. If strange sounds, or small or smoke comes from product. Turn the breaker off or disconnect the power supply cable. There is risk of electric shock or fire. Stop operation and close the window in storm or hurricane. If possible, remove the product from the window before the hurricane arrives.
- Page 6 It can avoid vibration of water leakage. Do not install the product where the noise or hot air from the outdoor unit could damage the neighborhoods. It may cause a problem for your neighbors. Use two or more people to lift and transport the product. Avoid personal injury.
- Page 7 operated. There are sharp and moving parts that could cause personal injury. Do not drink the water drained from the product. It is not sanitary could cause serious health issues. Use a firm stool or ladder when cleaning or maintaining the product. Be careful and avoid personal injury.
-
Page 8: Function
2. Function Model Names of Indoor/Outdoor Units Series Capacity Indoor units Outdoor units EV10C2DB6 H10C2MR63 EV13C2DB6 H13C2MR63 On-Off EV18C2DB6 H18C2MR63 EV24C2DB6 H24C2MR63... - Page 9 Filter Killer Of Formaldehyde Ionizer(O) Louver Position Memory Function Silver Ico Filter(O) Refrigerant Leakage Detect Vitamin C Filter(O) Self-diag. Function ydrophilic Aluminum Fin 3M HAM Filter(O) Bio Filter(O) Anti-rust Cabinet Golden Fin(O) Valve Protection Cover Self Clean(O) PTC Heating Belt(O) Follow Me(O) Compressor Crankcase Heater(O) O: optional function...
-
Page 10: Dimension
3. Dimension 3.1 Indoor Units Model EV10C2DB6 EV13C2DB6 EV18C2DB6 EV24C2DB6 1030 Model R(mm) L(mm) H(mm) Dimension of installation hole(mm) EV10C2DB6 EV13C2DB6 EV18C2DB6... - Page 11 Model R(mm) L(mm) H(mm) Dimension of installation hole(mm) EV24C2DB6...
-
Page 12: Outdoor Units
3.2 Outdoor Units More than 30cm More than 60cm ¡ (Service space More than 30cm More than 60cm More than 70cm Model H10C2MR63 H13C2MR63 H18C2MR63 H24C2MR63... -
Page 13: Refrigerant Cycle Diagram
4. Refrigerant Cycle Diagram For cooling only models: INDOOR OUTDOOR LIQUID SIDE CAPILIARY TUBE HEAT HEAT EXCHANGE EXCHANGE (EVAPORATOR) (CONDENSER) GAS SIDE COMPRESSOR... - Page 14 For heat pump models: INDOOR OUTDOOR CHECK VALVE LIQUID SIDE (Heating Model only) 2-WAY VALVE CAPILIARY TUBE HEAT HEAT EXCHANGE EXCHANGE (EVAPORATOR) (CONDENSER) GAS SIDE REVERSING VALVE 3-WAY VALVE (Heating Model only) ACCUMULATOR COOLING COMPRESSOR HEATING...
-
Page 15: Wiring Diagram
5. Wiring Diagram 5.1 Indoor Units EV10C2DB6, EV13C2DB6, EV18C2DB6... - Page 16 EV24C2DB6,...
-
Page 17: Outdoor Units
5.2 Outdoor Units H10C2MR63, H13C2MR63, H18C2MR63... - Page 18 H24C2MR63,...
-
Page 19: Installation Details
6. Installation details 6.1 Wrench torque sheet for installation Additional Outside diameter Torque tightening torque inch N.cm N.cm 1500 1600 6.35 (153kgf.cm) (163kgf.cm) 2500 2600 9.52 (255kgf.cm) (265kgf.cm) 3500 3600 12.7 (357kgf.cm) (367kgf.cm) 6.2 Connecting the cables The power cord of connect should be selected according to the following specifications sheet. Rated current of appliance Nominal cross-sectional area (mm²) >3 and 6... -
Page 20: Pipe Length And The Elevation
Max. Max. Additional Model length Elevation Length refrigerant Liquid B (m) A (m) (g/m) 3/8’’ 1/4’’ EV10C2DB6+ H10C2MR63 ( 9.52) ( 6.35) EV13C2DB6+ H13C2MR63 1/2’’ 1/4’’ ( 12.7) ( 6.35) EV18C2DB6+ H18C2MR63 5/8’’ 3/8’’ EV24C2DB6+ H124C2MR63 ( 15.9) ( 9.52) -
Page 21: Installation For The First Time
6.4 Installation for the first time Air and moisture in the refrigerant system have undesirable effects as below: ¢ Pressure in the system rises. ¢ Operating current rises. ¢ Cooling or heating efficiency drops. ¢ Moisture in the refrigerant circuit may freeze and block capillary tubing. ¢... - Page 22 the meter does not indicate -0.1Mpa after pumping 30 minutes, it should be pumped 20 minutes more. If the pressure can’t achieve -0.1Mpa after pumping 50 minutes, please check if there are some leakage points. Fully close the handle Lo valve of the manifold valve and stop the operation of the vacuum pump. Confirm that the gauge needle does not move (approximately 5 minutes after turning off the vacuum pump).
- Page 23 Close the valve on the charging cylinder and discharge the refrigerant by loosening the flare nut on the 2-way valve approximately 45’ until the gauge indicates 0.3 to 0.5 Mpa. 6). Disconnect the charge set and the charging cylinder, and set the 2-way and 3-way valves to the open position.
-
Page 24: Adding The Refrigerant After Running The System For Many Years
6).When the electronic scale displays the proper weight (refer to the table), disconnect the charge hose from the 3-way valve’s service port immediately and turn off the air conditioner before disconnecting the hose. 7). Mount the valve stem caps and the service port Use torque wrench to tighten the service port cap to a torque of 18N.m. -
Page 25: Re-Installation While The Indoor Unit Need To Be Repaired
6).When the electronic scale displays the proper weight (refer to the gauge and the pressure of the low side), disconnect the charge hose from the 3-way valve’s service port immediately and turn off the air conditioner before disconnecting the hose. 7). - Page 26 5). Operate the air conditioner at the cooling cycle and stop it when the gauge indicates 0.1MPa. 6). Set the 3-way valve to the closed position immediately Do this quickly so that the gauge ends up indicating 0.3 to 0.5Mpa. Disconnect the charge set, and tighten the 2-way and 3-way valve’s stem nuts.
-
Page 27: Re-Installation While The Outdoor Unit Need To Be Repaired
Close the valve on the charging cylinder and discharge the refrigerant by loosening the flare nut on the 2-way valve approximately 45’ until the gauge indicates 0.3 to 0.5 Mpa. 6). Disconnect the charge set and the charging cylinder, and set the 2-way and 3-way valves to the open position Be sure to use a hexagonal wrench to operate the valve stems. - Page 28 2. Refrigerant charging Electronic scale Procedure: 1). Connect the charge hose to the charging cylinder, open the 2-way valve and the 3-way valve Connect the charge hose which you disconnected from the vacuum pump to the valve at the bottom of the cylinder.
- Page 29 Use torque wrench to tighten the service port cap to a torque of 18N.m. Be sure to check for gas leakage...
-
Page 30: Operation Characteristics
7. Operation characteristics CAUTION: 1. If air conditioner is used outside of the above conditions, certain safety protection features may come into operation and cause the unit to function abnormally. 2. Room relative humidity less than 80%. If the air conditioner operates in excess of this figure, the surface of the air conditioner may attract condensation. -
Page 31: Electronic Function
8. Electronic function 8.1 Abbreviation T1: Indoor ambient temperature T2: Coil temperature of indoor heat exchanger 8.2 Display function 8.2.1 Icon explanation on indoor display board. One of the following figures matches its display board. Run indicator Flash at 0.5Hz when the unit is standby. Illuminate when the unit is turned on Timer indicator This indicator illuminates when TIMER is set ON/OFF. -
Page 32: Main Protection
8.3 Main Protection 8.3.1 Time Delay at restart for compressor. 8.3.2 Sensor protection at open circuit and breaking disconnection. 8.3.3 Zero crossing detection error protection If AC can not detect zero crossing signal for 4 minutes or the zero crossing signal time interval is not correct, the unit will stop and the LED will display the failure. - Page 33 Tm=Ts, Tn=Ts-2. 8.4.2.2 Outdoor fan running rules: The On-off outdoor units have single fan speed. The outdoor fan will run following the compressor except when AC is in evaporator high temp. protection in heating mode, condenser high temp. protection in cooling mode, defrosting mode and the current protection. 8.4.2.3 Indoor fan running rules In cooling mode, indoor fan runs all the time and the speed can be selected as high, medium, low and auto.
- Page 34 8.4.3 Heating Mode (For Heating & Cooling model) 8.4.3.1 Compressor running rules: When indoor room temp.T1 is higher than Tj, the compressor and outdoor fan will shut off. When T1 is lower than Tk, the compressor and outdoor fan will start up. While Tj=Ts;...
- Page 35 Auto fan action: When T1-Ts>2 £ , the indoor fan will run at low speed. When T1-Ts 0 £ , the indoor fan will run at medium speed. ¤ ¤ ¤ ¤ 8.4.3.4 Defrosting mode Condition of defrosting: ¥ AC will enter the defrosting mode if all of the following items are satisfied. 1.1 After the compressor keeps running 8 minutes, T max ¦...
- Page 36 Low speed § About the setting defrosting time: runtime ¨ minute Defrosting time ¨ minute Case 1 Runtime=45 Case 2 runtime 60 Case 3 runtime 90 Case 4 runtime 120 Case 5 runtime ¥ AC will enter the defrosting mode if all of the following items are satisfied: 2.1 The compressor cumulative running time is over 45 minutes.
- Page 37 Compressor 4-way valve Outdoor fan Indoor fan Indoor fan breeze(10s) DF-5 DF-5 Setting defrosting time 8.4.3.5 High evaporator coil temp.T2 protection: 8.4.4 Auto-mode The machine will choose cooling, heating or fan-only mode according to T ( T =T1-Ts). T=T1-Ts Running mode £...
- Page 38 minutes(20 minutes for 21k,24k models). 8.4.5 Drying mode 8.4.5.1 The compressor is cycled running by 10 minutes on and then 5 minutes off. The indoor fan will keep running at low speed. 8.4.5.2 In drying mode, if the room temperature is lower than 10 , the £...
- Page 39 8.4.8 Sleep function mode 8.4.8.1 Operation time in sleep mode is 7 hours. After 7 hours, the AC quits this mode and turns off. 8.4.8.2. Operation process in sleep mode is as follow: After pressing ECONOMIC or SLEEP button on controller, the machine will turn into sleep mode. When cooling, the setting temperature rises 1 £...
-
Page 40: Troubleshooting
9. Troubleshooting 9.1 Indoor unit error display For 9k,12k,18k Display Operation lamp flash times Timer lamp Failure EEPROM error Zero crossing detection error Indoor fan speed has been out of control Default Indoor room temperature sensor T1 open circuit or short circuit Evaporator coil temperature sensor T2 open circuit or short circuit Refrigerant leak detection error... -
Page 41: Diagnosis And Solution
9.2 Diagnosis and Solution 9.2.1 Indoor fan speed out of control diagnosis and solution... - Page 42 9.2.2 Open or short circuit of temperature sensor diagnosis and solution 9.2.3 EEPROM parameter error diagnosis and solution 9.2.4 Zero crossing detection error diagnosis and solution...
- Page 43 9.2.5 Indoor / outdoor unit’s communication error diagnosis and solution...
- Page 44 9.2.6 Refrigerant leakage detection diagnosis and solution ##& " # & ! " " $ & & . /" ) ) " " & & ## "1 "...
