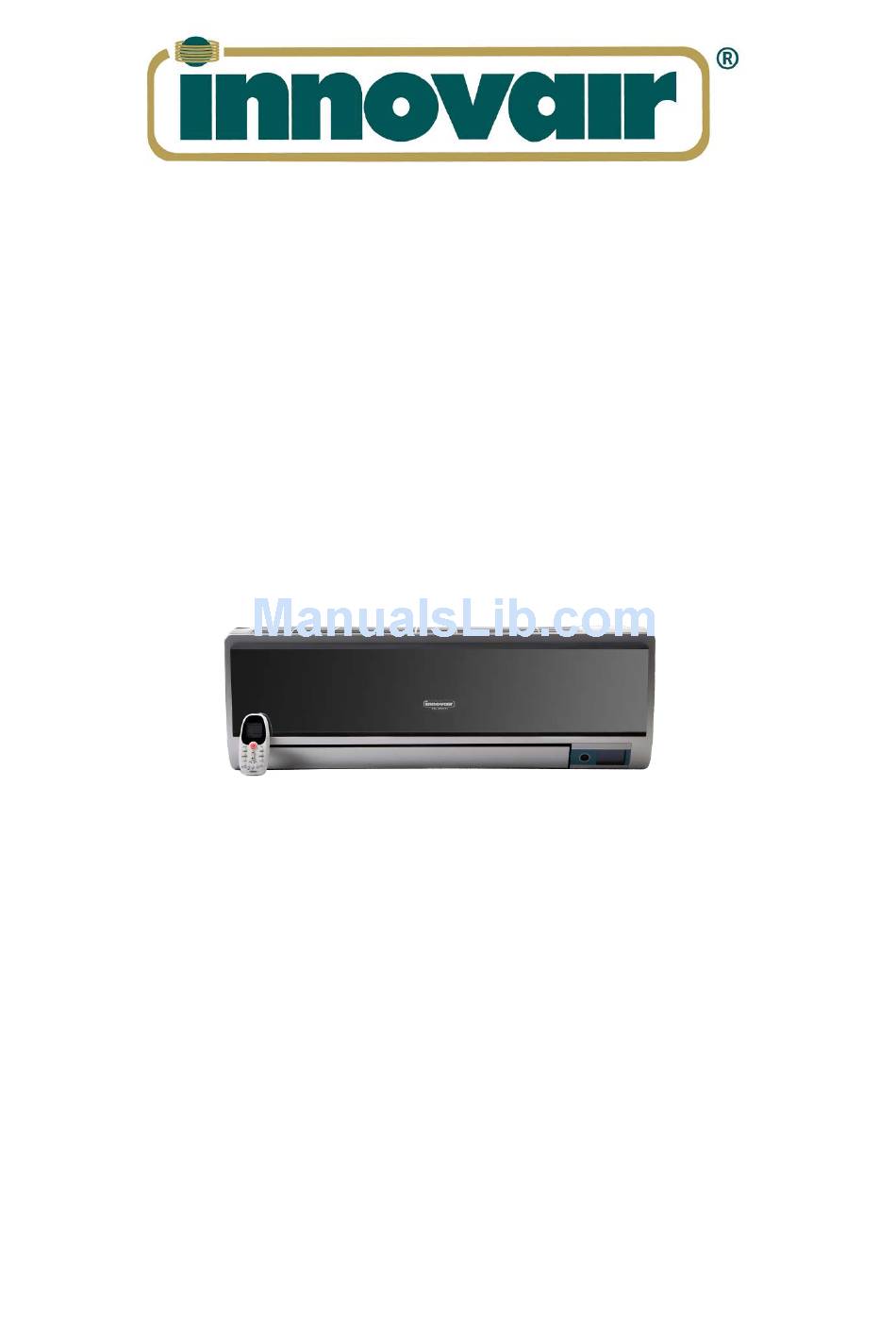

Page 1: Installation Manual
Installation Manual DC INVERTER MULTI TYPE VWM0810H21 VWM1013H21 VWM1320H21 INDOOR DC INVERTER MULTI SERIES... -
Page 2: Safety Precautions
SAFETY PRECAUTIONS Read the follow SAFETY PRECAUTIONS carefully before installation. Electrical work must be installed by a licensed electrician. Be sure to use the correct rating of the power plug and main circuit for the model to be installed. Incorrect installation due to ignoring of the instruction will cause harm or damage. The seriousness is classified by the following indications. -
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Wall-mounted type Selecting installation place Read completely, then follow step by step. Indoor unit Do not expose the indoor unit to heat or steam. Select a place where there are no obstacles in front or around the unit. Make sure that condensation drainage can be conveniently routed away. -
Page 4: Tools Needed For Installation
INSTALLATION INSTRUCTIONS Tools needed for installation: Level gauge Vacuum pump Screwdriver Gauge manifold Electric drill,Hole core drill ( 65mm) Users manual Flaring tool set Thermometer Specified torque wrenches: 1.8kgf.m, 4.2kgf.m, Multimeter 5.5kgf.m, 6.6kgf.m(different depending on model No.) Pipe cutter Spanner (half union) Measuring tape Hexagonal wrench (4mm) Gas-leak detector... - Page 5 INSTALLATION INSTRUCTIONS More than 15cm Remote Remote Remote controller controller controller Remote controller Air out Loop a One-Two connective cable One-Three One-Four Remote controller One-Five Fig.3 CAUTIONS This illustration is for explanation purposes only. The actual shape of your air condtioner may be slightly different.
- Page 6 INSTALLATION INSTRUCTIONS Indoor unit installation(wall-mounted type) Correct orientation 1. Fit the Installation Plate of Installation Plate 1. Fit the installation plate horizontally on structural parts of the wall with spaces around the installation plate. 2. If the wall is made of brick, concrete or the like, drill five or eight 5mm diameter Fig.4 holes in the wall.Insert Clip anchor for...
- Page 7 INSTALLATION INSTRUCTIONS 2. Drill a hole in the wall Wall 1. Determine hole positions according to the Outdoor Indoor diagramdetailed in Fig.5. Drill one (1) hole ( 65mm) slanting slightly to outdoor side. 2. Always use wall hole conduit when drilling metal grid, metal plate or the like.
- Page 8 INSTALLATION INSTRUCTIONS 4. Indoor unit installation 1. Pass the piping through the hole in the wall. 2. Put the upper claw at the back of the indoor unit on the upper hook of the installation plate, move the indoor unit from side to side to see that it is securely hooked (see Fig.12).
