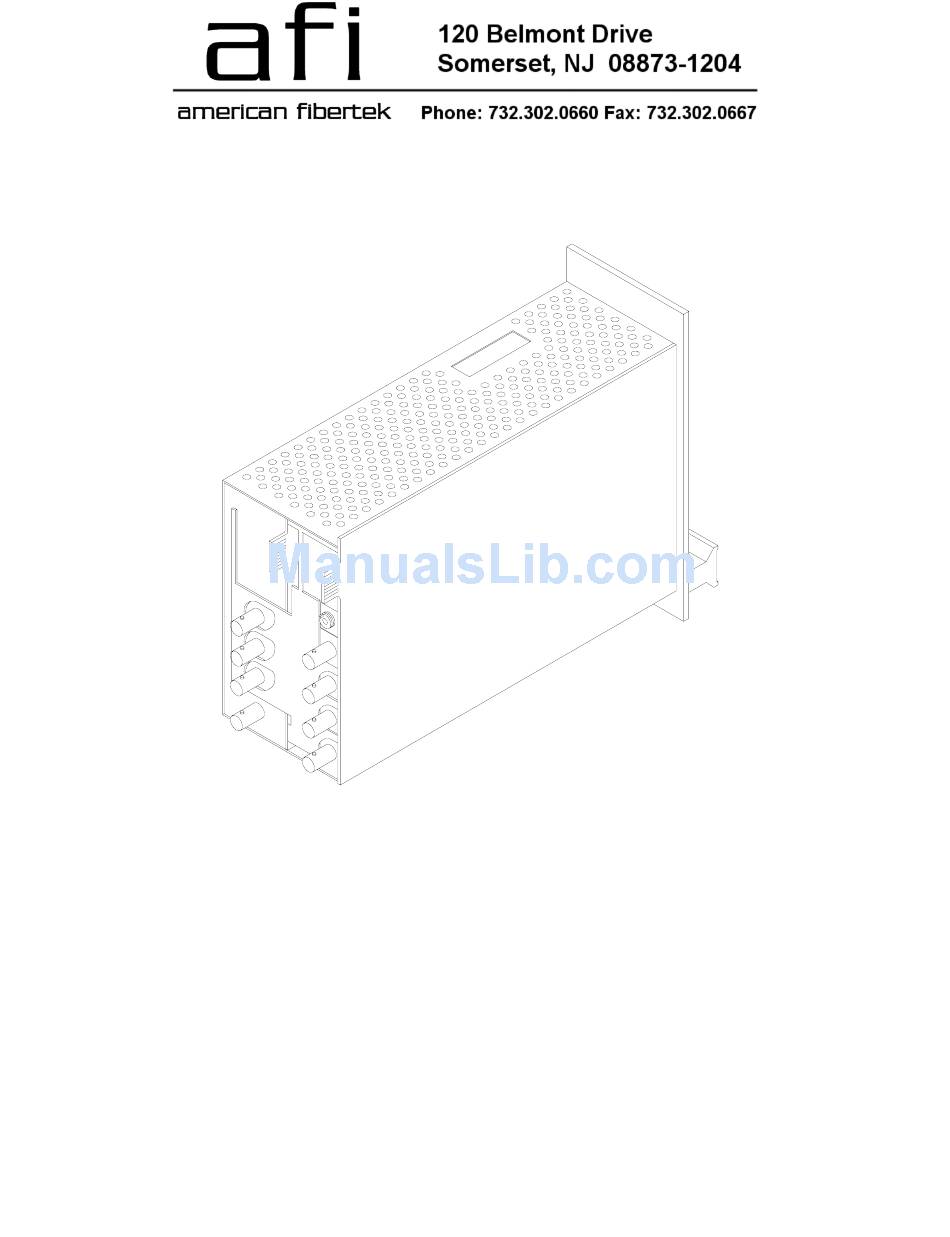

Page 1: Instruction Manual
Instruction Manual RT-780C-SL Eight Channel Video Transmitter © Copyright 2012, American Fibertek, Inc. - Page 2 FUNCTIONAL DESCRIPTION The RT-780C-SL operates as half of a transmitter / receiver pair for the transmission of eight channels of high performance digital NTSC, PAL, RS170, or RS343 video signals. The RT- 780C-SL is designed to operate with the RR-780C-SL video receiver over one singlemode fiber optic cable.
- Page 3 VIDEO 1 THROUGH VIDEO 8 A bi-color LED indicator is provided for each of the eight video inputs to the RT-780C-SL. DC power and video status associated with each of these LED’s are summarized below. Video Presence LED...
- Page 4 LIFETIME WARRANTY INFORMATION American Fibertek, Inc warrants that at the time of delivery the products delivered will be free of defects in materials and workmanship. Defective products will be repaired or replaced at the exclusive option of American Fibertek. A Return Material Authorization (RMA) number is required to send the products back in case of return.
