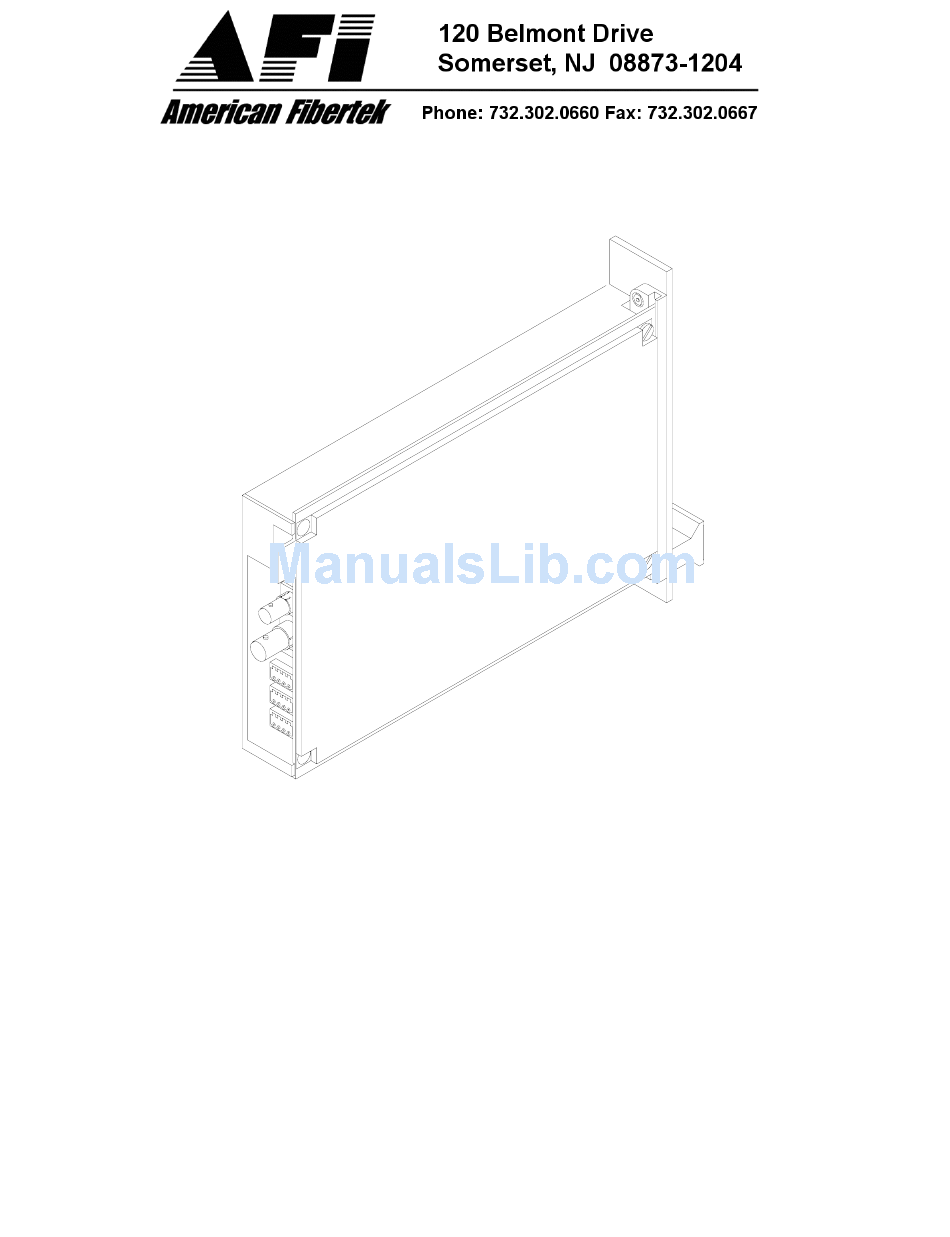

Instruction Manual RT-913D Video Transmitter With Bi-directional Multi-Protocol Data And Remote Diagnostic Interface © Copyright 2005, American Fibertek, Inc. 0825JD... -
Page 2: Table Of Contents
Video Input Connection ................4 Data Input / Output Connections ..............5 Typical System Data Connections............... 5 Data Configuration..................5 RS485 Data Signals ..................6 Offset Bias - RS485 ..................6 RT-913D Status LED Indicators ..............7 Warranty ...................... 8... -
Page 3: Functional Description
The RT-913D operates as half of a transmitter / receiver pair for the transmission of high performance 10 bit digital NTSC, PAL, RS170, or RS343 video signals. The RT-913D also supports up to three bi- directional channels of RS485 (2 or 4 wire), RS422, RS232 or Manchester data. Switch selection... -
Page 4: Installation
INSTALLATION THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE PERSON AND SHOULD CONFORM TO THE NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 AND LOCAL CODES. The unit slides into any open slot in the SR-20 or SR-20D subrack. Use a small screwdriver to push and lock the two ¼... -
Page 5: Data Input / Output Connections
Correspondingly, the receiver of an electronic signal is labeled RX or Data In. Following this standard, the Data Out of the copper device is connected to the Data In of the RT-913D. The plus terminal of the copper device is connected to the plus terminal of the RT-913D and the minus is connected to the minus. -
Page 6: Offset Bias - Rs485
In order to reconfigure the RS485/422 channel, the rack card cover needs to be removed. To open the RT-913D, remove the two screws at the left rear of unit near data and fiber connections. Also remove the two screws at the right front of unit (top of cover). The configuration switch banks are located at the lower right corner of PCB next to the data terminals (See drawing below). - Page 7 A green LED indicator is provided to monitor the data coming in from the electrical interface, through the RT-913D, and out onto the fiber. The intensity of this indicator will vary with input data patterns, however in typical applications it will cycle on and off as data is transmitted. Data transmitted status associated with this LED is summarized below.
-
Page 8: Warranty
SYNC A bi-color LED indicator is provided to monitor the proper serialization of the electrical data stream through the RT-913D and out onto the fiber. DC power and sync status associated with this LED is summarized below. Sync LED DC Power Status...
