Oregon Scientific SE302 User Manual

1. LCD screen
2. MEM / - : Display training records; decrease setting
value
3. MODE: Switch to another display Mode; press and hold
to search signal
4. ST / SP / + : Start / stop timer; increase setting value
Heart Rate Monitor with Speed and
Distance 5. / : Turn on backlight for 3 seconds; lock /
unlock the keypad
MODEL: SE302
6. SET: Enter setting mode; confirm setting; display
different information during training or memory mode;
reset timer / stopwatch
USER MANUAL
EN
LCD
INTRODUCTION
Thank you for selecting the Heart Rate Monitor as your
1
sports fitness product of choice.
2
IMPORTANT This product is for sport purposes only and
1. Area 1
it is not meant to replace any medical advice. This manual
2. Area 2
contains important safety and care information, and provides 3
3. Area 3
step-by-step instructions for using this product. Read the
manual thoroughly, and keep it in a safe place in case you 4. Area 4
need to refer to it later.
4

TRAINING INFORMATION

Area 1
HOW THE HEART RATE MONITOR HELPS YOU
1
A heart rate monitor is the most important tool in
cardiovascular health and an ideal training partner. It enables 2
you to see and monitor results. This helps you assess your
3
past performance, maximize your workout and adapt your
4
future exercise program to achieve your desired goals in a
safer and more effective way.
1. WARM: Warm-up timer is shown or running
When you exercise, the chest belt picks up your heartbeat 2. REST: Recovery timer is shown or running
and sends it to the watch. Now you can view your heart rate
3. TIMER: SMART TRAINING PROGRAM is shown or
and start monitoring your performance based on your heart
running
rate readings. As you get fitter, your heart will need to do
4. TTL: Total exercise time is displayed
less work and the speed of your heartbeat will decrease. The
reason for this is as follows:
5. : Stopwatch is shown or running
6. Key tone is enabled
• Your heart pumps blood to your lungs to obtain oxygen.
7. Backlight is enabled
Then, the oxygen rich blood will travel to your muscles.
The oxygen is used as fuel and the blood leaves the
muscles and returns to the lungs to begin the process
Area 2
again. As you get fit, your heart is able to pump more
blood with every beat. As a result, your heart doesn't
1
have to beat as often to get the necessary oxygen to
your muscles.
2
TRAINING TIPS
To gain maximum benefit from your training program and to
1. / : Hour / minute / second separators
ensure that you exercise safely, please observe the following
guidelines: 2. Stopwatch or exercise time
3. KCAL: Number of calories
• Start with a well-defined training goal, such as to lose 4. : Alarm is enabled
weight, keep fit, improve health or compete in a sporting
5. Unit of speed / distance
event.
• Select a training activity you enjoy and vary your training
Area 3
activities to exercise different muscle groups.
• Start slowly, and then gradually step up your workout
1
as you become fitter. Exercise regularly. To maintain a
healthy cardio-vascular system, 20-30 minutes three 2
times a week is recommended.
• Always allow at least five minutes before and after 3
exercising for warm-up and cool-down.
4
• Measure your pulse after training. Then repeat the
procedure again after three minutes. If it does not return
to its normal resting rate, you may have trained too
1. % fat : Percentage of fat burned
hard.
2. : Icon animated when a speed reading
• Always check with your doctor before starting a vigorous
is being taken
training program.
3. / : Flashes when heart rate is out of zone
4. Displays information

PRODUCT OVERVIEW

5. cm : Height shown in centimeters
WATCH 6. Kg / lb: Unit of weight
7. / : Height shown in feet / inches
8. : Repeat function is activated
9. Number of times repeated
10. AM / PM icon
Area 4
1
2
3
4
1. / : pace display
TRANSMISSION SIGNAL
2. : Flash when speed is out of zone The chest belt and watch have a maximum transmission
range of about 62.5 centimeters (25 inches). They are
3. Avg : Average heart rate / average speed / average
equipped with the latest digital coding system to reduce
pace is displayed
signal interference from the environment and for more
4. Max : Maximum value of speed and distance is
accurate readings.
displayed
5. Unit of speed
NOTE Whenever the watch is searching for the chest
6. : Heart rate is above or below limit; audio heart rate
belt signal (manual or automatic search), make sure that
alert is activated
the chest belt is no further than 10 cm (4 inches) from the
watch.
7. : Flashes when a signal has been found
ICON
8. : Flashes when auto-searching heart rate signal
9. : Battery status
10. : Keypad lock is enabled
The outer heart flashes

GETTING STARTED

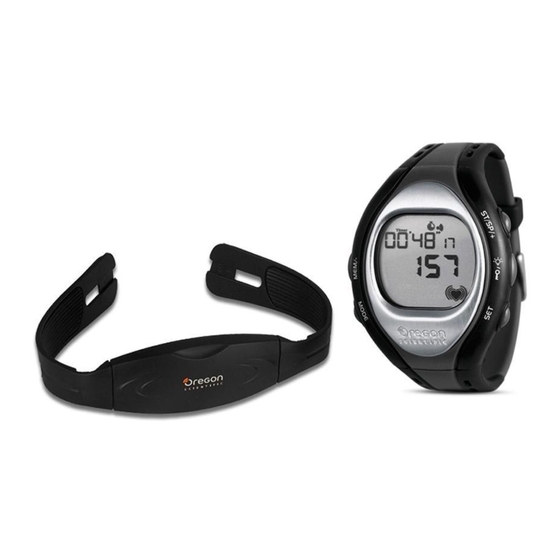

UNPACKING THE WATCH
The inner heart flashes
In this box, you will find:
• Watch
• Heart rate chest belt
• Adjustable elastic belt
• Bike mount
NOTE If the watch is kept idle without receiving a signal
• 2 x CR2032 lithium batteries (already installed) from the chest belt for 5 minutes, the heart rate and speed
functions will be turned off.
5 To turn on the watch (first time use only):
IMPORTANT If the heart rate icon does not appear on the
6
Press any key for 2 seconds to activate the LCD.
display or is not flashing because no signal has been found,
7 force a signal search. See "Signal Search" section for how
to do this.
NOTE To ensure accuracy, calibrate the watch before first
use (see Calibration section for more information).
In the event that you experience a weak signal or your signal
is disrupted by interference in the environment, follow the

WEARING THE CHEST BELT AND WATCH

instructions below to identify and resolve the situation.
CHEST BELT
1. The signal is weak – the watch will only show "0":
The heart rate chest belt is used to count your heartbeat and
• Shorten the distance between the heart rate chest
transmit the data to the watch.
belt and watch.
• Re-adjust the position of the heart rate chest belt.
To wear the chest belt:
• Check the batteries. If they are low or exhausted,
• Wet the conductive
the range may be less.
pads on the underside
• Force a signal search (see "Signal Search"
of the chest belt with a
section).
few drops of water or a
conductive gel to ensure
3 solid contact.
2. Interference from another person's heart rate monitor
4
• Strap the heart rate chest – their heart rate readings appear on your watch, or the
belt across your chest. watch shows "0":
5
To ensure an accurate
• Take the chest belt off for 12 seconds to
heart rate signal, adjust
automatically change your User ID. (The watch has
the strap until the belt
4 User ID's. When the watch receives the chest belt
sits snugly below your
signal, it will tell you which User ID it has selected.
pectoral muscles.
Only products with a digital coding system have
User ID capability.)
TIPS
• The position of the chest belt affects its performance. NOTE The heart rate readings may interfere with other
Move the chest belt along the strap so that it falls above users if the distance is less than 84 cm (33 inches).
your heart.
• Avoid areas with dense chest hair.
3. The signal is jammed – the heart rate reading on your
• In dry, cold climates, it may take several minutes for the watch is flashing:
5
chest belt to function steadily. This is normal and should
6
• There is too much interference in the environment
7 improve with several minutes of exercise.
for your heart rate monitor to function. Move to an
8
• To maintain the best performance of your chest belt, area where the heart rate reading stops flashing.
please handle it with care according to the following:
9
- Do not wrap the chest belt in a wet towel nor with
WARNING Signal interference in the environment can
10
other wet materials.
be due to electromagnetic disturbances. These may occur
- Do not store the chest belt in a hot (about 50°C) and near high voltage power lines, traffic lights, overhead lines
humid (about 90%) environment. of electric railways, electric bus lines or trams, televisions,
car motors, bike computers, some motor driven exercise
- Do not place or wash the chest belt under running
equipment, cellular phones or when you walk through electric
water, instead clean it with a wet cloth.
security gates. Under interference, the heart rate and speed
- Do not place the conductive rubber face down on a
readings may become unstable and inaccurate.
metal table or surface.
- Properly dry the chest belt immediately after use.
SIGNAL SEARCH
To force a signal search:
WATCH
1. Press MODE to enter TRAIN or CHRONO Mode.
You can wear the receiver on your wrist or strap it to a bike
or exercise machine as shown below. 2. Press and hold MODE for 2 seconds. The signal-
searching icon with the outside flashing will appear to
confirm a signal search is taking place. Whenever the
watch is searching for the chest belt signal, make sure
that the chest belt is no further than 10 cm (4 inches)
from the watch.
The signal search will take approximately 10 seconds. If
5
after 10 seconds the heart icon is not flashing, then your
6
signal search has been unsuccessful and you need to force
7 another signal search. See the table in the "Transmission
8
Signal" section for more signal status information.
9
10
SETTING THE KEYPAD TONE / LIGHT MODE
You can set the watch to have the:
• Keypad "Beep" tone ON or OFF.
3. Press ST / SP / + or MEM / - to change the 12 or 24 hour
clock format setting. Hold down for fast advancement.
Press SET to confirm the setting and move on to the
next one.
• Light Mode ON or OFF (see "Activating the Backlight"
DESCRIPTION
section).
4. Repeat step 3 to change other settings: Hour / Minute /
Year / DD:MM or MM:DD date format / Month / Day.
Searching for a
signal
NOTE The clock is programmed with a 50-year auto-
calendar, which means you do not need to reset the days of
the week and dates each month.
A signal has been
found

ALARM

To set these features: The alarm can be set to activate daily (Mon-Sun), on
No signal has
weekdays (Mon-Fri) or on the weekend (Sat-Sun).
been found 1. Press MODE to enter TIME Mode.
2. Press SET until you reach the feature you wish to
change. To set alarm:
3. Press ST / SP / + or MEM / - to change the setting. 1. Press MODE to enter TIME mode.
4. Press SET to confirm the setting and move on to the
next one.
ACTIVATING THE BACKLIGHT
To activate when the Light Mode is set to OFF:
Press to turn on the backlight for 3 seconds. Press any
other key whilst the light is on and it will extend the light time
by another 3 seconds.
2. Press SET to select alarm.
3. Press and hold SET until the first setting is flashing to
To activate when the Light Mode is set to ON:
enter the setting mode for the alarm.
Press any key to turn ON or extend the backlight for 3
seconds.
To help conserve power the Light Mode ON setting will
automatically switch to OFF after 2 hours.
NOTE The backlight does not work when the low battery
icon is shown and will return to normal once the battery is
replaced.
4. Press ST / SP / + or MEM / - to change the Daily,
ACTIVATING THE KEYPAD LOCK
Weekday or Weekend setting. Hold down for fast
To turn the keypad lock ON or OFF:
advancement. Press SET to confirm the setting and
move on to the next one.
• Press and hold . appears on the display
5. Repeat step 4 to change other settings: Hour / Minute.
when the keypad lock is on.
6. The alarm will automatically be activated once you have
finished setting the alarm time.
SWITCHING BETWEEN OPERATION MODES
Press MODE to switch between the 4 operation modes:
To activate / deactivate the alarm:
• TIME: Real-time clock and Alarm
1. Press MODE to enter TIME Mode.
• TRAIN: Warm-up timer / Exercise timer / Rest (recovery)
2. Press SET to select alarm.
timer
3. Press ST / SP / + or MEM / - to activate or deactivate
• CHRONO: Stopwatch
the alarm. The alarm icon
• USER: Exercise and User profile. activated.
The modes are described in the sections that follow. To turn the alarm sound off:
Press any key to turn the alarm sound off. The alarm will
automatically reset itself unless you deactivate it.
NOTE You can run the SMART TRAINING PROGRAM or
stopwatch in the background as you access other modes.
The icon for the mode that is running will flash until you

USER PROFILE

switch back to that mode.
To access the full benefits of the heart rate monitor set up
your user profile before you exercise. This will automatically

CLOCK

generate a fitness index and body mass index. These
calculations along with the calorie and % fat burned will help
To set real-time clock:
you track your progress over time.
1. Press MODE to switch to TIME mode.
To set user profile:
1. Press MODE to enter User Profile.
2. Press and hold SET until the first setting flashes.
To set exercise profile:
1. Press MODE to enter USER Mode
2. If this screen appears, press SET to enter the User
Profile.
2. Press SET to enter Exercise Profile.
3. Press and hold SET until the first setting flashes.
3. Press and hold SET until the first setting flashes. The
display will change to "WALK", "JOG" or "RUN" after a
while.
4. Press ST / SP / + or MEM / - to change the walk / jog
4. Press ST / SP / + or MEM / - to change the Male or
/ run setting. Hold to speed through the options. Press
Female setting. Hold to speed through the options.
SET to confirm the setting and move on to the next
Press SET to confirm the setting and move on to the
one.
next one.
5. Repeat step 4 to change other settings: Year of Birth / 5. Repeat step 4 to change other settings:
Month of Birth / Day of Birth / Weight - lbs or Kg option /
• Lower Limit Heart Rate
Weight / Height - feet / inch or centimeter option / Height
• Upper Limit Heart Rate
/ Activity Level - Little, Hobby or Athlete.
• Heart Rate Alert ON or OFF
• Repeat Exercise Timer ON or OFF
Once you complete your user profile, a fitness index and
body mass index is automatically calculated and displayed • Exercise Timer or Distance / Distance (if Distance is
for you. Refer to the "About the Fitness / Body Mass Index" chosen)
section for further information. • Exercise Timer Hour (if Timer is chosen)
• Exercise Timer Minute (if Timer is chosen)
NOTE You can display and adjust your user profile at any
• Warm-Up Timer (set to 5, 10, 15 mins to activate or
time.
0 to deactivate timer)
• Rest (Recovery) Timer ON or OFF
NOTE You must set up your user profile to use the calorie
count and % fat burned features.
NOTE Once you have set your user profile and target activity
your lower and upper heart rate limit will be set automatically.
However, If the automatic settings don't suit you, you can
ACTIVITY LEVEL
manually change them. If you change the target activity, they
The activity level is based on your own self-assessment of will automatically be updated.
the amount of exercise you regularly perform.

TARGET ACTIVITY

ACTIVITY LEVEL DESCRIPTION
There are 3 target activity levels:
Low – You do not usually
LITTLE participate in programmed TARGET ACTIVITY
recreation sports or exercise
displays when the alarm is
Medium – You are engaged in
modest physical activity (such as
Health
golfing, horseback riding, table
WALK
HOBBY
Maintenance
tennis calisthenics, bowling, weight
lifting or gymnastics) 2-3 times a
week, totaling 1 hour per week.
High – You actively and regularly
participate in heavy physical
exercise (such as running, jogging,
ATHLETE swimming, cycling, or skipping
rope) or engage in vigorous aerobic Aerobic
JOG
exercise (such as tennis basketball Exercise
or handball).

EXERCISE PROFILE

To use the SMART TRAINING PROGRAM you need to set
the exercise profile.
Anaerobic
RUN
Exercise
Different activities exercise the body in different ways
and help you to achieve a variety of fitness goals. To
accommodate this, the exercise profile can be set to suit
different exercise activities. For example, if you are running,
your exercise profile settings are likely to differ from those
you would use when undertaking a weight training activity.
MAXIMUM / LOWER / UPPER HEART RATE LIMIT
Before you begin any exercise program and to achieve
maximum health benefits from your workout, it is important
Also, the time you require to warm-up and complete an
to know your:
exercise will vary. That is why you can change the warm-up
and exercise countdown time to suit you.
• Maximum heart rate (MHR)
• Lower heart rate limit
• Upper heart rate limit
To manually calculate your own heart rate limits, follow the
instructions below:
MHR LOWER LIMIT UPPER LIMIT
MHR = 220 MHR x lower
MHR x upper target
– age target activity %.
activity %.
E.g. Target
E.g. Target activity is
activity is WALK
WALK Upper Limit =
Lower Limit =
MHR x 78%
MHR x 65%

HEART RATE ALERT

You can set the heart rate alert in the exercise profile to the
following settings:
ICON DESCRIPTION
Heart rate sound is OFF
Heart rate sound alert is ON
• 1 beep means you have gone
below your lower zone limit
• 2 beeps means you have gone
above your upper zone limit
When the heart rate alert is activated, a flashing down or up
arrow will appear on the display to show which heart rate
limit you have surpassed.

CALIBRATION AND SPEED

CALIBRATION

Before using the speed and distance function, you need to
calibrate for both running and walking. You do this by entering
a pre-set distance and using the watch to determine a rough
estimate of your speed (for both running and walking). This
is called the real calibration.
To set real calibration:
1. Make sure the transmission between the watch and
chest belt is well connected.
2. Press MODE to enter TRAIN mode.
3. Press and hold SET to enter setting mode.
4. Press ST / SP / + or MEM / - to select calibration (CALI)
and press SET to confirm.
5. Press ST / SP / + or MEM / - to select walking or running.
You must do both walking and running separately. The
watch can automatically distinguish if you are walking or
MHR% DESCRIPTION
running.
This is the lowest
training intensity 6. Press ST / SP / + or MEM / - to select the distance you
level. It is good will walk / run and (400 meters is suggested) and press
for beginners and SET to confirm.
65-78%
those who want to
7. Press ST / SP / + to start calibration and then immediately
strengthen their
start walking or running.
cardiovascular
8. Once you have completed the distance set, press ST /
systems.
SP / + to end calibration. It is very important to end the
Increases strength
calibration by pressing ST / SP / + to ensure accurate
and endurance. It
operation of the heart rate monitor.
works within the
9. The watch can detect whether the calibration has been
body's oxygen intake
65-85% accurate or not. If calibration has failed you can redo it
capability, burns more
by pressing SET and repeating steps 8 and 9, or cancel
calories, and can be
by pressing ST / SP / +.
maintained for a long
period of time. 10. Repeat again so that both walk and run are calibrated.
Generates speed
and power. It works
IMPORTANT If an in-progress calibration is interrupted,
at or above the
you must restart and complete calibration before using the
body's oxygen intake
78-90% unit again.
capability, builds
muscle and cannot
be maintained for a TIPS
long period of time.
• The speed and distance function is only for running or
walking, not for cycling or driving.
• When calibrating running, for a more accurate calibration
please run below 15km/h (or 3 steps per second).
• The watch will show the estimated distance completed
during calibration. If the final estimate is 20% over or
under the set distance, we suggest recalibration.
• The calibration depends on the body's walking or
