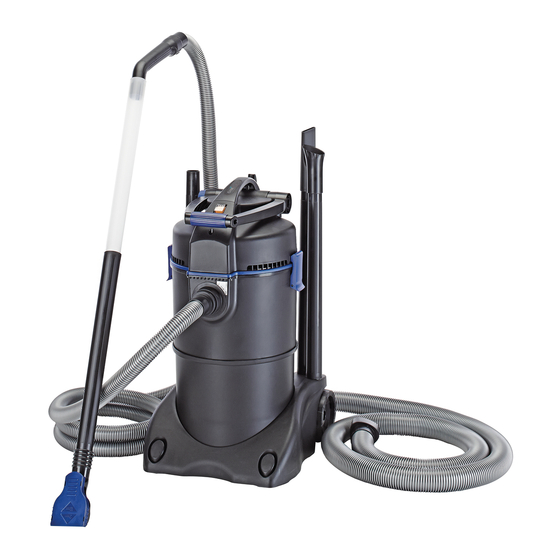

Vacuum cleaner for cleaning garden ponds
Hide thumbs Also See for PondoVac 5:

Advertisement

Table of Contents

See also: Operating Instructions Manual
PondoVac
5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PondoVac 5 and is the answer not in the manual?

Questions and answers

Related Manuals for Oase PondoVac 5

Summary of Contents for Oase PondoVac 5

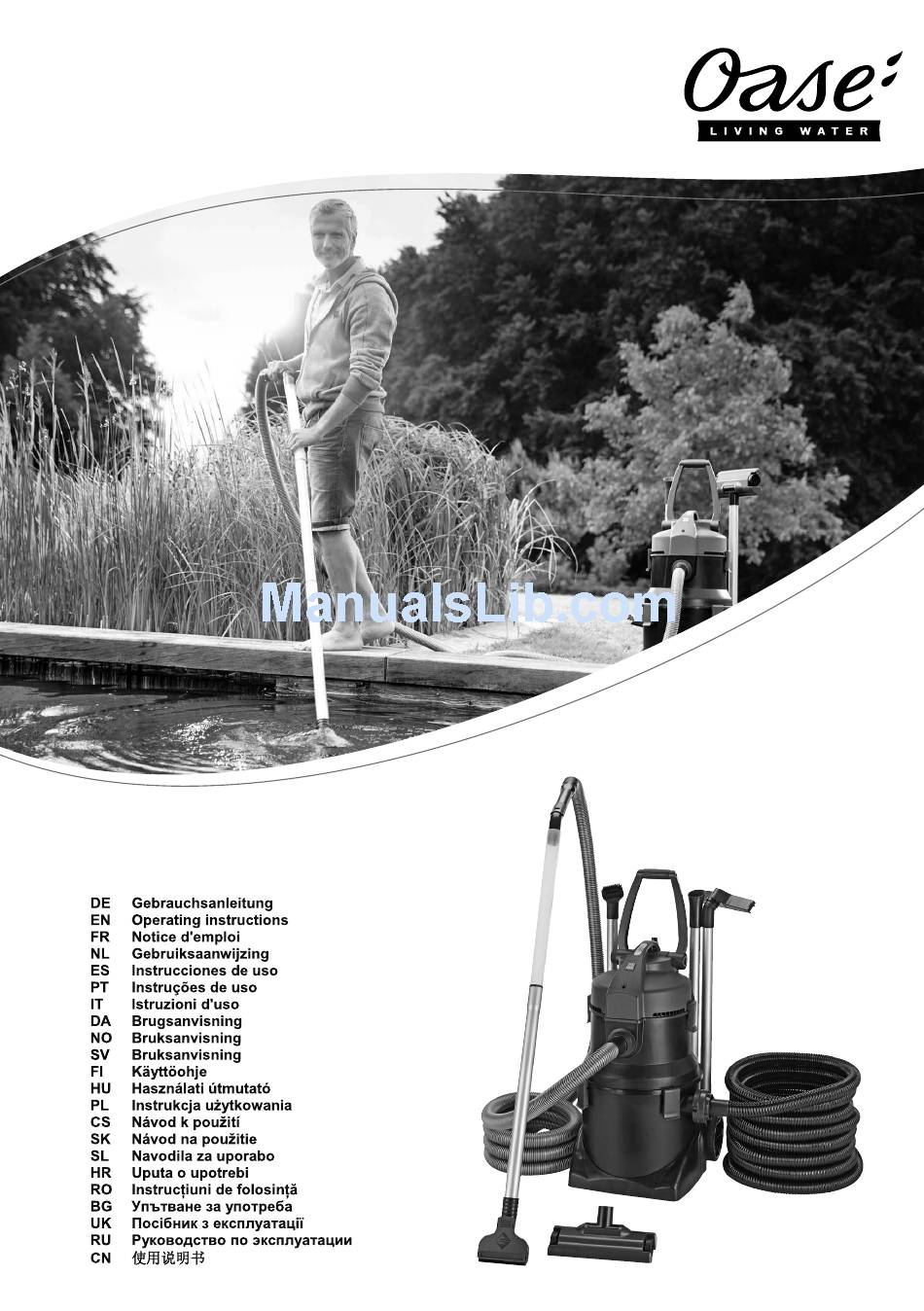

  • Page 1 PondoVac...
  • Page 2 -  - PVC0018 PVC0019...
  • Page 3 -  - PVC0021 PVC0022 PVC0023...
  • Page 4 -  - PVC0025 PVC0020 PVC0024...
  • Page 5 -  - PVC0026 PVC0029 PVC0027...
  • Page 6 -  - PVC0028 PVC0030...

  • Page 7: Scope Of Delivery

    Information about these operating instructions Welcome to OASE Living Water. You made a good choice with the purchase of this product PondoVac 5. Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit.

  • Page 8: Product Description

    - EN - Product Description PondoVac 5 is a multi-purpose vacuum cleaner for cleaning garden ponds, pools and swimming ponds. It is also suita- ble for use as a wet vacuum cleaner in the home. Unit configuration  B Description...
  • Page 9 - EN - The following restrictions apply to the unit:  Never run the unit without water.  The debris/dirt must contain at least 20 % water.  Only operate with water at a water temperature of +4 °C to +35 °C. ...

  • Page 10: Assembling The Vacuum Cleaner

    - EN - Opening/closing the tank Attention! Dangerous electrical voltage! Possible consequences: Death or severe injury. Protective measures: Prior to commencing work, disconnect the unit from the mains. How to proceed:  C 1. Release the locking clips. – To do this, grip the clips from underneath and pull upwards. 2.

  • Page 11: Installation And Connection

    - EN - Installation and connection  G Attention! Dangerous electrical voltage. Possible consequences: Death or serious injuries due to operation of electrical units or installations in or near ponds/pools. Protective measures:  Set up the unit at least 2 m away from the pond/pool. ...

  • Page 12: Operation

    - EN - Operation  Switch on the vacuum cleaner at the power switch.  The suction power can be adjusted with the slide in the suction hose handle. – To increase the suction: Move the slide forwards. – To reduce the suction: Move the slide backwards. ...

  • Page 13: Maintenance And Cleaning

    - EN - Maintenance and cleaning Attention! Dangerous electrical voltage! Possible consequences: Death or severe injury. Protective measures: Prior to commencing work, disconnect the unit from the mains. Cleaning the container Prerequisite: The tank is open.  Clean the debris collection bag under running water. Clean the following parts with clean water and a soft brush: ...

  • Page 14: Wear Parts

    - EN - Removing/cleaning the pump Prerequisite: The tank is open. How to proceed:  M 1. Unscrew the plug connection and pull apart. – Protect the open plug connection from moisture. 2. Unscrew the Storz coupling type C. 3. Turn the adapter away to the side. 4.

  • Page 15: Technical Data

    - EN - Technical data Rated voltage V AC Mains frequency Max. power consumption 2600 Length of power cable 7.50 Permissible water temperature °C +4 … +35 Weight Dimensions L × W × H 435 × 395 × 670 Discharge pump Max.
  • Page 16 PVC0031...
  • Page 17 PVC0032...
