Clas Ohlson HD4201 User Manual

HDMI Switch with Remote Control
Art.no 38-4822 Model HD4201
Please read the entire instruction manual before use and save it for
future reference. We reserve the right for any errors in text or images
and for making any necessary technical changes to this document.
If you should have any questions concerning technical problems please
contact our Customer Services.

Safety

• This product should only be repaired by qualified service technicians.
• The product is designed for indoor use only.
• Never open the casing. Certain components within the product's
casing contain dangerous currents. Contact with these may give
you an electric shock.
• Do not place the product where there is a risk of it falling into water or
other liquid. Never place the product close to objects that can cause
water or other liquid to spill onto the product, e.g. a vase or a drink.
• Only use the device with a suitable or recommended adaptor.

Contents

• HDMI Switch
• Remote control
• AC/DC mains adaptor
• Instruction manual

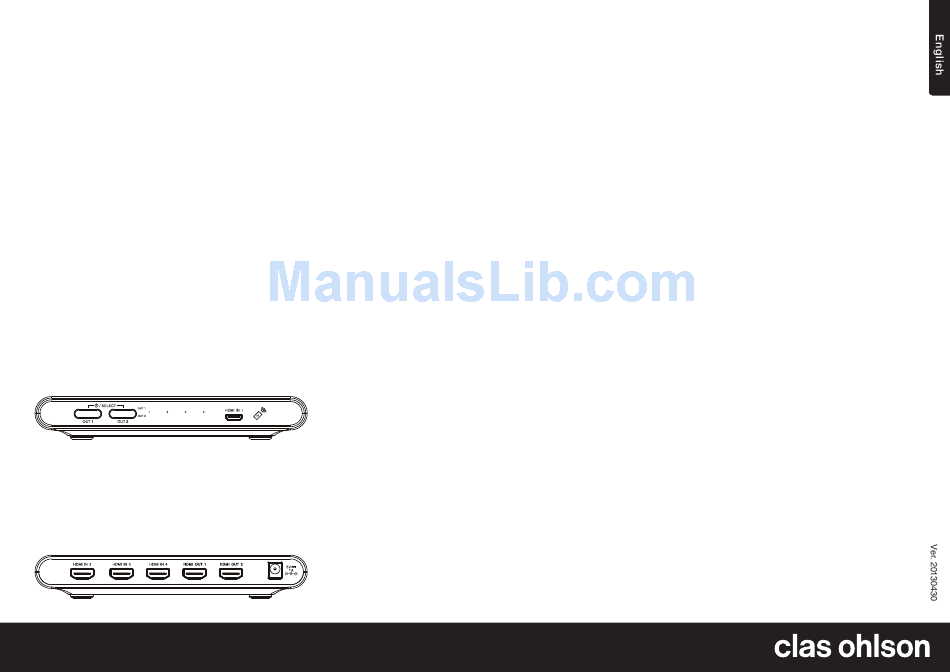

Buttons and functions

Front panel
[ SELECT OUT 1 ],
[ SELECT OUT 2 ] Output selector.
1–4 Input indicator.
HDMI IN 1 Input for e.g. game consoles, DVD players,
set-top boxes, or camcorders.
IR Remote control IR sensor
Back panel
GREAT BRITAIN • customer service tel: 08545 300 9799 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.com/uk
HDMI IN 2–4 Inputs for e.g. game consoles, DVD players,
set-top boxes, or camcorders.
HDMI OUT 1–2 Outputs for TVs, etc.
5V 1A Adaptor connection (5 V DC, 1 A)
Installation
1. Connect your HDMI cables (sold separately) between the outputs on
the source units (e.g. DVD players or digital receivers) and the inputs
marked "HDMI IN 1–4" on the HDMI switch.
2. Connect an HDMI cable between the outputs "HDMI OUT 1"
on the HDMI switch and the TV's HDMI input. Another output is
available if needed. Use another HDMI cable and connect it between
"HDMI OUT 2" and a projector or another monitor, for example.
Handy hint: Try to keep track of which device is connected to which
input/output.
3. Connect the included adaptor plug to the power connection marked
"5V 1A" on the switch and insert the mains plug into a wall socket.
4. Push any of the buttons [SELECT OUT 1] or [SELECT OUT 2] to turn
on the selected device.

Operation

Choosing an input device for HDMI OUT 1
1. Turn on the device (e.g. TV) that you have connected to
the "HDMI OUT 1" output and choose HDMI as the input on your TV
(See your TV's instruction manual).
2. Make sure the input device you have connected (DVD player, etc.)
is turned on.
3. Push [ SELECT OUT 1 ] on the HDMI switch until you have selected
the chosen input for viewing. The indicator light on the top row
shows which input is activated for the "HDMI OUT 1" output.
Use the remote to select inputs by using the following buttons,
[ setA ] or [ IN1 ] to [ IN4 ].
Choosing an input device for HDMI OUT 2
1. Turn on the device (e.g. TV) that you have connected to
the "HDMI OUT 2" output and choose HDMI as the input on your TV
(See your TV's instruction manual).
2. Make sure the input device you have connected (DVD player, etc.)
is turned on.
3. Push [ SELECT OUT 2 ] on the HDMI switch until you have
selected the chosen input you want to watch. The indicator
light on the bottom row shows which input is activated for
the "HDMI OUT 2" output.You can also use the remote to select
inputs by using the following buttons, [ setB ] or [ IN1 ] to [ IN4 ].
Turning the HDMI switch off
Push and hold any of the buttons [ SELECT OUT 1 ] or [ SELECT OUT 2 ]
for approx. 3 seconds or push [ ON/OFF ] on the remote to turn the HDMI
switch off.

Care and maintenance

Use a soft damp cloth to wipe the product. Never use strong
detergents or solvents.

Troubleshooting guide

No indicator lights up.
Check that the mains adaptor is properly connected and the device is
turned on. Push [SELECT OUT 1], [SELECT OUT 2] once or [ ON/OFF ]
on the remote to turn on the device.
No picture is displayed and no audio is heard.
Check that none of the cables are damaged and that they are all
properly connected.
The picture is seen but no audio is heard.
• Check that the DVD player or TV is set to the DVI position.
• Use only HDMI cables of newer than version 1.1.
• Turn off the device and restart it to reactivate the input.
The HDMI switch does not react to the remote control.
• Check the battery and replace it if necessary.
• Make sure that there is no interference with the remote control's
signals and the distance is not too great between the remote control
and the HDMI switch.
It is impossible to select an input using [ SELECT OUT ] 1 or 2.
• Check that the button can be properly depressed.
• Cut the power by unplugging the adaptor shortly and then turn on
the device again.

Disposal

This product should be disposed of in accordance with local regulations.
If you are unsure how to proceed, contact your local authority.

Specifications

Amount of inputs 3 × type A 19-PIN, 1 × type C 19-PIN
Number of outputs 2 × type A 19-PIN
Band width,
video amplifier 225 MHz / 6.75 Gbps
Supports 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
VGA, SVGA, SXGA (1280 × 1024),
UXGA (1600 × 1200), 3D Support and 4 × 1080p
Output frame rate 24–60 Hz
Power supply 5 V DC 1 A (230 V AC) mains adaptor (included)
Remote control battery 1 × CR2025 (included)
