Cordless handset DECT)
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ePure HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Swissvoice ePure HD

Summary of Contents for Swissvoice ePure HD

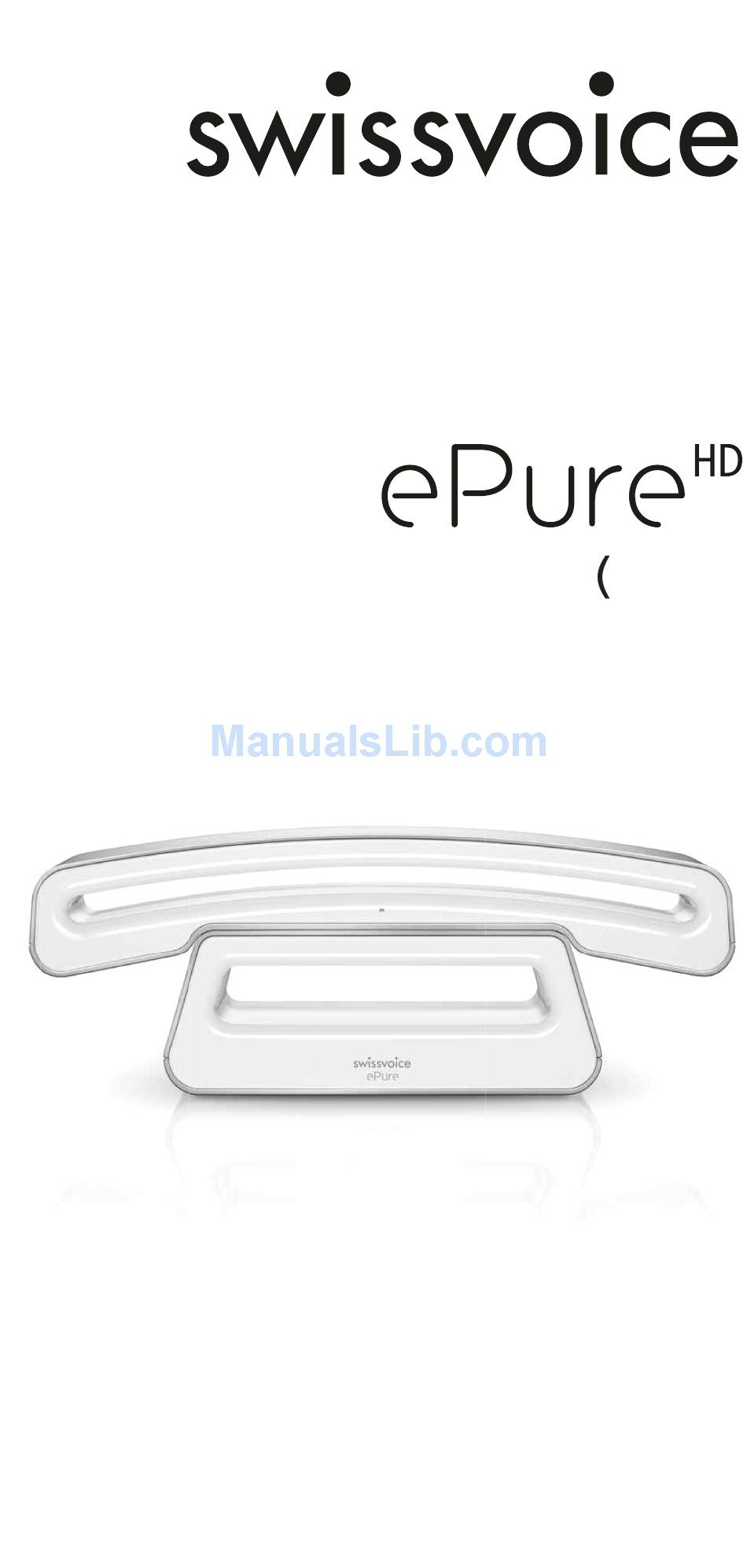

  • Page 1 Cordless handset DECT) User manual...

  • Page 2: Welcome To Swissvoice

    Welcome to Swissvoice The ePure HD is a CAT-iq 2.0 compliant handset which offers an excellent narrow and wideband audio experience. The ePure HD handset is aimed to be used with a CAT-iq 2.0 base station like Swisscom Internet-Box or Swisscom Rousseau 10. CAT-iq 2.0 features must be supported by the base for the system to work properly.

  • Page 3: Getting To Know Your Telephone

    Getting to know your telephone Handset keys Earpiece Display Navigation key Softkey (multi- Softkey (multi- functional key) functional key) Talk key “End call” key Call anonymous Call voicebox LED indicator Activating / deactivating the key lock R key (long press)/ Switch ringer on/off Loudspeaker...
  • Page 4 Softkeys (multifunctional keys) Right soft- key: Open menu, choose menu options, con- firms entries/settings. Left softkey: Open con- tacts, returns to previous menu step, delete characters while entering text. Navigation key  For scrolling up/down or right/left. Open list of last dialled calls. Calls list  Access to calls list (answered/missed calls, dialled calls).

  • Page 5: Handset Display Symbols

    Hash key  For entering the hash symbol. In idle mode: Press and hold down to switch key lock on/off. Handset display symbols The following symbols are displayed on your handset. Coverage symbol Battery full Reception displayed Indicates that the bat- when the handset is tery is fully charged.

  • Page 6: Led Indicator

    LED indicator Your ePure HD handset has a LED indicator which is flashing on some events, indicating: - You are receiving an internal or external call. - You have one or more missed calls. - You have one or more voice mails pending.

  • Page 7: Table Of Contents

    Contents Welcome to Swissvoice Getting to know your telephone Handset keys Handset display symbols LED indicator Practical advice Safety precautions ………………………………………………8 Setting up the telephone ……………………………………10 Contents of the package…………………………………………10 Inserting the battery………………………………………………10 Setting the language ………………………………………11 Installation assistant ………………………………………………11 Connecting the charger …………………………………………12...
  • Page 8 Call transfer to another handset ………………………………22 Three-way conference ……………………………………………22 My/Our contacts ………………………………………………23 Opening the "My/Our contacts" phonebooks …………………23 Select between the "My/Our contacts" phonebooks …………23 Dialling numbers from "My/our contacts" phonebooks ………24 Adding a new contact ……………………………………………24 Editing contacts …………………………………………………25 Show details ………………………………………………………25 Deleting contacts/all the contacts ………………………………25 Copying contacts/all the contacts to/from the...
  • Page 9 Registration ………………………………………………………38 System PIN…………………………………………………………39 Reset ………………………………………………………………40 Software version …………………………………………………40 Software update …………………………………………………40 IP address …………………………………………………………40 ePure HD handset interoperability …………………………41 Faults and trouble-shooting …………………………………42 Appendix …………………………………………………………44 Care ………………………………………………………………44 Recycling (environmental protection) ……………………………44 Disposing of the rechargeable battery …………………………44 Approval and conformity…………………………………………45 CE symbol …………………………………………………………45...

  • Page 10: Safety Precautions

    Safety precautions Your new swissvoice ePure HD is designed for connection to a VoIP network. Please read the safety precautions and user guide carefully before installing the telephone. The user guide is a part of the product package and must be passed on to a new owner.
  • Page 11 Please note: Do not immerse batteries in water or throw in the fire. µ Rechargeable batteries can become warm while recharging. µ This is normal and not dangerous. Do not use any other type of charging unit since this may µ...

  • Page 12: Setting Up The Telephone

    Setting up the telephone Contents of the package µ 1 handset µ 1 charging station µ 1 power supply MN-A002-A080 ; 7.5 V , 300mA from MEIC µ 1 rechargeable battery Li-Ion 3.7 V - 550 mAh µ user manuals Inserting the battery Step 1: To open the battery door, use a small tool like a door key, plug the...

  • Page 13: Setting The Language

    Setting the language When the battery has been inserted for the first time the lan- guage choice appears. Press to scroll to the desired language. Confirm with OK. The display texts are now displayed in the selected lan- guage. Installation assistant After having selected the language, the handset will automati- cally switch to the installation mode.

  • Page 14: Connecting The Charger

    Connecting the charger Before you can start using your charger you must first plug in the mains cable: Insert the plug into the corresponding socket on the charger. Then insert the power supply in the 230 V socket. Place the handset on the charger (make sure that the battery is insert- ed!).

  • Page 15: Location

    • Your ePure HD handset is fitted with a low-radiation mecha- nism, the antenna automatically switches off in standby mode and cannot therefore emit any radiation. This feature must be supported and switched on in the base station the handset is registered with.

  • Page 16: Repeater

    You can use the Swisscom Rousseau repeater to extend the range and receiving power of the base station when the swissvoice ePure HD handset is registered to the Swisscom Rousseau 10 base, or another base compatible to the Swisscom Rousseau repeater.

  • Page 17: About The User Guide / Menus

    About the user guide / menus Main menu The available menu icons appear on the display: Contacts Calls list Settings Audio Clock Network Press to select the desired icon. The title of the selected menu appears at the top of the display (e.g. Audio). Menu navigation Your handset provides you with an easy-to-follow menu.

  • Page 18: User Guide Fonts And Symbols

    User guide fonts and symbols MENU, OK, BACK Uppercase bold characters indicate softkey functions. These pictograms indicate the keys to be pressed. KEYPAD LOCKED Uppercase bold italic grey charac- ters indicate texts appearing on your handset display. Telephoning Making an external call Call preparation/Predial First, enter the number.

  • Page 19: Current Line Display During Call

    Current line display during call In case the handset is attached to multiple lines, the current line name is displayed during the call (below the handset status bar): • When receiving an external call, the incoming line name is displayed. •...

  • Page 20: Earpiece/Handsfree Volume

    Earpiece/handsfree volume You can adjust the earpiece and handsfree loudspeaker volume in 5 levels. Press the navigation key during a call to adjust the volume. The selected setting is saved after the end of the call. Note • The earpiece and handsfree loudspeaker volumes are inde- pendent but the setting procedure is identical.

  • Page 21: Group Call (Paging)

    • Delete call: delete the selected entry in the Dialled calls list • Save number: save number in the contacts • Delete all: delete the entire Dialled calls list on the base or handset. Note • To open the dialled calls list with the telephone must be in standby mode.

  • Page 22: Internal Calls

    Internal calls You can call other handsets which are registered with your base station. This allows you to make internal calls free of charge. 1. Press INT select the desired handset and confirm with OK. Pressing INT automatically dials the second handset if only two handsets are registered with the base station.

  • Page 23: Starting A Second Call

    Starting a second call Second internal call You are conducting an external call and you want to call an internal party without ending the external call. 1. Press INT, select the desired handset and confirm with OK. Pressing INT automatically dials the second handset if only two handsets are registered with the base station.

  • Page 24: Call Transfer To Another Handset

    Call transfer to another handset You can transfer the call you are conducting to another handset. 1. Press INT and select the handset to which you wish to trans- fer the call. The external caller is put on hold. 2. If the second handset answers, you can talk to the internal call partner without the external caller hearing you.

  • Page 25: My/Our Contacts

    Our contacts: your contacts are saved on the base station or gateway. All the handsets registered to the base can access these shared contacts. My contacts: your contacts are saved locally on the handset. By default, the ePure HD is using the phonebook "Our con- tacts". Note •...

  • Page 26: Dialling Numbers From "My/Our Contacts" Phonebooks

    Dialling numbers from "My/our contacts" phonebooks 1. Open the contacts. The contacts are displayed in alphabetical order. 2. Scroll to the desired contact and press . If you have stored more than one number for a contact (e.g. mobile and office), both numbers are displayed.

  • Page 27: Editing Contacts

    Editing contacts 1. Open the contacts. Scroll to the desired contact and press the softkey under OPTIONS. EDIT <name> 2. Select , edit and save the contact. Show details 1. Open the contacts. Scroll to the desired contact and press the softkey under OPTIONS.

  • Page 28: Filling Empty Contacts List By Copying From "My/Our Contacts

    Filling empty contacts list by copying from "My/Our contacts" If the "My contacts" list on your handset is empty, or the "Our contacts" list of your base is empty, a message to this effect is displayed. You can in this case copy the contacts of the base into the "My contacts"...

  • Page 29: Calls List

    Calls list Missed, answered and dialled calls Missed, answered and dialled calls are saved in the calls list in the base station. The number of entries depends on your base station (refer to the corresponding user guide). The handset fea- tures a local call list, which is used when registered to a GAP base.

  • Page 30: Deleting Individual Entries

    Deleting individual entries MISSED CALLS ANSWERED CALLS DIAL- 1. Press . Select LED CALLS ALL CALLS , press OK to confirm. Scroll through the relevant calls list using until you reach the entry you are seeking. DELETE CALL 2. Press the softkey under OPTIONS, to delete the entry.

  • Page 31: Network

    Network NETWORK 1. Press the softkey under MENU. Scroll to using and confirm with OK. 2. You have then the following options: Network answer machine (Voicebox) Many network operators offer the option of setting up a net- work answer machine (Voicebox). You can edit the network answer machine access number VOICEBOX VOICEBOX NUMBER...

  • Page 32: Anonymous Call (Identification Restriction)

    Anonymous call (Identification restriction) When you call someone, your number is shown on the other person’s phone if it supports this function. You can withhold your number i.e. you can call anonymously. Depending on the base your are using, you can call anonymous- ly either for the next call (NEXT CALL ANONYM) or permanently for a given line (ALWAYS ANONYM).

  • Page 33: Call Forwarding

    case of a power outage or when the rechargeable battery is empty. Call forwarding Call forwarding allows callers to reach you even if you are not near your own telephone. • Unconditional: Incoming calls are forwarded immediately. • No reply: Incoming calls are forwarded after a delay. •...

  • Page 34: Network Codes

    Network codes Depending on the base your are using, you can program or modify the network codes used for call forwarding and call anonymous. The Call by call CLIR code must be filled in to use the Anony- mous for next call feature. The other network codes should be already preset by default in the base station.

  • Page 35: Tones

    Tones Your telephone supports various tones which you can activate or deactivate: • Keypad Every time a key is pressed, a brief beep is heard. • Out of range A warning beep is sounded if you exceed the maximum range. Move closer to the base station. •...

  • Page 36: Set Alarm

    • Pressing the softkey under OPTIONS you can edit or delete appointments. Set alarm You can use your telephone as an alarm clock. MON - FRI Select the desired alarm time, alarm interval (e.g. ON DAILY ) and alarm melody (choose from 15 ringtones). Note •...

  • Page 37: Settings

    Settings SETTINGS 1. Press the softkey under MENU. Scroll to using and confirm with OK. 2. You have then the following options: Handset • Contrast - Select the desired contrast level. • Screen saver - Turn the function on or off. •...

  • Page 38: Fulleco

    UI of the internet router. Please take care to avoid con- flicting configuration issues when setting lines with the ePure HD. Important When you request and receive more IP lines from your network operator in the future you must set the Incoming line(s)/Outgo- ing line and the Line Parameters for the new lines.

  • Page 39: Repeater

    The closer you are to the base, the lower the electromagnetic radiation. Note • The coverage symbol is lit blue, when the electromagnetic radiation between the base station and the handset is shut down. SETTINGS/FULLECO/OFF • To turn off Fulleco, select •...

  • Page 40: Registration

    • The repeater can only be registered to a compatible base station such as Swisscom Rousseau 10. • The repeater can not be registered to the Swisscom Internet-Box. Registration You can register additional handsets with the base station. The base station must be within range. Note If you purchase additional handsets •...

  • Page 41: System Pin

    Note In case the base does not use 0000 as a system pin code, the handset will request the pin. 7. If the registration is successful the handset is assigned a DECT 1 INT 1 HANDSET 1 handset name (e.g. If the registration is not successful, repeat the procedure.

  • Page 42: Reset

    You can view the actual software version of your handset or base. Software update Your handset will be automatically updated if a new software is available: a message may appear in the display of your ePure HD with update information: an update is ready, ongoing or was done. UPDATE NOW You can also update manually by selecting .

  • Page 43: Epure Hd Handset Interoperability

    HD handset interoperability The ePure HD handset is aimed to be used with a CAT-iq 2.0 base station like Swisscom Internet-Box or Swisscom Rousseau 10. CAT-iq 2.0 features must be supported by the base for the system to work properly.

  • Page 44: Faults And Trouble-Shooting

    Faults and trouble-shooting Not every malfunction results from a defect in your telephone. Sometimes you only need to briefly interrupt the flow of electrici- ty (unplug the power supply and plug it in again) or remove and re-insert the battery in the handset and check that all cables are connected properly (router, base, handset and charger).
  • Page 45 No ringer sound is emit- • Make sure that the handset is registered, that the base is acti- vated and that the ringer volume is high enough to be audible and not turned off. • In case of multiple lines: Make sure that the handset is attached to the calling incoming line.

  • Page 46: Appendix

    Appendix Care Your telephone is a sophisticated product in terms of design and construction, and should therefore be handled with care. To clean the telephone, wipe first with an antistatic cloth or a damp, soft leather cloth and then dry using a dry cloth. Recycling (environmental protection) At the end of the product's life cycle, the telephone must not be disposed of in normal domestic waste.

  • Page 47: Approval And Conformity

    Approval and conformity The handset ePure HD complies with the basic requirements con- tained in the R&TTE Guidelines 99/5/EC and is suitable for con- nection and operation in the member states indicated on the packaging. This device is designed for operation on a VoIP network.
  • Page 48 insignificantly, and damage caused by incorrect use, ordinary wear and tear, or manipulation by third parties. This warranty does not cover consequential damage caused by the use, failure or defectiveness of the product. In particular, no liability whatsoever is accepted for damage to property and pecuniary loss.

  • Page 49: Warranty Certificate

    Warranty Certificate Bon de garantie Garantieschein Certificato di garanzia Garantiebewijs Takuutodistus Garantibevis Garantisedel Garantibevis Certificado de Garantía Talão de garantia device type: (Gerätetyp, type d’appareil, tipo di apparec- chio, toesteltype, laitetyyppi, maskintype, apparattyp, apparattype, modelo del aparato, modelo do aparelho): serial number: (Seriennummer, numéro de série, numero di serie, serienummer, sarjanumero, serienum-...
  • Page 52 Internet: www.swissvoice.net © Swissvoice SA 2015 All rights as well as delivery possibilities and technical changes reserved. 20408004en_ba_a2 SV 20408004...
