Summary of Contents for Swissvoice ePure

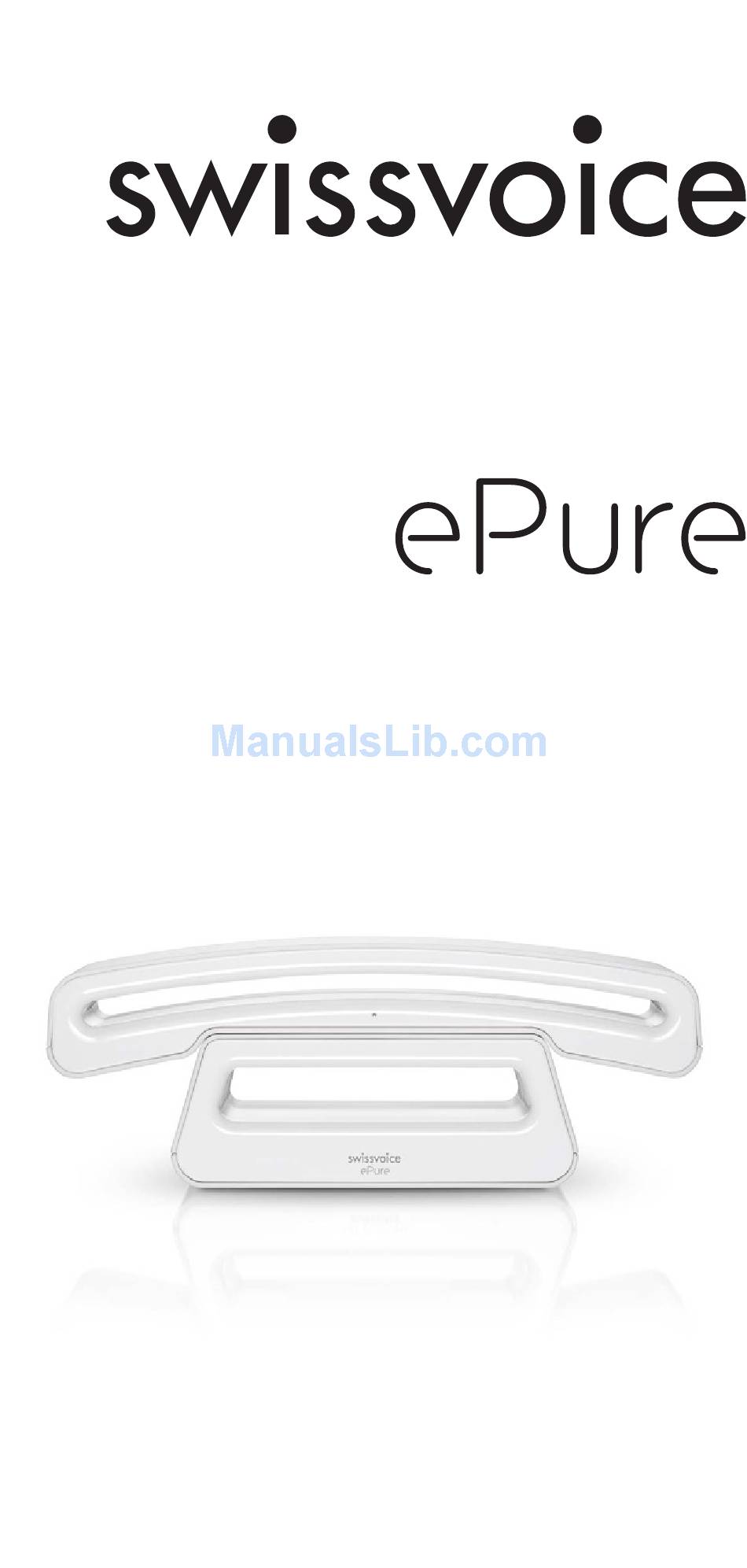

Page 1 2nd generation Cordless digital telephone (DECT) User manual...
Page 2: Welcome To Swissvoice
2nd generation Welcome to Swissvoice The ePure 2nd generation is a cordless telephone designed for connection to an analog telephone network. International DECT (GAP)-standard digital technology offers excellent voice quality. You can register up to 4 handsets to your base and make internal calls free of charge.
Page 3: Table Of Contents
2nd generation Contents Keys ................4 Display symbols ............5 Range/Location ............5 Battery advice ............6 Inserting the battery ........... 6 Connecting the phone ..........7 Set date and time ............7 Set language .............. 7 Making a call .............. 8 Keypad lock ...............
Page 4: Keys
2nd generation Keys Handset Earpiece Display Menu key / OK key Redial key Talk key Key 1 Star key In standby: Long press to activate / deactivate the keypad lock. Microphone Loudspeaker 10. Call Log / Volume up / Scroll up 11.
Page 5: Display Symbols
2nd generation Display symbols Steady on: battery’s charge level. Flashing: battery Need’s to be charged. Time. Call in progress. Steady on: when you are consulting the call log. Flashing: when there is missed call. The phonebook is open. Scroll up/down in a list or a menu.
Page 6: Battery Advice
2nd generation Battery advice Use only the original battery (Li-Ion 3.7 V/550 mAh) as well as the original power supply (6.5 VDC /300mA, 7.5 VDC /200mA). The handset operating times (standby 220 hours/active 12 hours) and charging times apply only if the battery is charged to the defined minimum capacity.
Page 7: Connecting The Phone
2nd generation Connecting the phone Telephone line socket Main power socket ● Before you can start using your telephone you must plug in the telephone connector cable and the power adapter. ● When the phone is delivered, the battery is not yet charged.
Page 8: Making A Call
2nd generation Making a call ● Dial the desired number using the keypad. ● Press the Talk key Accepting a call ● Incoming calls are signalled by a ring tone and a quick flashing of the control LED on the handset.
Page 9: Keypad Lock
2nd generation Set alarm tone ● Press , select Clock/Alarm using the navigation key +/- and press OK. ● Select Alarm Tone using the navigation key +/- and press ● Select the desired alarm melody and press OK. The activated alarm is displayed in standby mode by The alarm sounds for 30 seconds or can be deactivated immediately by pressing any key.
Page 10: Pbx Operation
2nd generation PBX operation Your telephone is designed for use in the analogue telephone network and can be operated on a PBX that supports DTMF dialling and flash signalling. To enter the R (e.g. needed to establish a connection) press and hold # key You can adjust the flash/recall time for R (see chapter “Advanced...
Page 11: Direct Memory
2nd generation In the phonebook menu you have the following options: - List Entry - New Entry - Delete All - Direct mem – Call a programmed direct memory number. Direct memory Phone numbers from the phone book can be assigned to numerical keys 1 to 9.
Page 12: Troubleshooting
2nd generation Troubleshooting How to turn off this function? The Control LED will turn OFF once the user checks the call list. Review the missed call log 1. Press navigation key when the handset is not in use. 2. Press navigation key to browse through the missed call log.
Page 13: Extending Number Of Handsets
You can register up to 4 handsets to your base station. If you register your ePure handset with a “third party” base station or a “third party” handset on your ePure base station (GAP), you may not be able to use some functions or only to a limited extent.
Page 14: Conference Call Creation
2nd generation If the registration is not successful: ● Move closer to the base station. During registration the distance between handset and base must be less than 1 m. ● Interrupt power supply of base and handset (disconnect power adapter/remove battery).
Page 15: Personal Settings
2nd generation Personal settings ● Press , select Personal Set and press OK. ● Select a function from the list using the navigation key +/- and press OK. - Handset Tone - Ring Volume - Ring Melody - Key Tone – Every time a key is pressed, a brief beep is heard.
Page 16: Help
2nd generation - Dial Mode – Tone: Normal dialling procedure on analog lines. Pulse: May be required for connecting older telephone systems. Please refer to the relevant documentation. - Register – Additional handsets must be registered to the base station.
Page 17: No Caller Id
2nd generation No display ● Check that the batteries are inserted correctly and fully charged. Use only approved rechargeable batteries supplied. ● Check that the handset is switched on. Press and hold the End Call key ● Reset the base by removing the batteries and disconnecting the mains power.
Page 18: Appendix
2nd generation Cannot register a handset to the base ● You can register up to a maximum of 4 handsets to a ePure base. You must de-register a handset in order to register a new one. ● Check that you have entered the correct PIN code (default = 0000).
Page 19: Disposing Of The Rechargeable Battery
2nd generation Care Your telephone is a sophisticated product in terms of design and construction, and should therefore be handled with care. To clean the telephone, wipe first with an antistatic cloth or a damp, soft leather cloth and then dry using a dry cloth.
Page 20: Warranty Conditions
2nd generation Warranty conditions Your telephone is subject to a guarantee from the date of purchase in accordance with the legal provisions of the country in which the telephone was purchased. As evidence of the date of purchase, please keep the receipt or the warranty card completed by the retailer.
Page 21 2nd generation ePure...
Page 22 2nd generation ePure...
Page 23 642+2508+3+000...
