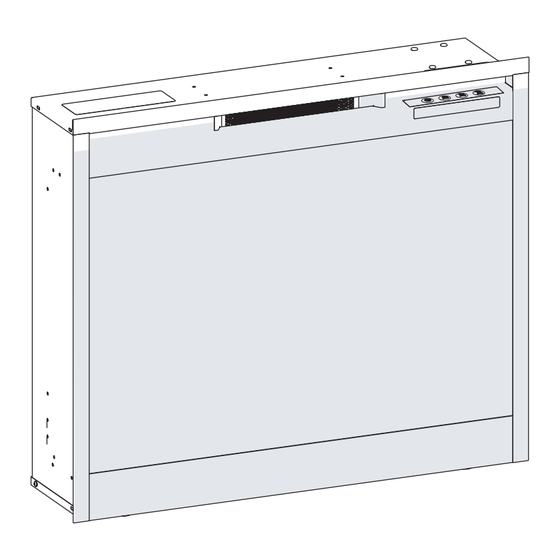

Dimplex DF2624L Owner's Manual
Hide thumbs
Also See for DF2624L:
- Service manual (12 pages) ,
- Owner's manual (45 pages) ,
- Manual (36 pages)
Table of Contents
Advertisement
Quick Links
IMPORTANT SAFETY INFORMATION: Always read this manual first
before attempting to install or use this fireplace. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com
Owner's Manual
Model
DF2624L
6908931359
7213540100R06
Advertisement
Table of Contents
Related Manuals for Dimplex DF2624L
Summary of Contents for Dimplex DF2624L

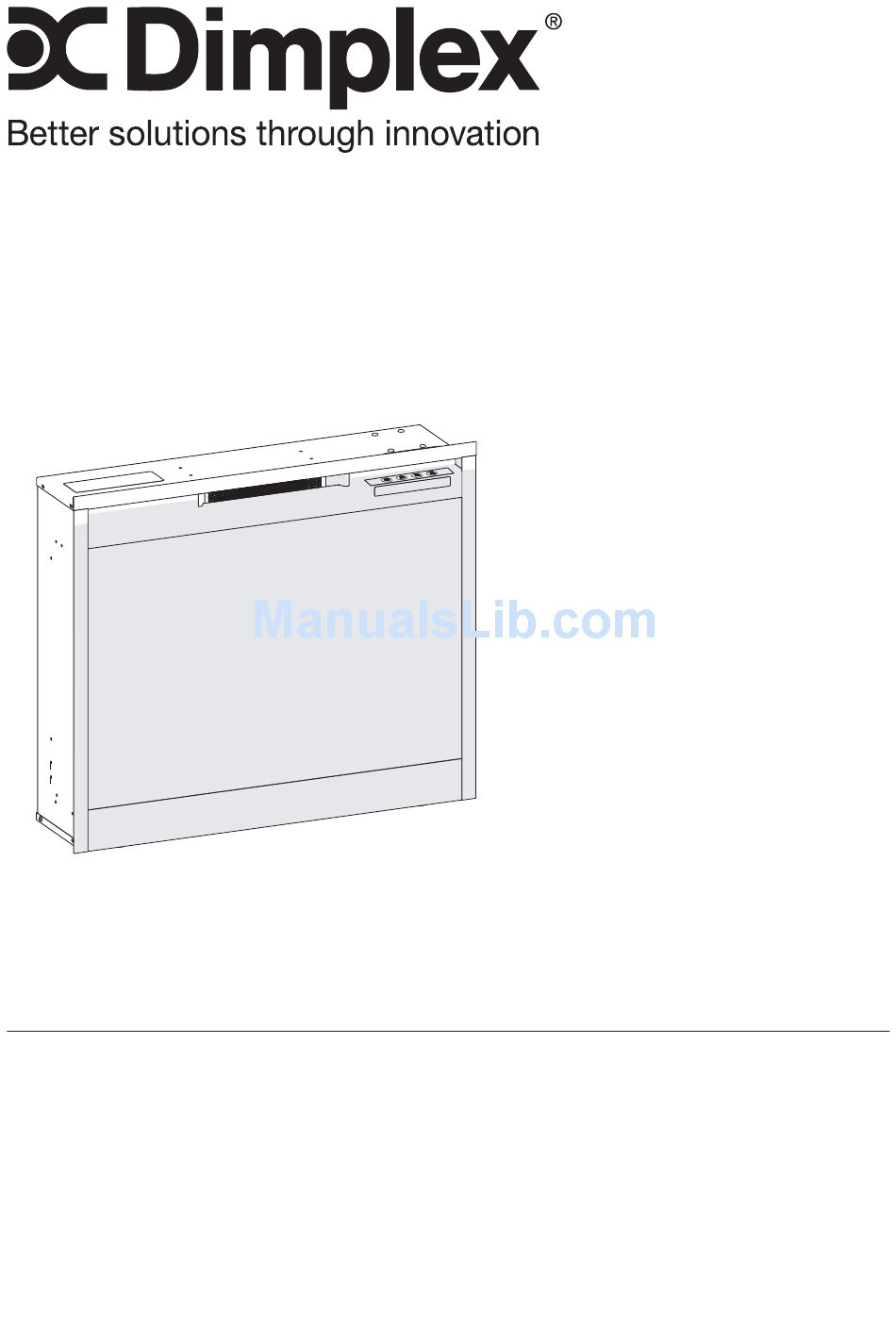

- Page 1 For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage. To view the full line of Dimplex products, please visit www.dimplex.com 7213540100R06...
-
Page 2: Table Of Contents
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. W ARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com... -
Page 3: Welcome & Congratulations
Welcome & Congratulations Thank you and congratulations for purchasing an electric fireplace from Dimplex. Please use our convenient online registration page to record your model and serial numbers for future reference at www.dimplex.com/register MODE L MOD. S E R IAL No. -
Page 4: Important Instructions
Any other use in any manner. Return heater not recommended by the to authorized service facility manufacturer may cause fire, for examination, electrical or electric shock, or injury to mechanical adjustment, or repair. persons. www.dimplex.com... -
Page 5: Save These Instructions
IMPORTANT INSTRUCTIONS ⑭ To reduce the risk of electric ⑲ Disconnect all power supply shock, this heater has a polarized before performing any cleaning, plug (one blade is wider than maintenance or relocation of the the other). This plug will fit in a heater. -
Page 6: Fireplace Installation
NOTE: A 15 Amp, 120 Volt alternating current (VAC) circuit is required. A dedicated circuit is preferred but not essential in all cases. A dedicated circuit will be required if, after installation, the circuit breaker trips or fuse www.dimplex.com... -
Page 7: Mantel Installation
Fireplace Installation Mantel Installation Figure 2 For use with a new or existing mantel. Depending on the avail- able space within the mantel cav- ity, the unit can be secured to the mantel at the bottom side or back. Remove the screw on the bottom flange in the most appropriate place for securing and using the provided L-bracket and the screw... -
Page 8: Bathroom Installation
Wiring Diagram HEATER ASSEMBLY 120V / 12V FLICKER MOTOR AC / DC RELAY BOARD FLAME LED LIGHT ASSEMBLY AC / DC ADAPTER THERMISTOR LOGSET ASSEMBLY SWITCHBOARD DISPLAY-CONTROL BOARD www.dimplex.com... -
Page 9: Operation
Operation Figure 4 Figure 5 A B C F On Screen Display WARNING: This electric firebox must be properly installed • The unit will turn on with the before it is used. same functions that it was set The unit can be controlled by to when it was turned Off and either the manual controls which the intake temperature will be... - Page 10 The Sleep Timer can be set to The heater will cycle on and off automatically shut off the fireplace to maintain the desired set tem- after a preset time (from 30 min- www.dimplex.com...
- Page 11 Operation Remote Control Battery utes to 8 hours). Replacement → To set the timer press the timer button on either the remote or the To replace the battery: unit, repeatedly, until the desired 1. On the back of the remote time is displayed.
-
Page 12: Maintenance
The front glass panel should be completely dried with a lint free cloth to prevent water spots. To prevent scratching, do not use abrasive cleaners or spray liquids on the glass surface. www.dimplex.com... -
Page 13: Warranty
What Dimplex will do in the event of a defect What this limited warranty covers and for how long In the event a product or part covered... - Page 14 TO THE PURCHASER OR defective product or part without ANY THIRD PARTY, WHETHER IN charge. If Dimplex is unable to repair CONTRACT, IN TORT, OR ON ANY or replace such product or part, OTHER BASIS, FOR ANY INDIRECT, or if repair or replacement is not...
-
Page 15: Replacement Parts
Remote Control ......6700510200RP Dimplex North America Limited 1367 Industrial Road Cambridge ON Canada N1R 7G8 © 2015 Dimplex North America Limited...
