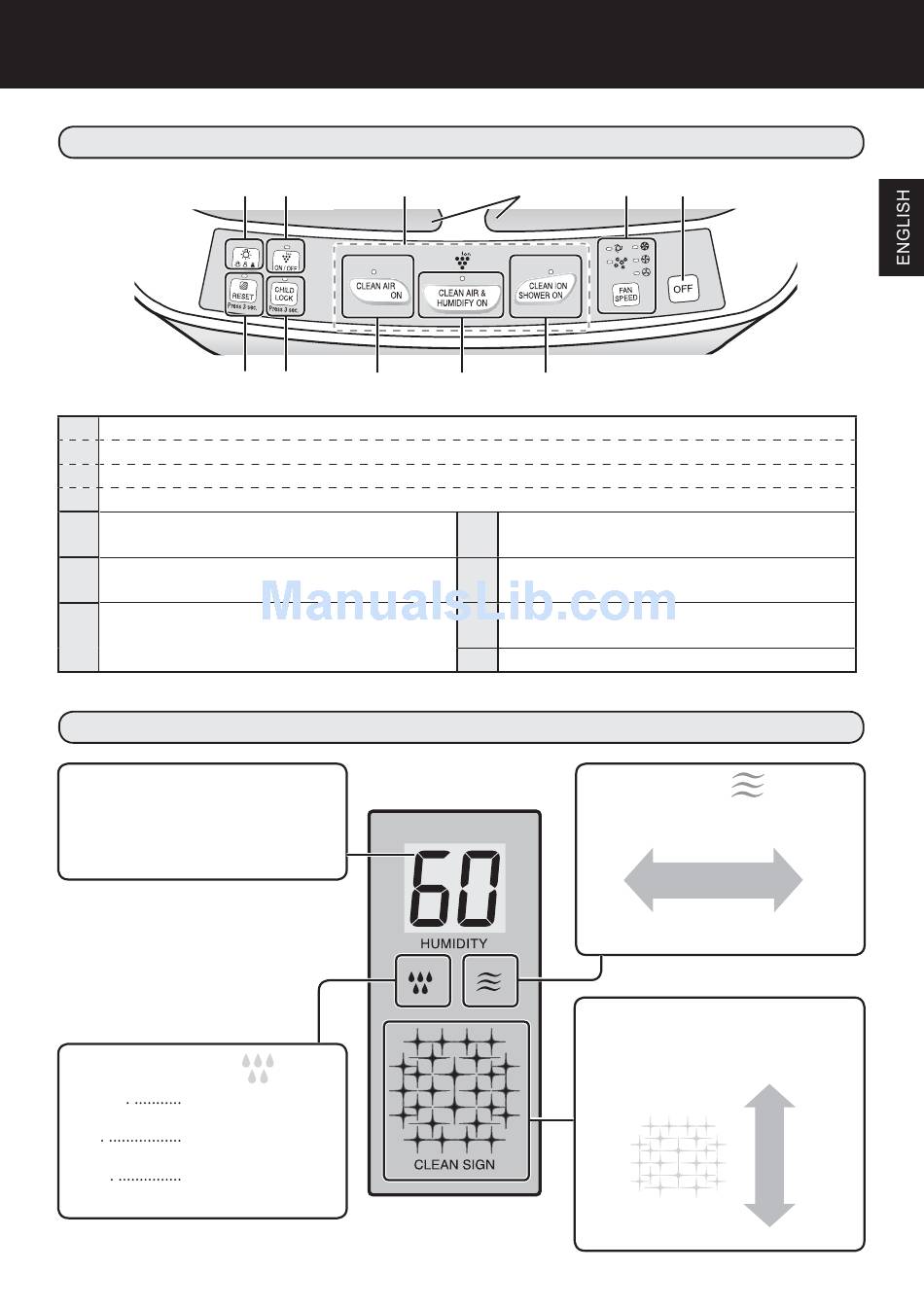

MAIN UNIT DISPLAY

2 3
4 5
1 POWER ON Button
a CLEAN AIR MODE Button / INDICATOR LIGHT
b CLEAN AIR & HUMIDIFY MODE Button / INDICATOR LIGHT
c CLEAN ION SHOWER MODE Button / INDICATOR LIGHT
2 LIGHT CONTROL Button
3 Plasmacluster Ion ON / OFF Button /
INDICATOR LIGHT
4 FILTER RESET Button /
INDICATOR LIGHT

ILLUSTRATIVE DIAGRAM

Humidity Monitor
Indicates approximate humidity level
in the room.
Humidity setting cannot be adjusted.
Humididify Light
green
Humidity ON
Humidity OFF
off
red
need to supply water
(Flashing)
1
a b
(green)
(red)
E-5
6 7
c
(green)
(green)
(green)
5 CHILD-LOCK Button /
INDICATOR LIGHT
6 Plasmacluster Sign
7 FAN SPEED Button /
INDICATOR LIGHT
8 POWER OFF Button
Odour Monitor*
Indicates the odour intensity of the
room in 3 stages colours.
green
Faint
* KC-A60EU, KC-A50EU ONLY
Dust Monitor
Indicates the air purity of the room
in 5 stages colours.
Clean
Impure
8
(green)
(green)
red
Strong
green
red
