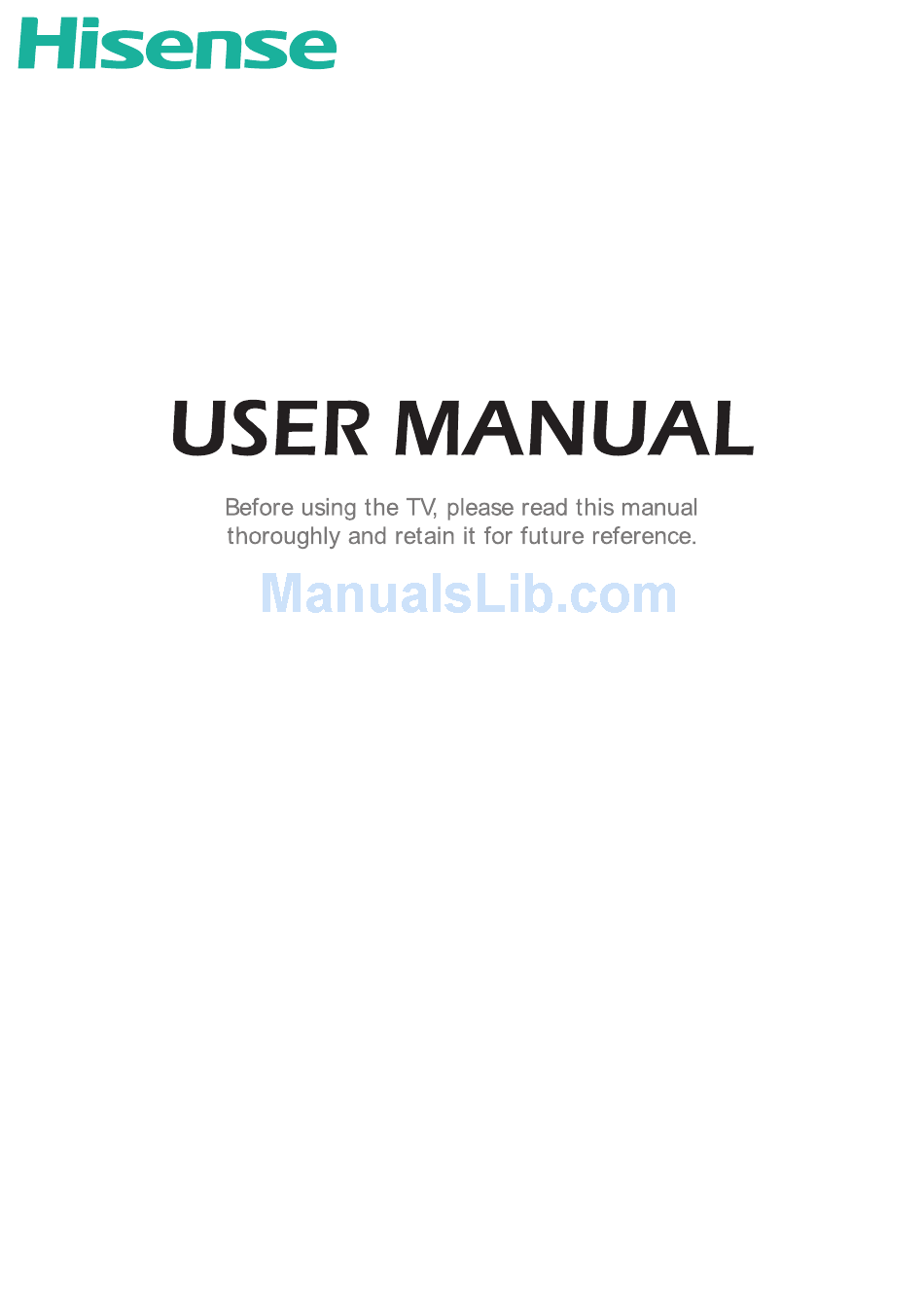

- Page 1 H3C Series English...
- Page 2 MEXICO and International copyright and/or other intellectual property laws. Reproduction or transmission of the materials, in whole or in part, in any manner, electronic, print, or otherwise, without the prior written consent of Hisense Company Ltd. is a violation of Hisense Company Ltd.
- Page 3 **Notwithstanding anything to the contrary, including in any or all descriptions, representations, statements or other communications related to this Hisense device (hereinafter “Device”) made in any form whatsoever and at any time, some or all of the pre-installed, or subsequently installed Application Services may not be available or capable of functioning as intended by the provider of the Application Services in any or all usage areas for reasons outside of Hisense’s control, including but not limited to, Internet access,...
-
Page 4: Table Of Contents
Table of Contents Connecting Devices to your TV ................2 Connecting an antenna, cable set-top box or satellite receiver ........... 2 Connecting a Satellite Receiver, DVD player (or other Audio Visual (AV) device with a composite video cable) ..................... 2 Connecting an AV device with a component video cable ............ 3 Connecting an AV device with an HDMI cable .............. -
Page 5: Connecting Devices To Your Tv
Connecting Devices to your TV Connecting Devices to your TV You have several options for connecting your TV to different devices. The method in which you connect will be based upon the type of cables you have and the available outputs on your device. Connecting an antenna, cable set-top box or satellite receiver To connect an antenna,cable set-top box or satellite receiver: Connect one end of a coaxial cable (not included) to the [RF OUT] jack on the antenna, cable or satellite box. -
Page 6: Connecting An Av Device With A Component Video Cable
Connecting Devices to your TV Connecting an AV device with a component video cable (red/blue/green) To connect an AV device with a component cable (which is red/blue/green): Use a component video cable (not provided) to connect the component output jacks of the external device to the YP jacks for the TV. -
Page 7: Connecting Headphones
Connecting Devices to your TV Connecting headphones You can connect headphones to the [AUDIO OUT] port on your TV. While the headphone is connected, the sound from the built-in speakers will be disabled. TV JACK EXTERNAL DEVICES AUDIO OUT Audio Cable (not included) Figure 5. -
Page 8: Connecting A Digital Sound Bar To Use Audio Return Channel (Arc)
Connecting Devices to your TV Connecting a digital sound bar to use Audio Return Channel (ARC) If you'd like to use the Audio Return Channel (ARC) feature to have sound sent from the TV back down an HDMI cable to a digital soundbar, then you will need to connect the cable to the [HDMI (ARC)] port. -
Page 9: Connecting A Pc With Vga Cable
Connecting Devices to your TV Connecting a PC with VGA cable Use a VGA cable to connect the PC’s VGA output jack to the TV’s VGA jack. Use an audio cable to connect the PC’s audio output jack to TV’s PC/DVI AUDIO IN jack. Plug the connected devices into the mains socket before switching on the TV. -
Page 10: Using Your Tv Remote Control
Using Your TV Remote Control Buttons on your TV remote Select input source INPUT MUTE Power on / off MUTE button Direct channel selection Dash button Select a digital sub-channel LAST Go to the previous channel Audio select button Adjust CC mode Mono /Stereo/SAP operation Increase volume Next channel... - Page 11 Cable or Satellite provider. The Cable or Satellite providers' User's Manuals should include instructions on how to program their remote to your television. A list of Hisense codes for the most common Cable and Satellite providers are listed below. Use the Hisense code that is associated with your Cable or Satellite provider (if applicable).
-
Page 12: Completing The First-Time Setup Menu
Connect the power cord for the TV to a power outlet, then press the [Power] button on the remote to turn on the TV. A splash screen that shows the Hisense logo appears. Next, follow the on-screen instructions to customize your TV settings according to your preferences. -
Page 13: Scan Channels
Completing the First-Time Setup Menu Screen Task Live TV Setup Press the [◄/►] buttons on the remote to select Yes or No. Setup Wizard·Live TV Setup Press [OK] to move to the next step. Do you have a Satellite/Cable box? Move MENU Previous Next EXIT Exit... -
Page 14: Time Setting
Completing the First-Time Setup Menu Screen Task Time Setting Press the [▲/▼] buttons to select the Time Zone, Daylight Sav- Setup Wizard·Time Setting ings, Time Format and Clock feature. Next, press [◄/►] to choose your setting. Time Zone Pacific Daylight Savings Press the [▲/▼] navigation buttons to select Next and press [OK] Time Format 12-hour to move to the next step. -
Page 15: Tv Settings
TV Settings Your Hisense TV comes with many TV setting features to allow you to customize the picture based on your viewing preference and environment. To Use the Menu Press the [Menu] button to open it, return to the main menu or exit. -
Page 16: Sound Menu
TV Settings Sound Menu You can adjust the following settings: Sound Mode: Select a preset sound mode to suit the type of content you are listening to: Standard, Music, Movie, Sports and User. Picture Time Channel Sound Setup Lock Bass: Adjust the low frequency sounds. Sound Mode Standard Bass... -
Page 17: Setup Menu
TV Settings Setup Menu You can adjust the following settings: Menu Language: Select TV Menu language. Transparent: Adjust the transparency of the OSD (on screen display) menu. Picture Time Setup Channel Sound Lock OSD Timeout: Adjust the duration of the OSD (on screen display) menu. Menu Language English Transparent... -
Page 18: Lock Menu
• Root Menu: You can open the root menu of a CEC-compatible device and then use your TV remote to control it. Lock Menu To use the Lock Menu, enter the default password (0000) or your 4-digit password that you created. If you forgot your password, then call the Hisense Electronics Consumer Setup Channel Picture... -
Page 19: Channel Menu
TV Settings U.S. TV Ratings Defined as TV-Y All children TV-Y7 Directed to older children TV-G General audience TV-PG Parental Guidance Suggested TV-14 Parents Strongly cautioned TV-MA Mature Audiences Only Contents Defined as All of the ratings below that rating set blocked automatically Suggestive dialogue Strong language Sexual situations... -
Page 20: Pc Setting
TV Settings PC Setting Press [Input] to select VGA source. Press [Menu] to enter the main menu. Picture Time Setup Channel Sound Lock Menu Language English Press [◄/►] buttons to select Setup menu. Transparent OSD Timeout 20 Sec. Press [▼] to select PC Settings. Closed Caption Input Label NOTE... -
Page 21: Media
Media Please note that Hisense will not assume any responsibility for any lost data and cannot guarantee perfect compatibility with all mass storage devices. Be sure to insert the USB flash drive into the USB 2.0 port. Do not connect any other device (such as a digital camera, keyboard, etc.,) to this port. -
Page 22: Enjoy Music Files
Media Enjoy Music Files Press the [◄/►] buttons to select the disk and then press the [OK] button to begin playing. Press the [◄/►] buttons to return to the previous track. Press the [◄/►] buttons to select the file folder and press the [OK] button to view the submenu. Press the [◄/►] buttons to select the file you want to listen to from the File Selection menu and then press [OK or ] button to playing. -
Page 23: File Formats That May Be Supported
We do not guarantee that all USB c can be supported by this unit. Be sure to keep a backup copy of the original files on your device before you play them back on this unit. Hisense will not be responsible if your data is damaged or lost. -
Page 24: Quick Problem-Solving Tips
Quick Problem-Solving Tips When you experience an issue with your TV, turn it off and on again. If this does not resolve the problem, then refer to the tips below. If the problem is still not resolved, then contact us. ISSUES POSSIBLE SOLUTIONS •...
