Summary of Contents for Hisense H32B5100

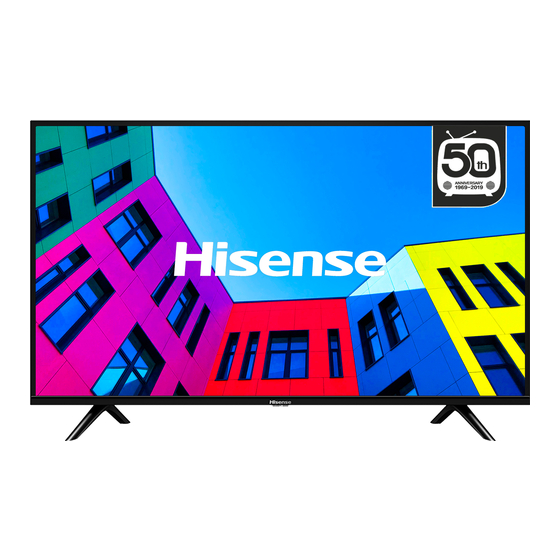

- Page 1 H32B5100 H40B5100 QUICK SETUP GUIDE Before using the TV, please read this guide thoroughly and retain it for future reference. For more detailed instructions, please see the User Manual. English 1220023...
- Page 2 Declaration Declaration Any content and service accessed through this device, while only intended for individual non-commercial use, shall be the property of the applicable third party and subject to protection by regulations and laws on copyright, patent, trademark and other intellectual property rights. No part of such content and service may be modified, duplicated, published, uploaded, distributed, translated, marketed, or used to make and distribute products derived from it without the prior permission of the content owner or service provider.
- Page 3 Important Safety Precautions This symbol alerts user about the ATTENTION presence of a dangerous voltage not isolated inside the product which can RISK OF SHOCK ELECTRIC be sufficiently powerful to constitute a risk of electrocution. Do not open the back cover. This symbol alerts user about the In no case the user is allowed to operate presence of important operating...
- Page 4 Important Safety Precautions Warning Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: Using stands recommended by the manufacturer of the television set. Only using furniture that can safely support the television set.
- Page 5 Important Safety Precautions Safeguards Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television. 1. A note about safety and operating instructions Read and follow all safety and operating instructions, and retain them safely for future reference.
- Page 6 Important Safety Precautions 9. Power-Cord Protection Power- supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plug, wall outlets, and the point where they exit from the TV. MAIN plug is used as the disconnect device, the disconnect device shall remain readily operable.
- Page 7 Important Safety Precautions (d) If the TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to its normal operation.
-
Page 8: Table Of Contents
Contents Product image is only for reference, actual product may vary in appearance. Parts of the software function changes with the system upgrade. Contents Accessories List......................1 Installing the Stand or Wall mount bracket ..............2 TV Front..........................4 TV Rear ..........................5 Making Connections .......................6 Remote Control ......................8 Turning the TV on for the First Time ................10 Specifications .......................11... -
Page 9: Installing The Stand Or Wall Mount Bracket
Installing the Stand or Wall mount bracket Installing the Stand CAUTION Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount brackets. The LED display is very fragile, and must be protected at all times when installing the base stand. - Page 10 Installing the Stand or Wall mount bracket Installing the wall mount bracket Wall mount hole pattern (mm) 100 × 200 Wall mount screw size (mm) 8.0~10.0mm Wall-Mount Bracket Wall-Mount Screw Wall-Mount Spacer The TV's rear cover Follow instructions provided with the wall mount bracket. NOTES The diameter and length of the screws differ depending on the wall mount bracket model.
-
Page 11: Tv Front
TV Front TV Front Single button ( Remote sensor / Power indicator / Standby) Item Description Receive remote signals from the remote control. Remote sensor Do not put anything near the sensor, as its function may be affected. Power indicator The light is red in standby mode. -
Page 12: Tv Rear
TV Rear TV Rear 32” 40” NOTES ANT1 Jack supports power supply for satellite antenna (13/18V, 0.5A max.) Check the jacks for position and type before making any connections. Loose connections can result in image or color problems. Make sure that all connections are tight and secure. -
Page 13: Making Connections
Making Connections Outdoor Antenna Cable ANT OUT ANT 2 DVB-T/T2/C (not included) Antenna Cable (75Ω) VHF/UHF Antenna ANT 1 DVB-S/S2 (not included) Satellite antenna Audio Amplifier/Speaker DIGITAL DIGITAL AUDIO OUT AUDIO OUT DIGITAL AUDIO cable (not included) Audio Amplifier/Speake HDMI HDMI HDMI (ARC) - Page 14 Making Connections COMMON INTERFACE (CARD FACE FRONT) CAM CARD SMART CARD NOTES Before you insert/remove the CI+ module, ensure that the TV is switched off. Then insert the CI card into the CI+ module in accordance with the Service Provider’s instructions. COMMON Do not repeatedly insert or remove the Common Access INTERFACE...
-
Page 15: Remote Control
Remote Control Remote sensing Window Power button Available source selection Switch to DTV Radio program Zoom image Analog / Digital TV Mute the sound Set the sleep time Select USB-Digital Media player mode Select Audio language Mono/Stereo Display the subtitle content operation,Audio select button of the signal Fast access to your saved... - Page 16 Remote Control Installing Batteries in the Remote Control 1. Slide the back cover to open the battery compartment of the remote control. 2. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment.
-
Page 17: Turning The Tv On For The First Time
Turning the TV on for the First Time Turning the TV on for the First Time 1. Connect the mains cable to the mains socket after you have completed all the connections. 2. The first time you turn the TV on, it will go straight into the Installation Guide. 3. -
Page 18: Specifications
Features, appearance and specifications are subject to change without notice. If you encountered difficulty when setting up your TV, we suggest you refer to the troubleshooting tips in the User Manual. H32B5100 H40B5100 Without Stand 730 × 432 × 72.8 904 ×... -
Page 19: Other Information
Other Information The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
