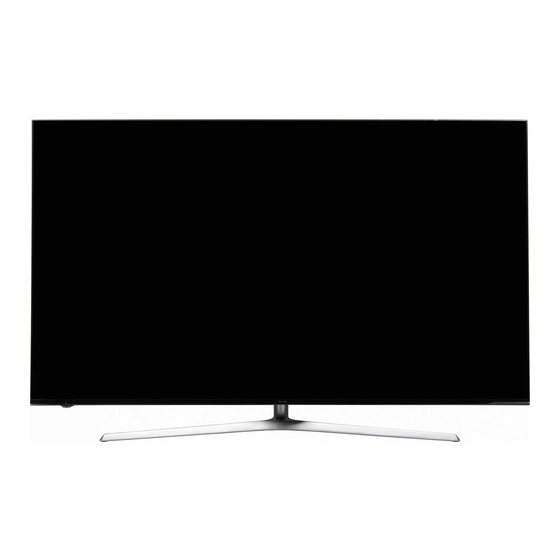

Summary of Contents for Hisense H65U7A
- Page 1 Read the manual carefully and ensure you have fully understood its contents before operating this device for the first time. English Deutsch Español Italiano Português Français ES-A175304-1...
- Page 2 Read the manual carefully and ensure you have fully understood its contents before operating this device for the first time. English...
- Page 3 Important Safety Instructions ▐ Important Notice Paragraphs beginning with the symbol indicate important instructions, tips or conditions for the following settings. For your own safety and the optimal performance of your TV, ensure to read the safety instructions before performing any installation. It is not guarantee operation and performance of peripheral devices made by other manufacturers.
- Page 4 Important Safety Instructions The intended use and ambient conditions for this TV This TV is intended for the rendering of video and audio signals, on a table-top or wall- mounted, in a home or office environment. It must not be used in rooms with a high level of humidity or dust concentration.
- Page 5 Important Safety Instructions „ Moving/Transportation „ Power plug and power cable Before moving this TV, disconnect all - Do not touch the power plug with wet cables and move in the vertical position hands. only. Grasp the device on the upper and - Do not place heavy objects on the lower edges of the frame.
- Page 6 Important Safety Instructions „ Air ventilation and high Prevent small items from getting into the interior of the device through the ventilation temperatures slots. Such objects may cause short circuits, Install your TV only where there is proper which may cause fire. ventilation, and ensure that there is at least If something should get inside the unit, 10 cm free space on the sides and 20 cm...
- Page 7 Important Safety Instructions If you have a cardiac pacemaker, keep a „ Supervision distance of at least 22 cm from the TV. Radio - Do not let children play unsupervised waves may interfere with the operation of a close to the TV. It could tip over, be pacemaker.
- Page 8 Important Safety Instructions „ Cleaning and care „ Modification Do not attempt to modify this product CAUTION: in any way. Unauthorized modification Unplug the power cord prior to cleaning could void the warranty of this unit, cause the TV. electric shock and fires. Clean the TV, the screen, and the remote control with a soft, moist, clean and „...
-
Page 9: Table Of Contents
Contents Product image is only for reference, actual product may vary in appearance. Parts of the software function changes with the system upgrade. Contents Accessories List......................1 Installing the Stand or Wall mount bracket ..............2 TV Front..........................5 TV Rear ..........................6 Making Connections .......................7 Remote Control ......................10 Turning the TV on for the First Time ................13 Specifications .......................14... -
Page 10: Installing The Stand Or Wall Mount Bracket
Installing the Stand or Wall mount bracket Installing the Stand CAUTION Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount brackets. The LED display is very fragile, and must be protected at all times when installing the base stand. - Page 11 Installing the Stand or Wall mount bracket 4. Secure the base assembly to the TV with the 4 screws in accessory tightly. base assembly Screws: M5×10 (50"/55") M5×12 (65") 5. Install the Base Cover downward at the place shown in the illustration. Base Cover Installing the Cable Clamp 1.
- Page 12 Installing the Stand or Wall mount bracket 2. The three Cable Clamps in the Column Base will help you to arrange the power cable. Cable Clamp 3. After finish arranging the power cable, install the Top Cap and Side Cap back to the Column Base.
-
Page 13: Tv Front
TV Front TV Front Single button (Remote sensor / Power indicator / Standby) Item Description Receive remote signals from the remote control. Remote sensor Do not put anything near the sensor, as its function may be affected. Power indicator The light is red in standby mode. Press the single button when in standby mode, TV will be turned on. -
Page 14: Tv Rear
TV Rear TV Rear COMMON INTERFACE 50" HDMI 4 (4K@30Hz) Power input Note: There's one screw at AV IN the place of arrow and it is usually covered by an AC INPUT label. VIDEO 55"/65" HDMI 4 (4K@30Hz) VIDEO AV IN NOTES ANT2 Jack supports power supply for satellite antenna (13/18V, 0.5A max.) -
Page 15: Making Connections
Making Connections Wired setup LAN ( Connect your TV to your network by connecting the LAN port on the back of your TV to an external modem or router using a LAN (Ethernet/Cat 5) cable. See the illustration below. TV JACK IP Sharer (Router) External Modem (with DHCP server) - Page 16 Making Connections Outdoor Antenna Cable ANT OUT ANT 1 DVB-T/T2/C Antenna Cable (75Ω) VHF/UHF Antenna ANT 2 DVB-S/S2 (not included) Satellite antenna Audio Amplifier/Speaker DIGITAL DIGITAL AUDIO OUT AUDIO OUT DIGITAL AUDIO cable (not included) Audio Amplifier/Speaker HDMI HDMI (ARC) HDMI HDMI cable (not included) HDMI...
- Page 17 Making Connections CAM CARD SMART CARD NOTES Before you insert/remove the CI+ module, ensure that the TV is switched off. Then insert the CI card into the CI+ module in accordance with the Service Provider’s instructions. COMMON Do not repeatedly insert or remove the Common Access INTERFACE Module as this may damage the interface and cause a malfunction.
-
Page 18: Remote Control
Remote Control POWER: Switch the TV on or into standby mode INPUT: Select input sources P.Mode: Picture Mode button S.Mode: Sound Mode button Sport: Enter Sports of Picture Mode and Sound Mode SLEEP: Set the sleep timer Channel Number: Direct channel selection or numbers input GUIDE: Display the Electronic Program Guide (DTV mode) - Page 19 Remote Control NOTE: The information here will vary depending on the remote control model. App: Quick access to the app Media: Enter the media mode...
- Page 20 Remote Control Installing Batteries in the Remote Control 1. Slide the back cover to open the battery compartment of the remote control. 2. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment.
-
Page 21: Turning The Tv On For The First Time
Turning the TV on for the First Time Turning the TV on for the First Time 1. Connect the mains cable to the mains socket after you have completed all the connections. 2. The first time you turn the TV on, it will go straight into the Installation Guide. / <... -
Page 22: Specifications
Specifications Features, appearance and specifications are subject to change without notice. 50” 55" Item 43.9 × 25.8 × 2.0 inches 48.4 × 28.3 × 2.0 inches Without Stand (1230 × 719 × 52 mm) (1116 × 655 × 52 mm) Dimension (W ×... - Page 23 Specifications RGB / 60 Hz (640×480, 800×600, 1024×768) YUV / 60 Hz (480 I, 480 P, 720 P, 1080 I, 1080 P) YUV / 50Hz (576 I, 720 P, 1080 I, 1080 P) 3840×2160 / 24Hz HDMI Input 3840×2160 / 25Hz 3840×2160 / 30Hz 3840×2160 / 50Hz （...
- Page 24 Specifications Features, appearance and specifications are subject to change without notice. 65” Item 57.1 × 33.3 × 2.1 inches Without Stand (1450 × 845 × 54 mm) Dimension (W × H × D) 57.1 × 36.4 × 13.9 inches With Stand (1450 ×...
- Page 25 Specifications RGB / 60 Hz (640×480, 800×600, 1024×768) YUV / 60 Hz (480 I, 480 P, 720 P, 1080 I, 1080 P) YUV / 50Hz (576 I, 720 P, 1080 I, 1080 P) 3840×2160 / 24Hz HDMI Input 3840×2160 / 25Hz 3840×2160 / 30Hz 3840×2160 / 50Hz （...
-
Page 26: Other Information
Other Information Recycling/Licenses WEEE (Waste Electronic Electric Equipment) European Directive 2012/19/EU This symbol on the product or on its packaging indicates that this product must not be disposed of with your household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
