CONTENTS
FEATURES ...................................................... 1
PRECAUTIONS ............................................... 1
PARTS NAMES ............................................... 2
CONNECTIONS............................................... 4
FUNCTIONS .................................................... 6
BASIC OPERATION........................................ 8
INSTALLATION ...............................................10
ADDRESS SETTING TABLE ..........................11
SPECIFICATIONS ...........................................13
FEATURES
This compact preset camera can be controlled remotely for
horizontal and vertical movement. It is used with a system
controller (VSP-7000), sold separately. The camera 24V AC
power supply is connected through the power unit, and the
camera operation is controlled remotely from the system
controller through a serial connection to the RS-485 connector
using a twisted-pair cable.
1/3 inch solid state image device CCD (approx. 470,000
picture elements)
Up to 96x zoom possibility (12x optical zoom, 8x
electronic zoom)
Horizontal resolution of more than 450 TV lines, video
S/N ratio more than 48 dB for high resolution. High
sensitivity, with a minimum required illumination of 3.5
lux
Horizontal, vertical turn function
Preset movement speed:
horizontal 240˚/s, vertical 120˚/s
Manual movement minimum speed:
horizontal 0.6˚/s, vertical 0.3˚/s
Speed ratio: 400:1
Continuous horizontal turn range (360˚)

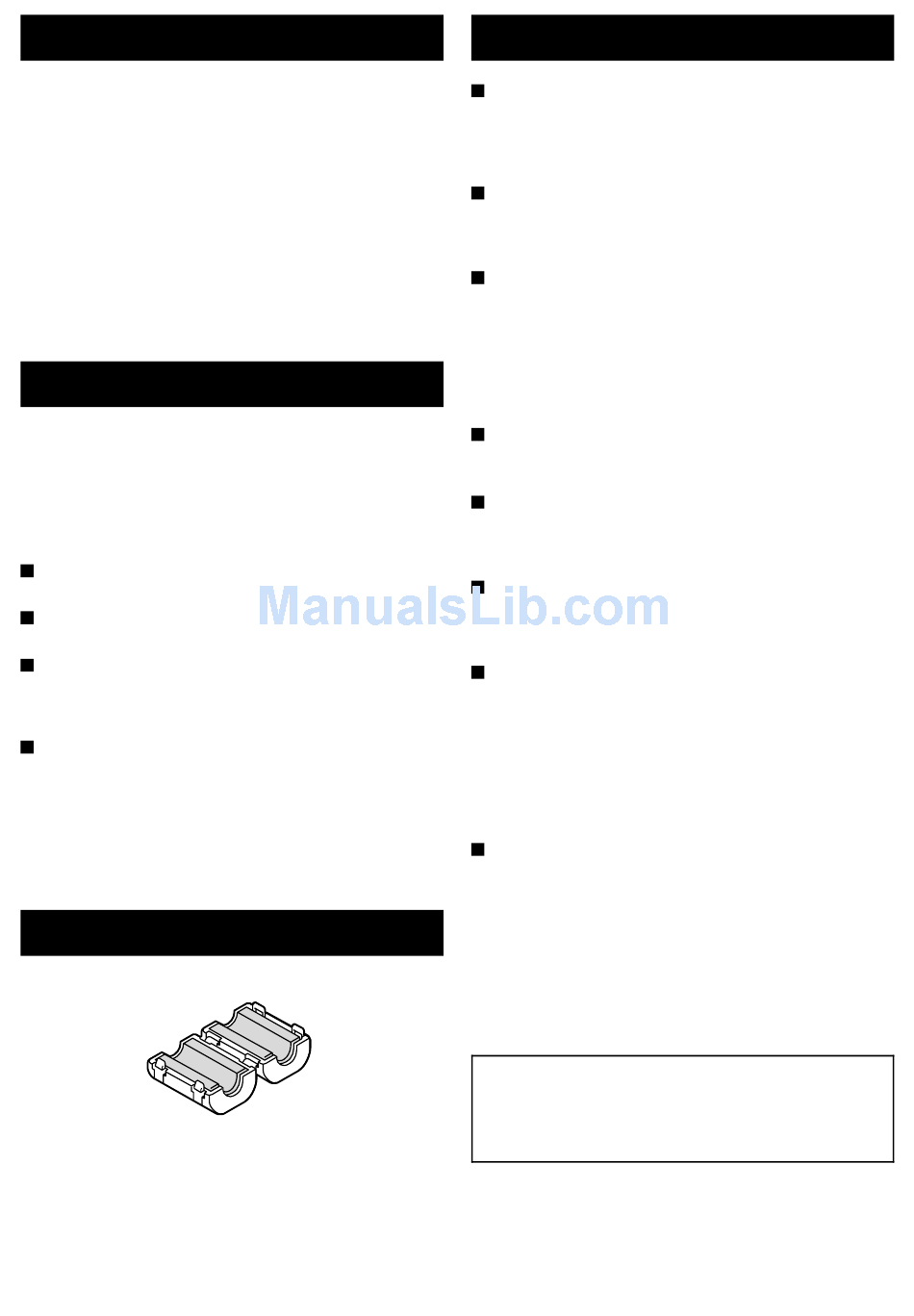

ACCESSORY
•
Clamping core .................................................................... 2 pc.
PRECAUTIONS
In case of problem
Do not use the camera if smoke or a strange odour comes from
the unit, or if it seems not to function correctly. Disconnect the
power cord immediately, and consult your dealer (or a Sanyo
Authorized Service Centre).
Do not open or modify
Do not open the cabinet, as it may be dangerous and cause
damage to the unit. For internal settings and repairs, consult
your dealer (or a Sanyo Authorized Service Centre).
Do not put objects inside the unit
Make sure that no metal objects or flammable substance get
inside the camera. If used with a foreign object inside, it could
cause a fire, short-circuits or damages.
If water or a liquid gets inside the camera, disconnect the power
cord immediately, and consult your dealer (or a Sanyo
Authorized Service Centre). Be careful to protect the camera
from rain, sea water, etc.
Be careful when handling the unit
To prevent damages, do not drop the camera or subject it to
strong shock or vibration.
Install away from electric or magnetic fields
If installed close to a TV, radio transmitter, magnet, electric
motor, transformer, audio speakers the magnetic field they
generate will distort the image.
Protect from humidity and dust
To prevent damages to the camera, do not install it where there
is greasy smoke or steam, where the dampness may get too
high, or where there is a lot of dust.
Protect from high temperatures
Do not install close to stoves, or other heat generating devices,
such as spotlights, etc., or where it could be subject to direct
sunlight, as that could cause deformation, discoloration or other
damages.
Be careful when installing close to the ceiling, in a kitchen or
boiler room, as the temperature may raise to high levels.
Install where the temperature range will stay between 0˚C and
45˚C. (no condensation)
Cleaning
•
Dirt can be removed from the cabinet by wiping it with a soft
cloth. To remove stains, wipe with a soft cloth moistened with
a soft detergent solution and wrung dry, then wipe dry with
dry soft cloth.
•
Do not use benzine, thinner or other chemical product on the
cabinet, as that may cause deformation and paint peeling.
Before using a chemical cloth, make sure to read all
accompanying instructions. Make sure that no plastic or
rubber material comes in contact with the cabinet for a long
period of time, as that may cause damage or paint peeling.
This camera should be used together with the power unit
which is supplied with the camera.
Other commercially-available power units should never
be used, as they may damage the camera or result in
electric shocks.
1
