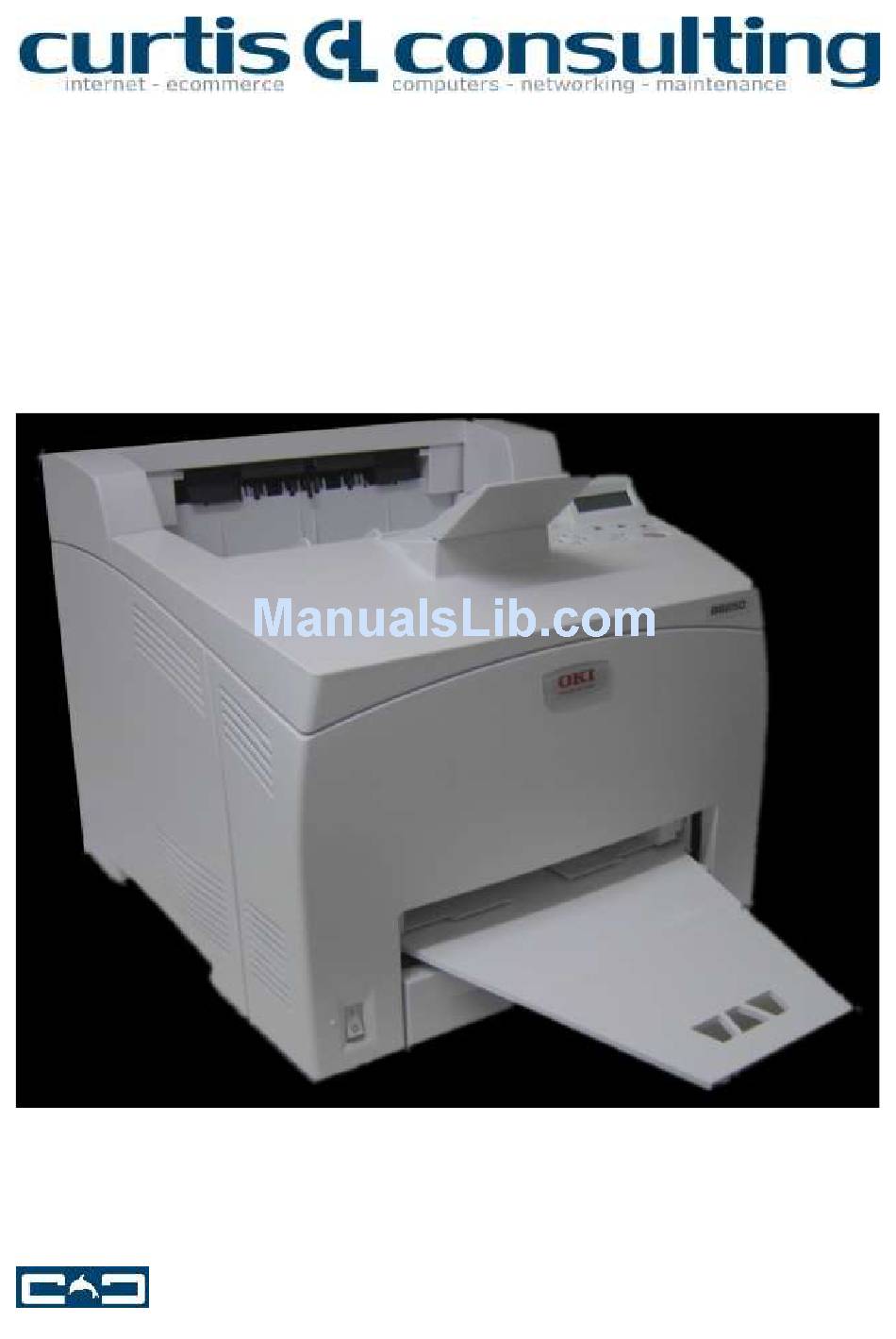

OKI B6250 Extended Feed Tray

Installation Manual

Philips Head Screwdriver Required

OKI

Page 3 Slide the clips shown in red to the unlocked position and extend the tray. The clips will automatically revert back to the locked position when fully extended. Copyright © 2009 Curtis Consulting Limited...
Page 4 To insert the custom tray the default extendable tray needs to be removed. To do this the plastic at each side has to be carefully bent away from the holding pegs; these are marked by red circles. Copyright © 2009 Curtis Consulting Limited...
Page 5 The top layer should come away when eased off the pegs, make sure the grey locking clips do not fall out as they can be quite difficult to re-insert. The standard tray can now be removed. Copyright © 2009 Curtis Consulting Limited...
Page 6 Reinsert the 10 screws into the tray. If you’re having trouble refer back to the guide pictures. Make sure the clips are in the locked position and hold the tray vertically on the surface. Then insert the custom tray until it is resting on the clips. You may need to lift the clips to allow the tray to drop in.
Page 7 Now slide the clips into the unlocked position; the tray should drop further, then relock the clips. The tray should now be secure. Simply insert the paper tray into the printer as normal, the extended feed tray is now complete. Copyright ©...
