Vacmaster VJF607PF 1101 Operator's Manual

Wet/dry vacuum
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

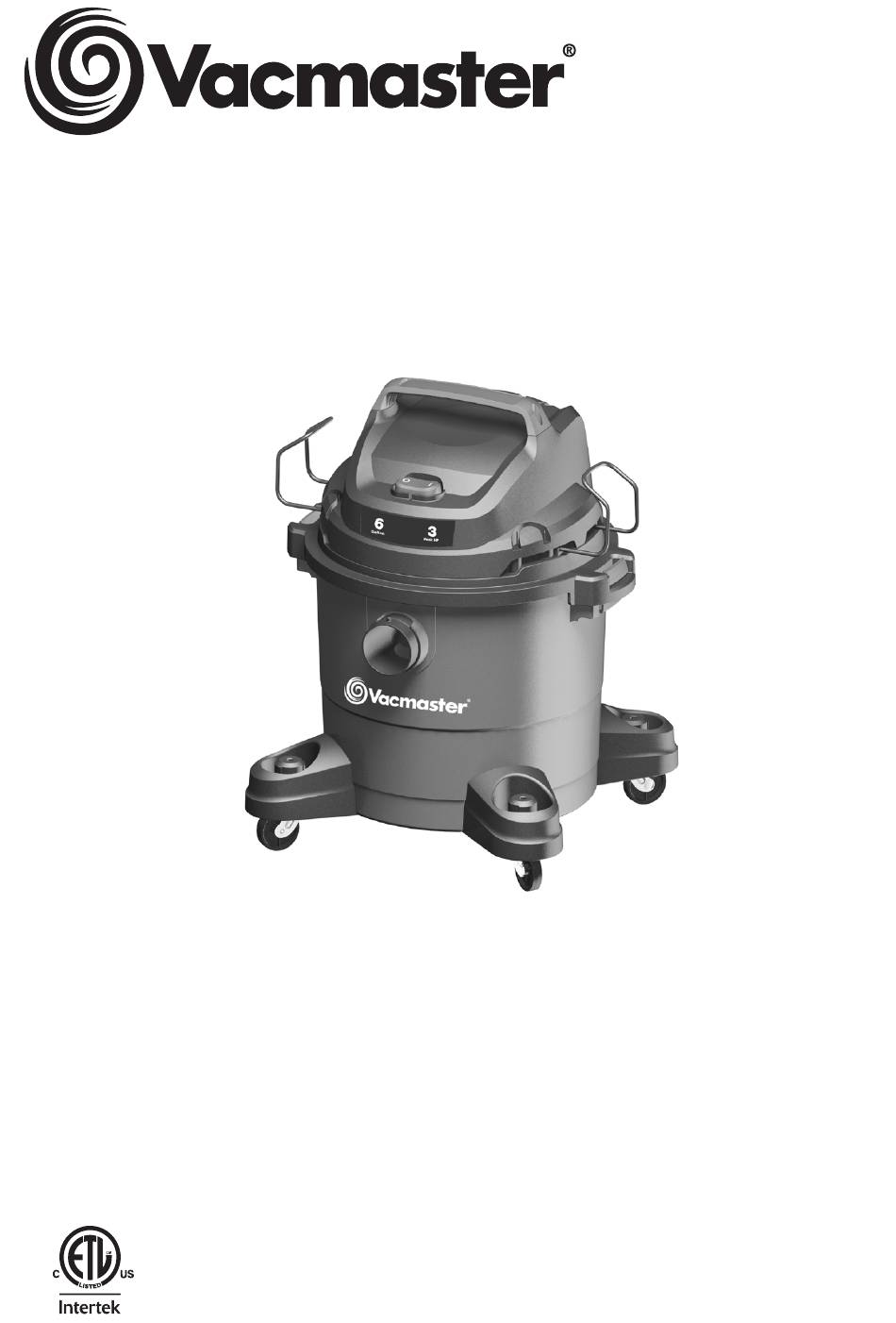

Wet/Dry Vacuum
Operator's Manual
6 Gallon
Model No.
VJF607PF 1101
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual for future reference.
Distributed By
Replacement Filters &
Cleva North America, Inc.
Accessories available at:
601 Regent Park Court
Vacmaster.com
Greenville, SC 29607

Advertisement

Table of Contents
loading

Related Manuals for Vacmaster VJF607PF 1101

Summary of Contents for Vacmaster VJF607PF 1101

  • Page 1 Wet/Dry Vacuum Operator’s Manual 6 Gallon Model No. VJF607PF 1101 FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. Distributed By Replacement Filters & Cleva North America, Inc. Accessories available at: 601 Regent Park Court Vacmaster.com...

  • Page 2: Table Of Contents

    FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS. WARRANTY ® We take pride in producing a high quality, durable product. This Vacmaster product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM. Read and understand this operator’s manual and all labels on the vacuum cleaner before operating. Safety is a combination of common sense, staying alert and knowing how your vacuum works.

  • Page 4: Double Insulation Instructions

    CAUTION: To reduce the risk of injury from moving parts - Unplug before servicing. WARNING: To reduce the risk of electric shock - Unplug before cleaning or servicing. When using as blower: • Direct air discharge only at work area. •...

  • Page 5: Extension Cords

    EXTENSION CORDS When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the vacuum cleaner.

  • Page 6: Symbols

    SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, DANGER if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which, WARNING if not avoided, could result in death or serious injury.

  • Page 7: Unpacking & Checking Carton Contents

    UNPACKING & CHECKING CARTON CONTENTS Remove all contents from the box. Remove the power head and take out any contents inside the collection tank. Check each item against the carton contents list. Carton Contents List: Description ..…………..……….…..Qty. Vacuum Assembly……………………..Hose……………………………………...

  • Page 8: General Assembly Instructions

    GENERAL ASSEMBLY INSTRUCTIONS A Philips head screwdriver is required. WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE SURE THE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VACUUM. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN. UNPACKING YOUR WET/DRY VACUUM &...

  • Page 9: Dry Vacuum Operation

    7. Your vacuum comes ready for dry vacuum cleaning. If the cartridge filter is not installed, refer to page 14 for installation instructions (Fig. 10 & 11). 8. For wet vacuum cleaning, remove the cartridge filter, and install the supplied foam wet filter. See page 15 for the foam wet filter installation instructions (Fig.
  • Page 10 WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE SURE THE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS. CAUTION: DO NOT VACUUM DRYWALL DUST, FIREPLACE SOOT, OR ASH WITH STANDARD WET/DRY FILTER. THIS IS A VERY FINE DUST WHICH WILL NOT BE CAPTURED BY THE FILTER AND MAY CAUSE DAMAGE TO MOTOR.

  • Page 11: Liquid Vacuum Operation

    LIQUID VACUUM OPERATION LIQUID VACUUMING WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL- BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.

  • Page 12: Blower Operation

    IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely in the liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float valve that stops the suction action when the collection tank reaches its maximum capacity.

  • Page 13: Maintenance

    6. Verify that the power switch is in the ‘O’ OFF position before plugging the power cord into the outlet. Plug the power cord into the outlet (Fig. 4 & 5). 7. Before turning on the vacuum, firmly hold onto the loose end of the hose. Turn the motor on by flipping the switch to the ‘I’...

  • Page 14: Installing & Cleaning Cartridge Filter

    INSTALLING & CLEANING CARTRIDGE FILTER INSTALLING CARTRIDGE FILTER 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Remove the power head and place in an upside down position. 3. Install the cartridge filter over the filter cage making sure the cage is completely covered (Fig. 2 &...

  • Page 15: Installing & Cleaning Foam Wet Filter

    INSTALLING & CLEANING FOAM WET FILTER INSTALLING FOAM WET FILTER 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Remove the power head and place in an upside down position. Follow instructions to remove the cartridge filter on page 14. 3.

  • Page 16: Troubleshooting

    TROUBLESHOOTING WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE TROUBLESHOOTING. PROBLEM POSSIBLE CAUSE SOLUTION Check the power supply, cord, No power supply. breakers, and fuses. Unplug and check the power The wet/dry vacuum will not Faulty power cord. cord.

  • Page 17: Exploded View

    EXPLODED VIEW...

  • Page 18: Parts List

    PARTS LIST Part Drawing Number Description Quantity 551488101 Handle Assembly 551011103 Hose Storage Rack Power Head Assembly 551416106 Float 551005104 Filter Cage Collection Tank 551011106 Vacuum Port 551058106 Caster Foot Assembly 551016112 1-7/8" X 7' Hose 551264103 Extension Wand 551011110 Floor Brush/Squeegee Nozzle 551011109 Utility Nozzle...
