4 x Set-up and installation

4.1 Dimensions and connections

4.1.1 ROTEX HPSU compact 304/308

1 Solar - feed
2 Cold water
3 Hot water
4 Heating feed
5 Heating return flow
6 Connection coolant gas line

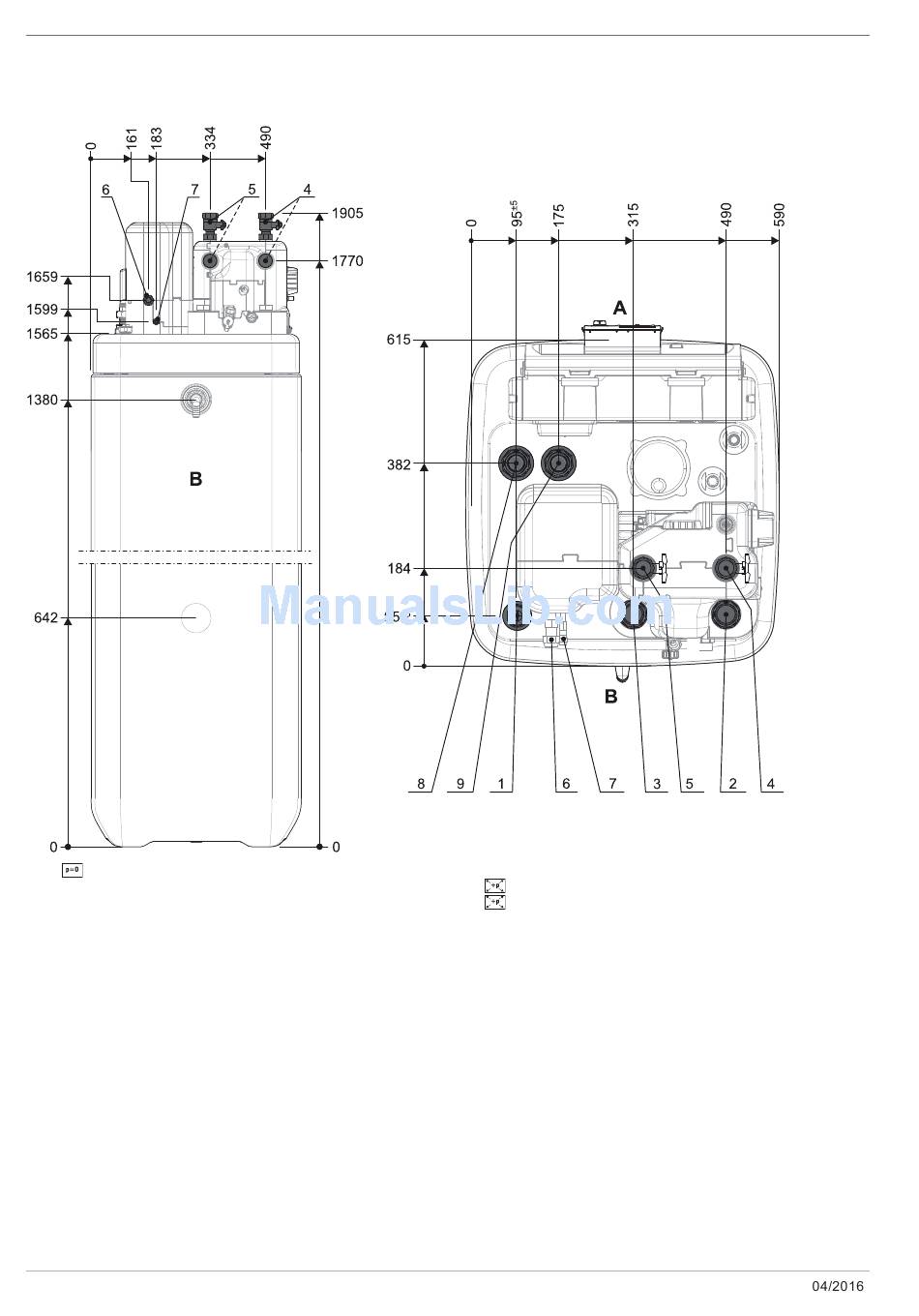

Fig. 4-1 Connections and dimensions ROTEX HPSU compact 304/308 (in general)
18
7 Connection coolant fluid line
8 Solar - feed (only type ...Biv)
9 Solar - return flow (only type ...Biv)
A Front
B Back
FA ROTEX HPSU compact (V5) •
