Set-up and installation

2 Set-up and installation
2.1

Dimensions and connections

1 Solaris feed
2 Cold water
3 Hot water
4 Heating feed
5 Heating return flow

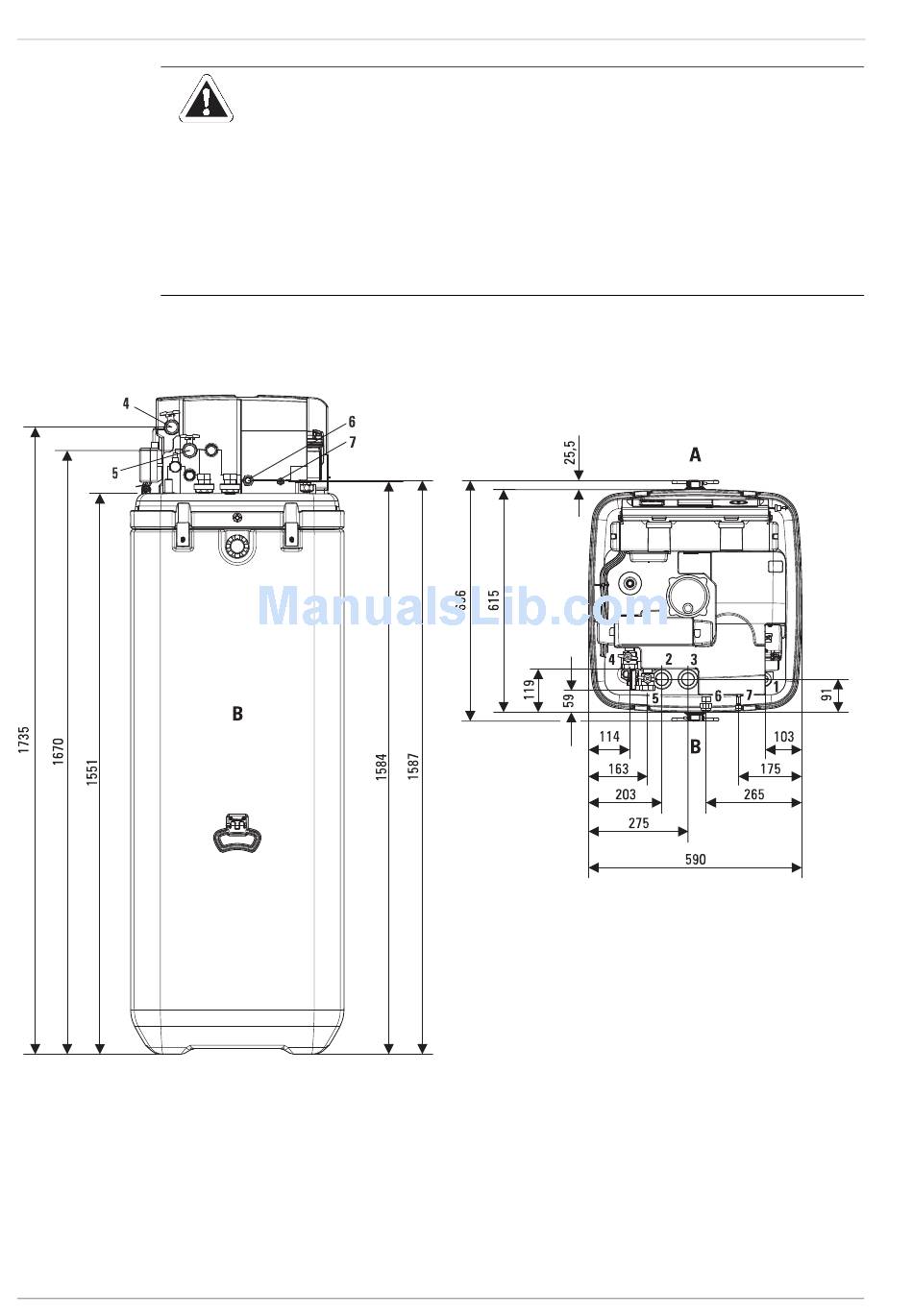

Fig. 2-1 Connections and dimensions HPSU compact (General)
8
WARNING!
Cooling systems (heating pumps), climate control systems and heating devices that have been set up and
installed incorrectly can both endanger life and health of people and be impaired in their function.
• Work on the HPSU compact (such as setup, servicing, connection and initial start-up) is only to be carried
out by persons who are authorised and who have successfully completed qualifying technical or
vocational training and who have taken part in advanced training sessions recognised by the relevant
responsible authorities. These include in particular certified heating engineers, qualified electricians
and HVAC specialists, who because of their professional training and expert knowledge, have
experience in the professional installation and maintenance of heating, cooling and air conditioning
systems and heat pumps.
6 Connection refrigerant gas line
7 Connection refrigerant fluid line
A Front
B Back
