SCENARIO 2

1. Mount the three TVs on the wall horizontally. It is recommended to install them about 1m to 1.6m

above the ground.

2. Install the GVC3200 on the wall and position it on the top center of the center TV.

----------------------------------------------------------------------------------------------------------------------------- ---------------

Note:

When the TV is mounted on the wall, it is possible to mount the GVC3200 on the TV directly only if there is

enough space between the TV and the wall.

----------------------------------------------------------------------------------------------------------------------------- ---------------

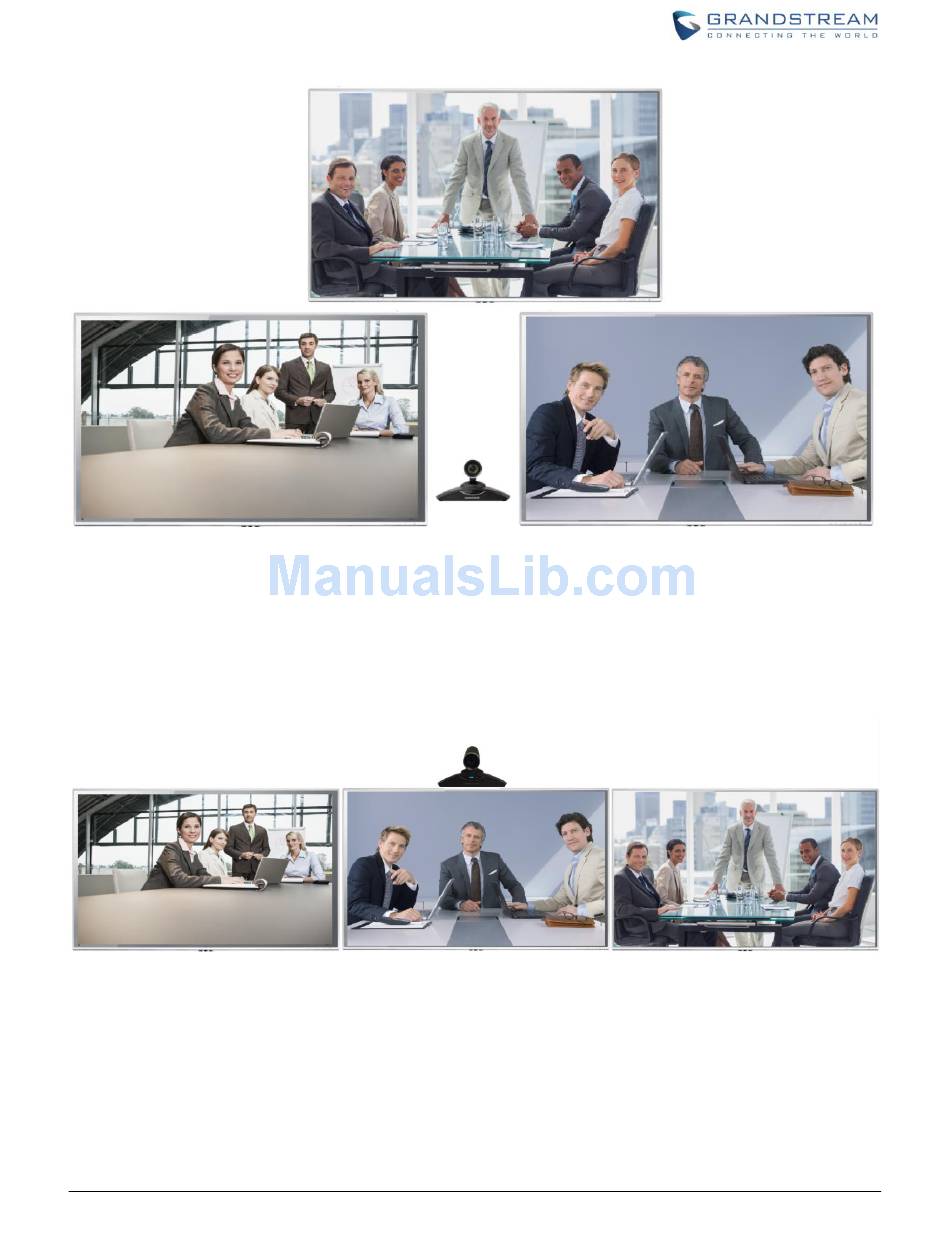

Figure 3: Three TVs – Scenario 1

Figure 4: Three TVs – Scenario 2

GVC3200/GVC3202 Installation Examples

Page 7 of 7
