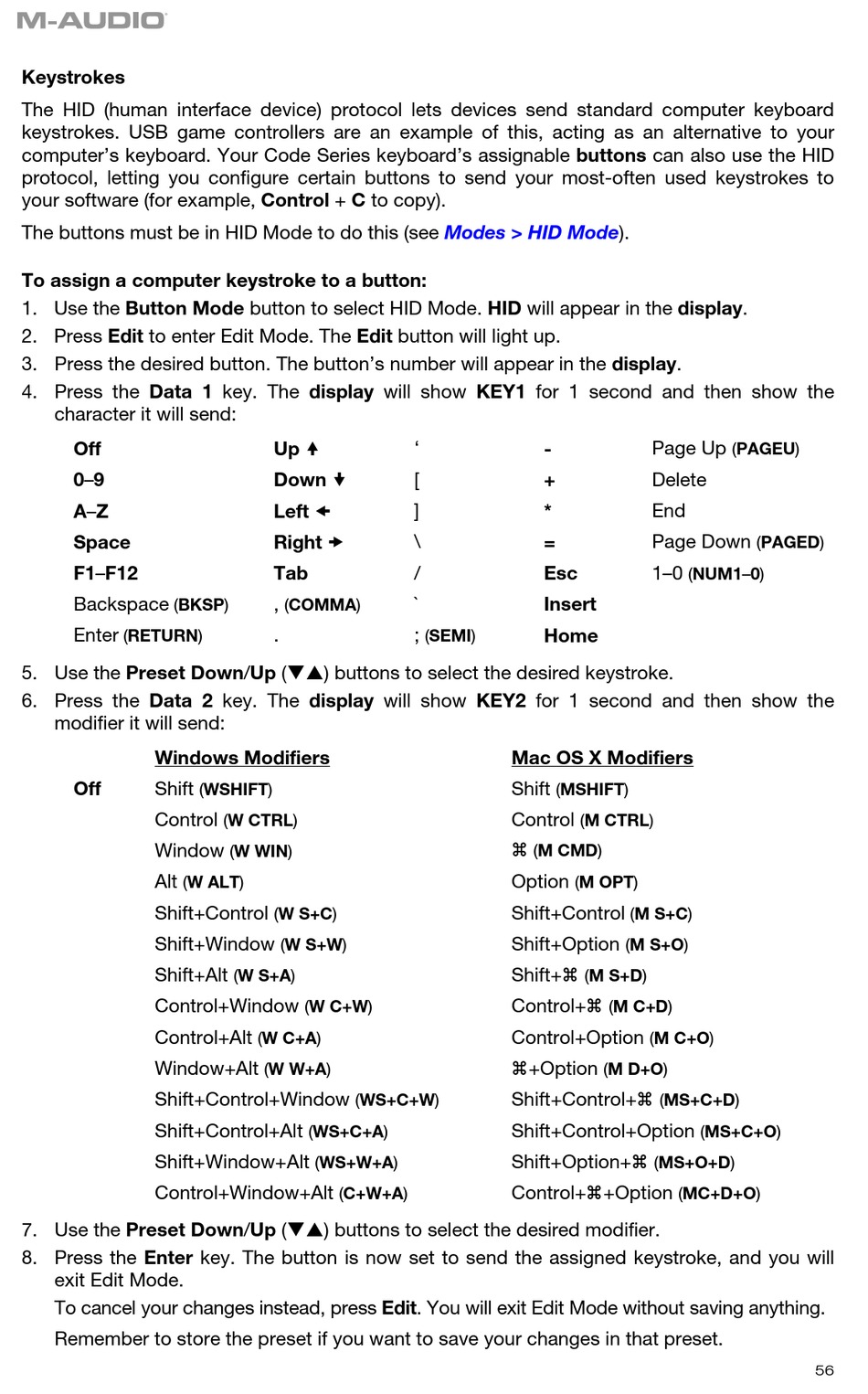

Keystrokes

The HID (human interface device) protocol lets devices send standard computer keyboard
keystrokes. USB game controllers are an example of this, acting as an alternative to your
computer's keyboard. Your Code Series keyboard's assignable buttons can also use the HID
protocol, letting you configure certain buttons to send your most-often used keystrokes to
your software (for example, Control + C to copy).
The buttons must be in HID Mode to do this (see
To assign a computer keystroke to a button:
1. Use the Button Mode button to select HID Mode. HID will appear in the display.
2. Press Edit to enter Edit Mode. The Edit button will light up.
3. Press the desired button. The button's number will appear in the display.
4. Press the Data 1 key. The display will show KEY1 for 1 second and then show the
character it will send:
Off
0–9
A–Z
Space
F1–F12
Backspace
(BKSP)
Enter
(RETURN)
5. Use the Preset Down/Up () buttons to select the desired keystroke.
6. Press the Data 2 key. The display will show KEY2 for 1 second and then show the
modifier it will send:
Windows Modifiers
Shift
Off
Control
Window
Alt
(W ALT)
Shift+Control
Shift+Window
Shift+Alt
Control+Window
Control+Alt
Window+Alt
Shift+Control+Window
Shift+Control+Alt
Shift+Window+Alt
Control+Window+Alt
7. Use the Preset Down/Up () buttons to select the desired modifier.
8. Press the Enter key. The button is now set to send the assigned keystroke, and you will
exit Edit Mode.
To cancel your changes instead, press Edit. You will exit Edit Mode without saving anything.
Remember to store the preset if you want to save your changes in that preset.
Up 
Down 
Left 
Right 
Tab
,
(COMMA)
.
(WSHIFT)
(W CTRL)
(W WIN)
(W S+C)
(W S+W)
(W S+A)
(W C+W)
(W C+A)
(W W+A)
(WS+C+W)
(WS+C+A)
(WS+W+A)
(C+W+A)
Modes > HID Mode).
' -
[ +
]
*
\
=
/ Esc
` Insert
;
Home
(SEMI)
Mac OS X Modifiers
Shift
(MSHIFT)
Control

(M CMD)
Option
(M OPT)
Shift+Control
Shift+Option
Shift+
Control+
Control+Option
+Option
Shift+Control+
Shift+Control+Option
Shift+Option+
Control++Option
Page Up
(PAGEU)
Delete
End
Page Down
1–0
(NUM1–0)
(M CTRL)
(M S+C)
(M S+O)
(M S+D)
(M C+D)
(M C+O)
(M D+O)
(MS+C+D)
(MS+C+O)
(MS+O+D)
(MC+D+O)
(PAGED)
