Installation and Operating Instructions
MODEL:
MON-MRF48W

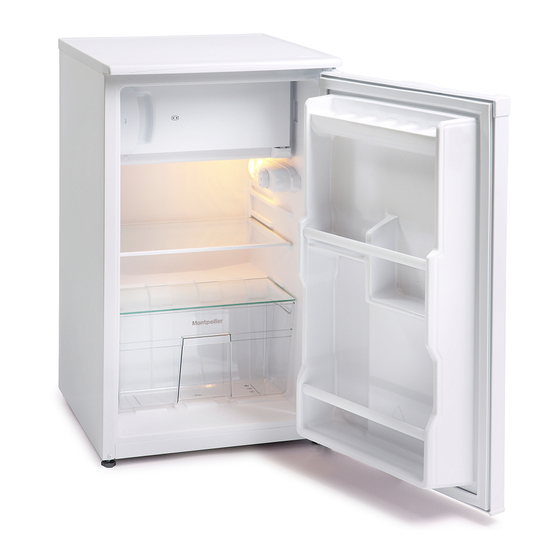

UNDER COUNTER REFRIGERATOR A+
(Picture shown for indicative purposes only, model supplied may differ)
Please read these instructions carefully before attempting to install or use this appliance.
It is advisable to keep these instructions in a safe place for future reference.
Advertisement
Related Manuals for montpellier MON-MRF48W
Summary of Contents for montpellier MON-MRF48W

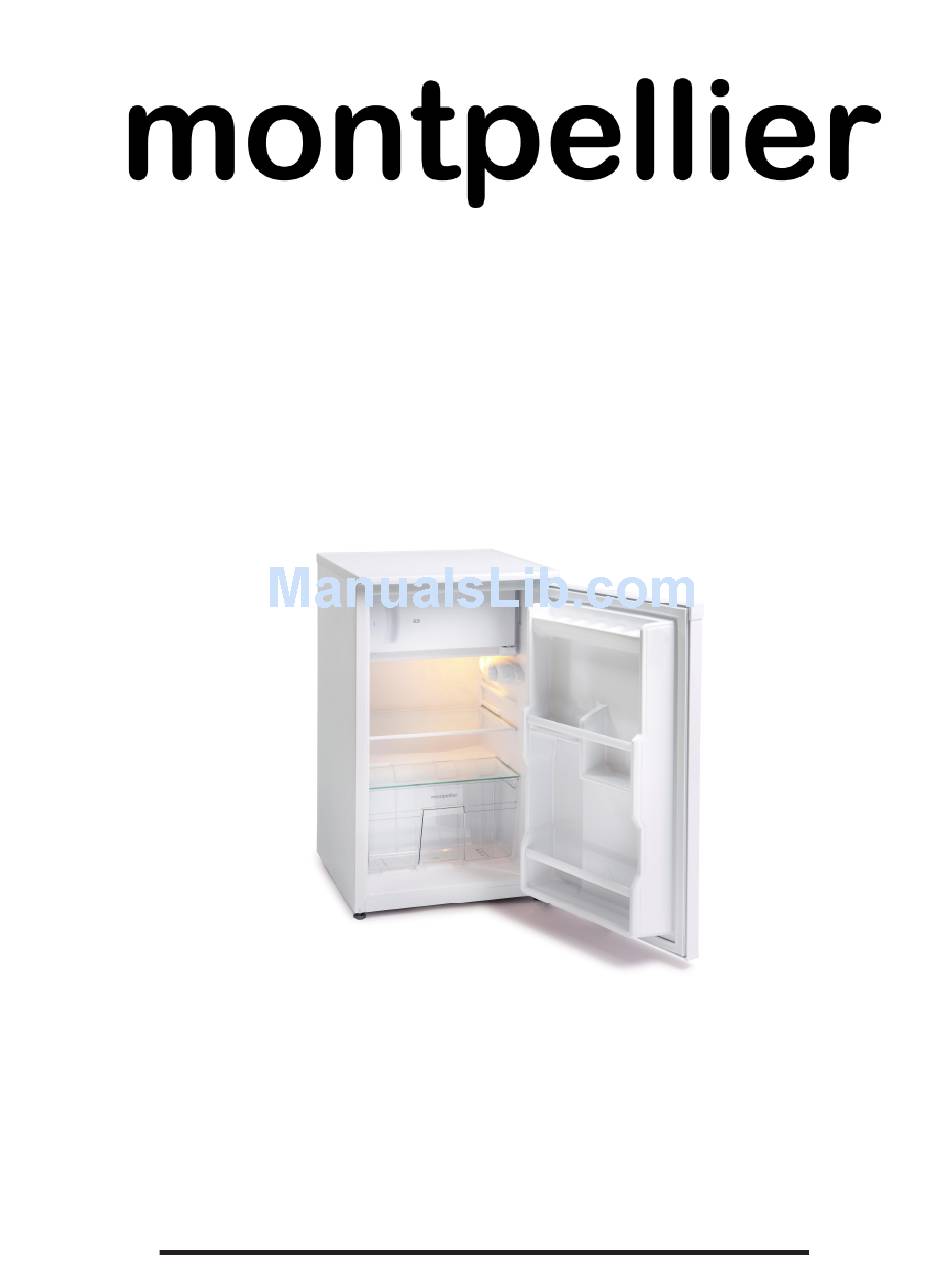

- Page 1 Installation and Operating Instructions MODEL: MON-MRF48W UNDER COUNTER REFRIGERATOR A+ (Picture shown for indicative purposes only, model supplied may differ) Please read these instructions carefully before attempting to install or use this appliance. It is advisable to keep these instructions in a safe place for future reference.
- Page 2 Introduction montpellier Thank you for choosing this appliance. It has been designed to give years of trouble-free use provided it is installed and maintained correctly. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference.
- Page 3 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
-
Page 4: Description Of The Appliance
Description of the Appliance This diagram is only for informative purposes about parts of the appliance. Parts may vary according to the appliance mode. Refrigerator Shelf Crisper Cover Crisper Leveling Feet Thermostat Box Icebox Compartment Top Cover Ice Tray Egg Shelf Bottle Shelf... - Page 5 CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
- Page 6 Section 1. Installation IMPORTANT! This appliance must be left to stand in an upright position for at least 4 hours before being switched on for the first time. Remove all packaging and securing tape from the appliance. Wash the interior of the appliance with lukewarm water containing a small amount of bicarbonate soda (5ml to 0.5 litres of water).
- Page 7 Section 2. Safety Advice Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage. If this appliance is to replace an old appliance with a lock, as a safety measure break or remove the lock and/or door before disposal.
- Page 8 Section 3. Operating the Appliance 3.1. Switching on the Appliance Allow the appliance to stand for a minimum of 4 hours after installation, before switching on. Plug in the appliance and switch on at the mains supply. Set the thermostat control to the required setting as detailed in the Temperature Control section (3.2.).
- Page 9 3.3. Normal Operating Sounds You may hear faint gurgling or bubbling sounds when the refrigerant is pumped to the cooling system and through the coils or tubing at the rear of the appliance. When the compressor is in operation you may hear a slight whirring sound or pulsating noise.
-
Page 10: Arranging Food In The Appliance
Accessories Ice Tray Fill the ice tray with water and place in freezer compartment. After the water has completely turned to ice, you can twist the tray as shown below to remove the ice cubes. Note: All written and visual descriptions in the accessories may vary according to the appliance model. - Page 11 Section 4. Maintenance Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply. 4.1 Internal Cleaning Clean the interior and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water). Rinse and dry thoroughly. Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol.
- Page 12 4.4. When the appliance is not in use When the appliance is not in use for long periods, remove the contents, disconnect from the electricity supply and clean the appliance, leaving the door ajar until you wish to use the appliance again. Failure to do so will cause the fridge to smell.
- Page 13 5. Remove the door. 6. Unscrew and remove the right hand pin for the top hinge. 7. Screw the pin into the left hand hole for the top hinge. 8. Replace the top bush and cap into the top right hand hold. 9.
- Page 14 4.7. Reversing the Icebox Door Opening – Right to Left The door opening can be reversed from “right hand hinged” to “left hand hinged” if required. If your appliance is supplied “left hand hinged” simply reverse the following procedure. Warning! When reversing the door, the appliance must not be connected to the mains.
- Page 15 4.8. What to do if something goes wrong There is no power to the appliance: Check there is not a power cut Check there is power to the electric socket/appliance Check the fuse in the plug (Must be 13 amp) Check that the thermostat is set to 1 or above (see Section 3.2.) The compressor runs continuously: Check the door is closed...
- Page 16 If after the previous checks there is still a fault, please contact the Repairtech Service Help-line below. Please ensure that you have the model number, serial number, date of purchase and retailers information available before you make the call. SERVICE HELP-LINE Should your appliance develop a fault, please call the Repairtech Service Helpline on: 01527-888133...
- Page 17 Insurance The warranty provided with this product does not cover loss of food content . Any claim for loss, damage, costs or expenses of an indirect or consequential nature including any economic loss or damage to foodstuffs or any other goods is excluded.
