Summary of Contents for montpellier MBUR200

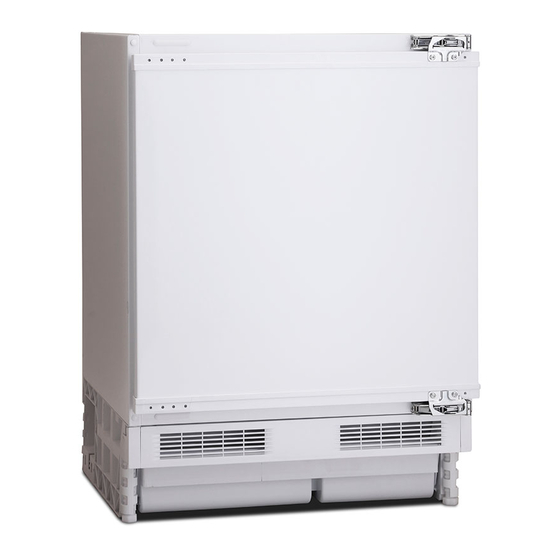

- Page 1 MBUR200 Instruction Manual...
-
Page 2: Table Of Contents
1 Your Refrigerator 4 Preparation 5 Using your refrigerator 2 Warnings Temperature Control And Electrical Requirements ....5 Adjustment ........14 Warning! This Appliance Must Be Defrosting ........15 Earthed ..........5 Installatıon Instructıons - Detaıled Step Important! Fitting A Different Plug ..6 By Step ...........16 Energy Saving Tips ......6 Compliance with WEEE Directive and 6 Maintenance and cleaning 22... -
Page 3: Your Refrigerator
Your Refrigerator 1. To freeze fresh food, frozen food, rapid cooling of beverages,making ice cubes. 2. Baked, chilled cooked food, dairy products. 3. Meat, sausages, cold cuts. 4. Fruit, vegetables, salads. 5. Tubes, small bottles and cans. 6. Egg tray. 7. -
Page 4: Warnings
Warnings • Do not connect your appliance to • See Installation Instructions on on the electricity supply until all packing page 8 for information on suitable and transit protectors have been location. removed. • To obtain the best possible • If transported horizontally leave performance and trouble free to stand upright for at least 4 operation from your appliance it is... -
Page 5: Electrical Requirements
• Should the mains lead of the appliance become damaged or should it need replacing at any time, it must be replaced by a special purpose made mains lead which can only be obtained from a MONTPELLIER Authorised Service Agent. -
Page 6: Important! Fitting A Different Plug
Important! Fitting A Different Energy Saving Tips Plug 1. Ensure your appliance is installed in a • As the colours of the wires in the well ventilated area. mains lead of this appliance may 2. Ensure the time between buying not correspond with the coloured chilled/frozen food and placing markings identifying the terminals in... -
Page 7: Compliance With Rohs Directive
Compliance with RoHS Directive: The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful prohibited materials specified in the Directive. Package information Packaging materials of the product manufactured from recyclable materials in accordance with our National Environment Regulations. -
Page 8: Installation
Installation 2. Clean the interior of the In case the information which are refrigerator as recommended in the given in the user manual are not “Maintenance and cleaning” section. taken into account, manufacturer will 3. Connect the plug of the not assume any liability for this. -
Page 9: Disposing Of The Packaging
Placing and Installation A damaged power cable must be replaced by a qualified electrician. If the entrance door of the room Product must not be operated before where the refrigerator will be installed is it is repaired! There is the risk of not wide enough for the refrigerator to electric shock! pass through, then call the authorized... -
Page 10: Placing The Refrigerator Under The Counter And Adjusting The Legs
Placing the refrigerator under the counter and adjusting the legs When you place your refrigerator, the distance between the product and the wall must be at least 30 cm, as seen in the figure. The air ventilation channels must not be blocked so that the performance of your refrigerator does not decrease. -
Page 11: Replacing The Interior Light Bulb
Replacing the interior light bulb Should the light fail to work switch off at the socket outlet and pull out the mains plug. Follow the below instructions to check if the light bulb has worked itself loose. If the light still fails to work obtain a replacement E14 screw cap type 15 Watt (Max) bulb from your local electrical store and then fit it as follows:... -
Page 12: Reversing The Doors
Reversing the doors Proceed in numerical order A- Remove the plastic hinge. B- Remove the freezer door. C- Remove the locking part. D- Reposition the upper plastic housing. E- Reposition the plastic hinge. F- Reposition the locking part. G- Insert the stoppers supplied with the fixing kit into the redundant holes. -
Page 13: Preparation
Preparation • Your refrigerator should be installed at • Food contact with the temperature least 30 cm away from heat sources sensor in the freezer compartment such as hobs, ovens, central heater may increase energy consumption of and stoves and at least 5 cm away the appliance. -
Page 14: Using Your Refrigerator
Using your refrigerator Temperature Control And Adjustment Operating temperatures are controlled by the thermostat (see diagram). Settings may be made from 1 to 5, the coldest position. When the appliance is switched on for the first time, the thermostat should be adjusted so that after 24 hours, the average fridge temperature is no higher than +5°C (+41°F ). -
Page 15: Defrosting
Defrosting B) Freezer compartment Defrost twice a year or when a frost A) Fridge compartment layer of around 7 mm (1/4”) has formed. The fridge defrosts automatically. The To start defrosting procedure switch defrosting water runs to the drain tube via off the appliance at the socket outlet a collection channel and is evaporated and pull out the mains plug. -
Page 16: Installatıon Instructıons - Detaıled Step By Step
Installatıon Instructıons - Detaıled Step By Step... -
Page 22: Maintenance And Cleaning
Maintenance and cleaning Never use gasoline, benzene or Never use cleaning agents or water similar substances for cleaning that contain chlorine to clean the purposes. outer surfaces and chromium coated parts of the product. Chlorine causes We recommend that you unplug the corrosion on such metal surfaces. -
Page 23: Troubleshooting
Troubleshooting Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product. The refrigerator does not operate. - Page 24 The refrigerator is running frequently or for a long time. • New product may be wider than the previous one. Larger refrigerators operate for a longer period of time. • The room temperature may be high. >>>It is normal that the product operates for longer periods in hot ambient.
- Page 25 Temperature in the fridge or freezer is very high. • The fridge temperature is adjusted to a very high value. >>>Fridge compartment temperature setting has an effect on the temperature of the freezer. Change the temperatures of the fridge or freezer and wait until the relevant compartments attain a sufficient temperature.
- Page 26 Bad odour inside the refrigerator. • No regular cleaning is performed. >>>Clean the inside of the refrigerator regularly with a sponge, lukewarm water or carbonate dissolved in water. • Some containers or package materials may cause the smell. >>>Use a different container or different brand packaging material.
- Page 27 57 6136 0000/AB...
