THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
54cm Frost Free Fridge Freezer
MFF152W - White
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for montpellier MFF152W
Summary of Contents for montpellier MFF152W
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions 54cm Frost Free Fridge Freezer MFF152W - White Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Fridge Freezer. Our fridge freezers has been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your fridge freezer to ensure you get the most from your purchase.

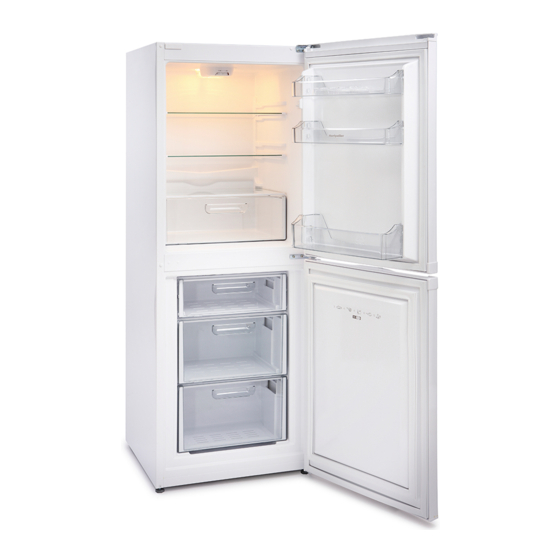

- Page 3 Description Of The Appliance This diagram is only for informative purposes about parts of the appliance. Parts may vary according to the appliance mode. Fridge compartment Freezer compartment Thermostat dial Refrigerator lamp & cover Refrigerator shelves Crisper shelf Crisper Bottle shelf Door shelves Egg holder Freezer –...
- Page 4 Contents Section 1 : Safety Advice Section 2: Installation 6 - 8 Section 3: Operating The Appliance 9 - 14 Section 4: Maintenance...
- Page 5 Section 1: Safety Advice • Please read this booklet thoroughly before • The appliance is not intended for use by persons installing and switching on the appliance. (including children) with reduced physical, sensory The manufacturer accepts no responsibility or mental capabilities, or lack of experience and for incorrect installation and usage.
- Page 6 Section 2: Installation IMPORTANT! This appliance must be left to • Please ensure that there is a small ‘air-gap’ between stand in an upright position for at least 4 hours the condenser on the rear of the appliance and the before being switched on for the first time.
- Page 7 Section 3: Operating The Appliance 3.1 Switching on the Appliance • Allow the appliance to stand for a minimum of 4 hours after installation, before switching on. • Plug in the appliance and switch on at the mains supply. • Set the thermostat control to the required setting as detailed in the Temperature Control section (3.2.).
- Page 8 Section 3: Operating The Appliance 3.3 Normal Operating Sounds You may hear faint gurgling or bubbling sounds when the refrigerant is pumped to the cooling system and through the coils or tubing at the rear of the appliance. When the compressor is in operation you may hear a slight whirring sound or pulsating noise.
- Page 9 Section 3: Operating The Appliance • When buying frozen foods ensure that the packing is 3.8 Arranging Food in the Appliance intact. Refrigerator Section • Frozen foods should be transported in appropriate containers to maintain the quality of the food and •...
- Page 10 Section 4: Maintenance 4.1 Internal Cleaning • Clean the interior and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water). • Rinse and dry thoroughly. • Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol.
- Page 11 Section 4: Maintenance 4.6. Reversing the door The door opening can be reversed from “right hand hinged” to “left hand hinged”. Your appliance is supplied “right hand hinged”, to reverse the door opening please use the following procedure. Warning! When reversing the door, the appliance must not be connected to the mains. Remove the plug from the mains beforehand and do not plug back into the mains for a period of at least four hours after completion of the door change.
- Page 12 Section 4: Maintenance 3 ) Lie the appliance carefully down on its right hand side. Ensure the floor surface is flat and clean. It is suggested that a sheet or something similar is placed on the floor in order to protect the paint finish. Unscrew both leveling feet from the base.
- Page 13 Section 4: Maintenance 5) There are two plastic hole c aps located on the appliances left hand side in the middle beam, remove these, and insert them into the two holes which are visible as a result of removing the middle hinge bracket on the right hand side.
- Page 14 Section 4: Maintenance Insert the top hinge pin i nto the top of the refrigerator door and fix to the hinge bracket using the screw. Insert the top hinge screw right cap to the right hand side (you can find the top hinge screw right cap in the user manual bag). Ensure that all screws are tightened and are secure.
- Page 15 Section 4: Maintenance If after the previous checks there is still a fault, please contact the Montpellier Service Help-line below. Please ensure that you have the model number, serial number, date of purchase and retailers information available before you make the call. T: 01759 487839 ELECTRICAL CONNECTION (FOR UK TYPE PLUG) For your safety please read the following information.
- Page 16 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 17 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
