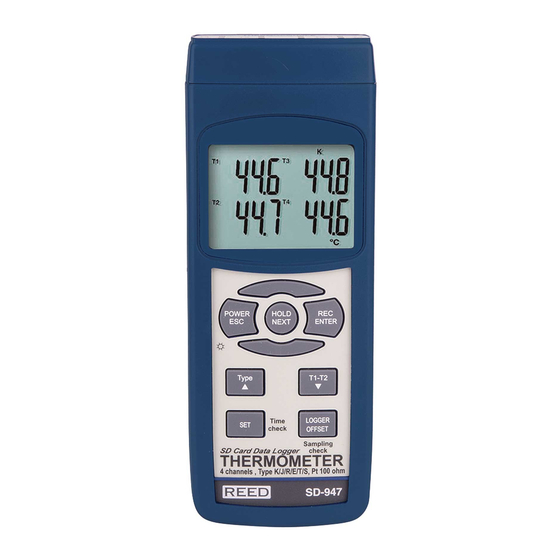

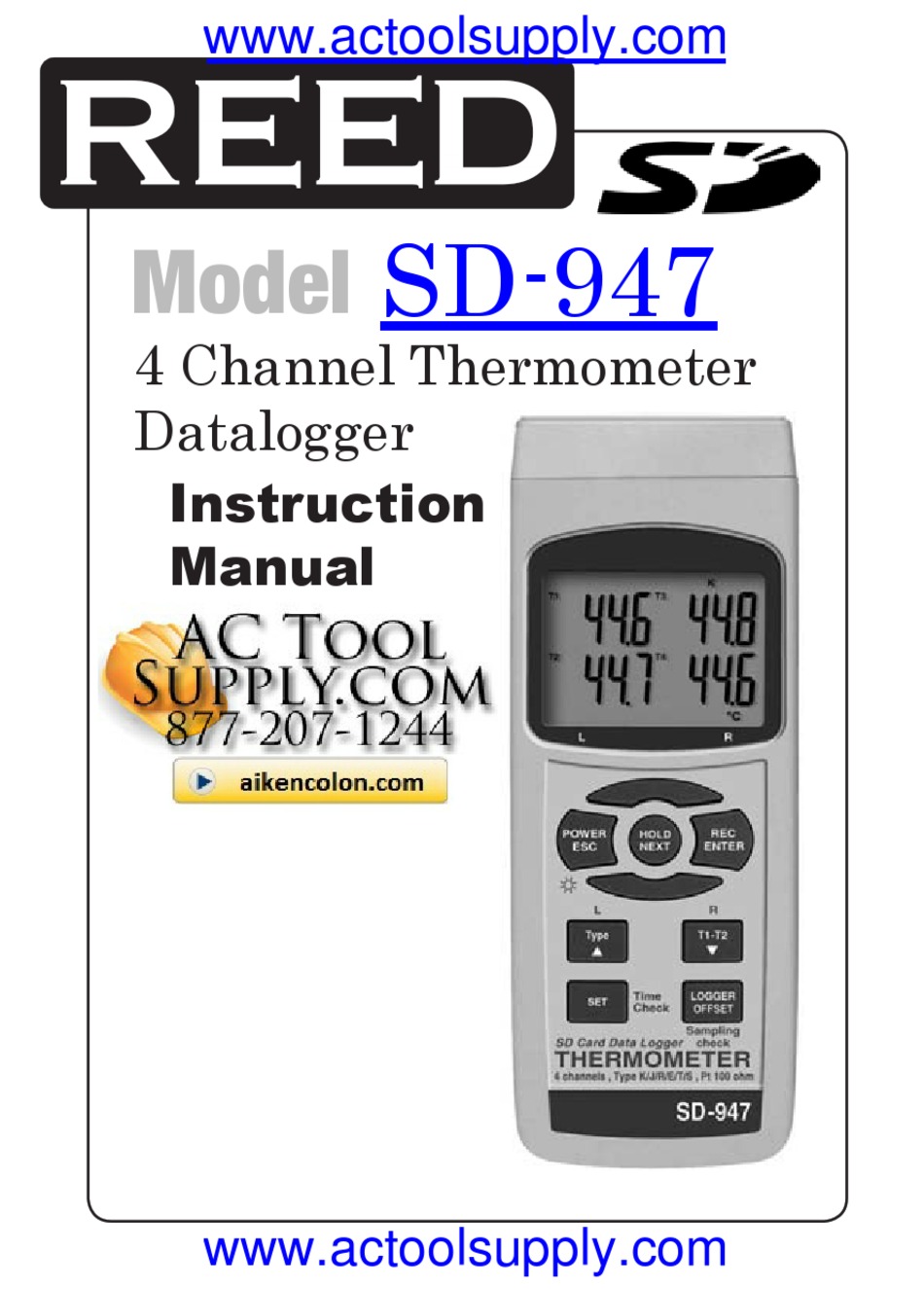

- Page 1 Black SD-947 Model 4 Channel Thermometer Pantone 534 Blue - 100/80/30/5 Pantone 485 Red - 10/100/100/5 Datalogger Pantone 123 Yellow - 0/27/100/ Instruction Manual reedinstruments www.actoolsupply.com...
-
Page 2: Table Of Contents
www.actoolsupply.com Table of Contents Features..................... 3 Specifications.................3-5 Instrument.Description..............6 Operating.Instructions..............7-12 Type K Measurement ..............7 Type J/T/E/R/S Measurement ............7 Pt 100 ohm Measurement ............. 7 T1-T2 Measurement ..............7 Data Hold ..................8 Data Record (Max., Min. -
Page 3: Features
www.actoolsupply.com Features • Accepts.Type.K/J/T/E/R/S.Thermometers • Shows.4.channels.on.the.Display • Measures.in.°C.&.°F. • Offset.adjustment.for.both.Type.K/J/T/E/R/S.&.Pt.100.measurements • Real.time.SD.memory.card.datalogger.with.a.built-in.clock.and. calendar • Sampling.time.set.from.1.second.to.3600.seconds • Meter.can.switch.to.a.Manual.Datalogging. • No.extra.software.needed,.just.plug.the.SD.card.into.the.computer. and.it.downloads.directly.to.EXCEL • SD.card.capacity:.1.GB.to.16.GB • Easy.to.read.LCD.with.backlight. • Auto.power.off.or.manual.power.off • Data.hold,.record.max..and.min..reading • High.accuracy.microcomputer.circuit • Power.by.UM3/AA.(1.5.V).x.6.batteries • USB/RS232.Computer.interface • Separated probe for easy measurements of multiple environments •... - Page 4 www.actoolsupply.com Auto.Sampling.Time:. 1,.2,.5,.10,.30,.60,.120,.300,.600,.1800,.. 3600.seconds Memory.Card:. SD.memory.card,.1.GB.to.16.GB Sampling.Time:. Approx..1.second Data.Output:. USB/RS232.PC.computer.interface Temperature.Range:. 0-50°C.(0-122°F) Resolution:. 0.1°C/0.1°F Accuracy:. ±.0.8°C/1.5°F Pt.100.ohm.Range:. -199.99.-.850.0°C.(-327.0.-.999.9°F) Pt.100.ohm.Accuracy:. ±(0.4%.+.1°C),.±(0.4%.+.1.8°F) Operating.Temperature:. 0-50°C.(0-122°F) Operating.Humidity:. Less.than.85%.R.H.. Power.Supply:. UM3/AA.(1.5.V).x.6.batteries Weight:.. 515g/1.13lb Dimensions:. 177.x.68.x.45mm.(7.0.x.2.7.x.1.9”) Optional.accessories:. 2G.SD.Card.(SD-2GB).. Type.K.thermocouple.probe.(TP-01). USB.cable.(USB-01). RS232.cable.(UPCB-01). Data.Acquisition.Software.(SW-U801-WIN). Soft.carrying.case.(CA-05A) Visit.us.at.www.reedinstruments.com.for.more.information.on.our.optional. accessories,.or.e-mail.us.at.info@reedinstruments.com Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow...
- Page 5 www.actoolsupply.com Sensor.Type Resolution Range Accuracy -50.0.to.1300.0°C ±.(0.4%.+.0.5°C) 0.1°C -50.1.to.-100.0°C ±.(0.4%.+.1°C) Type.K -58.0.to.2372.0°F ±.(0.4%.+.1°F) 0.1°F -58.1.to.-148.0°F ±.(0.4%.+.1.8°F) -50.0.to.1200.0°C ±.(0.4%.+.0.5°C) 0.1°C -50.1.to.-100.0°C ±.(0.4%.+.1°C) Type.J -58.0.to.2192.0°F ±.(0.4%.+.1°F) 0.1°F -58.1.to.-148.0°F ±.(0.4.%.+.1.8°F) -50.1.to.-100.0°C ±.(0.4%.+.1°C) 0.1°C -50.0.to.400.0°C ±.(0.4%.+.0.5°C) Type.T -58.1.to.-148.0°F ±.(0.4%.+.1.8°F) 0.1°F -58.0.to.752.0°F ±.(0.4.%.+.1°F) -50.1.to.-100.0°C ±.(0.4%.+.1°C) 0.1°C -50.0.to.900.0°C ±.(0.4%.+.0.5°C)
-
Page 6: Instrument.description
www.actoolsupply.com Instrument Description 1.. Display. 10..PT1.input.socket 2.. Power,.ESC,.&.Backlight.Button 11..PT2.input.socket 3.. Hold.&.Next.Button 12..USB/RS232.Output 4.. REC.&.Enter.Button 13..AC/DC.9V.Power.Adapter.Input.. 5.. Type,.Up,.&.L.Button Socket 6.. T1-T2,.Down,.&.R.Button 14..Tripod.Fix.Nut 7.. SET.&.Time.Check.Button 15..Battery.Cover.Screws 8.. Logger,.OFFSET,.&.Sampling.. 16..Battery.Compartment/Cover Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Time.Check.Button 17..Stand Red - 10/100/100/5 Pantone 485 Red... -
Page 7: Operating.instructions
www.actoolsupply.com Operating Instructions Type K Measurement 1). Tur n.on.the.meter.by.pressing.the.Power.Button..To.turn.the.meter. off,.hold.the.Power.Button.for.over.2.seconds. 2). The.Meter’s.default.Temperature.sensor.is.Type.K,.which.will.show. on.the.Display.as.“K”..Insert.the.optional.Type.K.probes.into.the. T1,.T2,.T3,.T4.input.sockets..The.screen.will.show.the.4.channels. (T1,.T2,.T3,.T4).and.their.temperature.values..If.an.input.socket.is. empty,.the.screen.will.display.“-.-.-.-.-”.. Type J/T/E/R/S Measurement 1). To.change.the.Temperature.Sensor,.press.the.Type.Button.so.the. screen.displays.“J/T/E/R/S”.. 2). Insert the.optional.Probes.into.the.T1,.T2,.T3,.T4.input.sockets... The.screen.will.show.the.4.channels.(T1,.T2,.T3,.T4).and.their.tem- perature.values..If.an.input.socket.is.empty,.the.screen.will.display.. “-.-.-.-.-”.. Pt 100 ohm Measurement 1). To.change.the.Temperature.Sensor,.press.the.Type.Button.so.the. screen.displays.“Pt”.. 2). Insert the.optional.Pt.100.ohm.Probes.into.the.PT1.and.PT2.input. sockets..The.screen.will.show.the.temperature.values..If.an.input. socket.is.empty,.the.screen.will.display.“-.-.-.-.-”.. T1-T2 Measurement 1). -
Page 8: Data Hold
www.actoolsupply.com Data Hold While.taking.a.measurement,.press.the.Hold.Button.once.and.the.mea- sured.value.will.hold.on.the.screen,.and.a.HOLD.symbol.will.appear... Press.the.Hold.Button.once.again.will.release.the.data.hold.function.. Data Record (Max., Min. reading) The.data.record.function.records.the.maximum.and.minimum.readings.. Press.the.REC.Button.once.to.start.the.Data.Record.function.and.a.“REC”. symbol.will.appear.on.the.display..With.the.“REC”.symbol.on.the.display:. 1). Press.the.REC.Button.once,.and.a.”REC..MAX.”.symbol.along.with. the.maximum.value.will.appear.on.the.display..To.delete.the.maxi- mum.value,.press.the.Hold.Button.once.and.the.display.will.show. a.“REC.”.symbol.only.and.execute.the.memory.function.continu- ously.. 2). Press.the.REC.Button.again,.and.a.“REC..MIN.”.symbol.along.. with.the.minimum.value.will.appear.on.the.display..To.delete.the. minimum.value,.press.the.Hold.Button.once,.and.the.display.will. show.a.“REC.”.symbol.only.and.execute.the.memory.function. continuously.. 3). To.exit.the.memory.record.function,.press.the.REC.button.for.2. seconds..The.display.will.revert.to.the.current.reading.. Backlight ON/OFF After.powering.the.meter.ON,.the.LCD.Backlight.will.turn.on.automati- cally..While.taking.measurements,.press.the.Backlight.Button.and.the.LCD. Backlight.will.turn.off..Press.the.Backlight.Button.once.again.to.turn.the. LCD.Backlight.back.ON. Type K/J/T/E/R/S Offset Adjustment 1). Set the.function.to.Type.K.(or.J/E/R/T/S). 2). -
Page 9: Pt 100 Ohm Offset Adjustment
www.actoolsupply.com 3). Press.and.hold.the.Offset.Button.for.about.two.seconds.then. release.and.the.display.will.show:.“SEt”.with.the.Measuring.Value. under.it,.and.“oFS”.with.the.Adjustment.Value.under.it..Use.the.Up. and.Down.Buttons.to.change.the.Adjustment.Value..Press.the.Enter. Button.to.save.the.Adjustment.Value.and.return.to.the.measuring.. This.can.be.done.for.the.T1,.T2,.T3,.T4.inputs.at.the.same.time.. Pt 100 ohm offset adjustment 1). Set the.function.to.Pt.100.ohm.. 2). Insert the.optional.Pt.100.ohm.Probe.into.the.PT1.(or.PT2).input. socket. 3). Press.and.hold.the.Offset.Button.for.about.two.seconds.then. release..The.screen.will.show:.“SEt”.with.“Pt1”.under.it,.and.“oFS”. with.“Pt2”under.it. 4). To.make.the.Offset.Adjustment.for.Pt.1,.place.the.probe.in.the.PT1. input.socket.and.press.the.L.button..To.make.the.Offset.Adjust- ment.for.Pt.2,.place.the.probe.in.the.PT2.input.socket.and.press. the.R.button.once..The.display.will.show:.“SEt”.with.the.Measuring. Value.under.it.(for.eiter.Pt1.or.Pt2),.and.“oFS”.with.the.Adjustment. Value.under.it..Use.the.Up.and.Down.Buttons.to.change.the.Adjust- ment.Value..Press.the.Enter.Button.to.save.the.Adjustment.Value. and.return.to.the.measuring..The.Pt.100.ohm.Offset.Adjustment. can.only.be.done.one.at.a.time. Datalogger Preparation.Before.Executing.the.Datalogger.Function:. 1). Insert the.optional.SD.card.into.the.SD.card.socket.. 2). Before.you.use.an.SD.card.with.this.meter.for.the.first.time,.it.is. recommend.to.format.the.SD.card..See.Advanced.Settings.section. -
Page 10: Auto Datalogger
www.actoolsupply.com 4). Now.you.need.to.set.the.decimal.format..The.numerical.data. structure.downloaded.to.the.SD.card.is.defaulted.used.the.“..”.as. the.decimal,.for.example.“20.6”.“1000.53”..But.in.certain.countries. the.“.,.”.is.used.as.the.decimal.point,.for.example.“20,6”.“1000,53”.. See.Advanced.Settings.section.of.this.manual.for.instructions.on. how.to.change.the.Decimal.Character.. Auto Datalogger (Set sampling time ≥1 second) 1). Start.Datalogging;.press.the.REC.Button,.and.the.“REC”.symbol. will.appear.on.the.LCD.screen,.then.press.the.Logger.Button,.the. “REC”.symbol.will.flash.while.the.measuring.data.and.time.informa- tion.is.being.saved.in.memory..To.set.the.sampling.time,.and.to. toggle.the.beeper.sound.on.or.off,.refer.to.the.Advanced.Settings. section.of.this.manual. 2). Pause.the.Datalogging;.while.Datalogging,.if.press.the.Logger.But- ton.once..While.paused,.the.“REC”.symbol.will.stop.flashing..Press. the.Logger.Button.again.to.resume.Datalogging,.and.the.“REC”. symbol.will.begin.to.flash.again. 3). Stop.Datalogging;.while.the.Datalogger.function.is.paused,.press. the.REC.Button.for.2.seconds..The.“REC”.symbol.will.disappear. indicating.the.Datalogging.function.has.stopped.. Manual Datalogger (Set sampling time = 0 seconds) 1). Set sampling.time.is.to.0.second;.Press.the.REC.Button,.and.the. “REC”.symbol.will.appear.on.the.LCD.screen..Press.the.Logger. -
Page 11: Checking The Time
www.actoolsupply.com 3). Stop.Datalogging;.press.the.REC.Button.for.2.seconds,.and.the. “REC”.symbol.will.disappear.indicating.the.Datalogging.function. has.stopped.. Checking the Time During.normal.functions.(not.Datalogging),.press.the.Time.Check.Button. and.the.lower.LCD.display.will.show.the.Year,.Month/Date,.Hour/Minute. Check Sampling Time Information During.normal.functions.(not.Datalogging),.press.the.Sampling.Button.and. the.lower.LCD.display.will.show.the.Sampling.Time.Information. SD Card Data Structure 1). The.first.time.the.SD.card.is.used.in.the.meter,.the.SD.card.will. generate.a.folder:.TMA01 2). The.first.time.you.use.the.Datalogger,.in.the.folder.TMA01,.a.new. file.name.TMA01001.XLS.will.be.created..The.Datalogger.will.use. this.file.until.the.Data.has.reached.to.30,000.rows..The.meter.will. then.will.generate.a.new.file.with.a.subsequent.number,.for.ex- ample.TMA01002.XLS. 3). The.folder.PHA01can.hold.99.XLS.files..When.that.number.has. been.reached,.the.meter.will.then.will.generate.a.new.folder.with. a.subsequent.number,.for.example.TMA02..Max.number.of.TMA--. folders.is.10. Data Transfer from SD card to Computer (EXCEL Software) 1). -
Page 12: Advanced.settings
www.actoolsupply.com 3). Open.“Microsoft.EXCEL”..Download.the.EXCEL.files.from.the.SD. Card.to.the.computer.by.opening.up.the.SD.folder.and.selecting. the.desired.EXCEL.files,.and.drag-and-drop.them.onto.your.Com- puter..Open.the.files.with.EXCEL.(File.–.Open). 4). The.EXCEL.file.will.have.the.following.column.headers.in.this.order:. Place.(Position.Number),.Date.(Year/Month/Day),.Time.(in.24h. clock),.Value,.and.Unit. Advanced Settings During.normal.functions.(not.Datalogging),.press.and.hold.the.SET.Button. for.2.seconds.to.enter.the.“Advanced.Setting”.mode..Press.the.Next.But- ton.scroll.through.eight.main.functions,.shown.on.the.lower.display: dAtE Set clock.time.(Year/Month/Date,.Hour/Minute/Second) Set SD.card.Decimal.character PoFF Auto.power.OFF.management. bEEP Set beeper.sound.ON/OFF. t-CF Select.the.temperature.unit.to.°C.or.°F SP-t Set sampling.time.(Hour/Minute/Second). Sd F SD.memory.card.Format While.in.the.“Advanced.Setting”.function,.press.the.Esc.Button.to.exit.and. to.return.to.normal.functioning.. Set Clock Time 1). When.the.lower.display.shows.“dAtE”,.press.the.Enter.Button.. Use.the.Up.and.Down.Buttons.to.adjust.the.Year..After.the.desired. -
Page 13: Setting The Decimal Point On The Sd Card
www.actoolsupply.com Setting the Decimal point on the SD Card 1). When.the.lower.display.shows.“dEC”,.use.the.Up.or.Down.Buttons. to.toggle.between.“bASIC”.(“.”.Decimal.Point).or.“Euro”.(“,”.Deci- mal.Point).. 2). After.the.Decimal.point.character.has.been.selected,.press.the. Enter.Button.to.save.the.setting.as.the.default..To.exit.“Advanced. Settings”,.press.the.Esc.Button. Auto power OFF management 1). When.the.lower.display.shows.“PoFF”,.use.the.Up.or.Down.But- tons.to.select.the.value.“yES”.(Enable.Auto.Power.Off).or.“no”. (Disable.Auto.Power.Off. 2). After.selecting.“yES”.or.“no”,.press.the.Enter.Button.to.save.the. setting.as.the.default..To.exit.“Advanced.Settings”,.press.the.Esc. Button. Set Beeper Sound ON/OFF 1). When.the.lower.display.shows.“bEEP”,.use.the.Up.or.Down.But- tons.to.select.“yES”.(Beeper.Sound.is.ON).or.“no”.(Beeper.Sound. is.OFF).. 2). After.selecting.“yES”.or.“no”,.press.the.Enter.Button.to.save.the. setting.as.the.default..To.exit.“Advanced.Settings”,.press.the.Esc. Button. -
Page 14: Set Sampling Time
www.actoolsupply.com Set sampling time 1). When.the.lower.display.shows.“SP-t”,.use.the.Up.or.Down.Buttons. to.adjust.the.value.to.either.0,.1,.2,.5,.10,.30,60,.120,.300,.600,. 1800,.or.3600.seconds. 2). After.the.Sampling.value.is.selected,.press.the.press.the.Enter.But- ton.to.save.the.setting.as.the.default..To.exit.“Advanced.Settings”,. press.the.Esc.Button. SD memory card Format Please Note:.Formatting.the.SD.card.erases.all.data.from.that.SD.card. 1). When.the.lower.display.shows.“Sd.F”,.use.the.Up.or.Down.Buttons. to.select.“yES”.(format.the.SD.card).or.“no”.(do.not.format.the.SD. card). 2). To.format.your.SD.card,.select.“yES”.and.press.the.Enter.Button.. The.Display.will.show.“yES.Enter”,.to.confirm..Press.the.Enter.But- ton.to.confirm. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow... -
Page 15: Pc.serial.interface
www.actoolsupply.com PC Serial Interface The.instrument.features.an.PC.output.via.3.5.mm.terminal..The.connector. output.is.a.16.digit.data.stream.which.can.be.utilized.to.the.user’s.specific. application..An.USB.RS232.lead.with.the.following.connection.will.be. required.to.link.the.instrument.with.the.PC.serial.input. Meter.(3.5mm.Jack.Plug) PC.(9W.“D”.Connector) Center.Pin Pin.2 Ground/Shield Pin.5 The.16.digit.data.stream.will.be.displayed.in.the.following.format: D15.D14.D13.D12.D11.D10.D9.D8.D7.D6.D5.D4.D3.D2.D1.D0 End.Word D1.to.D4 Upper.Display.reading,.D1=.LSD,.D4=.MSB D5.to.D8 D5=?.D6=?.D7=?.D8=? Decimal.Point.(.DP).for.display. 0.=.No.DP,.1.=.1.DP,.2.=.2.DP,.3.=.3.DP D10.= 0 D11.= 0 D12.= 0 D13.= 0 D14.= 0 Start.Word Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5... -
Page 16: System.reset
2). Loosen.the.screws.of.the.Battery.Cover.and.remove 3). Remove.the.batteries.and.replace.with.Six.DC.1.5.V.batteries. (UM3,.AA,.Alkaline/heavy.duty) 4). Make.sure.the.battery.cover.is.properly.secured.after.changing.the. battery. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For.service.on.this.or.any.other.REED.product.or.information.on.other. Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow REED.products,.contact.REED.Instruments.at.info@reedinstruments.com Blue - 100/80/30/5 Pantone 534 Blue Black Rich Black - www.actoolsupply.com... - Page 17 www.actoolsupply.com Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red ________________________________________________ Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
