Zone 2—Continued

Using the Remote Controller in Zone

2 and Multiroom Control Kits

To control the AV receiver with the remote controller
while you're in Zone 2, you'll need a commercially
available multiroom remote control kit for each zone.
• Multiroom kits are made by Niles and Xantech.
These kits can also be used when there isn't a clear line
of sight to the AV receiver's remote sensor, such as when
it's installed inside a cabinet.

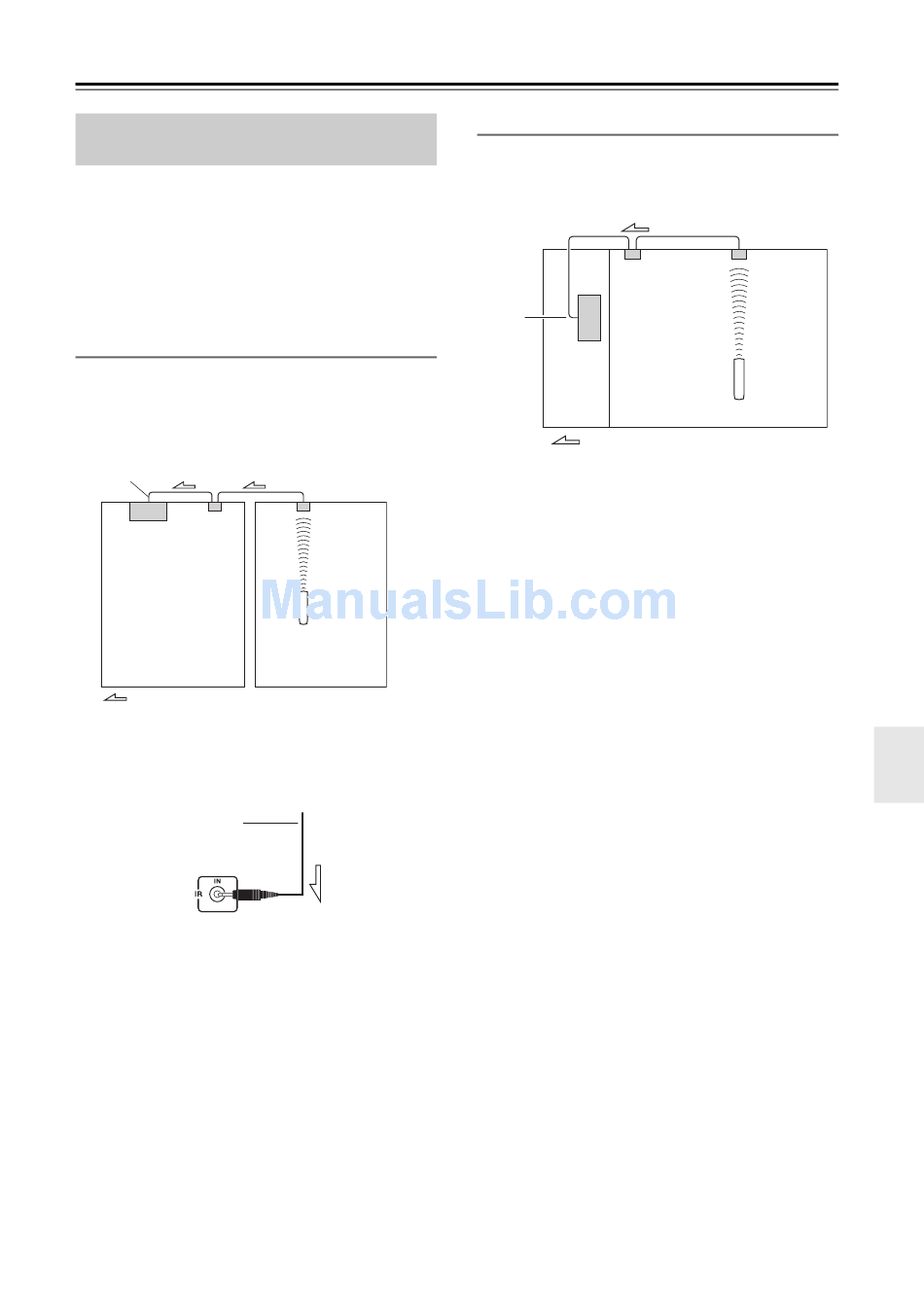

Using a Multiroom Kit with Zone 2
In this setup, the IR receiver in Zone 2 picks up the infra-
red signals from the remote controller and feeds them
through to the AV receiver in the main room via the con-
necting block.
IR IN
Connecting
block
Main room
Signal flow
The miniplug cable from the connecting block should be
connected to the AV receiver's IR IN jack, as shown
below.
From the connecting block
Miniplug cable
AV receiver
IR receiver
Remote controller
Zone 2
Using a Multiroom Kit with a Cabinet
In this setup, the IR receiver picks up the infrared signals
from the remote controller and feeds them to the AV
receiver located in the cabinet via the connecting block.
Connecting
block
IR IN
Inside
cabinet
Signal flow
IR receiver
Remote controller
107
