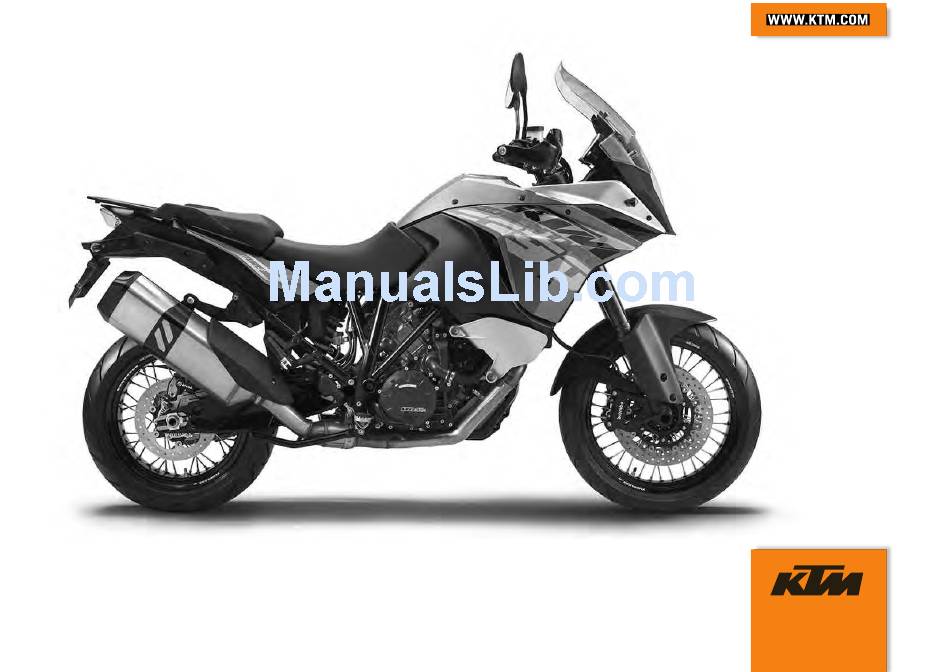

Page 1 2013 OWNER'S MANUAL 1190 Adventure EU 1190 Adventure FR 1190 Adventure AUS 1190 Adventure JP Art. no. 3211955en...
Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descriptions, as well as misprints and other errors.
Page 4 DEAR KTM CUSTOMER ISO 9001(12 100 6061) According to the international quality management standard ISO 9001, KTM uses quality assurance processes that lead to the maximum possible quality of the products. Issued by: TÜV Management Service KTM-Sportmotorcycle AG 5230 Mattighofen, Austria...
Page 5: Table Of Contents
TABLE OF CONTENTS Shock absorber part number ....... 22 TABLE OF CONTENTS MEANS OF REPRESENTATION ........8 CONTROLS..............24 Symbols used ............8 Clutch lever............24 Formats used............8 Hand brake lever..........24 SAFETY ADVICE.............. 9 Throttle grip ............25 Use definition - intended use ........
Page 6 TABLE OF CONTENTS 6.20 Side stand............39 7.9.18 "Volume" ............55 6.21 Center stand (Option: Center stand) ..... 39 7.9.19 "Pressure" ............. 56 COMBINATION INSTRUMENT ........40 7.9.20 "Clock/Date" ..........56 Overview ............40 7.9.21 "Fuel Cons" ........... 57 Activation and test ..........40 7.9.22 "DRL"...
Page 7 TABLE OF CONTENTS 10 RIDING INSTRUCTIONS..........75 13.2 Removing the vehicle from the center stand (Option: Center stand) ........98 10.1 Checks and maintenance measures when preparing for use..........75 13.3 Removing the passenger seat ......99 10.2 Starting............. 76 13.4 Mounting the passenger seat......
Page 8 TABLE OF CONTENTS 14.2 Checking the brake discs ........126 16.10 Changing the high beam bulb......166 14.3 Checking the brake fluid level of the front 16.11 Checking the headlight setting ......168 brake .............. 127 16.12 Adjusting the headlight range......168 14.4 Adding front brake fluid .......
Page 9 TABLE OF CONTENTS 23.3.3 Fuel ............195 23.4 Chassis ............195 23.4.1 Option: With EDS ........195 23.4.2 Option: Without EDS ........195 23.5 Electrical system..........197 23.5.1 Option: Without EDS ........197 23.5.2 Option: With EDS ........197 23.6 Tires ...............
Page 10: Means Of Representation
All work marked with this symbol requires specialist knowledge and technical understanding. In the interest of your own safety, have these jobs performed by an authorized KTM workshop. There, your motorcycle will be optimally cared for by specially trained experts using the specialist tools required.
Page 11: Safety Advice
SAFETY ADVICE Use definition - intended use KTM sport motorcycles are designed and constructed to meet the normal demands of regular road and light offroad operation (dirt roads), but not for use on race courses. Info The motorcycle is only authorized for operation on public roads in the homologated version.
Page 12: Degrees Of Risk And Symbols
SAFETY ADVICE Degrees of risk and symbols Danger Identifies a danger that will immediately and invariably lead to fatal or serious permanent injury if the appropriate measures are not taken. Warning Identifies a danger that is likely to lead to fatal or serious injury if the appropriate measures are not taken. Caution Identifies a danger that may lead to minor injuries if the appropriate measures are not taken.
Page 13: Safe Operation
The vehicle should only be used by trained persons. An appropriate driver's license is needed to ride the vehicle on public roads. Have malfunctions that impair safety promptly eliminated by an authorized KTM workshop. Adhere to the information and warning labels on the vehicle.
Page 14: Protective Clothing
Wear protective clothing (helmet, boots, gloves, pants and jacket with protectors) every time you ride the vehicle. Always wear protective clothing that is in good condition and meets the legal requirements. In the interest of your own safety, KTM recommends that you only operate the vehicle while wearing protective clothing. Work rules Special tools are necessary for some of the work.
Page 15: Owner's Manual
Keep the Owner's Manual in an accessible place to enable you to refer to it as needed. If you would like to know more about the vehicle or have questions on the material you read, please contact an authorized KTM dealer.
Page 16: Important Notes
Warranty The work prescribed in the service schedule must be carried out by an authorized KTM workshop only and confirmed in the customer's Service and Warranty Booklet and in the KTM dealer.net; otherwise, all warranty claims will be void. No warranty claims can be considered for damage resulting from manipulations and/or alterations to the vehicle.
Page 17: Figures
Please follow the instructions in the text. Customer service Your authorized KTM dealer will be happy to answer any questions you may have on your vehicle and KTM. A list of authorized KTM dealers can be found on the KTM website.
Page 18: View Of Vehicle
VIEW OF VEHICLE View of vehicle, front left side (example) S00337-10...
Page 19 VIEW OF VEHICLE Socket for electrical accessories ( p. 30) Clutch lever ( p. 24) Tool set ( p. 36) Grab handles ( p. 36) Luggage rack plate ( p. 37) Seat lock ( p. 35) Passenger footrests ( p. 37) Center stand ( p.
Page 20: View Of Vehicle, Rear Right Side (Example)
VIEW OF VEHICLE View of vehicle, rear right side (example) S00343-10...
Page 21 VIEW OF VEHICLE Combination switch ( p. 25) Filler cap Ignition/steering lock ( p. 29) Electric starter button ( p. 29) Emergency OFF switch ( p. 28) Throttle grip ( p. 25) Hand brake lever ( p. 24) Storage compartment Cooling system compensating tank Foot brake lever ( p.
Page 22: Serial Numbers
SERIAL NUMBERS Chassis number The chassis number is stamped on the bottom right of the frame behind the steering head. The chassis number is also shown on the type label. 602610-10 Type label The type label is on the top right of the frame behind the steering head. 602609-10...
Page 23: Key Number
SERIAL NUMBERS Key number The key number Code number can be found on the KEYCODECARD. Info You need the key number to order a spare key. Keep the KEYCODECARD in a safe place. Use the orange programming key to activate and deactivate the black ignition key. Keep the orange programming key in a safe place: it must only be used for learning and programming functions.
Page 24: Fork Part Number
SERIAL NUMBERS Fork part number The fork part number is stamped on the inner side of the fork stub. S00306-10 Shock absorber part number (Option: Without EDS) The shock absorber part number is stamped on the top part of the shock absorber. S00347-10...
Page 25 SERIAL NUMBERS (Option: With EDS) The shock absorber part number is shown on a sticker applied to the shock absorber case below the spring. S00361-10...
Page 26: Controls
CONTROLS Clutch lever The clutch lever is fitted on the left side of the handlebar. The clutch is hydraulically operated and self-adjusting. S00214-10 Hand brake lever The hand brake lever is fitted on the right side of the handlebar. The hand brake lever is used to activate both the front brake and rear brake at the same time.
Page 27: Throttle Grip
CONTROLS Throttle grip The throttle grip is fitted on the right side of the handlebar. S00216-10 Switch on the left side of the handlebar 6.4.1 Combination switch The combination switch is fitted on the left side of the handlebar. Overview of the left combination switch Light switch ( p.
Page 28: Light Switch
CONTROLS 6.4.2 Light switch The light switch is fitted on the combination switch on the left. Possible states Low beam on – Light switch in position . In this position, the low beam and tail light are switched on. High beam on – Light switch in position .
Page 29: Menu Switch
CONTROLS 6.4.4 Menu switch The menu switch is fitted in the middle of the left combination switch. The menu buttons are used to control the matrix display on the combination instrument. Button is the UP button. Button is the DOWN button. Button is the SET button.
Page 30: Horn Button
CONTROLS 6.4.6 Horn button The horn button is fitted on the combination switch on the left. Possible states • Horn button in basic position. pressed – The horn is operated in this position. • Horn button S00218-10 Switch on the right side of the handlebar 6.5.1 Emergency OFF switch The emergency OFF switch...
Page 31: Electric Starter Button
CONTROLS 6.5.2 Electric starter button The electric starter button is fitted on the right side of the handlebar. Possible states • Electric starter button in basic position. is pressed – In this position, the electric starter is actuated. • Electric starter button S00221-10 Ignition/steering lock The ignition/steering lock...
Page 32: Immobilizer
The black ignition keys are activated when delivered. Another two spare ignition keys (key number on the KEYCODECARD) can be ordered from an authorized KTM workshop; they need to be activated for use. Socket for electrical accessories Socket for electrical accessories is fitted to the left of the combination instrument.
Page 33: Opening The Filler Cap
CONTROLS Opening the filler cap Danger Fire hazard Fuel is highly flammable. – Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately. –...
Page 34: Closing The Filler Cap
CONTROLS Note Danger of damage Ignition key breakage. – To take pressure off of the ignition key, push down on the filler cap. Damaged igni- tion keys must be replaced. – Turn ignition key clockwise. – Fold open filler cap S00351-10 6.10 Closing the filler cap –...
Page 35: Fuel Cocks
CONTROLS – Press down the filler cap and turn back ignition key until the fuel tank lock locks. Warning Fire hazard Fuel is highly flammable, poisonous and harmful to your health. – After closing the filler cap, ensure that it is locked properly. Change cloth- ing that has been contaminated with fuel.
Page 36: Opening The Storage Compartment
CONTROLS 6.12 Opening the storage compartment – Press button in the direction of the arrow and lift the cover at the same time. S00385-10 6.13 Closing the storage compartment – Press down cover until the lock engages audibly. S00385-11...
Page 37: Seat Lock
CONTROLS 6.14 Seat lock (Option: Without EDS) The seat lock is located on the left side of the vehicle. S00355-10 (Option: With EDS) The seat lock is located on the left side of the vehicle. It can be unlocked using the ignition key. 602614-10...
Page 38: Tool Set
CONTROLS 6.15 Tool set The tool set is located in the storage compartment under the seat. 602615-10 6.16 Grab handles The passenger can hold onto grab handles during the trip. 602616-10...
Page 39: Luggage Rack Plate
CONTROLS 6.17 Luggage rack plate The luggage rack plate is located behind the seat. The base plate of a luggage system (optional) can be attached to the luggage rack plate. The luggage rack plate may not be loaded with more than the specified weight. Maximum permissible load 8 kg (18 lb.) on luggage rack plate...
Page 40: Shift Lever
CONTROLS 6.19 Shift lever The shift lever is fitted on the left side of the engine. 602629-10 The gear positions can be seen in the figure. The idle position is between the first and second gears. 602630-10...
Page 41: Side Stand
CONTROLS 6.20 Side stand The side stand is located on the left side of the vehicle. The side stand is used for parking the motorcycle. Info The side stand must be folded up during motorcycle use. The side stand is coupled with the safety start system; see the instructions in the "Stopping, parking"...
Page 42: Combination Instrument
COMBINATION INSTRUMENT Overview Matrix display ( p. 41) Tachometer Shift warning light ( p. 44) Segment display Indicator lamps ( p. 42) 401800-10 Activation and test Activation The combination instrument is activated when the ignition is switched on. Info The brightness of the displays is controlled by a brightness sensor in the combina- tion instrument.
Page 43: Matrix Display
COMBINATION INSTRUMENT Matrix display The matrix display is controlled using the menu switch ( p. 27). After the ignition is switched on, the display shows when the next service ( p. 45) is due. If the General warning lamp lights up among the indicator lamps ( p.
Page 44: Indicator Lamps
COMBINATION INSTRUMENT Indicator lamps Possible states The high beam indicator lamp lights up blue – The high beam is switched The immobilizer indicator lamp lights up/flashes red – Status or error mes- sage for immobilizer/alarm system. The oil pressure warning lamp lights up red – Engine oil pressure is too low.
Page 45: Message On The Matrix Display
KTM workshop. General message – General message on operating safety. Visit an autho- rized KTM workshop. ABS warning – ABS is not available. Visit an authorized KTM workshop. Traction control – Traction control is not available. Visit an authorized KTM 401850-01 workshop.
Page 46: Shift Warning Light
Battery voltage – The battery voltage is too low. Recharge the battery with a suitable battery charger. Service – A service is due. Contact an authorized KTM workshop. Emergency OFF switch – The emergency OFF switch is off. The messages are displayed in the "Warnings" menu.
Page 47: Service Display
COMBINATION INSTRUMENT Service display After the ignition is switched on, the service display appears briefly. The service intervals depend on the distance traveled or the elapsed time. The event that occurs first applies. The exact service intervals can be found in the service schedule. 401821-01 Matrix display menu 7.9.1...
Page 48: Trip 1
COMBINATION INSTRUMENT 7.9.2 "Trip 1" – Press the UP or DOWN button until the "Trip 1" menu appears on the matrix display. "Trip 1" shows the distance since the last reset, such as between two refueling stops. "Trip 1" runs continuously and counts the distance up to 9999. "Ø...
Page 49: General Info
COMBINATION INSTRUMENT 7.9.4 "General Info" – Press the UP oder DOWN button until the "General Info" menu appears on the matrix dis- play. "Air Temp" indicates the ambient air temperature. "Date" indicates the date. "ODO" indicates the total distance covered. "Battery"...
Page 50: Set Favorites
COMBINATION INSTRUMENT 7.9.6 "Set Favorites" Condition • The vehicle is stationary. – Press the UP or DOWN button until the "Set Favorites" menu appears on the matrix dis- play. Pressing the SET button opens the menu. – Press the UP or DOWN button to select the menu. Press the SET button to set the menu for quick selection.
Page 51: Warnings
COMBINATION INSTRUMENT 7.9.8 "Warnings" Condition • Message or warning – Press the UP or DOWN button until the "Warnings" menu appears on the matrix display. Pressing the SET button opens the menu. – Use the UP or DOWN button to navigate through the warnings. In the "Warnings"...
Page 52: Mtc/Abs
COMBINATION INSTRUMENT 7.9.10 "MTC/ABS" Condition • The vehicle is stationary. – Press the UP or DOWN button until the "MTC/ABS" menu appears on the matrix display. In the "MTC/ABS" menu, "MTC" and "ABS" can be switched off. In "ABS mode", a choice can be made between "Road" and "Offroad". Info After the ignition is switched on, traction control and ABS are enabled again.
Page 53: Damping
COMBINATION INSTRUMENT 7.9.12 "Damping" Condition • Model with EDS. – Press the UP or DOWN button until the "Damping" menu appears on the matrix display. Pressing the SET button opens the menu. – Use the UP or DOWN button to navigate through the menu. The SET button can be used to adjust the damping.
Page 54: Menu Overview
COMBINATION INSTRUMENT 7.9.14 Menu overview 401848-01...
Page 55 COMBINATION INSTRUMENT "KTM" start screen Menu buttons "Favorites" "Trip 1" "Trip 2" "General Info" "TPMS" (optional) "Set Favorites" "Settings" "Warnings" (only active if there are messages) "Heat Grip" (optional) "MTC/ABS" "Load" (model with EDS) "Damping" (model with EDS) "Drive Mode"...
Page 56: Language
COMBINATION INSTRUMENT 7.9.15 "Language" Condition • The vehicle is stationary. – Press the UP or DOWN button until the "Settings" menu appears on the matrix display. Pressing the SET button opens the menu. – Press the SET button again to select the language. The menu languages are English, German, Italian, French, and Spanish.
Page 57: Temp
COMBINATION INSTRUMENT 7.9.17 "Temp" Condition • The vehicle is stationary. – Press the UP or DOWN button until the "Settings" menu appears on the matrix display. Pressing the SET button opens the menu. – Press the UP or DOWN button until "Temp" is highlighted in black on the matrix display. Pressing the SET button again sets the unit of measure.
Page 58: Pressure
COMBINATION INSTRUMENT 7.9.19 "Pressure" Condition • The vehicle is stationary. – Press the UP or DOWN button until the "Settings" menu appears on the matrix display. Pressing the SET button opens the menu. – Press the UP or DOWN button until ">Pressure" is highlighted in black on the matrix dis- play.
Page 59: Fuel Cons
COMBINATION INSTRUMENT 7.9.21 "Fuel Cons" Condition • The vehicle is stationary. – Press the UP or DOWN button until the "Settings" menu appears on the matrix display. Pressing the SET button opens the menu. – Press the UP or DOWN button until "Fuel Cons" is highlighted in black on the matrix dis- play.
Page 60: Shift Light
COMBINATION INSTRUMENT 7.9.23 "Shift Light" Condition • The vehicle is stationary. – Press the UP or DOWN button until the "Settings" menu appears on the matrix display. Pressing the SET button opens the menu. – Press the UP or DOWN button until "Shift Light" is highlighted in black on the matrix dis- play.
Page 61: Heat Grips
COMBINATION INSTRUMENT 7.9.25 "Heat Grips" Condition • The vehicle is stationary. – Press the UP or DOWN button until the "Settings" menu appears on the matrix display. Pressing the SET button opens the menu. – Press the UP or DOWN button until "Heat Grips" is highlighted in black on the matrix dis- play.
Page 62: Ergonomics
ERGONOMICS Adjusting the driver's seat Preparatory work – Remove the passenger seat. ( p. 99) Alternative 1 – Attach the driver's seat to the fuel tank at the recesses , and push the driver's seat down and forward at the same time. 401678-10 Alternative 2 –...
Page 63: Handlebar Position
ERGONOMICS Handlebar position The holes on the handlebar support are placed at a distance of from the center. Hole distance 3.5 mm (0.138 in) The handlebar can be mounted in two different positions. In this way, the handlebar can be mounted in the position that is most comfortable for the rider.
Page 64: Adjusting The Wind Shield
ERGONOMICS Guideline Screw, handlebar support 40 Nm Loctite ® 243™ (29.5 lbf ft) Info Position the left and right handlebar supports evenly. – Position the handlebar. Info Make sure cables and wiring are positioned correctly. – Position the handlebar clamps. Mount and evenly tighten screws Guideline Screw, handlebar clamp 20 Nm...
Page 65 ERGONOMICS – Move the wind shield in the required position. S00345-01 – Lock clamping lever by pushing in the direction of the arrow. S00344-11...
Page 66: Adjusting The Basic Setting Of The Clutch Lever
ERGONOMICS Adjusting the basic setting of the clutch lever – Adjust the basic setting of the clutch lever to your hand size by turning adjusting screw Info Turn the adjusting screw clockwise to increase the distance between the clutch lever and the handlebar. Turn the adjusting screw counterclockwise to decrease the distance between the clutch lever and the handlebar.
Page 67: Rider Footrests
ERGONOMICS Rider footrests The rider footrests can be mounted in one of two positions. Possible states • Rider footrests, low • Rider footrests, high 602622-10 Adjusting the footrests Info The operations are the same for the left and right sides. –...
Page 68 ERGONOMICS – Remove screws 602624-10 – Adjust the footrest bracket to the desired position. 602625-01 – Mount and tighten screws Guideline Screw, front footrest bracket M8 25 Nm Loctite ® 243™ (18.4 lbf ft) 602624-10...
Page 69: Foot Brake Lever
ERGONOMICS – Mount the rider footrest with spring and pin Pliers for footrest spring (58429083000) – Mount washer and cotter pin 602626-10 Foot brake lever Foot brake lever is located in front of the right footrest. The rear brake is activated using the foot brake lever. 602627-10 8.10 Adjusting the basic position of the foot brake lever...
Page 70 ERGONOMICS – Disconnect spring – Loosen nut – Remove screw – To adjust the basic position of the foot brake lever to individual requirements, turn ball joint accordingly. Info The range of adjustment is limited. The screw must be screwed into the ball joint by at least 5 turns. 602628-10 –...
Page 71: Checking The Basic Position Of The Shift Lever
ERGONOMICS 8.11 Checking the basic position of the shift lever – Sit on the vehicle in the riding position and determine distance between the upper edge of your boot and the shift lever. Distance between shift lever and upper 10… 20 mm (0.39… 0.79 in) edge of boot »...
Page 72 ERGONOMICS – Clean gear teeth of the shift lever and shift shaft. – Mount the shift lever on the shift shaft in the required position and engage the gearing. Info The range of adjustment is limited. The shift lever must not come into contact with any other vehicle components during the shift procedure.
Page 73: Preparing For Use
The front and rear wheels must be fitted with tires with similar tread patterns to prevent loss of control over the vehicle. Warning Danger of accidents Uncontrollable handling characteristic due to non-approved and/or non-recommended tires/wheels. – Only tires/wheels approved by KTM and with the corresponding speed index should be used. Warning Danger of accidents Reduced road grip with new tires. –...
Page 74: Running In The Engine
When using your vehicle, remember that others may feel disturbed by excessive noise. – Make sure that the pre-delivery inspection work has been carried out by an authorized KTM workshop. You receive a delivery certificate and the Service and Warranty Booklet at vehicle handover.
Page 75: Loading The Vehicle
PREPARING FOR USE Info If the maximum engine speed is exceeded before the first service, the shift warning light flashes. Loading the vehicle Warning Danger of accidents Unstable handling characteristics. – Do not exceed the maximum permitted weight and axle loads. The overall weight consists of: motorcycle operational and with a full tank, driver and passenger with protective clothing and helmet, baggage.
Page 76 PREPARING FOR USE Warning Danger of accidents Changed handling characteristics and longer stopping distance with excessive payload. – Adapt your speed according to your payload. Warning Danger of accidents Unstable handling characteristics due to slipped baggage. – Check the way your baggage is fixed regularly. Warning Danger of burns A hot exhaust system can burn baggage.
Page 77: Riding Instructions
RIDING INSTRUCTIONS 10.1 Checks and maintenance measures when preparing for use Info Before every trip, check the condition of the vehicle and ensure that it is roadworthy. The vehicle must be in perfect technical condition when it is being operated. –...
Page 78: Starting
RIDING INSTRUCTIONS 10.2 Starting Danger Danger of poisoning Exhaust gases are toxic and inhaling them may result in unconsciousness and/or death. – When running the engine, always make sure there is sufficient ventilation, and do not start or run the engine in an enclosed space without an effective exhaust extraction system.
Page 79: Starting Off
RIDING INSTRUCTIONS – Press the electric starter button Info Do not press the electric starter button until the combination instrument func- tion check is finished. When starting, DO NOT open the throttle. If you open the throttle during the start- ing procedure, fuel is not injected by the engine management system and the engine cannot start.
Page 80 RIDING INSTRUCTIONS Warning Danger of accidents Malfunctions caused by incorrect ignition key position. – Do not change the ignition key position during a journey. Warning Danger of accidents Distraction from traffic activity by adjustments to the vehicle. – Make all adjustments when the vehicle is at a standstill. Warning Risk of injury Falling off of the passenger.
Page 81 If you continue with the coolant temperature warning lamp alight, you may have engine failure. Info If you hear unusual noises while riding, stop immediately, switch off the engine and contact an authorized KTM workshop.
Page 82 Contact an authorized KTM workshop. – If the engine warning lamp lights up during a trip, please contact an authorized KTM workshop as soon as possible. Info From the flash rhythm you can deduce a two-digit number, the so-called blink code.
Page 83: Applying The Brakes
Danger of accidents Reduced braking efficiency caused by spongy pressure point of front or rear brake. – Check the brake system and do not continue riding. (Your authorized KTM workshop will be glad to help.) Warning Danger of accidents Failure of brake system.
Page 84 RIDING INSTRUCTIONS Warning Danger of accidents Greater stopping distance due to ABS. – Braking should be appropriate to the driving situation and the road conditions. Warning Danger of accidents Excessively forceful braking can cause the wheels to block. – ABS must be switched on to be effective. Warning Danger of accidents Vehicle rollover –...
Page 85: Stopping, Parking
RIDING INSTRUCTIONS – On long downhill stretches, use the braking effect of the engine. Change down one or two gears, but do not over-rev the engine. In this way, you have to brake far less and the brakes do not overheat. 10.6 Stopping, parking Warning...
Page 86 RIDING INSTRUCTIONS Note Material damage Damage and destruction of components from excessive load. – The center stand is only designed for the weight of the motorcycle and the baggage. Do no sit on the motorcycle when it is resting on the center stand. The center stand or the frame may become damaged and the motorcycle may fall over. –...
Page 87: Transport
RIDING INSTRUCTIONS 10.7 Transport Note Danger of damage The parked vehicle may roll away or fall over. – Always place the vehicle on a firm and even surface. Note Fire hazard Some vehicle components become very hot when the vehicle is operated. –...
Page 88: Refueling
– In some countries and regions, the available fuel quality and cleanliness may not be sufficient. This will result in problems with the fuel system. (Your authorized KTM workshop will be glad to help.) – Only refuel with clean fuel that meets the specified standards.
Page 89 RIDING INSTRUCTIONS – Switch off the engine. – Open the filler cap. ( p. 31) – Fill the fuel tank with fuel up to the lower edge of the filler neck. Total fuel tank 23 l (6.1 US gal) Super unleaded (ROZ 95/RON 95/PON capacity, approx.
Page 90: Service Schedule
Every 30,000 km (18,600 mi) Every 15,000 km (9,300 mi) After 1,000 km (620 mi) ○ ● ● ● ● Read out the trouble code memory using the KTM diagnostics tool. ● ● ● ● Check the fuel pressure. ○ ●...
Page 91 SERVICE SCHEDULE Every two years Every year Every 30,000 km (18,600 mi) Every 15,000 km (9,300 mi) After 1,000 km (620 mi) ○ ● ● ● ● Check the shock absorber and fork for leaks. Perform a fork service and shock absorber service as needed and depending on how the vehicle will be used.
Page 92 Read out the error memory after the test ride using the KTM diagnostics tool. ○ ● ● Check the CO adjustment with the KTM diagnostics tool. ○ ● ● ● ● Make the service entry in the KTM DEALER.NET and in the Service and Warranty Booklet. ○ One-time interval ● Periodic interval...
Page 93: Recommended Work
SERVICE SCHEDULE 11.3 Recommended work Every four years Every two years Every year Every 15,000 km (9,300 mi) After 1,000 km (620 mi) ○ ● Check the oil jet for the clutch lubrication. ● Check the swingarm bearing. ● Check the wheel bearing for play. ○...
Page 94: Suspension Setting
SUSPENSION SETTING 12.1 "Damping" (Option: With EDS) Possible states SPORT – Firm tuning of the spring elements with very direct feedback from the chas- • STREET – Normal tuning of the spring elements with direct feedback from the chassis • COMFORT –...
Page 95: Fork/Shock Absorber
SUSPENSION SETTING 12.3 Fork/shock absorber (Option: Without EDS) The fork and the shock absorber offer many options of adapting the suspension to the riding style and the payload. Info The recommendations for the suspension setting are shown in Table . The table is found on the left inside cover of the fuel tank.
Page 96: Adjusting The Rebound Damping Of The Fork (Option: Without Eds)
SUSPENSION SETTING – Turn the white adjusting screw all the way clockwise. Info Adjusting screw is located at the upper end of the left fork leg. The compression damping is located in the left fork leg COMP (white adjusting screw). The rebound damping is located in the right fork leg REB (red adjusting screw).
Page 97: Adjusting The Rebound Damping Of The Shock Absorber (Option: Without Eds)
Adjusting the rebound damping of the shock absorber (Option: Without EDS) Caution Danger of accidents Disassembly of pressurized parts can lead to injury. – The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized KTM workshop will be glad to help.)
Page 98: Adjusting The Spring Preload Of The Shock Absorber (Option: Without Eds)
Adjusting the spring preload of the shock absorber (Option: Without EDS) Caution Danger of accidents Disassembly of pressurized parts can lead to injury. – The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized KTM workshop will be glad to help.)
Page 99 SUSPENSION SETTING – Turn handwheel counterclockwise as far as it will go. – Turn it clockwise by the number of turns corresponding to the shock absorber type and use. Guideline Spring preload Comfort 4 turns Standard 4 turns Sport 4 turns S00371-10 Full payload 12 turns...
Page 100: Service Work On The Chassis
SERVICE WORK ON THE CHASSIS 13.1 Raising the vehicle with the center stand (Option: Center stand) Note Danger of damage The parked vehicle may roll away or fall over. – Always place the vehicle on a firm and even surface. Note Material damage Damage and destruction of components from excessive load.
Page 101: Removing The Passenger Seat
SERVICE WORK ON THE CHASSIS – Unlock the steering and move the vehicle forward with both hands on the handlebar. – While the vehicle tips off of the center stand, activate the front brake to stop the vehi- cle from rolling away. –...
Page 102: Mounting The Passenger Seat
SERVICE WORK ON THE CHASSIS 13.4 Mounting the passenger seat – Attach the hooks on the passenger seat to the brackets on the subframe, and lower at the front while pushing toward the rear. – Insert locking pin into the lock housing and push down the front of the passenger seat until the locking pin engages with a click.
Page 103: Mounting The Driver's Seat
SERVICE WORK ON THE CHASSIS 13.6 Mounting the driver's seat Main work – Attach the recesses on the driver's seat to the fuel tank at the desired seat position , and push the driver's seat forward while lowering it at the rear. –...
Page 104: Cleaning The Chain
SERVICE WORK ON THE CHASSIS 13.8 Cleaning the chain Warning Danger of accidents Oil or grease on the tires reduces their grip. – Remove oil and grease with a suitable cleaning material. Warning Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs. –...
Page 105: Checking The Chain Tension
SERVICE WORK ON THE CHASSIS 13.9 Checking the chain tension Warning Danger of accidents Danger caused by incorrect chain tension. – If the chain is too taut, the components of the secondary power transmission (chain, engine sprocket, rear sprocket, bearings in the transmission and in the rear wheel) will be under additional load.
Page 106: Adjusting The Chain Tension
SERVICE WORK ON THE CHASSIS 13.10 Adjusting the chain tension Warning Danger of accidents Danger caused by incorrect chain tension. – If the chain is too taut, the components of the secondary power transmission (chain, engine sprocket, rear sprocket, bearings in the transmission and in the rear wheel) will be under additional load.
Page 107 SERVICE WORK ON THE CHASSIS Main work – Loosen nut – Loosen nuts – Adjust the chain tension by turning the adjusting screws on the left and right. Guideline Chain tension 40… 45 mm (1.57… 1.77 in) Turn adjusting screws on the left and right so that the markings on the left and right chain adjusters are in the same position in relation to reference marks...
Page 108: Checking The Chain, Rear Sprocket And Engine Sprocket
SERVICE WORK ON THE CHASSIS 13.11 Checking the chain, rear sprocket and engine sprocket Preparatory work (Option: Center stand) – Raise the vehicle with the center stand. ( p. 98) Main work – Check the rear sprocket and engine sprocket for wear. »...
Page 109 SERVICE WORK ON THE CHASSIS – Shift the transmission to idle – Pull the lower chain section with specified weight Guideline Weight, chain wear measurement 15 kg (33 lb.) – Measure the distance of 18 chain links in the lower chain section. Info Chain wear is not always even, so you should repeat this measurement at differ- ent chain positions.
Page 110 SERVICE WORK ON THE CHASSIS – Check the chain sliding guard for wear at the cutout. » If rivet of the chain is no longer visible at the lower edge of the recess of the chain sliding guard: – Change the chain sliding guard. –...
Page 111: Checking/Rectifying The Fluid Level Of The Hydraulic Clutch
SERVICE WORK ON THE CHASSIS Guideline Screw, chain guide 5 Nm Loctite ® 243™ (3.7 lbf ft) Finishing work (Option: Center stand) – Remove the vehicle from the center stand. ( p. 98) 13.12 Checking/rectifying the fluid level of the hydraulic clutch Info The fluid level rises with increasing wear of the clutch lining disc.
Page 112: Checking The Steering Head Bearing Play
Danger of accidents Unstable vehicle handling from incorrect steering head bearing play. – Adjust the steering head bearing play without delay. (Your authorized KTM workshop will be glad to help.) Info If the vehicle is operated for a lengthy period with play in the steering head bearing, the bearings and the bearing seats in the frame can become damaged over time.
Page 113: Removing The Bottom Triple Clamp Cover
SERVICE WORK ON THE CHASSIS – Check the steering head bearing and adjust if necessary. 13.14 Removing the bottom triple clamp cover – Remove screws – Plug out the horn. – Remove the triple clamp cover 202248-12 13.15 Installing the bottom triple clamp cover –...
Page 114: Removing The Front Side Cover
SERVICE WORK ON THE CHASSIS 13.16 Removing the front side cover – Remove screw S00384-10 – Remove screws – Remove side cover – Repeat the operation on the opposite side. 602637-10...
Page 115: Installing The Front Side Cover
SERVICE WORK ON THE CHASSIS 13.17 Installing the front side cover – Position the side cover in the area under the tank cover. 602637-11 – Attach catch and bracket of the side cover to the fuel tank and position the side cover.
Page 116: Removing The Mask Spoiler
SERVICE WORK ON THE CHASSIS – Mount and tighten screw Guideline Screw, cover part M5x12 3.5 Nm (2.58 lbf ft) S00384-11 – Mount and tighten screws Guideline Screw, cover part M5x12 3.5 Nm (2.58 lbf ft) – Repeat the operation on the opposite side. 602637-12 13.18 Removing the mask spoiler...
Page 117 SERVICE WORK ON THE CHASSIS Main work – Remove screw 307823-10 – Remove screw 307824-10 – Loosen holding lug from the inside cover. 602638-10...
Page 118 SERVICE WORK ON THE CHASSIS – Remove the mask spoiler laterally from the supports. 307828-10 – Pull the mask spoiler upward from bracket 307826-10 – Detach connector – Remove the mask spoiler with the turn signal. – Repeat the operation on the opposite side. 307827-10...
Page 119: Installing The Mask Spoiler
SERVICE WORK ON THE CHASSIS 13.19 Installing the mask spoiler Main work – Plug in connector 307827-11 – Position the mask spoiler in bracket Info Ensure that the turn signal cable is placed correctly. 307826-11...
Page 120 SERVICE WORK ON THE CHASSIS – Press the mask spoiler laterally into the supports. 307828-11 – Position holding lug in the drill hole. 307825-10 – Mount and tighten screw Guideline Screw, mask spoiler M5x17 3.5 Nm (2.58 lbf ft) 307824-11...
Page 121: Removing The Front Fender
SERVICE WORK ON THE CHASSIS – Mount and tighten screw Guideline Screw, mask spoiler M5x17 3.5 Nm (2.58 lbf ft) – Repeat the operation on the opposite side. 307823-11 Finishing work – Install the tank cover. ( p. 122) – Install the front side cover.
Page 122: Installing The Front Fender
SERVICE WORK ON THE CHASSIS 13.21 Installing the front fender – Position the fender. Info Pay attention to where the brake lines are placed. – Mount and tighten screws Guideline Screw, fender M5x12 3.5 Nm (2.58 lbf ft) S00356-11 – Mount holder with the brake line on the fender.
Page 123 SERVICE WORK ON THE CHASSIS – Remove screw – Remove screw 202566-10 – Remove screw 307821-10 – Raise the tank cover at the rear and remove it in a forward direction. 307822-10...
Page 124: Installing The Tank Cover
SERVICE WORK ON THE CHASSIS 13.23 Installing the tank cover Main work – Position the tank cover. Info Note the sealing lip. – Mount and tighten screw Guideline Screw, cover part M5x12 3.5 Nm (2.58 lbf ft) 307821-11 – Mount and tighten screw Guideline Screw, cover part 6 Nm (4.4 lbf ft)
Page 125: Removing The Wind Shield
SERVICE WORK ON THE CHASSIS – Mount and tighten screw Guideline Screw, cover part 6 Nm (4.4 lbf ft) – Mount and tighten screw Guideline Screw, cover part M5x12 3.5 Nm (2.58 lbf ft) 202566-11 Finishing work – Install the front side cover. ( p.
Page 126: Installing The Wind Shield
SERVICE WORK ON THE CHASSIS 13.25 Installing the wind shield – Position wind shield – Mount and tighten screws Guideline Screw, wind shield 3.5 Nm (2.58 lbf ft) 202388-11...
Page 127: Brake System
KTM. – Service work and repairs must be performed properly. (Your authorized KTM workshop will be glad to help.) The ABS is a safety system that prevents locking of the wheels when driving straight ahead without the influence of lateral forces.
Page 128: Checking The Brake Discs
After the ignition is switched back on, ABS is enabled again. 14.2 Checking the brake discs Warning Danger of accidents Reduced braking efficiency due to worn brake disc(s). – Change the worn brake disc(s) without delay. (Your authorized KTM workshop will be glad to help.)
Page 129: Checking The Brake Fluid Level Of The Front Brake
(Your authorized KTM workshop will be glad to help.) Warning Danger of accidents Reduced braking efficiency due to old brake fluid. – Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will be glad to help.)
Page 130: Adding Front Brake Fluid
If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately. Warning Danger of accidents Reduced braking efficiency due to old brake fluid. – Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will be glad to help.)
Page 131 BRAKE SYSTEM Warning Environmental hazard Hazardous substances cause environmental damage. – Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations. Info Never use DOT 5 brake fluid! It is silicone-based and purple in color. Oil seals and brake lines are not designed for DOT 5 brake fluid.
Page 132: Checking The Front Brake Linings
If the brake fluid level falls below the MIN mark, this indicates a leakage in the brake system or worn-out brake linings. Check the brake system and do not continue riding. (Your authorized KTM workshop will be glad to help.)
Page 133: Adding Rear Brake Fluid X
Warning Danger of accidents Reduced braking efficiency due to old brake fluid. – Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will be glad to help.) Preparatory work (Option: Center stand) –...
Page 134 Warning Danger of accidents Reduced braking efficiency due to old brake fluid. – Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will be glad to help.) Warning Environmental hazard Hazardous substances cause environmental damage.
Page 135: Checking The Rear Brake Linings
Checking the rear brake linings Warning Danger of accidents Reduced braking efficiency caused by worn brake linings. – Change worn brake linings immediately. (Your authorized KTM workshop will be glad to help.) Note Danger of accidents Reduced braking efficiency caused by damaged brake discs. –...
Page 136 BRAKE SYSTEM – Check the brake linings for minimum thickness ≥ 1 mm (≥ 0.04 in) Minimum thickness » If the minimum thickness is less than specified: – Change the rear brake linings. – Check the brake linings for damage and cracking. »...
Page 137: Wheels, Tires
WHEELS, TIRES 15.1 Removing the front wheel Preparatory work (Option: Center stand) – Raise the vehicle with the center stand. ( p. 98) Main work – Place a load on the rear of the vehicle. The front wheel is not in contact with the ground. –...
Page 138 WHEELS, TIRES – Loosen screws – Unscrew screw about six turns and press your hand on the screw to push the wheel spindle out of the axle clamp. Remove screw Warning Danger of accidents Reduced braking efficiency due to damaged brake discs. –...
Page 139: Installing The Front Wheel
WHEELS, TIRES 15.2 Installing the front wheel Warning Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs. – Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary. –...
Page 140 WHEELS, TIRES Warning Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs. – Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary. – Clean screw and wheel spindle –...
Page 141: Removing The Rear Wheel
WHEELS, TIRES – Insert wheel speed sensor into the hole and position it. – Mount and tighten screw Guideline Remaining chassis screws 10 Nm (7.4 lbf ft) (Option: Center stand) – Remove the vehicle from the center stand. ( p. 98) S00362-11 –...
Page 142 WHEELS, TIRES Main work – Press the brake caliper by hand on to the brake disc in order to press back the brake pistons. S00275-10 – Remove screw and pull wheel speed sensor out of the hole. S00277-10 – Remove nut .
Page 143: Installing The Rear Wheel
WHEELS, TIRES – Pull out wheel spindle only far enough to allow the rear wheel to be pushed forward. – Push the rear wheel forward as far as possible. Take the chain off of the rear sprocket and place it on chain sprocket guard Warning Danger of accidents Reduced braking effect caused by damaged brake discs.
Page 144 WHEELS, TIRES – Check the wheel bearing for damage and wear. » If the wheel bearing is damaged or worn: – Change the wheel bearing. – Clean and grease shaft seal ring and contact surface of the spacer. Long-life grease ( p.
Page 145: Checking The Rear Hub Rubber Dampers
WHEELS, TIRES – Push the wheel spindle in all the way and mount chain adjuster and nut Info Mount chain adjusters in the same position. – Push the rear wheel forward so that the chain adjusters are in contact with the tension- ing screws, and tighten nut Guideline In order for the rear wheel to be correctly aligned, the markings on the left and right...
Page 146 WHEELS, TIRES Preparatory work (Option: Center stand) – Raise the vehicle with the center stand. ( p. 98) – Remove the rear wheel. p. 139) Main work – Check the rubber dampers of the rear hub for damage and wear. »...
Page 147: Checking The Tire Condition
Danger of accidents Uncontrollable vehicle handling in the event of a flat tire. – In the interest of safety, replace damaged or worn tires immediately. (Your authorized KTM workshop will be glad to help.) Warning Danger of crashing Poor vehicle handling due to different tire tread patterns on front and rear wheels.
Page 148: Checking The Tire Air Pressure
DOT marking. The first two digits refer to the week of manufacture and last two digits refer to the year of manufacture. KTM recommends that the tires be changed after 5 years at the latest, regard- less of the actual state of wear.
Page 149: Checking Spoke Tension
Danger of accidents Instable handling due to incorrect spoke tension. – Ensure that the spoke tension is correct. (Your authorized KTM workshop will be glad to help.) Info A loose spoke can easily cause lateral or radial runout on the wheel. More spokes loosen in a short period.
Page 150 WHEELS, TIRES – Strike each spoke briefly using a screwdriver blade. Info The frequency of the sound is a function of the spoke length and spoke diame- ter. If spokes of the same length and diameter vibrate with a different tone, this is an indication that the spoke tensions differ.
Page 151: Electrical System
ELECTRICAL SYSTEM 16.1 daytime running light The daytime running light/parking light is integrated in the main headlight. The daytime running light can be switched on when visibility conditions are good. Activate the daytime running light in the combination instrument. Control is provided by the bright- ness sensor in the combination instrument.
Page 152 ELECTRICAL SYSTEM Preparatory work – Switch off all power consumers and switch off the engine. – Remove the passenger seat. ( p. 99) – Remove the driver's seat. ( p. 100) Main work – Pull locking mechanism in the direction of the arrow. –...
Page 153: Installing The Battery
ELECTRICAL SYSTEM 16.3 Installing the battery Warning Risk of injury Battery acid and battery gases cause serious chemical burns. – Keep batteries out of the reach of children. – Wear suitable protective clothing and goggles. – Avoid contact with battery acid and battery gases. –...
Page 154 ELECTRICAL SYSTEM – Connect both negative cables Guideline Screw, battery terminal 4.5 Nm (3.32 lbf ft) – Fold down cover and let it lock by pushing down lightly. 202567-10 Finishing work – Mount the driver's seat. ( p. 101) – Mount the passenger seat.
Page 155: Recharging The Battery X
– Do not discard batteries with the household waste. Dispose of faulty batteries in an environmentally compatible manner. Give the battery to your authorized KTM dealer or dispose of it at a collection point for used batteries. Warning Environmental hazard Hazardous substances cause environmental damage.
Page 156 The battery is maintenance-free, i.e., the acid level does not have to be checked. If the battery is not charged using the KTM battery charger, the battery must be removed for charging. Otherwise, overvoltage may damage electronic components. Charge the battery according to the instructions on the battery housing.
Page 157 ELECTRICAL SYSTEM – Disconnect the negative cable of the battery to avoid damage to the motorcycle's electronics. 602677-11 – Connect the battery charger to the battery. Switch on the battery charger. Battery charger (58429074000) You can also use the battery charger to test the open-circuit voltage and start potential of the battery, and to test the alternator.
Page 158 ELECTRICAL SYSTEM – Connect both negative cables Guideline Screw, battery terminal 4.5 Nm (3.32 lbf ft) 602677-11 – Fold down cover and let it lock by pushing down lightly. 202567-10 Finishing work – Mount the driver's seat. ( p. 101) –...
Page 159: Changing The Main Fuse
ELECTRICAL SYSTEM 16.5 Changing the main fuse Warning Fire hazard The electrical system can be overloaded if the wrong fuses are used. – Use only fuses with the prescribed amperage. Never by-pass or repair fuses. Preparatory work – Switch off all power consumers and switch off the engine. –...
Page 160 ELECTRICAL SYSTEM – Remove protection caps S00377-10 – Remove the faulty main fuse Info A defective fuse is indicated by a burned-out fuse wire A reserve fuse is located in the starter relay. The main fuse protects all power consumers of the vehicle. –...
Page 161: Changing The Fuses In The Fuse Box
ELECTRICAL SYSTEM – Position rear fairing – Mount and tighten screws Guideline Screw, cover part M5x12 3.5 Nm (2.58 lbf ft) S00376-10 Finishing work – Mount the driver's seat. ( p. 101) – Mount the passenger seat. ( p. 100) –...
Page 162 ELECTRICAL SYSTEM Main work – Open fuse box cover S00369-10 (Option: Without EDS) – Check the fuses. Info A defective fuse is indicated by a burned-out fuse wire – Remove the defective fuse. Guideline Fuse res - 10 A - spare fuses S00370-10 Fuse 1 - 10 A - power supply for control units and components Fuse 2 - 10 A - socket (ACC1)
Page 163 ELECTRICAL SYSTEM Fuse (58011109140) ( p. 197) Insert a spare fuse so that it is available if needed. (Option: With EDS) – Check the fuses. Info A defective fuse is indicated by a burned-out fuse wire – Remove the defective fuse. Guideline Fuse res - 10 A - spare fuse S00370-11...
Page 164: Removing The Headlight Mask With The Headlight
ELECTRICAL SYSTEM Insert a spare fuse so that it is available if needed. – Check that the power consumer is functioning properly. – Close the fuse box cover. Finishing work – Mount the driver's seat. ( p. 101) – Mount the passenger seat. ( p.
Page 165: Refitting The Headlight Mask With The Headlight
ELECTRICAL SYSTEM – Disconnect plug – Place the headlight mask onto a soft cloth so that the headlight is not damaged. 602645-10 16.8 Refitting the headlight mask with the headlight Main work – Connect connector of the headlight. – Check that the lighting is functioning properly. –...
Page 166: Changing The Low Beam Bulb
ELECTRICAL SYSTEM – Mount and tighten screws Guideline Remaining chassis screws 10 Nm (7.4 lbf ft) S00368-11 Finishing work – Install the wind shield. ( p. 124) – Install the mask spoiler. p. 117) – Install the tank cover. ( p.
Page 167 ELECTRICAL SYSTEM – Remove the passenger seat. ( p. 99) – Remove the driver's seat. ( p. 100) – Remove the front side cover. ( p. 112) – Remove the tank cover. ( p. 120) – Remove the mask spoiler. p.
Page 168: Changing The High Beam Bulb
ELECTRICAL SYSTEM – Install the wind shield. ( p. 124) – Install the mask spoiler. p. 117) – Install the tank cover. ( p. 122) – Install the front side cover. ( p. 113) – Mount the driver's seat. ( p.
Page 169 ELECTRICAL SYSTEM Main work – Push headlight bulb lightly into the bulb socket, turn it all the way counterclockwise, and pull it out. – Disconnect plug S00295-10 – Plug connector into the new headlight bulb. High beam (H11/socket PGJ19-2) ( p.
Page 170: Checking The Headlight Setting
ELECTRICAL SYSTEM 16.11 Checking the headlight setting – Park the vehicle on a horizontal surface in front of a light-colored wall and make a mark at the height of the center of the low beam headlight. – Make another mark at a distance under the first mark.
Page 171 ELECTRICAL SYSTEM Main work – Turn adjusting screw to adjust the headlight range. Info Turn clockwise to increase the headlight range; turn counterclockwise to reduce the headlight range. If you have a payload, you may have to correct the headlight range. S00301-10 –...
Page 172: Cooling System
COOLING SYSTEM 17.1 Checking the coolant level in the compensating tank Warning Danger of scalding During motorcycle operation, the coolant gets very hot and is under pressure. – Do not remove the radiator cap, radiator hoses or other cooling system components when the engine is hot. Allow the engine and cooling system to cool down.
Page 173: Correcting The Coolant Level In The Compensating Tank
COOLING SYSTEM – Correct the coolant level in the compensating tank. ( p. 171) 17.2 Correcting the coolant level in the compensating tank Warning Danger of scalding During motorcycle operation, the coolant gets very hot and is under pressure. – Do not remove the radiator cap, radiator hoses or other cooling system components when the engine is hot. Allow the engine and cooling system to cool down.
Page 174 COOLING SYSTEM Main work – Remove cover of the compensating tank. 602647-10 – Add coolant until the coolant reaches the specified level. Guideline The coolant level must be between MIN and MAX. Alternative 1 Coolant ( p. 205) Alternative 2 Coolant (mixed ready to use) ( p.
Page 175: Engine Tuning
ENGINE TUNING 18.1 "Drive Mode" Possible states Sport – Homologated performance with very direct response; the traction control allows • greater slip on the rear wheel Street – Homologated performance with very direct response; the traction control • allows normal slip on the rear wheel RAIN –...
Page 176 ENGINE TUNING Info When traction control is active, the TC lamp flashes. When traction control is switched off, the TC lamp is lit.
Page 177: Service Work On The Engine
SERVICE WORK ON THE ENGINE 19.1 Checking the engine oil level Info Oil consumption depends on the riding style and the operating conditions. Condition The engine is at operating temperature. Preparatory work – Stand the motorcycle upright on a horizontal surface. Main work –...
Page 178: Changing The Engine Oil And Filter, Cleaning The Oil Screens
SERVICE WORK ON THE ENGINE 19.2 Changing the engine oil and filter, cleaning the oil screens Warning Danger of scalding Engine oil and gear oil get very hot when the motorcycle is ridden. – Wear appropriate protective clothing and safety gloves. In case of burns, rinse immediately with lukewarm water. Warning Environmental hazard Hazardous substances cause environmental damage.
Page 179 SERVICE WORK ON THE ENGINE – Remove screws . Remove the oil filter cover with the O-ring. S00334-10 – Pull oil filter out of the oil filter housing. Circlip pliers reverse (51012011000) – Completely drain the engine oil. – Thoroughly clean the parts and sealing surface. S00335-10 –...
Page 180 SERVICE WORK ON THE ENGINE – Mount and tighten screws Guideline Remaining engine screws 6 Nm (4.4 lbf ft) S00334-11 – Thoroughly clean magnet and oil screen of the oil drain plugs. 100773-12 – Mount and tighten oil drain plugs with the magnet, O-rings, and oil screen.
Page 181 SERVICE WORK ON THE ENGINE – The oil must be added in two steps. Engine oil 3.60 l (3.8 qt.) Outside Engine oil temperature: (SAE 10W/50) ≥ 0 °C (≥ 32 °F) p. 206) Outside Engine oil (SAE temperature: 5W/40) ( p.
Page 182: Adding Engine Oil
SERVICE WORK ON THE ENGINE – Remove the screw plug and add the remaining engine oil to the upper marking the engine oil level viewer. – Mount the screw plug. Danger Danger of poisoning Exhaust gases are toxic and inhaling them may result in unconsciousness and/or death.
Page 183 Outside temperature: < 0 °C (< 32 °F) Engine oil (SAE 5W/40) ( p. 206) S00367-10 Info In order to achieve optimal engine performance, it is not advisable to mix differ- ent engine oils. KTM recommends changing the engine oil. – Mount the screw plug.
Page 184 SERVICE WORK ON THE ENGINE Danger Danger of poisoning Exhaust gases are toxic and inhaling them may result in unconsciousness and/or death. – When running the engine, always make sure there is sufficient ventilation, and do not start or run the engine in an enclosed space without an effective exhaust extraction system.
Page 185: Cleaning, Care
CLEANING, CARE 20.1 Cleaning motorcycle Note Material damage Damage and destruction of components by high-pressure cleaning equipment. – When cleaning the vehicle with a pressure cleaner, do not point the water jet directly onto electrical components, connectors, cables, bearings, etc. Maintain a minimum distance of 60 cm between the nozzle of the pressure cleaner and the component. Excessive pres- sure can cause malfunctions or destroy these parts.
Page 186 CLEANING, CARE – After rinsing the motorcycle with a gentle spray of water, allow it to dry thoroughly. – Remove the closure of the exhaust system. Warning Danger of accidents Reduced braking efficiency due to a wet or dirty brake sys- tem.
Page 187: Checks And Maintenance Steps For Winter Operation
CLEANING, CARE Universal oil spray ( p. 211) 20.2 Checks and maintenance steps for winter operation Info If you use the motorcycle in winter, you must expect salt on the roads. You should therefore take precautions against aggressive road salt. If the vehicle was operated in road salt, clean it with cold water after riding.
Page 188: Storage
STORAGE 21.1 Storage Info If you plan to garage the motorcycle for a longer period, perform the following steps or have them performed. Before storing the motorcycle, check all parts for function and wear. If service, repairs or replacements are necessary, you should do this during the storage period (less workshop overload).
Page 189: Preparing For Use After Storage
STORAGE Info Do not use non-porous materials since they prevent humidity from escaping, thus causing corrosion. Avoid running the engine for a short time only. Since the engine cannot warm up properly, the water vapor produced during combustion condenses and causes valves and the exhaust system to rust.
Page 190: Troubleshooting
Recharge the battery. p. 153) – Check the quiescent current. – Safety start system is faulty Read out the fault memory using the KTM diag- nostics tool. – ICU is not enabled Activate the ICU. – CAN bus communication error Read out the fault memory using the KTM diag- nostics tool.
Page 191 Engine turns but does not start Coupling of fuel hose connection not Reconnect coupling of fuel hose connection. connected – Defect in fuel injection system Read out the fault memory using the KTM diag- nostics tool. – Fuel quality is insufficient Add suitable fuel. –...
Page 192: Technical Data
TECHNICAL DATA 23.1 Engine Design 2-cylinder 4-stroke Otto engine, 75° V arrangement, water-cooled Displacement 1,195 cm³ (72.92 cu in) Stroke 69 mm (2.72 in) Bore 105 mm (4.13 in) Compression ratio 12.5:1 Idle speed 1,300… 1,500 rpm Control DOHC, 4 valves per cylinder, chain-driven Valve - valve stem diameter Intake 42 mm (1.65 in)
Page 193: Engine Tightening Torques
TECHNICAL DATA 1st gear 12:35 2nd gear 15:32 3rd gear 18:30 4th gear 20:27 5th gear 24:27 6th gear 27:26 Mixture preparation Electronically controlled fuel injection Ignition system Contactless controlled fully electronic ignition with digital ignition adjustment Alternator 12 V, 450 W Spark plug Inside spark plug NGK LKAR9BI9...
Page 194 TECHNICAL DATA ® Screw, gear sensor 6 Nm (4.4 lbf ft) Loctite 243™ ® Screw, pulse generator 6 Nm (4.4 lbf ft) Loctite 243™ – Bleeder screw, water pump cover 10 Nm (7.4 lbf ft) M6 – 10.9 ® Freewheel ring bolt 15 Nm (11.1 lbf ft) Loctite 648™...
Page 195 TECHNICAL DATA – Screw, water pump cover 10 Nm (7.4 lbf ft) ® Screw, water pump wheel 10 Nm (7.4 lbf ft) Loctite 243™ – Stud, chain shaft 8 Nm (5.9 lbf ft) ® Vacuum connection 2.5 Nm (1.84 lbf ft) Loctite 243™...
Page 196: Capacities
TECHNICAL DATA – Spark plug M10x1 15 Nm (11.1 lbf ft) Cylinder head screw M11x1.5 Tightening sequence: Lubricated with engine oil Using a crisscross pattern Step 1 15 Nm (11.1 lbf ft) Step 2 30 Nm (22.1 lbf ft) Step 3 90°...
Page 197: Coolant
TECHNICAL DATA Engine oil 3.60 l (3.8 qt.) Outside temperature: < 0 °C Engine oil (SAE 5W/40) (< 32 °F) p. 206) 23.3.2 Coolant Coolant 2.40 l (2.54 qt.) Coolant ( p. 205) Coolant (mixed ready to use) ( p. 205) 23.3.3 Fuel Fuel reserve, approx.
Page 198 TECHNICAL DATA Suspension travel Front 190 mm (7.48 in) Rear 190 mm (7.48 in) Brake system Front Double disc brake with radially mounted four-pot brake calipers, floating brake discs Rear Single disc brake with dual-piston brake caliper, floating brake disc Brake discs - diameter Front 320 mm (12.6 in)
Page 199: Electrical System
TECHNICAL DATA Maximum permissible rear axle load 281 kg (619 lb.) Maximum permissible total weight 440 kg (970 lb.) 23.5 Electrical system 23.5.1 Option: Without EDS Battery YTZ14S Battery voltage: 12 V Nominal capacity: 11.2 Ah maintenance-free Fuse 58011109110 10 A Fuse 58011109125 25 A...
Page 200: Tires
Rear tires 120/70 ZR 19 M/C 60W TL 170/60 ZR 17 M/C 72W TL Continental ContiTrailATTACK 2 K Continental ContiTrailATTACK 2 K Additional information is available in the Service section under: http://www.ktm.com 23.7 Fork 23.7.1 Option: With EDS Fork part number 14.18.9M.24...
Page 201: Option: Without Eds
TECHNICAL DATA Air chamber length 70±20 mm (2.76±0.79 in) Fork oil per fork leg 675 ml (22.82 fl. oz.) Fork oil (SAE 4) (48601166S1) ( p. 207) 23.7.2 Option: Without EDS Fork part number 14.18.8M.24 Fork WP Suspension 4860 ROTA SPLIT Compression damping Comfort 17 clicks...
Page 202: Shock Absorber
TECHNICAL DATA 23.8 Shock absorber 23.8.1 Option: With EDS Shock absorber part number 11.18.9M.24 Shock absorber WP Suspension 4614 WAD EDS Spring rate Medium (standard) 160 N/mm (914 lb/in) Spring length 205 mm (8.07 in) Static sag 25 mm (0.98 in) Riding sag 55 mm (2.17 in) Fitted length...
Page 203: Chassis Tightening Torques
TECHNICAL DATA Sport 4 turns Full payload 12 turns Spring preload Comfort 10 mm (0.39 in) Standard 10 mm (0.39 in) Sport 10 mm (0.39 in) Full payload 14 mm (0.55 in) Spring rate Medium (standard) 170 N/mm (971 lb/in) Spring length 205 mm (8.07 in) Static sag...
Page 204 TECHNICAL DATA – Screw, combination switch, right 3.5 Nm (2.58 lbf ft) – Screw, cover part M5x12 3.5 Nm (2.58 lbf ft) – Screw, filler cap 5 Nm (3.7 lbf ft) ® Screw, foot brake lever stub 6 Nm (4.4 lbf ft) Loctite 243™...
Page 205 TECHNICAL DATA – Screw, fuel tap 6 Nm (4.4 lbf ft) – Screw, lower rear part 6 Nm (4.4 lbf ft) ® Screw, magnetic holder on side stand 6 Nm (4.4 lbf ft) Loctite 243™ ® Screw, manifold holder 12 Nm (8.9 lbf ft) Loctite 243™...
Page 206 TECHNICAL DATA ® Screw, front brake caliper 45 Nm (33.2 lbf ft) Loctite 243™ ® Screw, handlebar support 40 Nm (29.5 lbf ft) Loctite 243™ ® Screw, side stand 35 Nm (25.8 lbf ft) Loctite 243™ ® Screw, side stand bracket 45 Nm (33.2 lbf ft) Loctite 243™...
Page 207: Substances
Brake fluid DOT 4 / DOT 5.1 According to – Guideline – Use only brake fluid that complies with the specified standard (see specifications on the container) and that possesses the correspond- ing properties. KTM recommends Castrol and Motorex ® products. Supplier Castrol –...
Page 208 SAE ( p. 212) (SAE 10W/50) Guideline – Use only engine oils that comply with the specified standards (see specifications on the container) and that possess the corresponding properties. KTM recommends Motorex ® products. Fully synthetic engine oil Supplier Motorex ®...
Page 209 Hydraulic fluid (15) According to – ISO VG (15) Guideline – Use only hydraulic oil that complies with the specified standard (see specifications on the container) and that possesses the corre- sponding properties. KTM recommends Motorex ® products. Supplier Motorex ® –...
Page 210 SUBSTANCES Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e. g. M15, M85, M100) or more than 10 % ethanol (e. g. E15, E25, E85, E100).
Page 211: Auxiliary Substances
AUXILIARY SUBSTANCES Chain cleaner Guideline – KTM recommends Motorex ® products. Supplier Motorex ® – Chain Clean Chain lube for road use Guideline – KTM recommends Motorex ® products. Supplier Motorex ® – Chainlube Road Cleaning and preserving materials for metal, rubber and plastic Guideline –...
Page 212 AUXILIARY SUBSTANCES High-luster polish for paint Guideline – KTM recommends Motorex ® products. Supplier Motorex ® – Moto Polish Long-life grease Guideline – KTM recommends Motorex ® products. Supplier Motorex ® – Bike Grease 2000 Motorcycle cleaner Guideline – KTM recommends Motorex ®...
Page 213 AUXILIARY SUBSTANCES Universal oil spray Guideline – KTM recommends Motorex ® products. Supplier Motorex ® – Joker 440 Synthetic...
Page 214: Standards
STANDARDS JASO T903 MA Different technical development directions required a new specification for 4-stroke motorcycles – the JASO T903 MA Standard. Ear- lier, engine oils from the automobile industry were used for 4-stroke motorcycles because there was no separate motorcycle specification. Whereas long service intervals are demanded for automobile engines, high performance at high engine speeds are in the foreground for motorcycle engines.
Page 215: Index
INDEX INDEX Capacity ABS ........125 coolant .
Page 216 INDEX "Favorites" ........45 Combination switch ......"Fuel Cons"...
Page 217 INDEX Figures ........15 Hand brake lever .
Page 218 INDEX Light switch ........26 Parking .
Page 219 INDEX Stopping ........83 Storage .
Page 220 INDEX Tire condition Winter operation checking ........145 checks and maintenance steps .
Page 221 *3211955en* 3211955en 07/2013 KTM-Sportmotorcycle AG Photo: Mitterbauer/KTM 5230 Mattighofen/Austria http://www.ktm.com...
