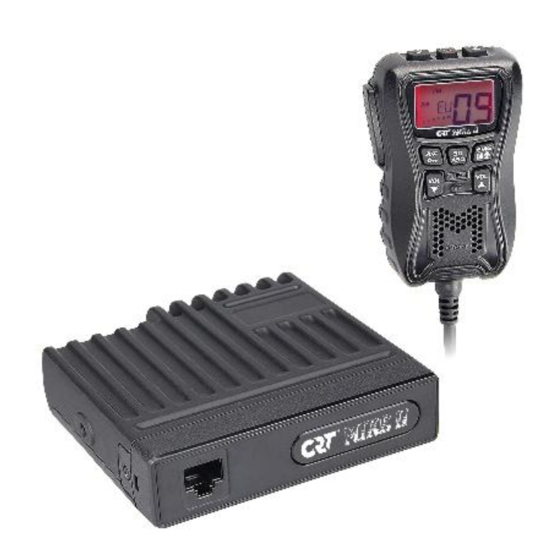

CRT MIKE II Owner's Manual

Mobile cb transceiver am- fm citizen band european multi-norms
Hide thumbs

Advertisement

Quick Links

Download this manual

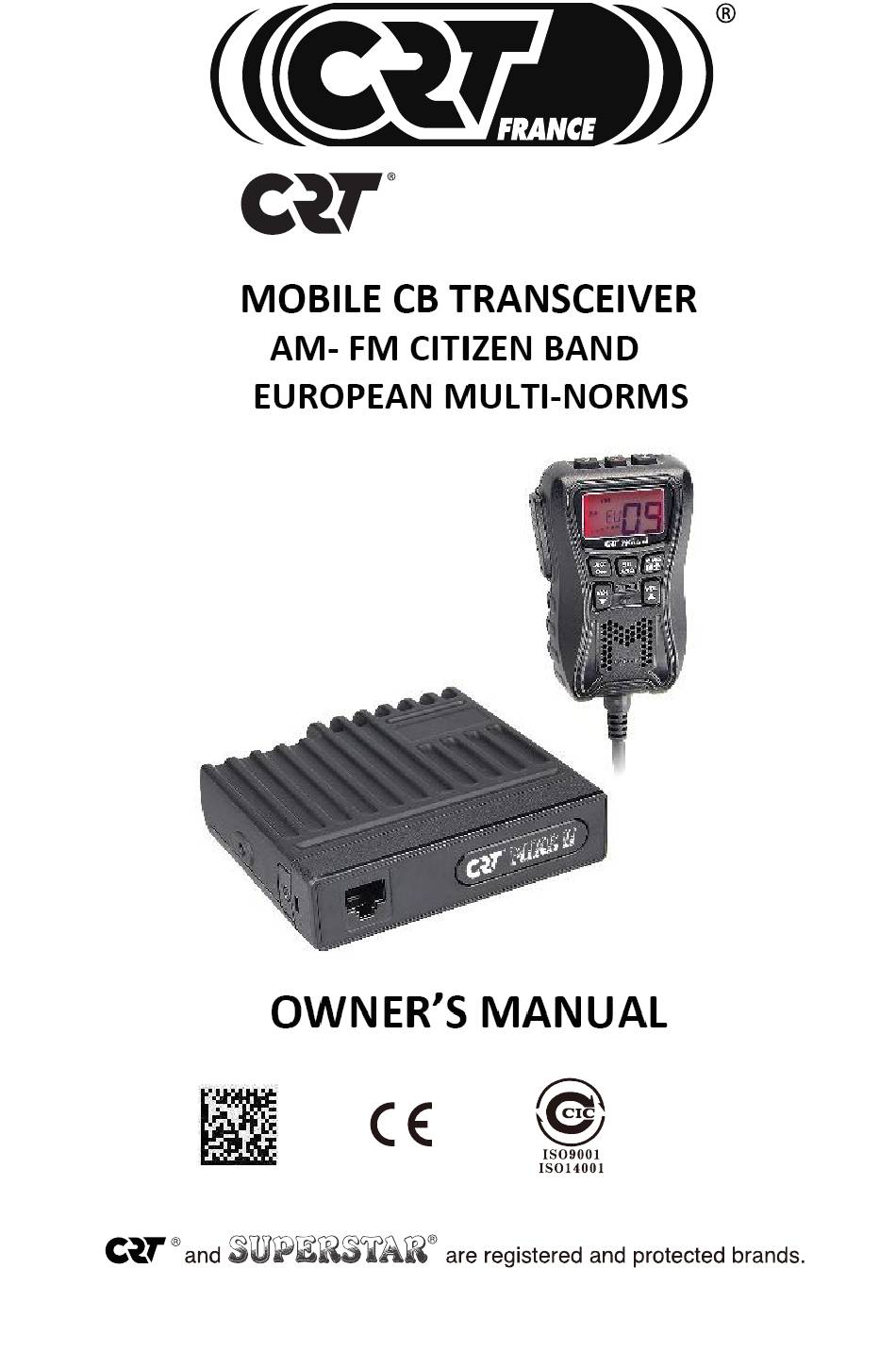

MIKE II
English owner's manual Copyright CRT France 2023

Advertisement

loading
Need help?

Need help?

Do you have a question about the MIKE II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CRT MIKE II

Summary of Contents for CRT MIKE II

  • Page 1 MIKE II English owner’s manual Copyright CRT France 2023...
  • Page 2 Symbols descriptions Warned before use – Precautions – Standard accessories Know about the radio How to use the radio Power on/off the radio – Volume control – Mute function – Channel control – Squelch level control – ASQ control How to use the radio Mode control –...
  • Page 3 Restrictions...
  • Page 4 RED 2014/53/EU EN 62 368-1,...
  • Page 6 ACCESSORIES Install bracket Adjusting screws Microphone Hanger Pads non-slip mat Fuse(5A 250V) Screws...

  • Page 7: Know About This Radio

    1. KNOW ABOUT THIS RADIO Channel Down ~ Scan On/Off Power On/Off ~ Speaker Mute Channel Up ~ Scan On/Off Modulation Mode Select ~ MIKE II Keypad Lock Squelch Level Setting ~ SQ/ ASQ Switch CH9/CH19 ~ VOX On/Off ~...

  • Page 8: How To Use This Radio

    2.HOW TO USE THIS RADIO 2.1 Power On/Off the Radio ..............1. Short press key, the radio emit a prompt and LCD display on. 2. When the radio on, hold key until nothing appears on LCD and release key, the radio will power off. 2.2 Volume Control ..................
  • Page 9 2.HOW TO USE THIS RADIO 3. Hold press key can fast change ASQ level. 4. Short press key again or wait for 2 seconds to store and exit. » » The» higher» ASQ» level» selected,» the» stronger» signal» required» to» open» speaker»and»hear»the»calling.

  • Page 10: Frequency Band Selection

    2.HOW TO USE THIS RADIO 2.12 Frequency Band Selection ............... 1. Hold key while pressing key until full appears on LCD and release 2 keys, the current frequency band blinks on LCD; 2. Short press key to choose wanted frequency band; 3.
  • Page 11 2.HOW TO USE THIS RADIO LCD Display Function Detail Setting Details Level: Mic gain control Default: : squelch scan (default) Scan type setting : time scan Level: VOX sensitivity level setting Default: Level: VOX delay time setting Default: RF gain level control (default), 、...
  • Page 12 2.HOW TO USE THIS RADIO 2.15 CTCSS/DCS Set ................1. Long press key to enter menu list. 2. Short press key to select the menu. 3. Short press key to validate, the code type blinks on LCD. 4. Short press key to select the code type.
  • Page 13 Hold A/F key while power on radio, release the keys when see LCD display, change the band and then long press A/F to store the setting. MODE 40 ch (4W) 40 ch (4W) BE,BG,CH,CY,DK,EE,EL,ES,FI,FR,UK,IE,IS,IT,LT,LU,LV, NO,PT,RO,SE -5 KHz 40 ch(4W) -5KHz 40 ch(4W) 80 ch(4W) 40 ch(4W) 40 ch(4W)

  • Page 14: Frequencies Table

    FREQUENCIES TABLE Band ID COUNTRY EUROPE CEPT POLAND INDIA ITALY GERMANY POWER AM : 4W / AM : 4W AM : 4W AM : 4W AM : 4W FM : 4W FM : 4W FM : 4W FM : 4W FM : 4W FM : 4W FM : 4W...
  • Page 15 CTCSS/DCS codes...
  • Page 16 40 ch 4 W AM-FM...
  • Page 18 GENERAL Modulation Mode AM/FM Frequency Range 26.965-27.405MHz Frequency Tolerance ±5.0ppm Input Voltage 13.2V Dimensions 100x104x25mm Weight 255g Ferquency Control PLL Synthesizer Operating Temperature Range -20℃ to +50℃ Transmit 2A MAX Current Drain Receive Squelched 0.3A VOL Max 0.8A Antenna Connector UHF, SO-239 TRANSMITTER Power Output...
  • Page 19 DECLARATION OF CONFORMITY N° 200241 We hereby declare under our responsability that the product : Brand : CRT Model : MIKE II Description : Mobile transceiver Satisfies all the technical regulations applicable to the product within the scope of directive RED 2014/53/EU european standarts...
