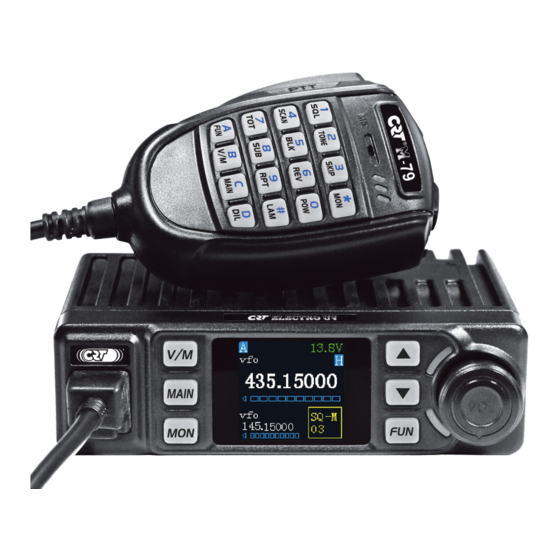

- Page 2 ELECTRO UV Dual band transceiver 430-440 MHz RX/TX 144-146 MHz RX/TX English manual copyright CRT France 2021...
-
Page 4: Table Of Contents
CONTENTS PAGES SYMBOLS DESCRIPTIONS RESTRICTIONS WARNING FUNCTIONS AND FEATURES ACCESSORIES GETTINGS ACQUAINTED BASIC OPERATIONS SHORTCUT OPERATIONS FUNCTIONS SETTING 10-11 SPECIFICATIONS GROUPS CTCSS CODES DCS 14-15 DECLARATIONS OF CONFORMITY... -
Page 5: Symbols Descriptions
Please carefully read the instructions formation on recycling, not throwing your material in the trash at the end of life, Bring it to special aera to be recycling DC using Keep dry Shield symbol CE conformity symbol Warning Restrictions STORAGE , TRANSPORT, USING Storage : Classe 1 -30/85% (°... -
Page 8: Functions And Features
1. FUNCTIONS & FEATURES panel ha s an elegant and sturdy shape. The ergonomic front CRT ELECTRO combined with an intuitive menu, ensures easy access and management the advanced functions available to the user . This amateur mobile transceiver is especially conceived for drivers and it pursues philosophy of innovation and practicality. -
Page 9: Accessories
2. ACCESSORIES 2.1 Standard Accessories TONE SKIP SCAN MAIN MAIN Microphone Transceiver Mobile Bracket Adjusting screws non-slip mat Fuse(10A 250V) Screws Pads manual 2.2 Optional Accessories software External Speaker MS 120 PC cable Car Antenna UT72... -
Page 10: Gettings Acquainted
3. GETTING ACQUAINTED 3.1 Front panel VFO/Channel mode switch Down Main channel Indicator MAIN Monitor Menu Programming port/ microphone jack Power on, volume switch 3.2 Rear panel Antenna connector External speaker jack 3.3 Microphone Up /Down key Indicator TONE SKIP Number key SCAN MAIN... -
Page 11: Basic Operations
4. BASIC OPERATIONS 4.1 Switching the Power On/Off 1. Turn the Volume knob clockwise to turn on the radio, the radio LCD will display programmed text and emit a beep sound. Power Off:Turn volume knob anti-clockwise until you hear "”click" to turn off the radio 4.2 Adjusting the Volume Turn volume knob clockwise to increase the “audio level”... -
Page 12: Shortcut Operations
4. SHORTCUT OPERATION 4.7 Receiving Select a receiving channel or frequency for receiving call, if the RX signal is week, hold front panel key or microphone key to monitor weak signals. When the RX » current channel receive a matching carrier but unmatching signaling. Refer to CTCSS/ DCS CODE or Optional Signaling setup in Page 6). - Page 13 4. SHORTCUT OPERATION Press microphone key and then press number key to fast enter following functions, then press 【UP】/【DN】 key to select the value. presss key or key for storing. 【PTT】 Function list Function name Combination Key Squelch level setting Optional signaling setting Scan Skip Scan...
-
Page 14: Functions Setting
5. FUNCTION SETTING 5.1 By Front Panel Key 1. Press key to enter main menu. 2. Press key or key to choose function. Press key to choose value. 4. Press key or key to store and exit. When setting DCS code, key is for switch between positive and inverse code. - Page 15 5. FUNCTION SETTING Function name Value TX OFF ON、OFF Scrambler 1~11、edit、OFF Compander ON、OFF NC(Noise reduction) ON、OFF 5Tone Press PTT to transmit 1~100, 2Tone Press PTT to transmit 1~32, Sub channel display FREQ、VOLT、OFF Key beep ON、OFF Time out timer 1~30Min、OFF DMTF transmit time 50ms~500ms Squelch level OFF、1~9...
-
Page 16: Specifications
6. SPECIFICATIONS GENERAL Europe version: TX/RX: 144-146MHz , 430-440MHz Frequency Range USA version: TX1: 462.5625-462.7125MHz (5W) TX2: 462.550-467.725MHz 136-174MHz , 400-480MHz 25K (Wide Band) 12.5K (Narrow band) Europe version: Channel Spacing 12.5K USA version: 500 channels Channel Number Operating Voltage DC 13.8V±15% Squelch Carrier/... -
Page 17: Groups Ctcss
52 groups CTCSS Tone Frequency(Hz) No. Freq.(Hz) No. Freq.(Hz) No. Freq. (Hz) No. Freq. (Hz) No. Freq. (Hz) 62.5 94.8 136.5 177.3 218.1 67.0 97.4 141.3 179.9 225.7 69.3 100.0 146.2 183.5 229.1 71.9 103.5 151.4 196.2 233.6 74.4 107.2 156.7 189.9 241.8... -
Page 18: Codes Dcs
1024 groups DCS Code Code Code Code Code Code Code Code Code (Octal) (Octal) (Octal) (Octal) (Octal) (Octal) (Octal) (Octal) 100. 101. 102. 103. 104. 105. 106. 107. 108. 109. 110. 111. 112. 113. 114. 115. 116. 117. 118. 119. 120. - Page 19 313. 314. 315. 316. 317. 318. 319. 320. 321. 322. 323. 324. 325. 326. 327. 328. 329. 330. 331. 332. 333. 334. 335. 336. 337. 338. 339. 340. 341. 342. 343. 344. 345. 346. 347. 348. 349. 350. 351. 352. 353.
-
Page 20: Declarations Of Conformity
DECLARATION OF CONFORMITY N° 200238 We hereby declare under our responsability that the product : Brand : CRT Model ELECTRO UV Ham Radio Mobile radio 144-146 MHz/430-440 MHz Satisfies all the technical regulations applicable to the product within the scope of...
