Summary of Contents for CRT XENON

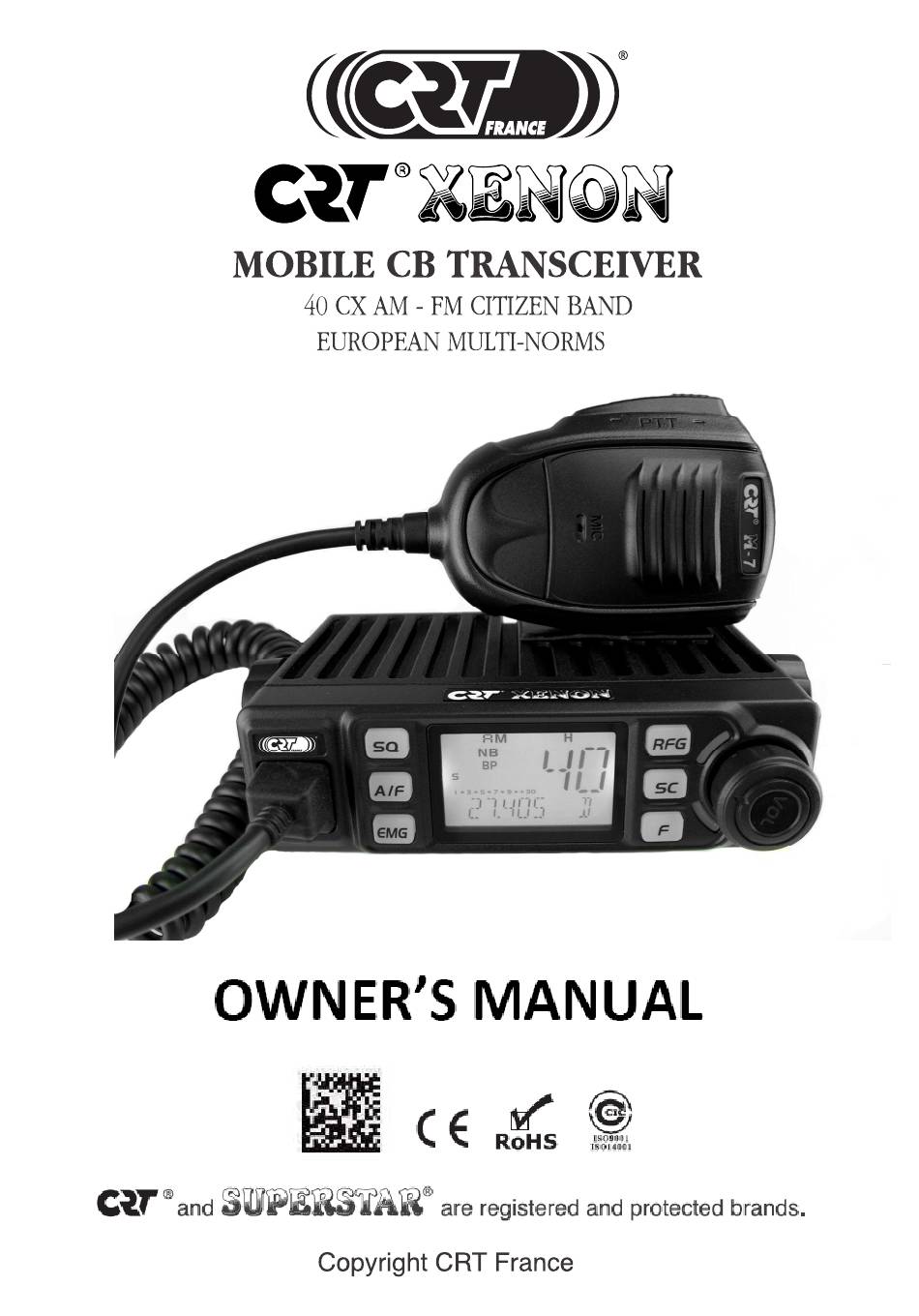

  • Page 1 2018 Downloaded from www.cbradio.nl...
  • Page 3 RED 2014/53/EU...
  • Page 5: Know About This Radio

    KNOW ABOUT THIS RADIO Squelch control ASQ switch key Mode/Keypad lock Microphone RJ45 Connection Emergency channel RF Gain control/RF GAIN level setting TX indicator Power On/Off Volume control RX indicator Scan Functions External speaker Jack 3.5mm Antenna connector UHF SO239 Down Connector Microphone...
  • Page 6 Indicates transmission AM mode elected FM mode elected Automatic Squelch ontrol ctivated The emergency reset hannel ctivated 9 r 19 y default HI CUT ilter ctivated NB filter ctivated F GAIN function ctivated Indicates that front panel keys are locked except PTT pedal Beep function ctivated ROGER BEEP unction ctivated Bargraph shows the reception S and emission RF level...
  • Page 7: How To Use This Radio

    HOW TO USE THIS RADIO Power On/Off the radio 1. Turn VOL switch clockwise to power on the radio, the LCD displays the Norms and then displays channel number. 2. Turn VOL switch anti-clockwise, until hear Ka Ta, the radio is powered off. Volume Control Turn clockwise to increase volume anti-clockwise to decrease volume.
  • Page 8 Mode Control (short press) 1. Short press key to switch between mode. 2. The LCD displays the selected mode. Keypad Lock (long press) 1. Long press key for over 2 seconds to lock the keys, LCD displays 2. L o n g p r e s s k e y f o r o v e r 2 s e c o n d s a g a i n t o u n l o c k t h e k e y s , disappears form LCD.
  • Page 9: Scan Function

    Scan Function (short press) 1. Short press key to start scan function, falshes in the LCD. 2. Short press microphone [ UP ] or [ DN ] to change scan direction during scan. 3. Short press or [PTT] key to exit scan function. Functions (long press) 1.
  • Page 10: Resume Factory Default

    Band Name Setting 1. Choose a band to be modifi ed. 2. Long press key to enter mune list. 3. Short press microphone [ UP ] or [ DN ] or to choose NO.17 function memu, LCD displays stands for current band name. 4.
  • Page 11: Menu Operations

    Menu Operations 1. Long press key to enter menu list. 2. Short press microphone [ UP ] or [ DN ] or to choose menu to be set. 3. Short press key to enter function setting parameter of the chosen function. the parameter blinks on LCD.
  • Page 12 NO. LCD display Function detail Setting details : turn off AUTO RF GAIN function Auto RF gain : turn on AUTO RF GAIN function setting Default: Level 3、6、9~48 RF gain level control Default: 3 , 1-5 RB sound setting : Turn off RB sound function. Default: : Red : Green...
  • Page 13: Specification

    SPECIFICATION GENERAL Modulation Mode AM/FM Frequency Range 26.565-27.405MHz Frequency Tolerance ±5.0ppm Input Voltage 12 V Dimensions(in mm) 124x101x36mm 428g Weight Operating Temperature Range -20℃ to +50℃ Transmit 3A MAX Current Drain Receive Squelched 0.3A VOL Max 0.7A Antenna Connector UHF,SO-239 TRANSMITTER Power Output 4 Watts FM/AM...
  • Page 14 CB Radio+cigar plug fuse 5 amperes...
  • Page 15: Frequencies Table

    FREQUENCIES TABLE and ID COUNTRY EUROPE CEPT POLAND INDIA ITALY GERMANY POWER AM : 4W / AM : 4W AM : 4W AM : 4W AM : 4W FM : 4W FM : 4W FM : 4W FM : 4W FM : 4W FM : 4W FM : 4W...
  • Page 16 RESTRICTIONS PAYS RESTRICTIONS REGLAGE GERMANY 80 ch – 4W FM – free use 40 ch – 4 W AM - free use 40 ch – 4 W FM – free use Cept 40 ch – 4 W FM + ENG 40 ch – 4 W FM – individual license required 40ch-AW AM-FM AUSTRIA...
  • Page 17 MALTA 40 ch – 4 W FM - individual license required AM : Not authorized NORWAY 40 ch – 4 W FM - free use AM : Not authorized NETHERLAND 40 ch – 4 W FM - free use 40 ch – 4 W AM - free use POLAND 40 ch –...
  • Page 18 MODEL : XENON DESCRIPTION: MOBILE CB RADIO DESCRIPTION: MOBILE CB RADIO EN 60950-1 :2006 +A11 :2009+A1 :2010+A12 :2011+A2 :2013 EN 301 489-1 V2.2.0 EN 301 489-13 V1.2.1 EN 300 433 V2.1.1 EN 62311 MR CELESTRANO PHILIPPE GERANT LE 02.05.2018...
