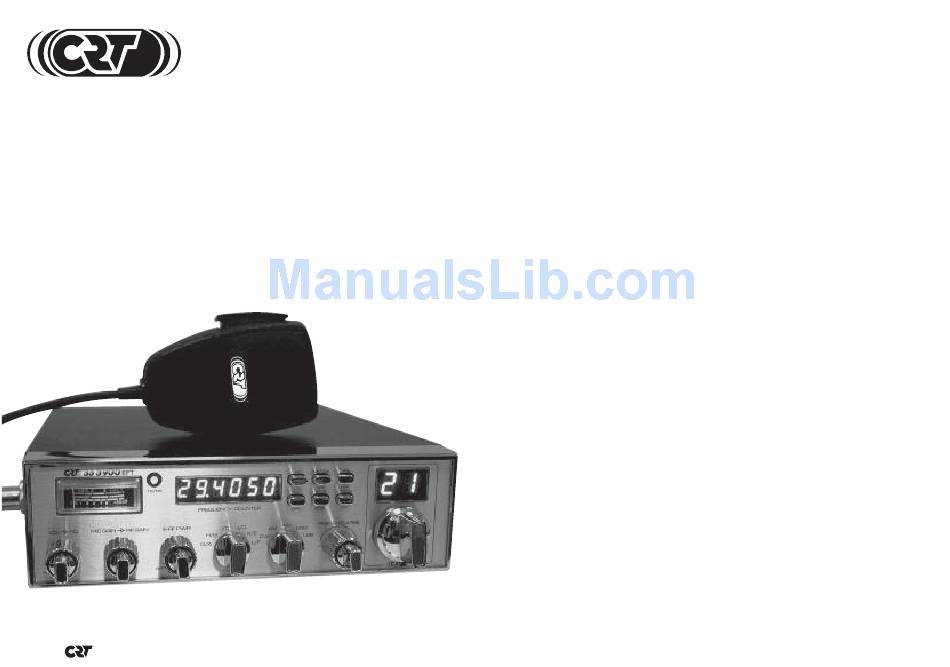

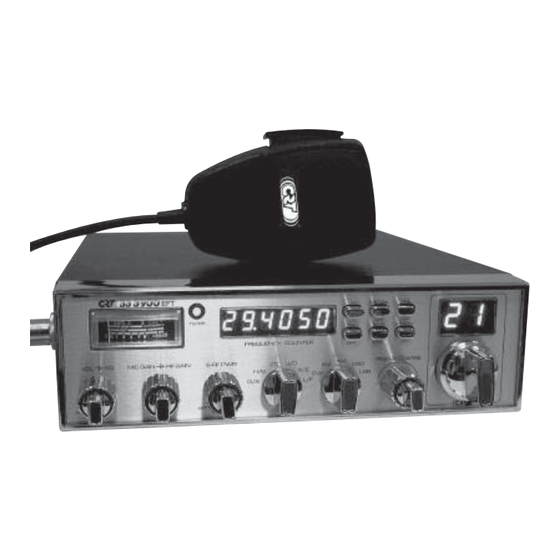

SUPERSTAR
AM/FM/USB/LSB/CW
AMATEUR MOBILE TRANSCEIVER
WITH BUILT-IN FREQUENCY
COUNTER
Downloaded from www.cbradio.nl
SUPERSTAR
®
®
et
OWNER'S MANUAL
are registered and protected brands.
®
TABLE OF CONTENTS
CHAPTER 1
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHAPTER 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting The Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition Noise Interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tuning The Antenna for Optimum SWR . . . . . . . . . . . . . . . . . . . . . . . .
External Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHAPTER 3
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Procedure to Receive And Transmit . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Receiving SSB Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Alternate Microphone And Installation . . . . . . . . . . . . . . . . . . . . . . . . . .
Conformity certificate
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PAGE
2
3
3
3
4
4
5
6
7
7
10
11
12
14
17
Advertisement
Related Manuals for CRT SuperStar
Summary of Contents for CRT SuperStar
- Page 1 SUPERSTAR ® TABLE OF CONTENTS PAGE CHAPTER 1 AM/FM/USB/LSB/CW Specifications ..........
- Page 2 GENERAL Model SS-3900EFT Frequency Range 28.245 ~ 29.655 MHz Frequency Control Phase-Lock-Loop (PLL) Synthesizer Frequency Stability 0.001% Temperature Range -30 C to +50 C Antenna Impedance 50 Ohms Antenna Connectors Standard SO-239 type Input Voltage 13.8V DC Size 7 7/8” (W) x 10 3/4” (D) x 2 3/8” (H) Weight 5.0 lbs.
-
Page 4: Chapter 3 Operation
CHAPTER 3 OPERATION If you’re having difficulties in adjusting your antenna, check the following: All doors must be closed when adjusting the antenna FRONT PANEL b. Make sure the antenna base is grounded. Check your coaxial cable routing (it may be pinched when routed into the car) d. - Page 5 5. E-TONE CONTROL : 19. ROGER BEEP : 6. RF POWER CONTROL : 1 to 25 Watts (AM : 1W to 10W - SSB : 10W to 25W) 7. BAND SELECTOR : 20. +10KHz SWITCH : 8. MODE CONTROL : 21.
- Page 6 REAR PANEL PROCEDURE TO RECEIVE AND TRANSMIT A. MICROPHONE The receiver and transmitter are controlled by the push-to-talk switch on the microphone. Press the switch and the transmitter is activated, release switch to receive. When transmitting, hold the microphone two inches from the mouth and speak clearly in a normal voice.
- Page 8 ALTERNATE MICROPHONES AND INSTALLATION 4 WIRE MIC CABLE Fig. 1...
- Page 9 Before soldering the wire to the pins, pre-tin the wire CRT FRANCE – Route de Pagny – 21250 SEURRE receptacle of each pin of the plug. declare that this equipment CRT SS 3900 EFT is in correspondence with the main part of the conditions and the other provisions in touch with the directive of R.TTE 1999/5/CE.
- Page 10 Notes Notes...
- Page 11 ..................................à l'adresse suivante : APPAREIL GARANTI 1 AN PIECES ET MAIN D'ŒUVRE C.R.T. SUPERSTAR DÉPARTEMENT GARANTIE ROUTE DE PAGNY...
