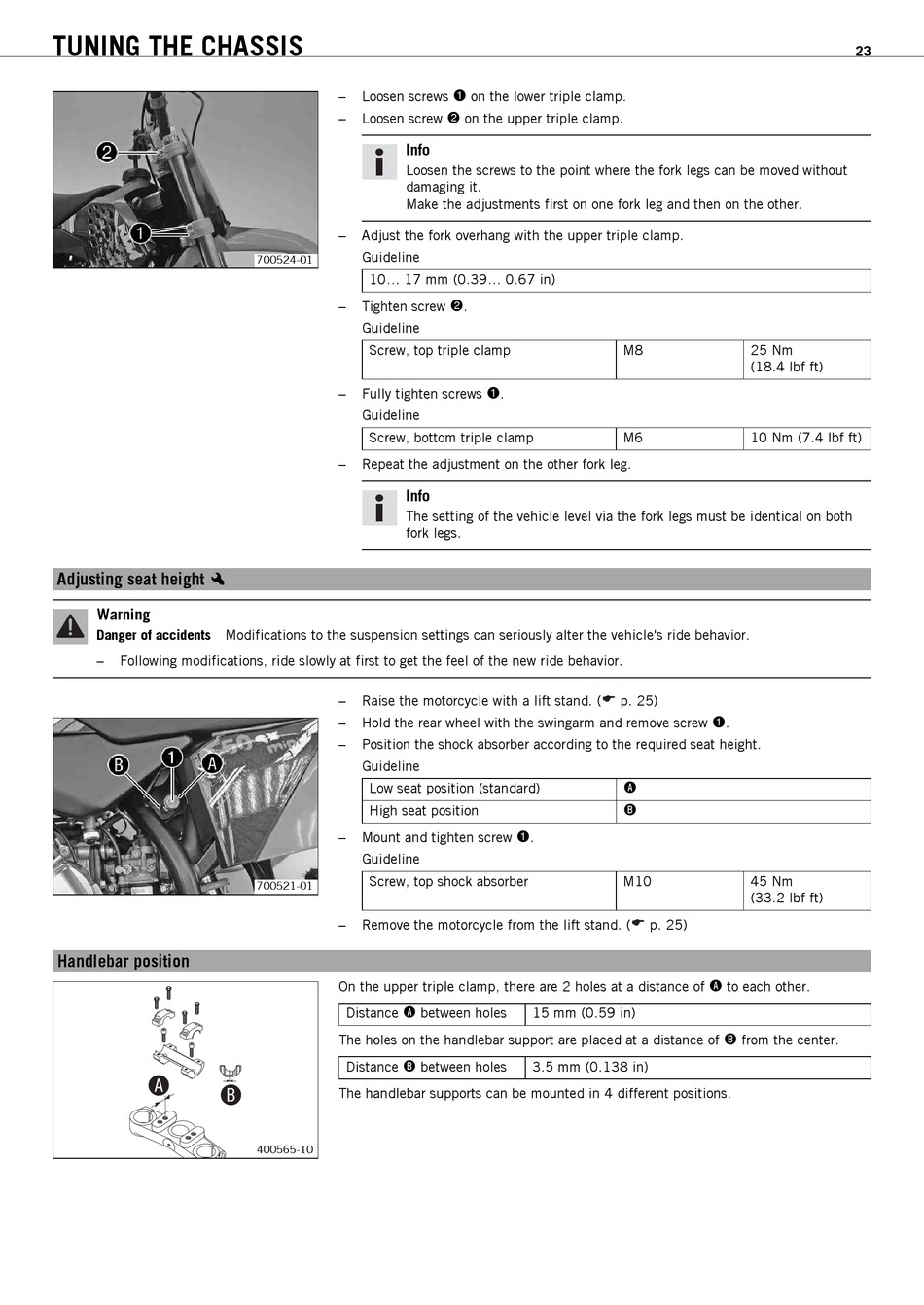

TUNING THE CHASSIS

Adjusting seat height

x
9.9
Warning
Danger of accidents Modifications to the suspension settings can seriously alter the vehicle's ride behavior.
–
Following modifications, ride slowly at first to get the feel of the new ride behavior.

Handlebar position

9.10
A 0 0 A
B 0 0 0 B
–
Loosen screws
–
Loosen screw
Info
Loosen the screws to the point where the fork legs can be moved without
damaging it.
Make the adjustments first on one fork leg and then on the other.
–
Adjust the fork overhang with the upper triple clamp.
Guideline
700524-01
10... 17 mm (0.39... 0.67 in)
–
Tighten screw
Guideline
Screw, top triple clamp
–
Fully tighten screws
Guideline
Screw, bottom triple clamp
–
Repeat the adjustment on the other fork leg.
Info
The setting of the vehicle level via the fork legs must be identical on both
fork legs.
–
Raise the motorcycle with a lift stand. (
–
Hold the rear wheel with the swingarm and remove screw
–
Position the shock absorber according to the required seat height.
Guideline
Low seat position (standard)
High seat position
–
Mount and tighten screw
Guideline
Screw, top shock absorber
700521-01
–
Remove the motorcycle from the lift stand. (
On the upper triple clamp, there are 2 holes at a distance of
Distance between holes

The holes on the handlebar support are placed at a distance of
Distance between holes

The handlebar supports can be mounted in 4 different positions.
400565-10
on the lower triple clamp.

on the upper triple clamp.

.

.

p. 25)
.

15 mm (0.59 in)
3.5 mm (0.138 in)
M8 25 Nm
(18.4 lbf ft)
M6 10 Nm (7.4 lbf ft)
.



M10 45 Nm
(33.2 lbf ft)
p. 25)
to each other.

from the center.

