Excel G-Lite Technical Manual page 9

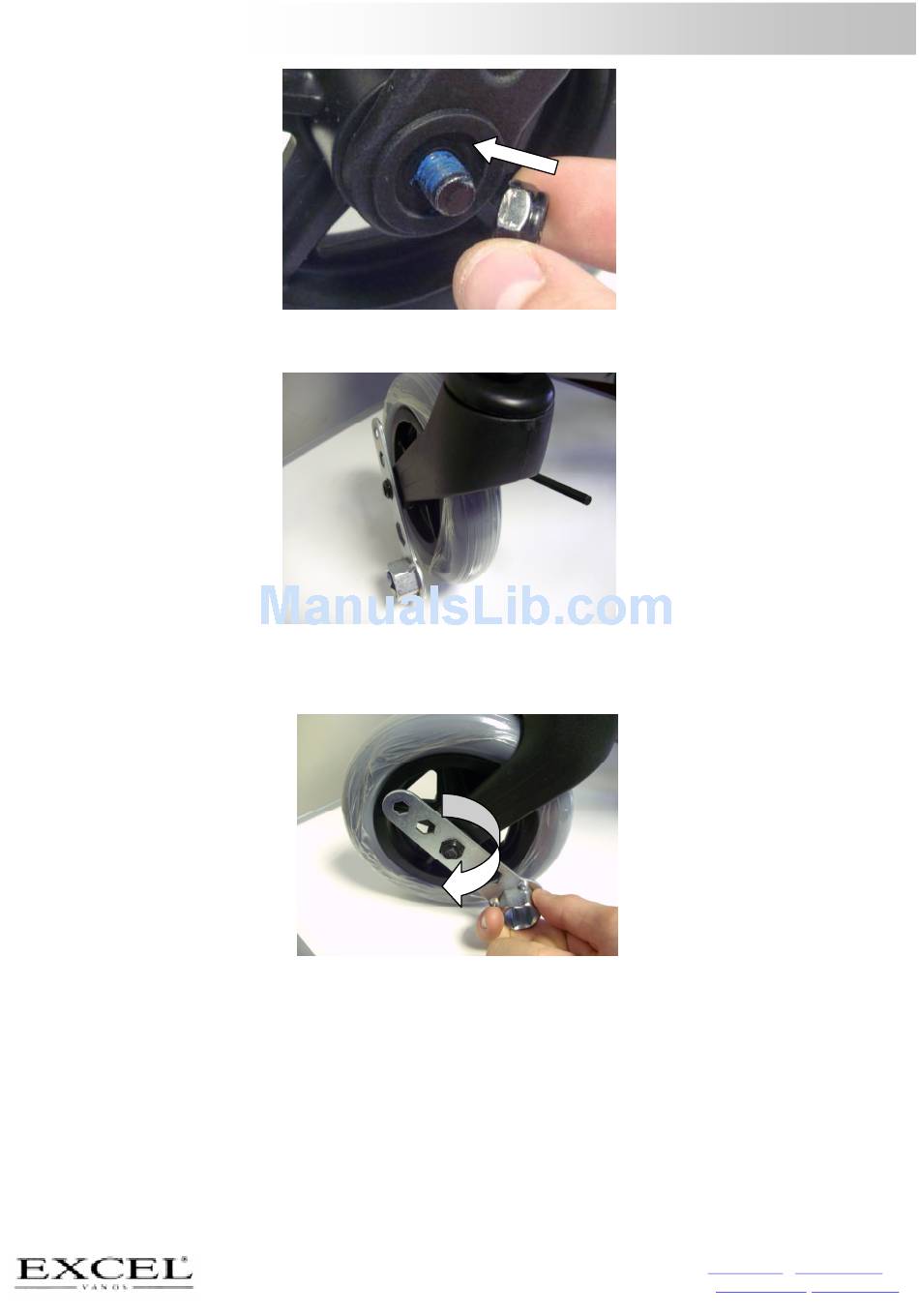

Figure 11
Once you have the nut on the end of the bolt, place the wrench on the nut and the Allen key into the bolt (see
figure 12)
Figure 12
Whilst holding the Allen key (Bolt) in place start to turn the wrench (Nut) in a clockwise direction (see figure 13)
Figure 13
Keep turning the nut until it is tight against the black fork. Check that the castor can move freely and is secure in
the front fork.
