2. General overview of your wheelchair

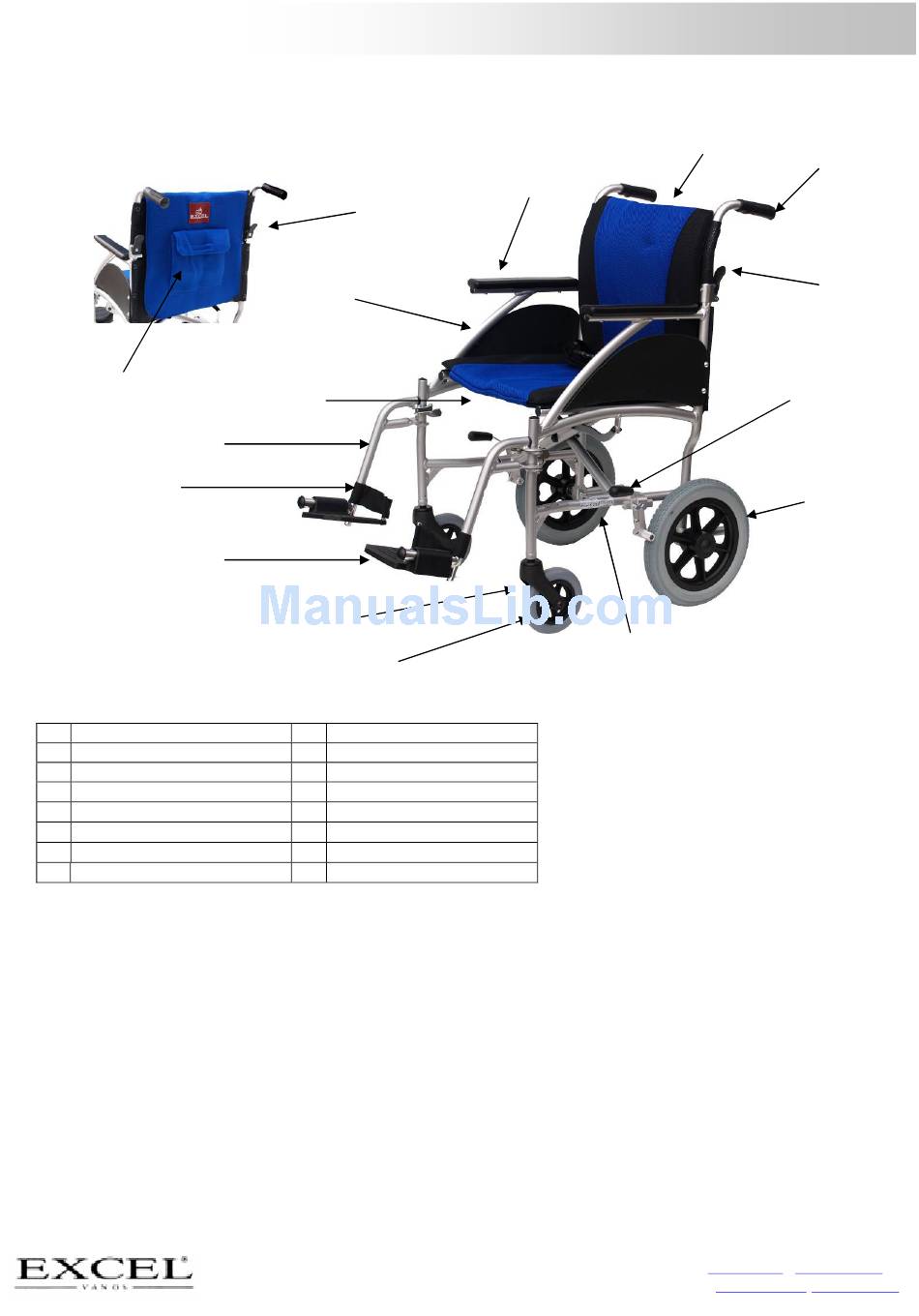

2.1 Components of the wheelchair
14
10
12
9
1 Padded backrest
2 Push handle
3 Side Panel
4 Brake Handle
5 Rear wheel
6
Identification label
7 Front castor
8 Front Fork
Your wheelchair is equipped with a number of elements and parts. You should know these before continuing to read
this manual. Your wheelchair can be equipped with options and accessories not pictured. Designs and specifications
may change without prior notice.
2.2 General explanation of the function and possibilities of your wheelchair
Your wheelchair is a foldable one, which is designed to be easy to transport in a car. Mainly, we divide the
wheelchairs into two categories: self propel version with large rear wheels and the transit version with small rear
wheels. You can look at the rear wheel to see which type of wheelchair you have. If you wheelchair has big 24"
rear wheels and you can move it yourself it is a self propel version. If you wheelchair has small 12" rear wheels and
you need a supervisor to push the wheelchair it is a transit version.
Your wheelchair is a product falling into the category of medical equipment and is not a standard consumer
product. You must follow this manual completely to ensure good, optimal and safe use of your wheelchair.
15
3
11
8
7
9 Foot plate
10 Foot Rest Swing Arm
11 Seat
12
Heel Strap
13
Arm Rest
14
Velcro Pocket
15 Folding Backrest Clip
