Excel G-Lite Technical Manual page 10

4. Removing front fork,
You will require 1 x 4mm Allen key, 1 x ½"wrench.
Firstly you will need to fully remove the front castor refer to section 3 for details of how to do this.
Once the front castor is removed locate the small Allen headed bolt just above the front fork. Loosen this bolt by
turning in an anticlockwise direction. (See figure 14)

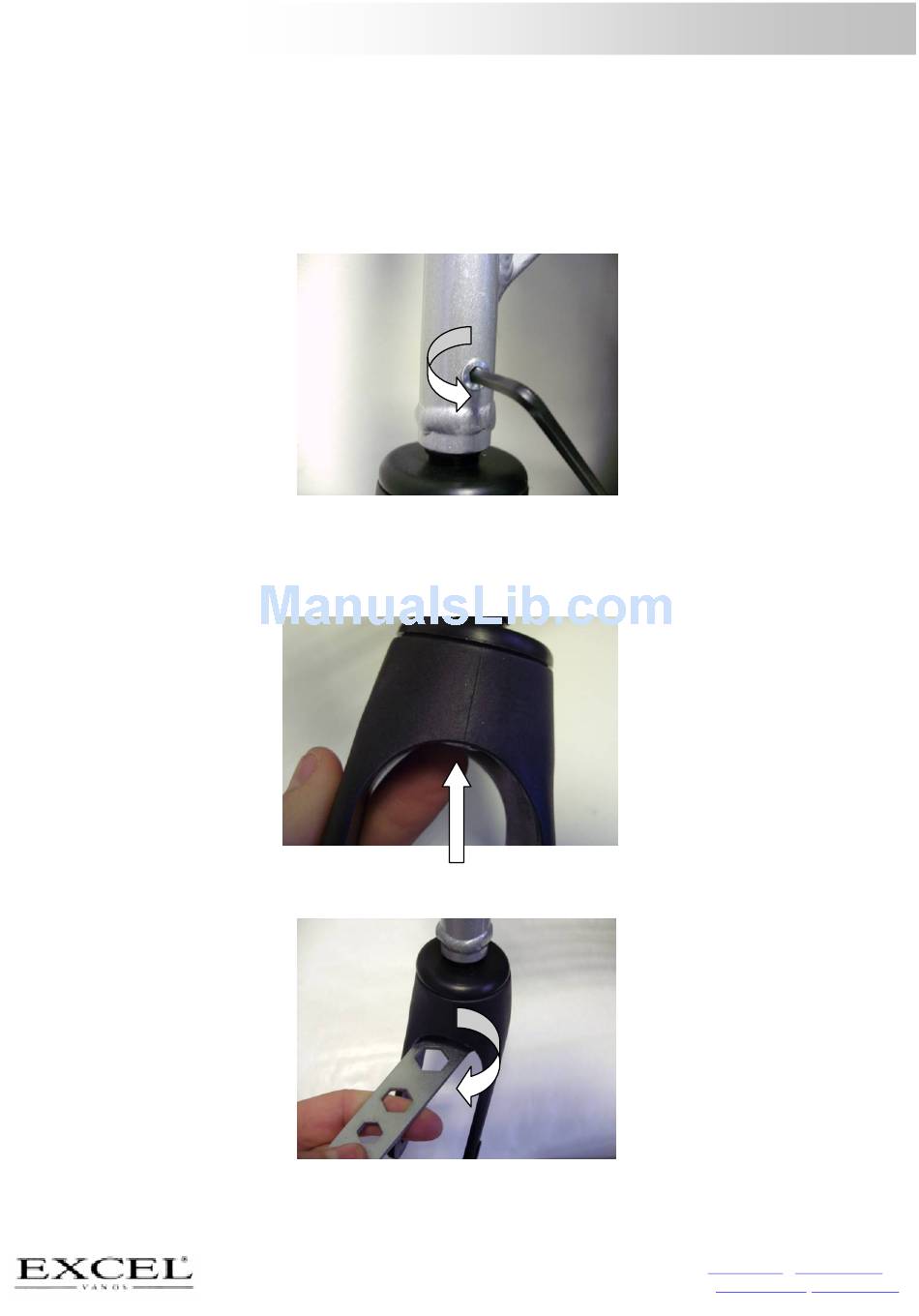

Figure 14
You will not need to fully remove the bolt; loosen it around 5mm this will be enough.
Locate the bolt in-between the front fork (see figure 15)
Figure 15
Place the wrench on the bolt under the front fork and begin to turn in a clockwise direction as looking down (see
figure 16)
Figure 16
