Tools required:
1. Dremel
tool with ½-inch sanding drum
®
2. Covering Iron
3. X-acto
knife
®
4. Paper for template, pencil
5. Drill with 7/32-inch bit
6. Permatex
Ultra Copper Silicone
®
Step 1
Mount the engine into the fuselage with the supplied header pipe installed on the engine making
sure that the engine prop thrust drive plate is extended beyond the front end of the fuselage by
1/8-inch. Now measure from the front of the fuse to the header pipe on both sides, retain the
measurements and be sure to use them later on their prospective sides. Now take a shroud and
position it on the fuselage ¼-inch up from the opening of the cowl and 2 3/8-inches from the front of the

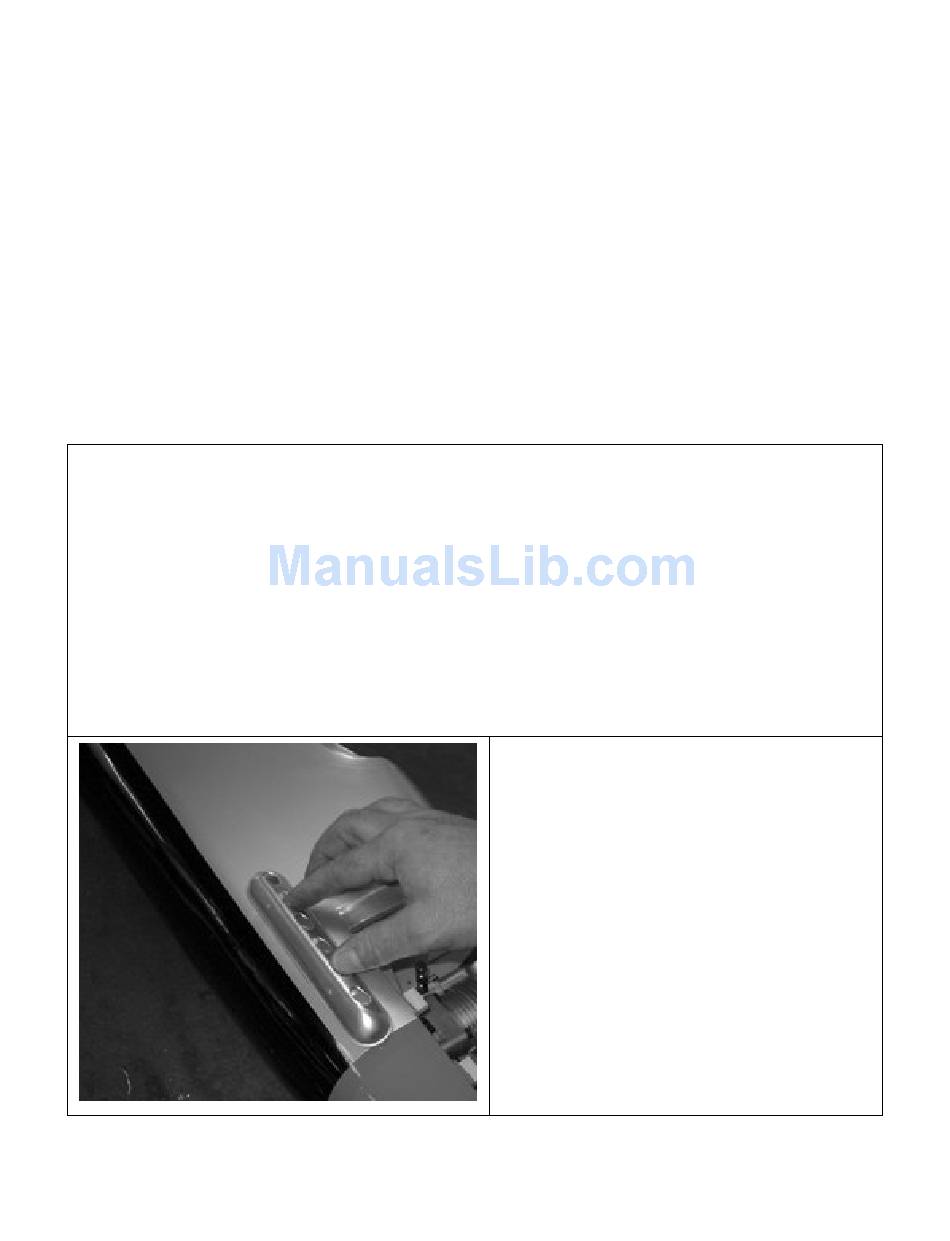

fuselage. Trace around the shroud as shown in the picture. Now take the shroud and install it back
onto the stacks and measure from the front of shroud to the stack inlet, this measurement plus the
2 3/8 should equal the number you previously got from measurement taken earlier above. If these
numbers are not equal then you need to make adjustments to the tracing on the fuselage so that the
numbers are equal. This step is important to get correct as it positions the stacks so that the header
pipe and the stack inlet line-up to each other.
Keleo Creations
53875 NW Our Ln.
Gales Creek, Or. 97117
503-359-5318
Installation Manual
Hangar 9, 1.5 P-51
You will need to follow this step carefully and
make sure everything is absolutely correct
before cutting the fuselage. Think this through
and understand what you are doing before you
cut! As they say measure twice and cut once.
If you use the supplied spinner you will notice
that it has a deep dish on its backside, in order
for you to make this work on this install you
will need to make a spacer that will make-up
the difference you need to get the correct
spacing for it.
Page 1 of 6

Advertisement

loading

Summary of Contents for Hangar 9 P-51

  • Page 1 Installation Manual Hangar 9, 1.5 P-51 Tools required: 1. Dremel tool with ½-inch sanding drum ® 2. Covering Iron 3. X-acto knife ® 4. Paper for template, pencil 5. Drill with 7/32-inch bit 6. Permatex Ultra Copper Silicone ® Step 1...
  • Page 2 Step 2 Remove UltraCote® where stack will be placed. With an X-acto® knife, carefully cut and remove the UltraCote® by cutting the line you traced in the previous step. You may need to iron the UltraCote® in this area first for better results. Step 3 It is best to remove the engine for this step and leave it out until instructed to bolt it back into the...
  • Page 3 Step 4 Make the hole in the fuse for the inlet pipe on the stacks. To do this, lay the stacks with the shroud onto the hole you just cut with the inlet pipe sticking up so you can see where to make your marks for the hole in the engine compartment.
  • Page 4 Step 6 Make a template for drilling two holes (each side) in the fuselage where the exhaust system will be mounted. You need two templates. 1. One for the right side of the fuselage using the right stacks, and, 2. One for the left side using the left stacks.
  • Page 5 Step 8 Position the template into the correct hole in the fuselage (right template into the right side of the fuselage; left template into the left side of the fuselage). Note FRONT. Position your drill bit over the dot in the center of each hole.
  • Page 6 Step 9 Reinstall the engine and slip the tubing over the stack inlets. Install the header pipe system to the stacks and engine. Your exhaust kit may come with aluminum flex tubing, if this is the case then use Ultra Copper Gasket Maker for the final assembly for sealing the tubing to the header pipe and exhaust inlets, this can be purchased at your local auto parts store.
