Bernafon MOVE Instructions For Use Manual

Behind-the-ear hearing instruments
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

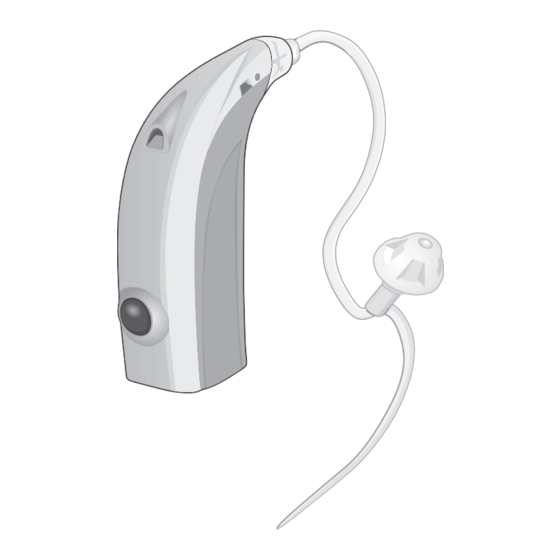

MOVE
Behind-the-ear hearing instruments
INSTRUCTIONS
FOR USE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOVE and is the answer not in the manual?

Questions and answers

Related Manuals for Bernafon MOVE

Summary of Contents for Bernafon MOVE

  • Page 1 MOVE Behind-the-ear hearing instruments INSTRUCTIONS FOR USE...

  • Page 3: Table Of Contents

    SPIRA Sound Tube: Inserting/Removing Instrument flex Earmold: Inserting/Removing Instrument ON/OFF for MOVE 106 DM ON/OFF for MOVE 105 DM VC / 112 VC Volume Control MOVE 105 DM VC / 112 VC Volume Control Indicator Push Button function Telecoil Battery Indicator / Tamper resistant Battery drawer...
  • Page 4 The following hearing instruments are covered in these operating instructions MOVE 106 DM MOVE 105 DM VC MOVE 112 VC All MOVE BTE (Behind-the-Ear) styles can be fitted with the SPIRA Sound Tubes or the conventional flex Earhook for earmolds.
  • Page 5 Congratulations on the purchase of your new hearing instruments. These advanced devices are fully dig - ital and have been adjusted by your Hearing Care Profession al with the aid of a computer and specially developed software. They are custom made to fit your specific hearing needs.

  • Page 6: Features

    MOVE 106 DM Features 1 Push button 5 Sound outlet 2 Microphone 6 Dome 2a Second microphone 7 Concha clip 3 Adapter 8 Battery drawer 4 SPIRA Sound Tube 9 Direct Audio Input flex (alternatively: Earhook)
  • Page 7 MOVE 105 DM VC / 112 VC 1 Push button 2 Microphone 2a Second microphone (MOVE 105 DM VC only) 3 Earhook (alternatively: SPIRA Sound Tube) flex 4 Sound outlet 5 Battery drawer 6 Direct Audio Input 7 Programming port...
  • Page 8 SPIRA Sound Tube flex Inserting your hearing instrument Inserting your SPIRA Sound Tube correctly every flex time, takes practice, patience and perseverance. • Lift the hearing instrument up and position it behind your ear. • Grasp the bend of the tube between your thumb and index finger.

  • Page 9: Spira

    SPIRA Sound Tube flex Removing your hearing instrument To remove the SPIRA Sound Tube, grasp the bend flex of the Sound Tube between your thumb and index finger. Gently pull the Sound Tube and dome out of your ear. Important Do not take the Sound Tube and dome out of your ear by pulling the hearing instrument.
  • Page 10 2. Attach the new Sound Tube by pushing the Sound Tube into the hearing instrument's adapter. (Same operation with all MOVE BTE styles) Exchanging the dome 1. Remove the dome by grasping the dome between your thumb and index finger.

  • Page 11: Earmold: Inserting/Removing Instrument

    Earmold Inserting your hearing instrument Inserting your earmold correctly every time, takes practice, patience and perseverance. If you are having difficulty inserting your earmolds, please consult your Hearing Care Professional. Insert your earmold first, then position the hearing instrument over your ear. •...
  • Page 12 • Lift the earmold up to your ear. Push the canal part of the earmold into the ear canal opening twisting slightly to ease the helix portion into position. The helix part should be pointing straight up and should slip into position. •...
  • Page 13 To position the hearing instrument • Once the earmold is inserted correctly, lift the hearing instrument up and position it behind the ear. Take care not to twist the tubing of the hearing instrument. Removing your earmold and hearing instrument •...

  • Page 14: On/Off For Move 106 Dm

    MOVE 106 DM: ON/OFF function Close the battery door completely. The hearing instrument will make one long beep. OFF: Open the battery door slightly with your finger until a click is felt. It is also possible to turn off the...

  • Page 15: On/Off For Move 105 Dm Vc / 112 Vc

    MOVE 105 DM VC / 112 VC: ON/OFF function Close the battery door completely. The hearing instrument will make one long beep. OFF: Open the battery door slightly with your finger until a click is felt. It is also possible to turn off the...

  • Page 16: Volume Control Move 105 Dm Vc / 112 Vc

    MOVE 105 DM VC / 112 VC: Volume Control Louder If your hearing instrument has a volume control then the following instructions apply: Softer To increase the volume: Turn the volume control up To decrease the volume: Turn the volume control down The volume control has no mechanical stop.

  • Page 17: Volume Control Indicator

    Your hearing instrument will beep continuously every time you reach the programmed maximum or minimum levels. For MOVE 106 DM , this is only applicable with a Remote Control, which is available as an option. Push Button function for all MOVE BTE's Your hearing instrument can be programmed with up to 3 different listening programs.
  • Page 18 To see how your hearing instruments are programmed see page 30. Mute function Press the push button and hold for 2 to 3 seconds to mute the hearing instrument. Give a short press to the push button to unmute. The hearing instrument will revert to its current program.

  • Page 19: Telecoil

    Your instrument has been programmed for: ❑ Microphone and telecoil (M+T) ❑ Telecoil only (T) Note: Not all telephones are hearing instrument compatible. This symbol or a similar sign should be displayed wherever a permanent loop has been installed. Please ask your Hearing Care Professional for further information.

  • Page 20: Battery Indicator / Tamper Resistant Battery Drawer

    Turn it 90 degrees to lock or unlock the battery drawer. Optional tamper-resistant battery drawer MOVE 105 DM VC / 112 VC With the hearing instrument in the off position, insert the end of a ballpoint pen into the small recess as shown.

  • Page 21: Battery Replacement 106 Dm

    Battery replacement for MOVE 106 DM • Your hearing instrument uses a size 312 battery. To insert a new battery • Use your fingernail to gently swing the battery drawer fully open, but do not force it. • Take out the used battery.

  • Page 22: Battery Replacement 105 / 112 Vc

    Battery replacement for MOVE 105 DM VC / 112 VC • Your hearing instrument uses a size 13 battery. To insert a new battery • Use your fingernail to gently swing the battery drawer fully open, but do not force it.

  • Page 23: Battery Information

    Battery information • Battery life will vary with conditions of use. Ask your Hearing Care Professional for more information. • Always keep spare batteries on hand. These are available from your Hearing Care Professional. • A used battery should be replaced immediately. •...
  • Page 24 • Used batteries should be returned to your battery supplier or Hearing Care Professional for disposal. • Never dispose of batteries by burning them. There is a risk that they may explode and cause injury. • Never dispose of batteries with household waste. They cause environmental pollution.

  • Page 25: Direct Audio Input (Dai) And Fm

    T.V., personal stereo, etc. An FM receiver enables the hearing instrument to receive signals directly from an external wireless transmitter. Please note: MOVE 106 DM does not work with ear level FM receivers. Mounting of the DAI 4 adapter on MOVE 106 DM Open the battery door.
  • Page 26 Mounting of the FMA 3 or DAI 3 shoe on MOVE 105 DM VC or 112 VC Click the FM shoe or DAI shoe onto the hearing instrument as shown. Once the shoe is on the hearing instrument, it is possible to connect either the FM receiver or the DAI cords.
  • Page 27 It is possible to switch from this combined setting by pressing the push button so that the hearing instru- ment is only amplifying the signal from the FM shoe or DAI shoe. The hearing instrument will beep three times in this mode: one lower frequency beep fol- lowed by two higher frequency beeps.

  • Page 28: Tracker (Data Logging)

    Tracker (Data Logging) The Tracker (Data Logging) stores information relating to the use of your hearing instruments such as chang- es made to the volume control and the push button. This information can be used by the Hearing Care Professional to further adjust your hearing device to your individual needs.
  • Page 29 • Never allow others to wear your hearing instruments, because they are adjusted for your hearing require- ments and may permanently damage another person’s hearing. • A slap to your ear while wearing the instrument could be harmful. Avoid wearing your hearing instrument while playing contact sports (e.g.
  • Page 30 • Never change the battery or adjust the controls of the hearing instrument in front of infants, small children and persons of mental incapacity. • Never put your hearing instrument or batteries in your mouth, they could easily be swallowed. •...

  • Page 31: International Warranty

    132 dB SPL (IEC 711) since there may be a risk of impairing the remaining hearing of the hearing instrument user (MOVE 112 VC only). International warranty Your hearing instruments are covered by a limited warranty, covering defects in materials and workman- ship.

  • Page 32: Push Button Configuration

    Push button configuration Your hearing instruments are programmed in the following way: Program Beeps Function If your hearing instrument is connected to the Direct Audio Input (DAI) or an FM system: Program Beeps Function DAI/FM + hearing instrument microphones (1 low + 1 high) DAI/FM only...
  • Page 33 Notes...
  • Page 34 Notes...
  • Page 36 Bernafon Australia Pty. Ltd. Bernafon Canada Ltd. Unit 12/97 Castlemaine Street 500 Trillium Drive Unit 15 Milton QLD 4064 Kitchener, Ontario N2R 1A7 Australia Canada Freecall 1800 809 111 Toll free 1 800 265 8250 Phone +61 7 3250 0300...
