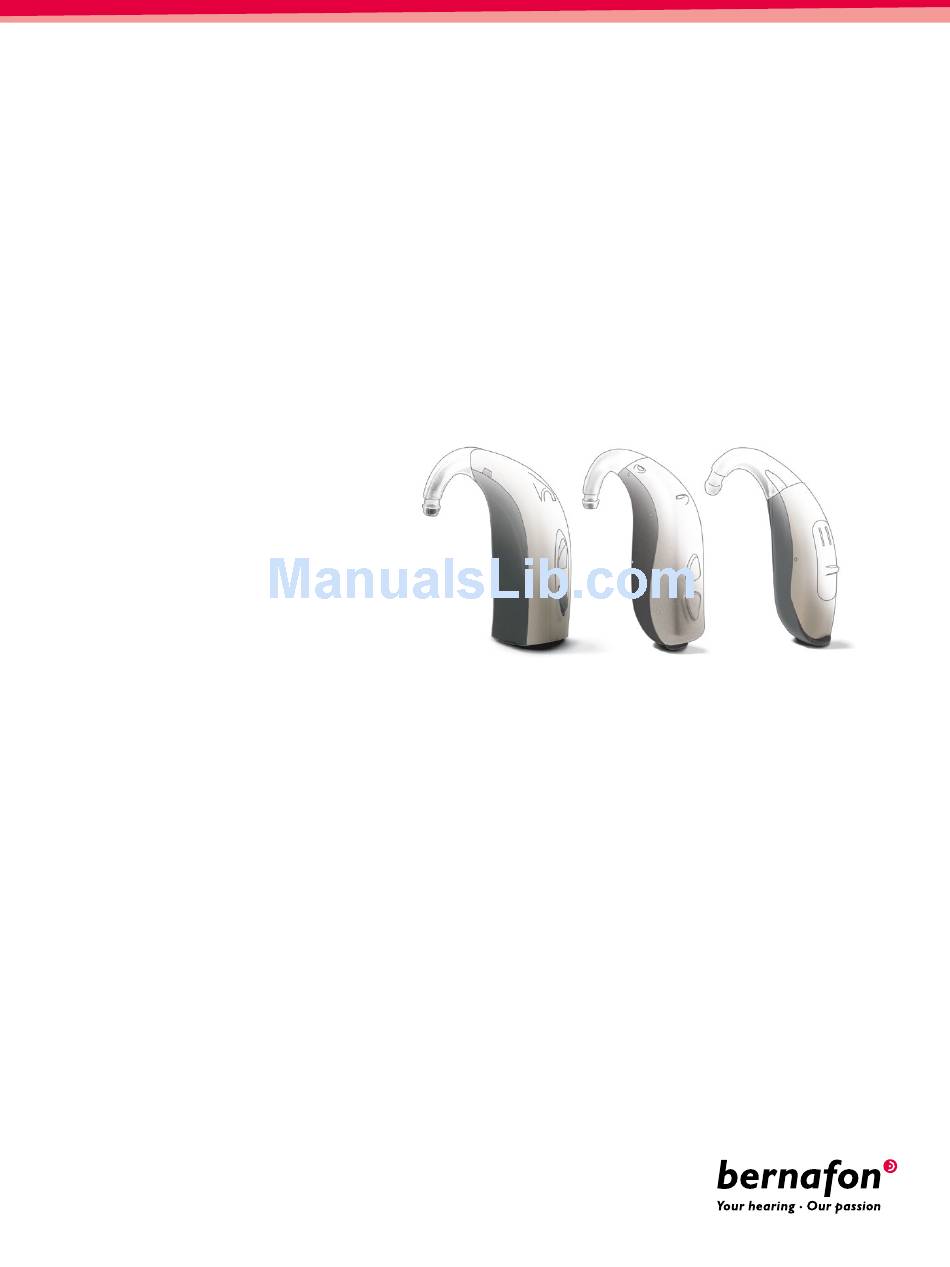

Page 1: Hearing Instruments
Fitting Guide BEHIND-THE-EAR HEARING INSTRUMENTS Compact Power Plus BTE Compact Power BTE Micro BTE Power BTE Nano BTE... -
Page 3: Table Of Contents
COMPACT POWER PLUS, COMPACT POWER, MICRO, POWER, NANO Fitting Guide Compact Power Plus, Compact Power, Power, Micro and Nano BTE Hearing Systems Table of Contents Hearing Systems Overview Selection Chart for Acoustic Options Fitting Ranges Attaching and Removing the Earhook or Thin Tube Adapter Changing the Dome Installation of Right/Left Indicators Replacing the Battery Door... -
Page 4: Hearing Systems Overview

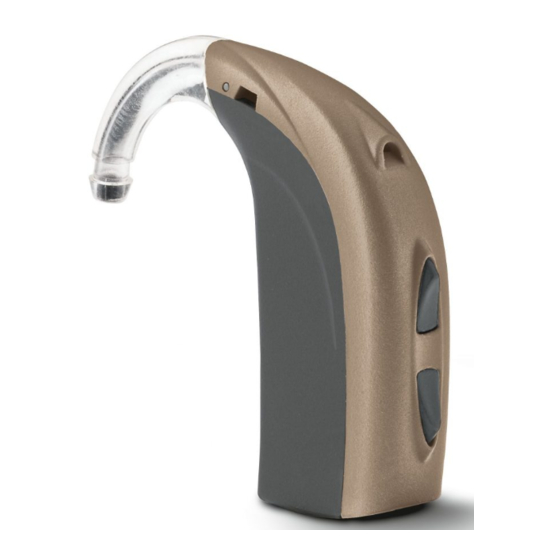

This guide is designed to help you fit and manage BTE hearing instruments. Bernafon Veras IFU micro BTE Compact Power Plus (CPx) and Compact Power (CP) BTE with Earhook (also available with thin tube system) - Page 5 2 Microphone 6 Direct Audio Input 2a Second microphone (with an optional 3 Earhook DAI adapter) 4 Sound outlet Bernafon nano BTE IFU Nano BTE with Thin Tube System NE_ILLU_P_Earhook_front_BW (also available with earhook) VR_ILU_nanoBTEwithSpira_BW_HI 1 Push button 5 Sound outlet...
-
Page 6: Selection Chart For Acoustic Options
Selection Chart for Acoustic Options All BTE models covered in this Fitting Guide can either be fitted with a conventional earhook or with a thin tube system. Traditional earhooks are used with a custom earmold. The thin tube systems can be combined with a variety of different domes and customized earpieces. All Compact Power Plus, Compact Power, Power, Micro and Nano BTEs can be fitted with the Spira Flex and the miniFit thin tube system. -
Page 7: Fitting Ranges
Fitting Ranges BTE hearing instruments offer a variety of different styles which are appropriate for mild to severe hearing losses. Expected fitting ranges of each hearing instrument style are shown below. Compact Power Plus BTE Power BTE 1.000 2.000 4.000 8.000... -
Page 8: Attaching And Removing The Earhook Or Thin Tube Adapter
Attaching and Removing the Earhook or Thin Tube Adapter All BTE hearing instruments are available with either the thin tube system or a conventional earhook. Compact Power Plus, Compact Power, Power, and Micro BTE VR_ILU_MicroCompactBTERemoveHook_BW_HI VR_ILU_MicroCompactBTERemovePin_CMYK_HI 1 Use the pointed end of the disassembly tool to push the lock pin free 2 Replace the hook or adapter with the desired part 3 Replace the lock pin (tweezers make this easier) Use the pointed end of the disassembly tool... -
Page 9: Changing The Dome
COMPACT POWER PLUS, COMPACT POWER, MICRO, POWER, NANO Changing the Dome 1 Pull the used dome off the thin tube and discard 2 With clean hands, firmly push a new dome onto the thin tube as far as it will go If the dome is not pushed all the way onto the thin tube, it could fall off in the ear canal. - Page 10 Compact Power Plus and Compact Power BTE 1 Open the battery door 2 Insert the marker end into the slot as shown 3 Twist and rotate the stick to break off the marker 4 Close the battery door Power BTE 1 Open the battery door 2 Insert the marker end into the slot as shown 3 Rotate the stick to break off the marker...
-
Page 11: Replacing The Battery Door
COMPACT POWER PLUS, COMPACT POWER, MICRO, POWER, NANO Replacing the Battery Door Compact Power Plus, Compact Power, and Micro BTE 1 Open the battery door and place the battery removal tool as shown 2 Gently pull the battery door off 3 Snap the new battery door in place and close Power and Nano BTE 1 Push out the metal pin with the disassembly tool... - Page 12 2 Insert the screwdriver into the slit in the bottom of the instrument and push to open Bernafon Veras IFU micro BTE Bernafon Veras IFU micro BTE VR_ILU_TamperResitantBatteryDrawerMicroBTE2_BW_HI Micro BTE Compact Power/Compact Power Plus BTE VR_ILU_TamperResitantBatteryDrawerCompactBTE_BW_HI Power BTE 1 Open the tamper-resistant battery door 2 Insert the special left/right marker into the slot 3 Close the tamper-resistant battery door.
-
Page 13: Dai And Fm Adapters
COMPACT POWER PLUS, COMPACT POWER, MICRO, POWER, NANO DAI and FM Adapters Attaching and Removing the DAI and FM Adapters Compact Power Plus, Compact Power, and Micro BTE 1 Open the battery door fully 2 With the battery in place, slide the DAI or FM adapter into the slot until it lines up with the hearing instrument 3 Close the battery door 4 To remove the DAI or FM adapter, open the battery door and slide out... -
Page 14: Using The Fm Adapter
Using the FM Adapter The Compact Power Plus, Compact Power, and Power BTE hearing instruments are compatible with all commonly available ear level FM systems (FM receivers). The connection is established via the Europlug. Choose the FM adapter also when attaching a CROS microphone unit to the hearing instrument. Using the DAI Adapter Direct Audio Input (DAI) enables the hearing aid to receive signals directly from external sources such as a TV, personal stereo, PC audio output, MP3 player, etc. -
Page 15: Fitting A Bte With Oasis
BTE hearing systems are programmed with Oasis using new standard (no. 2) programming cables. Some BTE models need a battery to be programmed. Please always insert a fresh battery prior to programming. Attaching the Programming Cables Bernafon Veras IFU micro BTE VR_ILU_DaiFMAdapterOnMicroBTE_BW_MOD_HI VR_ILU_MicroCompactBTEprogramAdapter_BW_HI Compact Power Plus, Compact Power, and Micro BTE... - Page 16 VR_ILU_NanoBTEprogRemoveCover2_BW_HI VR_ILU_NanoBTEprogConnectCable_BW_HI VR_ILU_NanoBTEprogRemoveCover1_BW_HI Nano BTE 1 Remove the cover with the small tool as shown 2 Plug the cable into the connector 3 To replace the cover, hook the top end under the shell first, then snap it in place...
-
Page 17: Fittinglink
COMPACT POWER PLUS, COMPACT POWER, MICRO, POWER, NANO FittingLINK Programming with FittingLINK FittingLINK is a wireless programming interface which allows fitting of all wireless hearing instruments. FittingLINK is connected to the PC via the provided dedicated Bluetooth ® dongle or USB cable. - Page 18 Detecting and Programming Hearing Instruments Make sure that FittingLINK is paired with your PC, fully charged, and switched on (steady green light on the top LED indicator). For safety reasons the hearing instruments should not be in the client’s ear during detection.
-
Page 19: Ordering Information
COMPACT POWER PLUS, COMPACT POWER, MICRO, POWER, NANO Ordering Information 1. Fitting Kits Part Number Description Comments 163095 miniFit Thin Tube Kit Containing all miniFit parts and tools 890-80-060-00 Spira Flex Fitting Kit Containing all Spira Flex parts and tools 2. - Page 20 Thin Tubes 1.3 mm – Spira Flex Part Number Designation Comments 589-25-090-00 Spira Flex Thin Tube, 1.3 mm size 0 left 589-25-091-00 Spira Flex Thin Tube, 1.3 mm size 1 left 589-25-092-00 Spira Flex Thin Tube, 1.3 mm size 2 left 589-25-093-00 Spira Flex Thin Tube, 1.3 mm size 3 left Clamshell containing 5 Spira Flex...
- Page 21 COMPACT POWER PLUS, COMPACT POWER, MICRO, POWER, NANO 4. Programming Equipment Cables Part Number Designation Comments 384-20-033-00 Prog. cable, Nr. 2 New standard (HiPro) Blue, left 384-20-032-00 Prog. cable, Nr. 2 New standard (HiPro) Red, right 384-20-035-00 Prog. cable, Nr. 2 New standard (NOAHlink) Blue, left 384-20-034-00 Prog.
- Page 22 6. Tools Part Number Designation Comments 166243 Accessory Kit CPx/CP/P/M BTE Contains: · Cleaning cloth · Auto-T magnet · MultiTool 144367 Accessory Kit Nano BTE Contains: · Cleaning cloth · MultiTool 101484 Battery door removal tool set For Micro, CP , and CPx BTE 166313 TAR Locking Set for Power BTE Contains:...
- Page 24 Our aim is to provide extra value to our partners every day. Bernafon representatives and employees in over 70 countries fulfi ll our vision to help people with impaired hearing communicate again without limitation.
