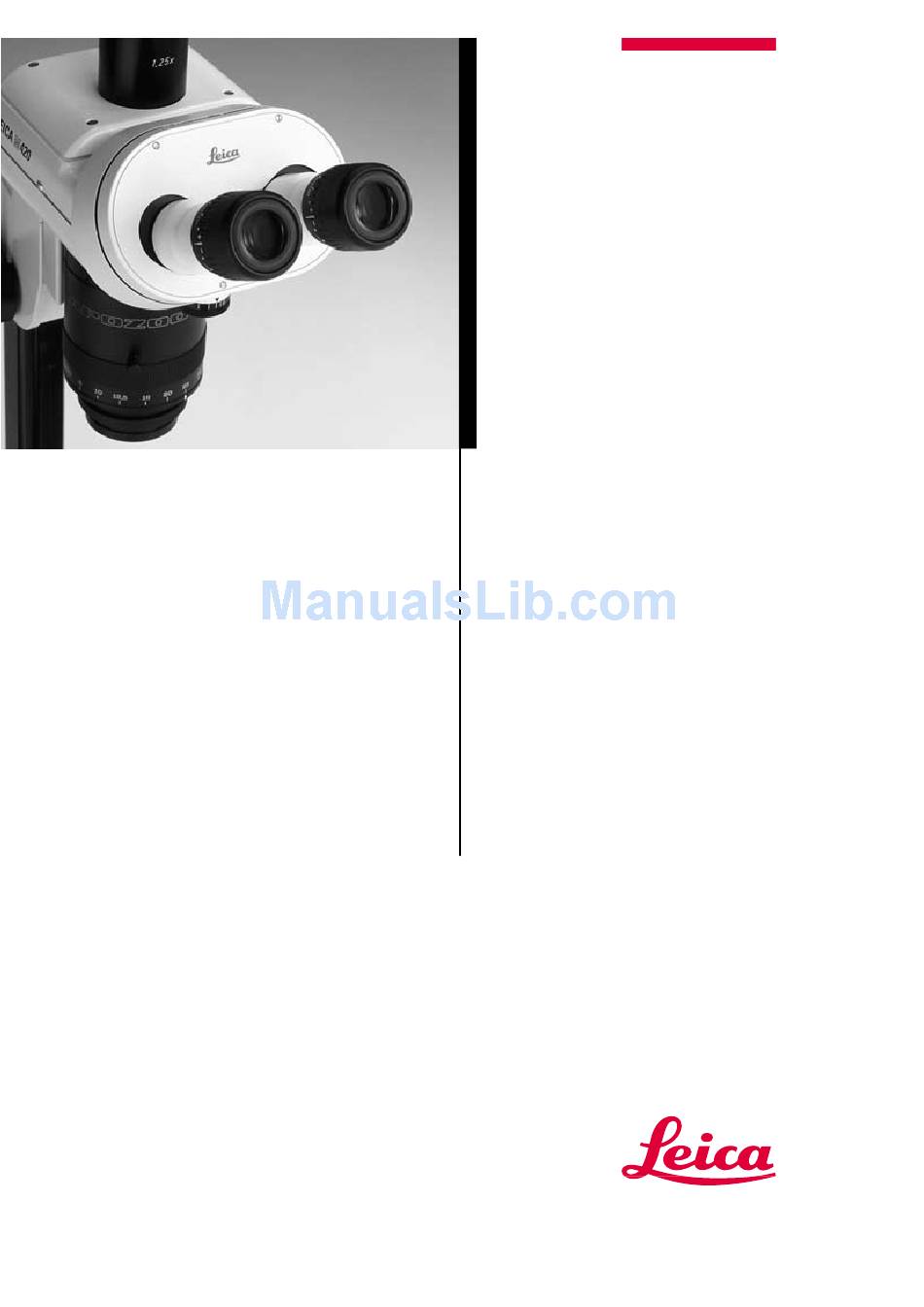

- Page 1 Leica M420 Macroscope The modular system...
- Page 2 Welcome! Thank you for your attention. We are proud to present the Leica M420 macroscope, a Leica creation. As with a stereomicroscope, large objects can be viewed in their entirety and without prepara- tion, thanks to the wide fields of view and the favourable working distances.
-
Page 3: Table Of Contents
Focusing drive Incident-light stands Swinging-arm stands Universal stand Incident illuminators Transmitted-light stands Stages Measuring, polarization Leica MPS30 and MPS60 photoautomats Digital imaging, video, TV, filming, SLR camera housing Optical data Performance features Catalogue references Assembly diagram Complete outfits Dimensions Further documentation... -
Page 4: Leica M420 Macroscope
Macroscope 1 Leica M420 optics carrier 2 Wide-field eyepieces for spectacle wearers, distortion free, with diopter setting adjustable between +5 and –5 and with adjustable eyecups 3 Binocular tube: Interpupillary adjustment range 54mm–75mm, ergonomically positioned, 30° viewing angle 4 Aperture diaphragm: With this... - Page 5 The modular system The optics carrier with binocular tube can be demanded of it. Like the macroscopes from Leica, the modular equipped with a Macrozoom- or Apozoom objective, with one of several additional objec-...
-
Page 6: Optical Accessories
Optical accessories The requirements 1:6 Apozoom objective Because the working distance, the total magnification and the The intrinsic zoom range of the Apozoom objec- tive is from 5.8× to 35×, i.e. the zoom range down field of view must all be adapted to the application, the user needs the binocular tube if 10×... -
Page 7: Focusing Drive
Focusing drive Coarse/fine drive for incident- and New: Leica motor-focus system transmitted-light stands The new motor-focus system enables any The coarse/fine focusing drive permits focusing microscope outfit to be moved weightlessly up along the full length of the side-faced column. -
Page 8: Incident-Light Stands
Incident-light stand The requirements Incident-light stand It must be possible to arrange the stereomicroscope work station The incident-light stand consists of a stable baseplate and a 300mm- or 500mm long side- exactly in accordance with requirements. The instrument can faced column. The column bears the focusing drive and therefore also the microscope carrier only be fully integrated into the work process if the sturdy stand and the optics carrier. -
Page 9: Swinging-Arm Stands
Swinging-arm stands Swinging-arm and table-clamp stands These stands offer ample space for large objects such as rocks, metal objects or circuit boards, which can be manipulated directly on the surface of the bench. The many possibilities for adjusting on the column, the horizontal arm and the inclinable carrier rod enable the working area to be planned as required. -
Page 10: Universal Stand
Universal stand Universal stand The universal stand is noted for its stability. Vibrations, which can cause difficulties at high magnifications and in photography, are elimi- nated. Large objects, and stage carriers with magnetic linkage that will accept various stages, can be conveniently positioned on its baseplate. -
Page 11: Incident Illuminators
Incident illuminators The requirements Oblique incident light, dark field The correct illuminator is the key to informative investigation and Three-dimensional objects are illuminated obliquely from above. The angle of incidence inspection. The better the illumination of the object, the more can be anything from steep to flat. - Page 12 • Light intensity adjustable using variable- or step transformer. The 6V/20W incident lamp is the preferred Leica M420 with cold-light source choice for ideal light quality, high light output, Leica CLS150 and ring lamp completely-uniform illumination, and a colour temperature of 3200K.
- Page 13 In, for example, photography using artificial light, colour-compensating filters are required Cold-light sources of the Leica CLS series in order to avoid colour shifts. The filter-slide The Leica cold-light sources CLS50, CLS100, housing is supplied with two filter slides that...
-
Page 14: Transmitted-Light Stands
Light rays meet the object at grazing Leica M420 with transmitted-light stand, incidence from below and those that are then bright and dark field, and with... - Page 15 Transmitted-light stand for bright field Transmitted-light stand, bright field Transmitted-light stand, bright and dark field • Direction of illumination can be varied • Changeover between bright and dark field (advantages of oblique illumination) • Uniformly-illuminated field of view • Option of asymmetrical dark-field •...
-
Page 16: Stages
HL originates from a fibre-optic light guide attached to an external Universal carrier cold-light source. As a result, no heat is develo- ped which might damage organic subjects. Information in brochure M1-296-1en. Leica M420 macroscope with transmitted-light stand HL... -
Page 17: Measuring, Polarization
Measuring, polarization Polarizing sets There is a choice of two polarizing sets usable with the transmitted-light stands. A 120/80mm spacing ring is required. – Analyzer, centrable rotatable polarizing stage with 360° scale and vernier, sensitive-tint plate, mechanical stage, and crosshair graticule Centrable –... -
Page 18: Leica Mps30 And Mps60 Photoautomats
Format-indicating graticule or, for MPS60, focusing telescope For further details, please refer to brochure M1-360-4en. Components The built-in video-/phototube upgrades a Leica macroscope to a complete video-/photo work station, quickly and without fuss. The video-/ phototube is usable for all modern documenta- tion techniques. - Page 19 Display of Camera backs for all film formats progress of exposure digital digital Leica modular photomicrographic systems are Exposure time automatic, automatic, usable with all film formats from 35mm to 4in × fixed time fixed time, 5in, and with all commercially-available film...
-
Page 20: Digital Imaging, Video, Tv, Filming, Slr Camera Housing
CCD cameras in order to document work the Leica DC 100 and DC 200 CCD cameras with C-mount, or a different commercially-available sequences, the movement of living organisms, and sequences video camera, on Leica macroscopes equipped with video-/phototubes. - Page 21 New: Leica DC 100 and DC 200 digital imaging systems Digitized images can be created on the monitor in a moment, and can then be processed, stored, deleted or reused. They can be printed or transmitted, or combined with multi-media applications or Internet publishing.
-
Page 22: Optical Data
Optical data Macrozoom objective In combination with additional objective Apozoom objective 1.0× 0.5× 0.4× 2.0× Working distances 100mm Macrozoom 192mm Macrozoom 253 mm Apozoom 39mm Macrozoom 102mm Apozoom 45mm Apozoom Total Total Total Total magnifi- Field magnifi- Field magnifi- Field magnifi- Field Eyepiece... -
Page 23: Performance Features
Incident lamps Including inclined, coaxial with quarter-wave plate, fibre-optic light guides Accessories Photomicrographic systems Leica MPS30 and MPS60, fully automatic, with data back Video, filming; archiving- Leica DC 100 and DC 200 digital imaging systems, and post-processing software image manager... -
Page 24: Catalogue References
10 126 272 Dust cover for M420 10 446 259 Motor-focus drive with inclinable column, and supply unit, 10 362 677 Dust cover for M420 with photographic outfit for swingarm and table-clamp stands 10 126 269 Dust cover for large swinging-arm and table-clamp stands... -
Page 25: Assembly Diagram
TV / CINE / DC 100 / DC 200 / DC 250 10 439 097 11 541 038 10 446 175 10 446 120 10 445 304 10 445 305 11 541 006 11 541 007 10 446 259 11 541 016 10 445 932 10 445 913 10 439 096... -
Page 26: Complete Outfits
# 4 Leica M420 with transmitted-light stand for bright field, 20W, and coarse/fine focusing drive # 5 Leica M420 with transmitted-light stand for bright and dark field, and coarse/fine focusing drive # 6 Leica M420 with transmitted-light stand HL, coarse/fine focusing... -
Page 27: Dimensions
Dimensions of Leica M420 Dimensions of Leica M420 with incident-light stand with transmitted-light stand M = Makrozoom A = Apozoom M = Macrozoom A = Apozoom M = Makrozoom M = Makrozoom A = Apozoom A = Apozoom... -
Page 28: Further Documentation
Leica Microsystems – the brand for outstanding products Microscopes The Leica Microsystems Mission is to be the world's first-choice provider of innovative solutions to our customers’ needs for vision, measurement, lithography Compound and analysis of microstructures. Stereo Leica, the leading brand for microscopes and scientific instruments, has grown from...
