Installation; Assembly Before Installation - Jøtul F 50 TL Rangeley Installation And Operating Instructions Manual

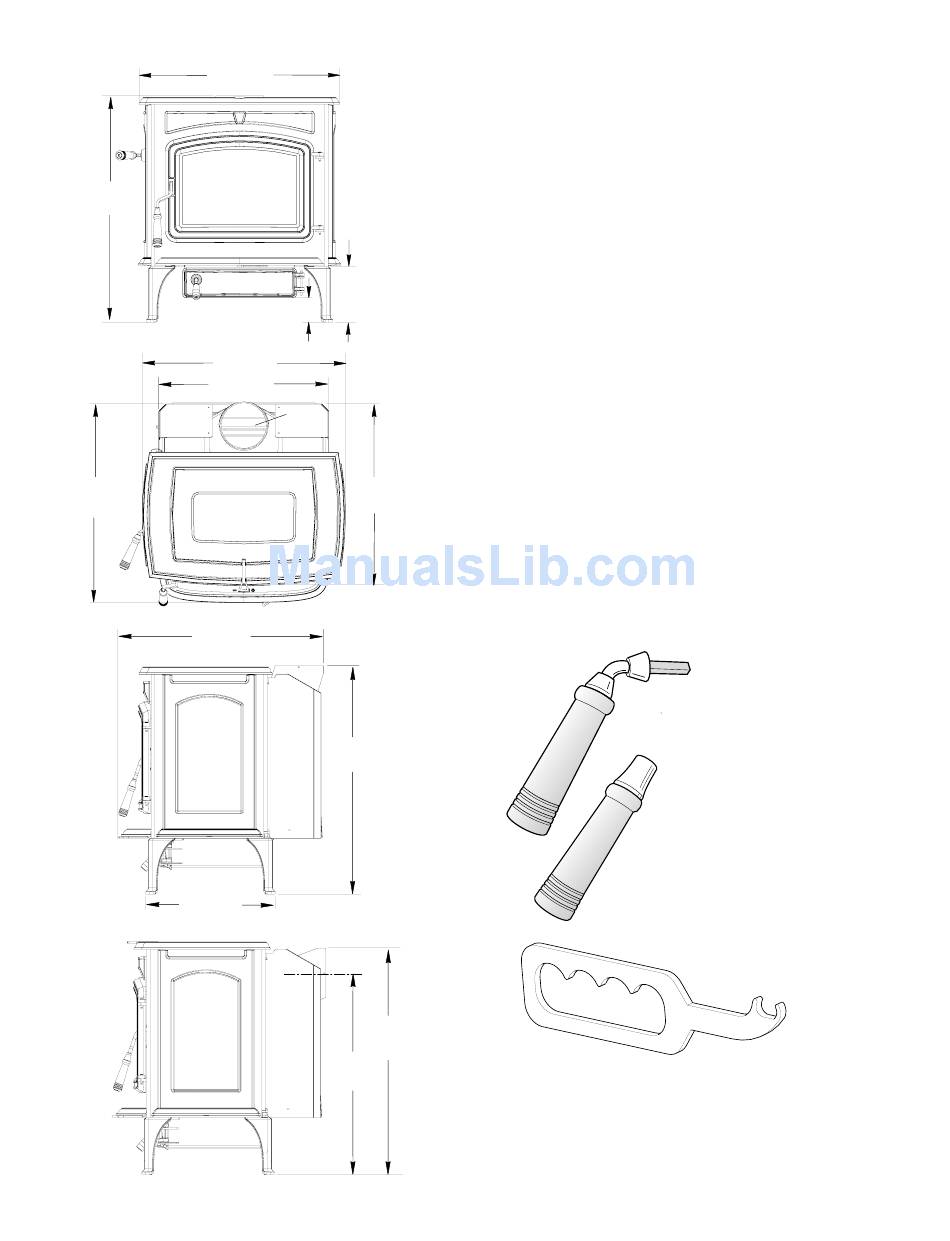

(692 mm)
15 1/2” x 10 1/2”
30 5/8”
Viewing Area
(779 mm)
(584 mm)
26 7/8”
(681 mm)
to Rear Shroud
27 5/8”
(702 mm)
to Flue Collar
Top Exit
Flue Collar
17 3/8”
(440 mm)
Rear Exit
Flue Collar
27 1/4”
7 1/2”
(190 mm)
30 1/4” (82 mm)
27 1/2”
(698 mm)
Bottom Plate
23”
6" Ø
(152 mm)
24 1/2 ”
(623 mm)
30 5/8”
(778 mm)
30”
(762 mm)
26 3/4”
(667 mm)

1.0 Installation

If this solid fuel room heater is not properly installed, a
house fire may result. For your safety, follow the installation
directions. Contact the local building or fire officials about
restrictions and installation inspection requirements in your area.
Your local officials have final authority in determining if a
proposed installation is acceptable. Any requirement by the
local authority having jurisdiction that is not specifically
addressed in this manual, defaults to NFPA 211, and local codes
in the U.S. or in Canada, CAN/CSA-B365-M and local codes.
1.1 Unpack the Stove
Inspect the stove for damage. Contact your dealer
immediately if any damage is found. Do not install the stove
if any damage is evident. Contact your dealer.
Contents:
• Top Load Door Tool
• Baffle Handle Assembly
• Bottom Heat Shield
• Flue Collar Heat Shield
• Stove Gloves
• #8 x 12 sheet metal screws, 4 - for Flue Collar Heat Shield
• M6 hex nuts, 4 - for Bottom Heat Shield
NOTE: The integral Rear Shroud acts as a heat shield.
There is no accessory rear heat shield.
Baffle Handle Assembly - insert
the shaft into the left side panel.
Front Door Handle
- ships fully assembled
Figure 1. Actuation handles.
139262 Rev_N F 50 TL Rangeley 2/16
Top Load Door Tool
5
