Non-catalytic wood stove

Advertisement

Quick Links

„ The Jøtul F 500 non-catalytic stove is
„ Read this entire manual before you
„ Save these instructions for future
Classic
„ This wood heater requires periodic
Clean Face

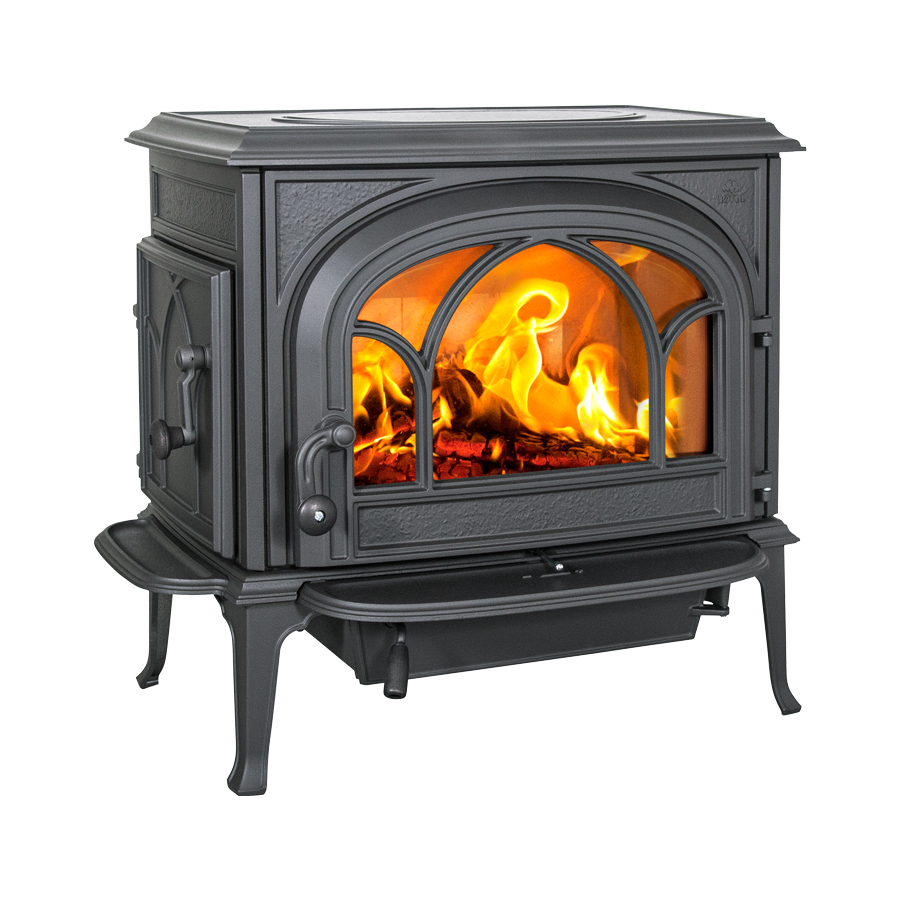

Jøtul F 500
Non-catalytic Wood Stove
Classic and Clean Face Models
Installation and Operating Instructions
for the United States and Canada
listed to burn solid wood only. Do not
burn any other fuels.
install and use this appliance.
reference and make them available
to anyone using or servicing the
fireplace insert.
inspection and repair for proper
operation. See this manual for
specific maintenance information.
It is against federal regulations to
operate this wood heater in a manner
inconsistent with the operating
instructions in this owner's manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F 500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jøtul F 500

  • Page 1 Classic and Clean Face Models Installation and Operating Instructions for the United States and Canada „ The Jøtul F 500 non-catalytic stove is listed to burn solid wood only. Do not burn any other fuels. „ Read this entire manual before you install and use this appliance.
  • Page 2: Table Of Contents

    4.1 Floor Protection ............7 4,2 Clearances to Walls and Ceilings ......7 The Jøtul F 500 solid fuel heater has been tested and listed to : 4.3 Using Shields to reduce Clearances ...... 7 U.S. Standards: ANSI/UL 737 and ANSI/UL 1482.
  • Page 3: Combustion Specifications

    W h e n i n s t a l l i n g , o p e rat i n g a n d m a i nt a i n i n g yo u r system. In some cases, the optional Outside Air Kit #154335 Jøtul F 500 woodstove, follow the guidelines presented in can be used to alleviate this condition. The chimney and build-...
  • Page 4: Installation

    1. A code- approved masonry chimney with a flue liner. 2. A prefabricated chimney complying with the requirements The Jøtul F 500 is shipped with the flue collar, gasketing and for Type HT (2100°F) chimneys per UL 103 or ULC S629.
  • Page 5: Prefabricated Chimneys

    139681_R06 F 500 Oslo 1/20 2.5 Wall Pass-throughs with a minimum thickness of 5/8” (16mm) and must be installed with refractory mortar. There must be at least 1/4” When your installation unavoidably requires the chimney (6,35mm) air space between the flue liner and chimney wall.
  • Page 6: Connecting To The Chimney

    3.2 Hearthmount Into a Masonry Fireplace And 8” (200mm) on the right side and back of the stove The Jøtul F 500 has a rear exit flue collar height of 28 1/4” (718 (measured from side and back panels). mm) when installed with standard legs. Substitution of Short This will result in a minimum floor protection of Legs will lower the height to 26”...
  • Page 7: Using Shields To Reduce Clearances

    4.5 Mobile Home Installations a minimum of 25” (635mm) above the top surface of the stove. The Jøtul F 500 has been approved for use in mobile homes in the Double wall pipe: Listed double wall pipe is an acceptable U.S.
  • Page 8: Operation

    Higher efficiencies and lower emissions generally 5.1 Combustion Efficiency result when burning air-dried, seasoned hardwoods, The Jøtul F 500 has an EPA tested High Heating Value as opposed to softwoods, green or freshly cut (HHV) efficiency rate of 73.94. There are, however, hardwoods.
  • Page 9: Air Flow And Control

    ’air-wash” to help keep the viewing glass clean. 5.5 Break-In Procedure The Jøtul F 500 is constructed of cast iron and stove Secondary air allows combustion of volatile gas furnace cement. Cast iron, while very durable, and other by-products of primary combustion that expands and contracts as it is heated and cooled.
  • Page 10: Starting And Maintaining A Fire

    139681_R06 F 500 Oslo 1/20 Traditional Fire Building NOTE: Keep the stove under 400°F (204°C) surface 1. With the primary air control lever in the full open temperature during any “break-in fire”, with position (to the right), start with several sheets of the exception of the last “break-in”...
  • Page 11: Adding Fuel

    Ash removal will be required periodically depending on how frequently the stove is used. Conveniently, the Jøtul F 500 is equipped with an ash pan assembly for easy ash removal, without Trying to extinguish the fire in the stove will not help.
  • Page 12: Chimney System

    6.6 Glass Replacement 6.3 Chimney System 1. Remove the doors from the stove and place on a The Jøtul F 500 is designed to burn cleanly and efficiently when used according to the guidelines in flat surface. this manual. In order to maintain proper performance, 2.
  • Page 13: Accessories

    Some care should be taken when operating the stove installation instructions are supplied with the heatshield. No as a fireplace. other type of heatshield may be used on the rear of the Jøtul F 500. • Always have the firescreen in place, attached to Bottom Heatshield - 154330 the stove front.
  • Page 14 139681_R06 F 500 Oslo 1/20 Fig. 1 a Fig.1 Fig. 1 b Fig. 3 Fig. 4 Fig. 1 c...
  • Page 15 139681_R06 F 500 Oslo 1/20 2" (50 mm) Fig. 8 Fig. 5 8" (200 mm) Min. width 50,5" 18" Min. depth 50 1/2” 8" ( 1283mm) (460 mm) (1283 mm) (200 mm) 18" (460 mm) Min. width 56" (1422 mm) Min.
  • Page 16 139681_R06 F 500 Oslo 1/20 Fig.11 Fig. 14 Fig.12 Fig.15 Unpainted Side Up 1) Bend the flattened heat shield on the perforations as shown, painted side down. 2) Use a 10 mm wrench to remove the two bolts from the bottom of the ash compartment.
  • Page 17 139681_R06 F 500 Oslo 1/20 This page is intentionally blank.
  • Page 18 139681_R06 F 500 Oslo 1/20 Jøtul F 500 Woodstove Clearances Minimum clearance from Left Side Load Door to combustible surfaces is 36”. The side door must be locked in alcove and corner installations. Use Side Door Lock Kit 155850. Unprotected Surface...
  • Page 19 139681_R06 F 500 Oslo 1/20 Jøtul F 500 Woodstove Clearances Stove clearances Unprotected surface Protected surface NFPA 211 Parallel installation Parallel installation Side Rear Corner* Side Rear Corner* Stove- no heatshields 14” A 18” B 13” C 6” D 12” E 9”...
  • Page 20 139681_R06 F 500 Oslo 1/20...
  • Page 21: Appendix A (Alternate Floor Protection)

    139681_R06 F 500 Oslo 1/20 Appendix A Use only replacements parts provided through your Jøtul Authorized Dealer. Alternate Floor Protection Description Description All floor protection materials must be non-combustible ie. metal, brick, stone, mineral fiber boards). Any combustible material may Screw Allen not be used.
  • Page 22 139681_R06 F 500 Oslo 1/20 9.0 Jøtul North America Wood-burning Product Warranty Exclusions and Limitations Effective January 1, 2013 Notice: This warranty is void if installation or service is performed This warranty policy applies to wood-burning products identified by someone other than an authorized installer or service agency, by Jøtul and Scan trade names, as set forth below.
  • Page 23 139681_R06 F 500 Oslo 1/20 Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the length of implied warranties. Therefore, the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state.
  • Page 24 139681_R06 F 500 Oslo 1/20 This page is intentionally blank.
  • Page 25 139681_R06 F 500 Oslo 1/20 This page is intentionally blank.
  • Page 26 139681_R06 F 500 Oslo 1/20 Jøtul pursues a policy of continuous product development. Products supplied may therefore differ in specification, colour and type of accessories from those illustrated and described in this manual. For Your Records... Record the following information to help your dealer determine what you will need should your stove ever require parts or service.
