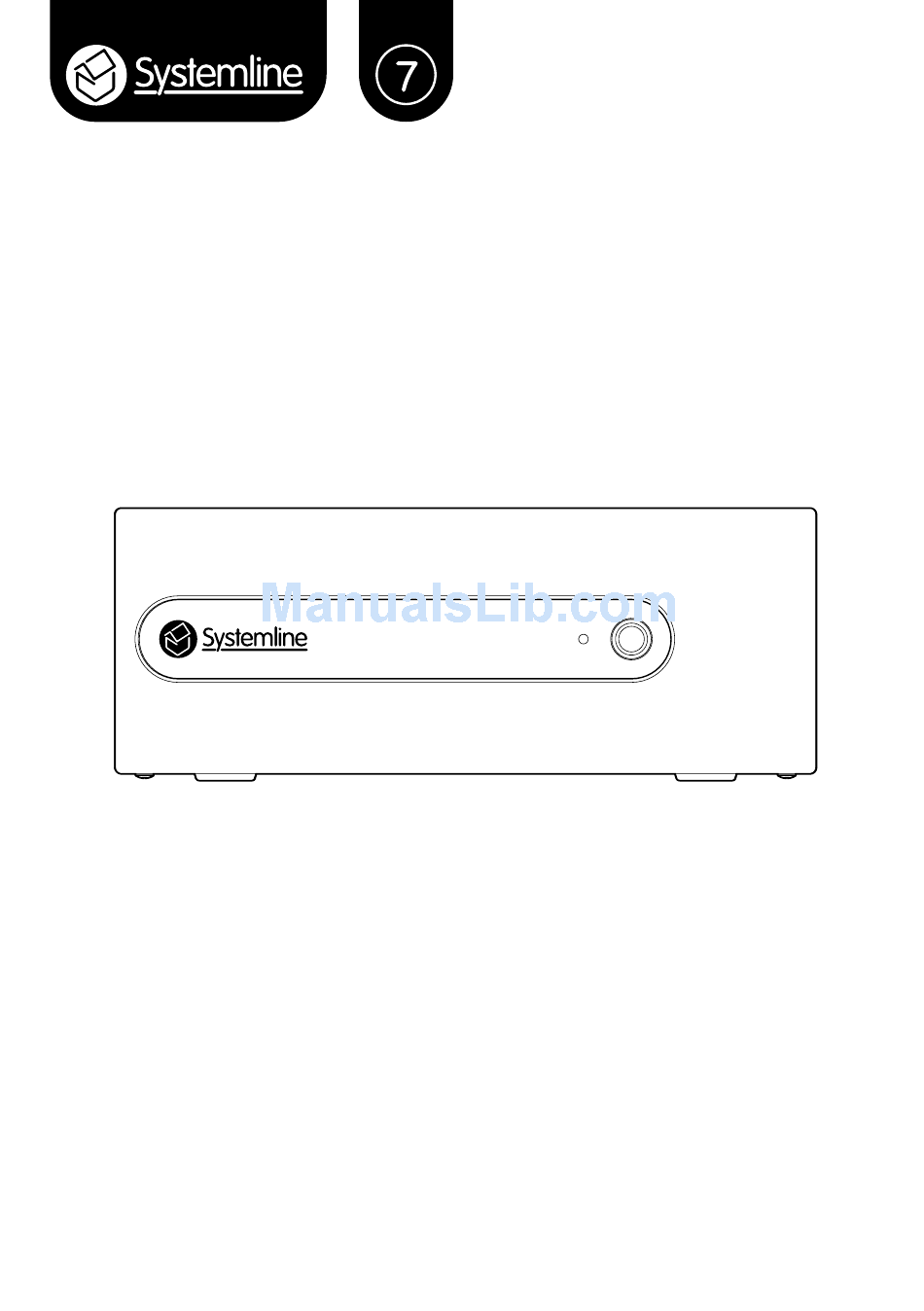

- Page 1 Instruction manual NetPower Amplifier Systemline 7 Stereo Power Amplifiier SN6100...
-
Page 2: Important Safety Instructions
Important safety instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 3 Instructions de sécurité importantes 1. Veuillez lire ces instructions. 2. Veuillez conserver ces instructions. 3. Veuillez prendre connaissance de tous les avertissements. 4. Veuillez suivre toutes les instructions. 5. N’utilisez pas cet appareil a proximite de l’eau. 6. Nettoyez uniquement avec un chiffon sec. 7.
-
Page 4: Table Of Contents
Contents 1.0 NetPower pack contents 2.0 Introduction 3.0 Installing And Operating NetPower 3.1 Wall Mounting 3.2 Rear Panel 3.3 Front Panel 4.0 Specifications Power Audio DC Trigger Auto switch on General... -
Page 5: Netpower Pack Contents
1.0 NetPower pack contents 1.1 NetPower x 1 1.2 Bridged mode link x 1 1.3 Mounting brackets x 2 1.4 Mains cable x 1 1.5 Operating manual x 1 2.0 Introduction The NetPower is a stereo audio power amplifier for use in installed audio systems. It has line level inputs, directly connected line outputs, and can drive one or two pairs of loudspeakers with a combined impedance down to 4Ω. -
Page 6: Installing And Operating Netpower
3.0 Installing And Operating NetPower 3.1 Wall Mounting 1. Remove two screws from the underside of the NetPower. Both screws must be from the same side of the unit. 2. Align the bracket as shown and secure to the unit using the two screws removed previously. 3. - Page 7 4. Align the second bracket as shown and secure using the two screws removed previously. 5. Mount NetPower onto a wall using suitable fixings for your installation. Wall fixings not supplied...
-
Page 8: Rear Panel
3.2 Rear Panel 1. Power Inlet Before making any connection, check that the mains voltage setting printed on the rear panel is the same as your local mains supply. Plug the female (socket) end of the power cord into the power inlet on the rear of the amplifier. - Page 9 12V Trigger Mode When 12V TRIGGER mode is selected the NetPower may be switched into or out of standby using a suitable DC source connected to the 12V trigger input. Unit in Standby Unit Operational DC voltage applied to Unit switches out of standby No change DC TRIG jack DC voltage removed...
-
Page 10: Front Panel
Alternatively a stereo source may be used if it is designed so that its left and right outputs may safely be shorted together (“mono-ed”). The Systemline NetAmp’s line output is designed so that it may be connected in this way. -
Page 11: Specifications
4.0 Specifications Power 4Ω 100 W Continuous output 8Ω 55 W 8Ω bridged 200 W Standby consumption <0.5W Mains voltage Set by an internal link 115 or 230V Audio At 80% rated power, 8Ω 20Hz-20kHz <0.07% Signal / Noise ratio A weighted ref 55W/8Ω... - Page 12 Stortford Hall Industrial Park Dunmow Road Bishops Stortford Hertfordshire CM23 5GZ United Kingdom www.armourhome.co.uk ©2014 Armour Home Electrioncs, All rights reserved. Our policy is one of continuous product improvement. We reserve the right to change the design and specifications without notice. All information is given in good faith.
